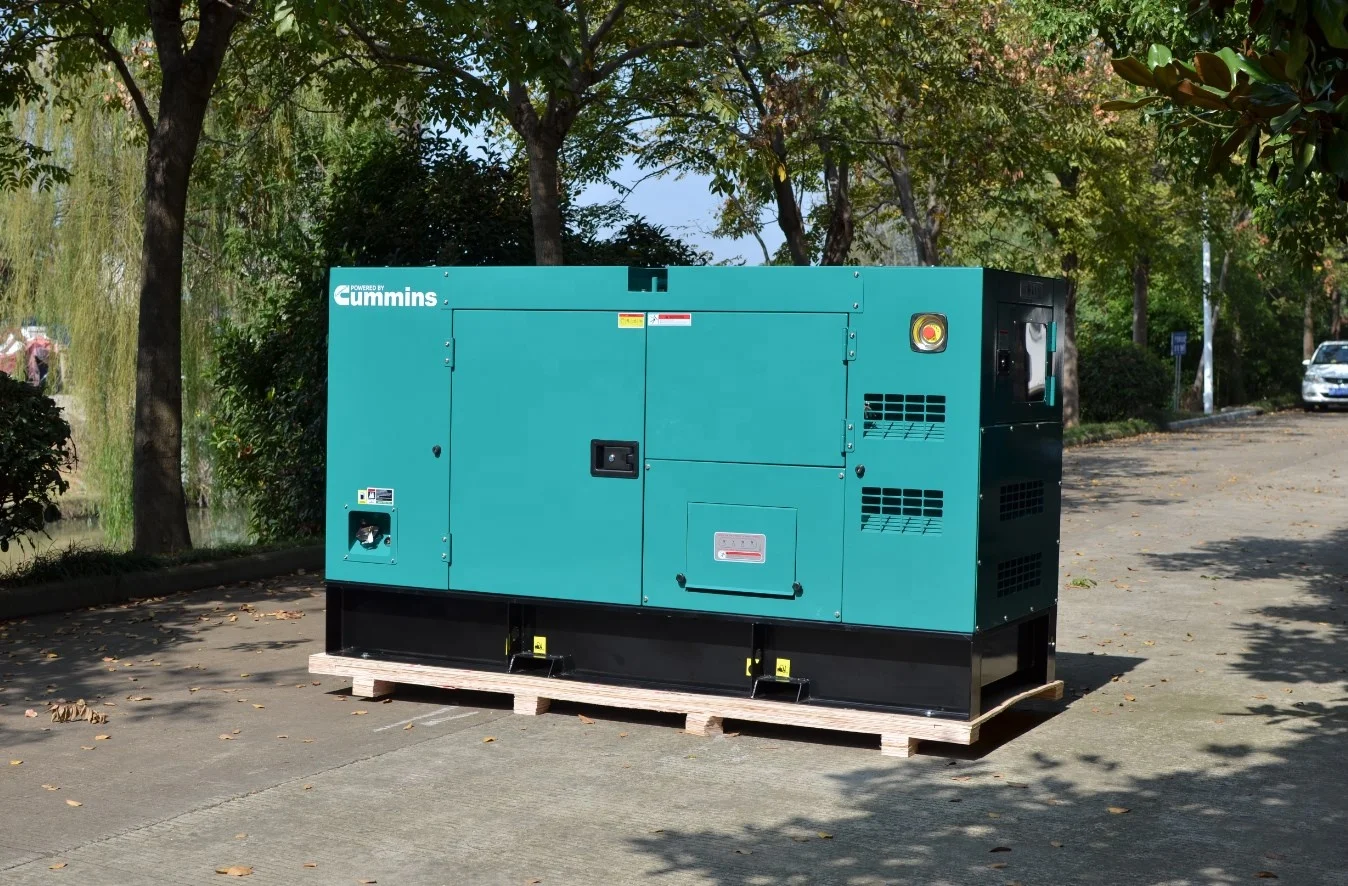

Open diesel generator 10kw 20kw 30kw 40kw 50kw 60kw 70kw 80kw genset diesel cummins 25kva
- Category: >>>
- Supplier: Taizhou Sutech Power Machinery Co. Ltd.
Share on (1601005258949):
Product Overview
Description
Product Description
20KW/25KVA diesel generator sets with Cummins engine,we can provide you with the silent type and the open type and so many other types.Our sutech has a long history of producing the generator sets,and our products has been applied in all kinds of areas.Give you the best quality and after-sale service are our pursuit for ever.
Generator sets engine parameters
Engine Model | 4B3.9-G11 |
Engine manufacturer | Cummins |
Number of Cylinders | 4 cylinders |
Cylinders arrangement | Vertical in line |
Cycle | 4 stroke |
Aspiration | Natural |
Bore×Stroke | 102mm x120mm |
Displacement | 3.9L |
Compression ratio | 16.5:1 |
Standby Power/Speed | 22KW/1500rpm |
Speed Governor | Mechanical |
Cooling System | Forced water cooling cycle |
Steady speed droop | ≤1% |
Total lubrication system capacity | 9L |
Fuel Consumption at 100% Load | 209 g/kw.h |
Starter Motor | DC24V |
Alternator | DC24V |
Generator sets alternator parameters

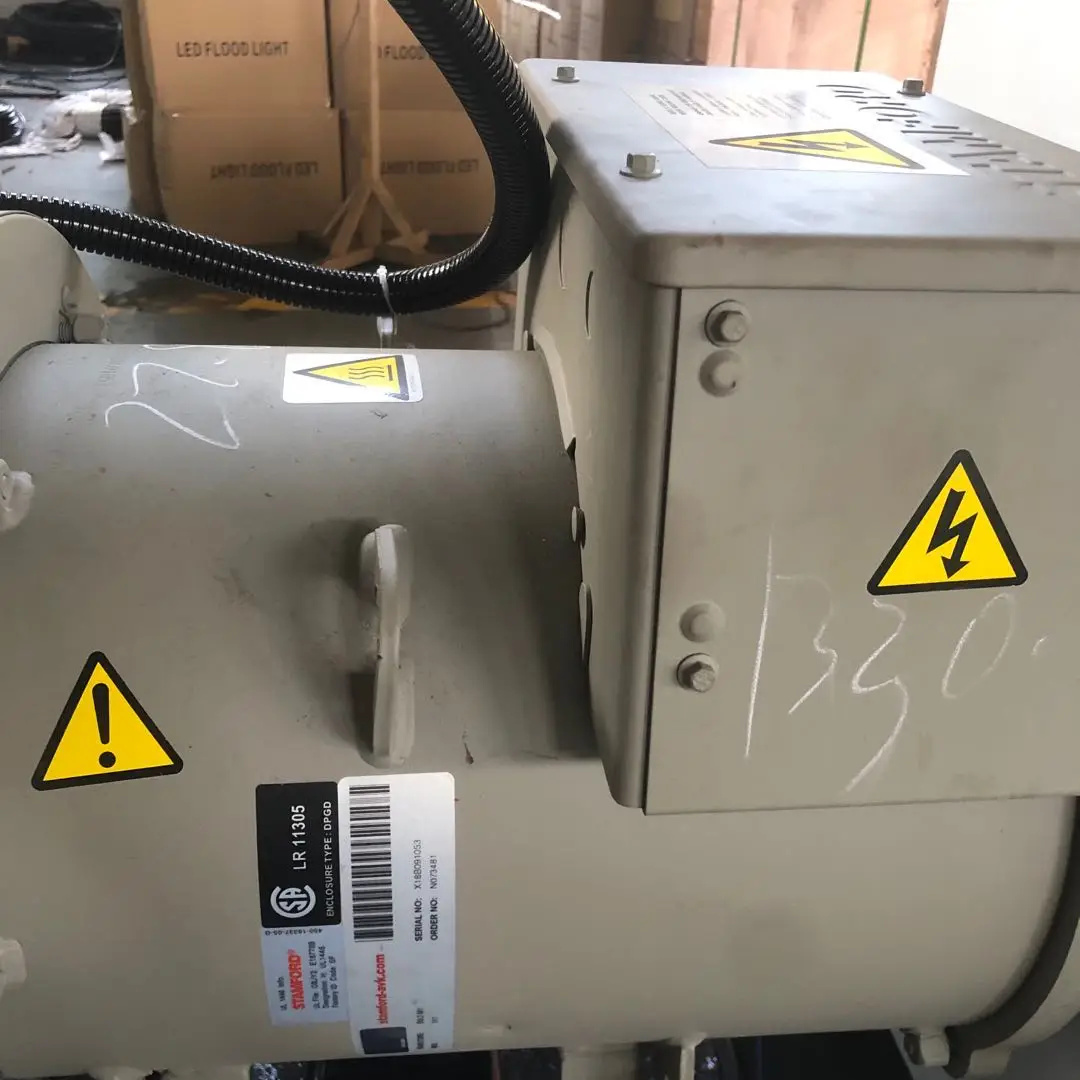

Alternator brand | Stamford,Marathon,Leroy Somer,Mecc-alte,TWGII.... |
Prime power | 25KVA |
Frequence/speed | 50HZ |
Exciter type | Brushless |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ±0.5% |
Insulaton Grade | H |
Protection Grade | IP23 |
Generator sets control panel parameters

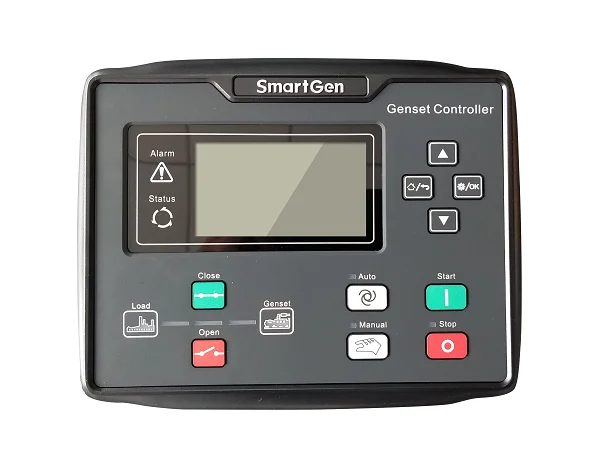

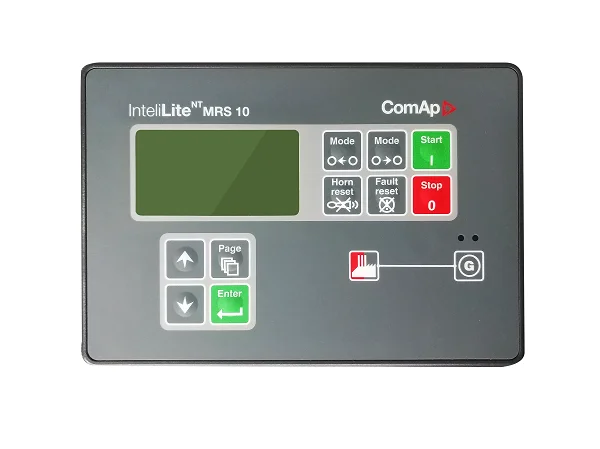

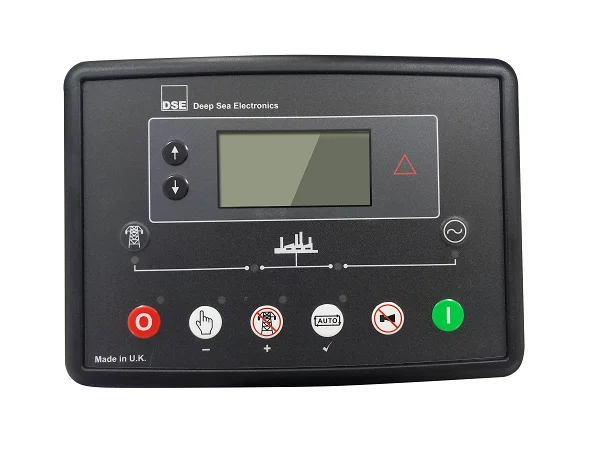

Brand | Deepsea/ComAp |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. | Deepsea Series ComAp SmartGen |

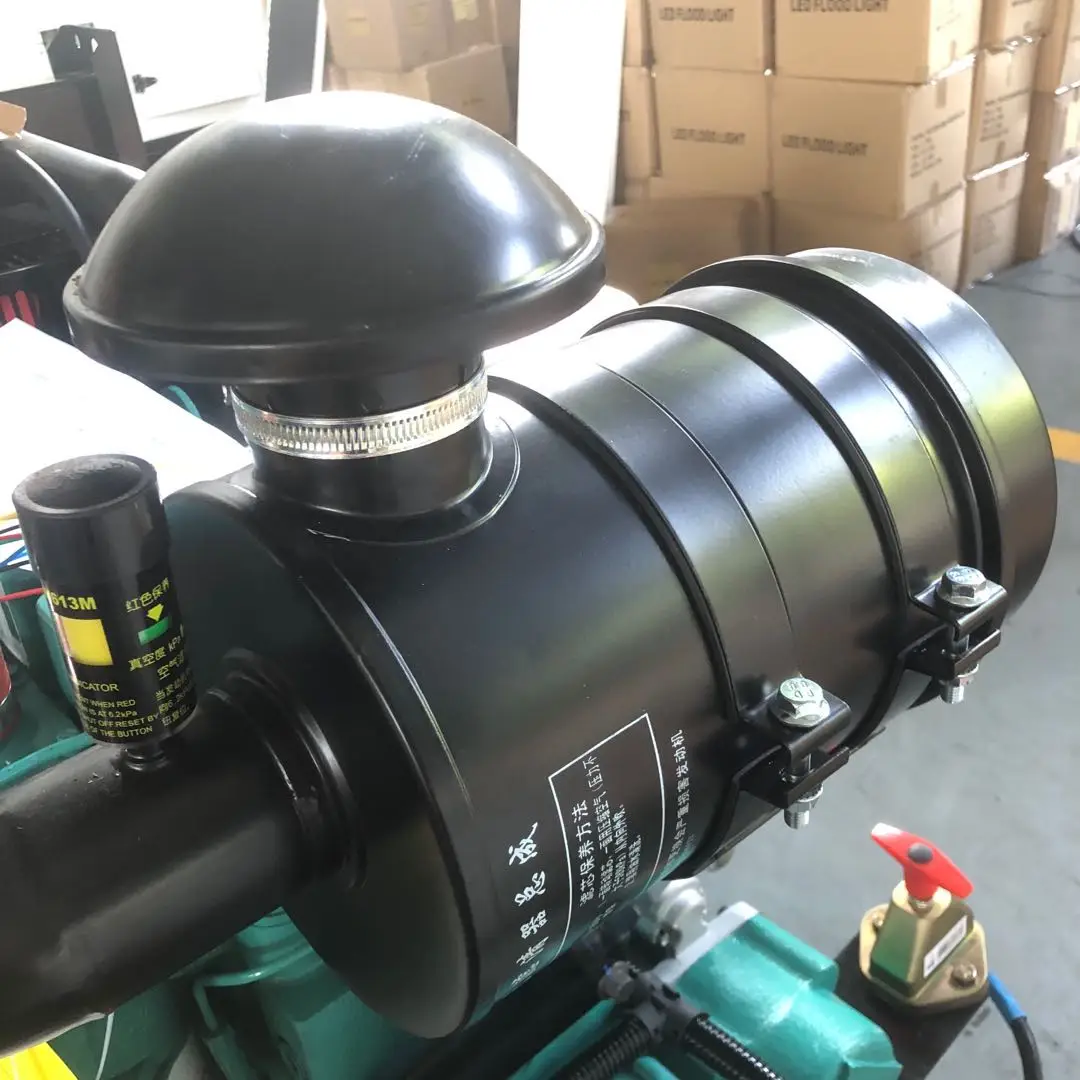

Detailed Images

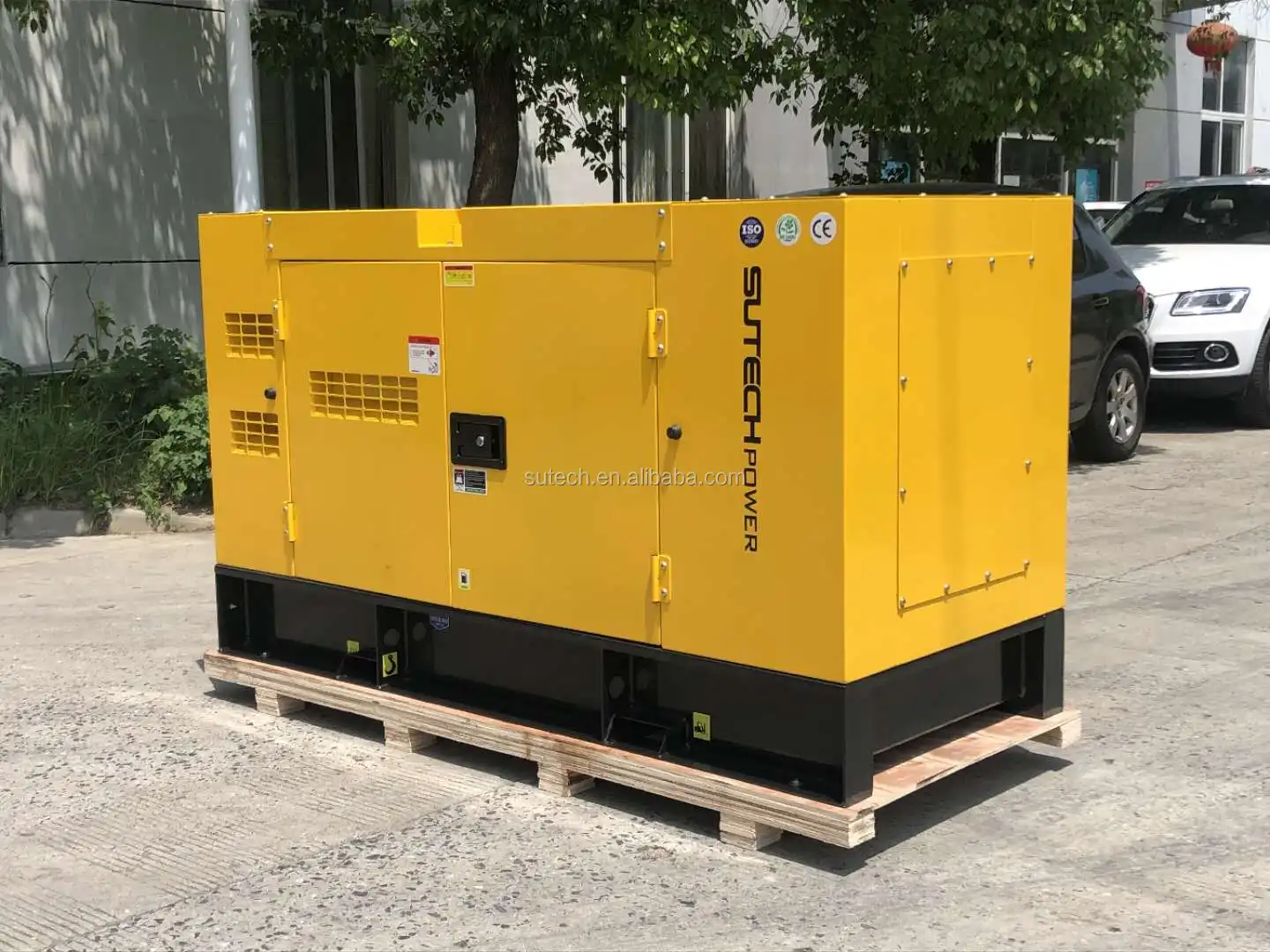

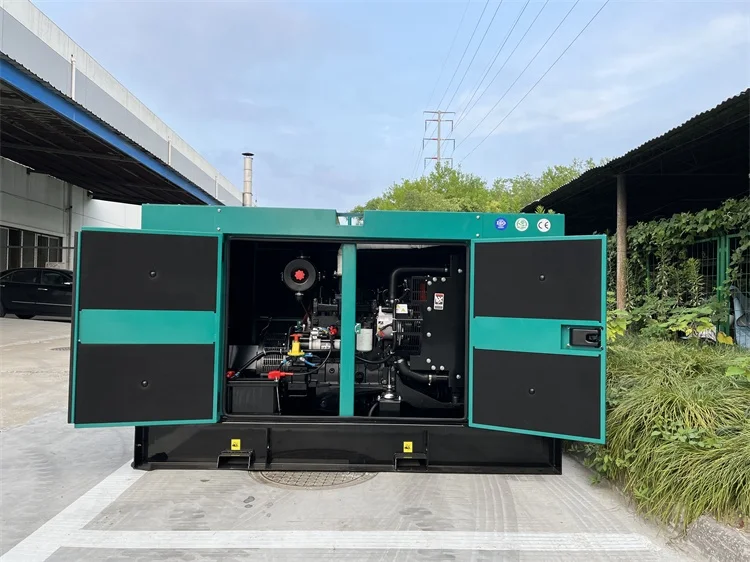

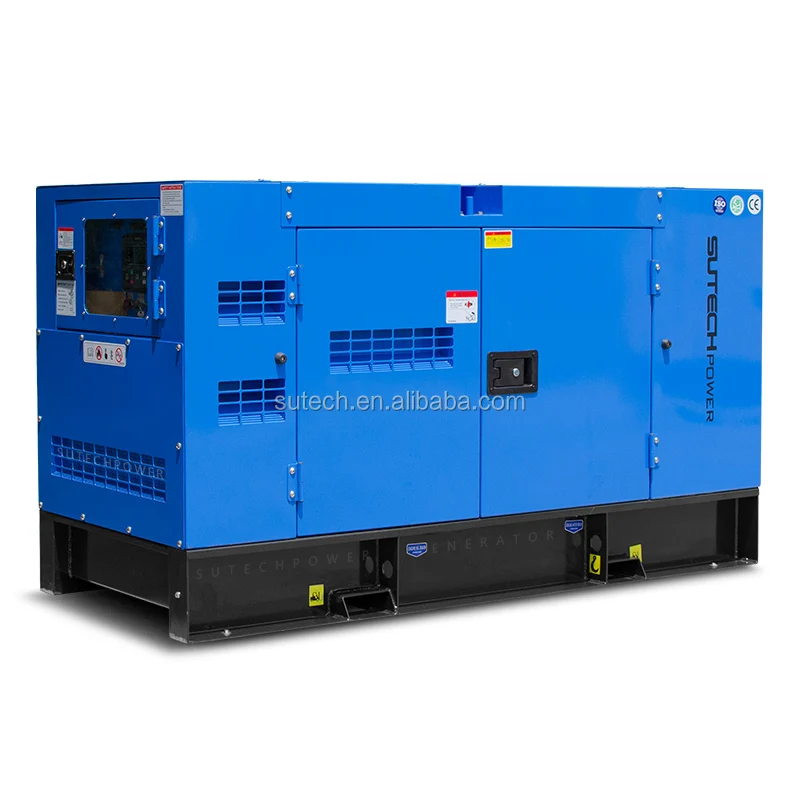

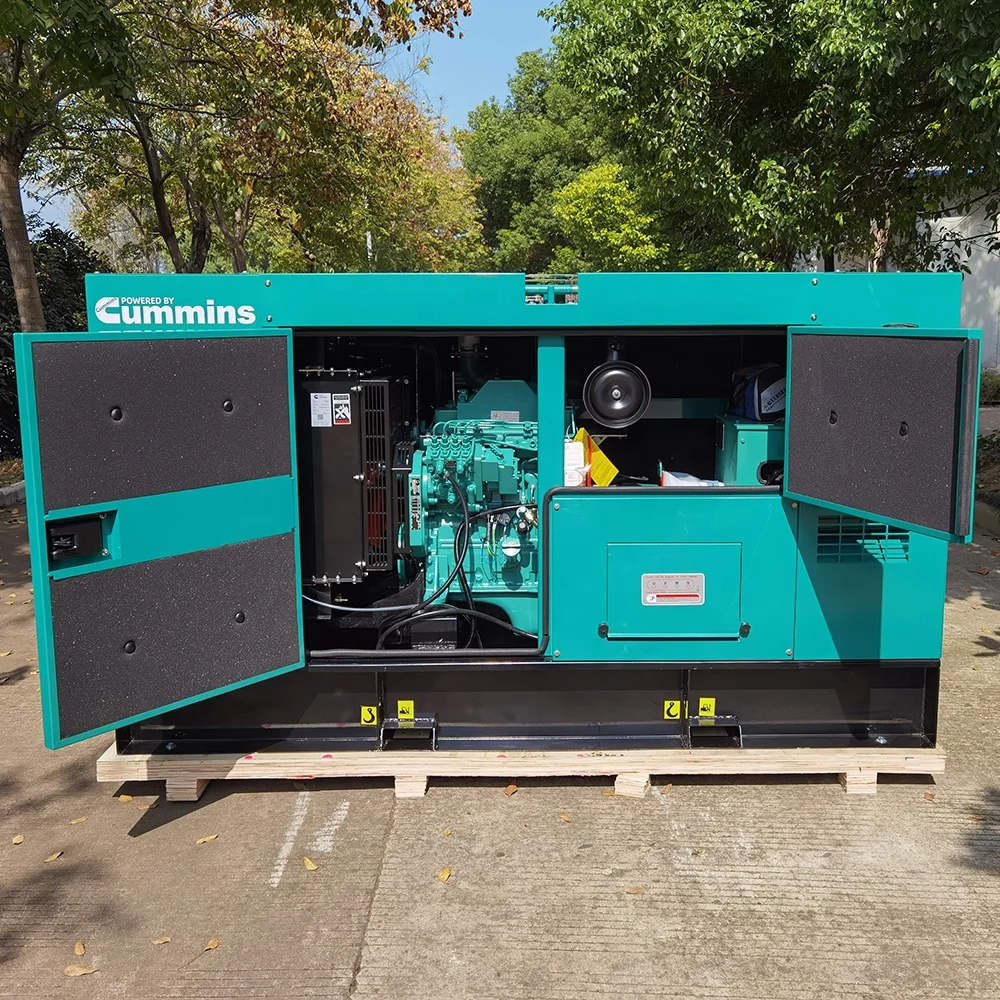

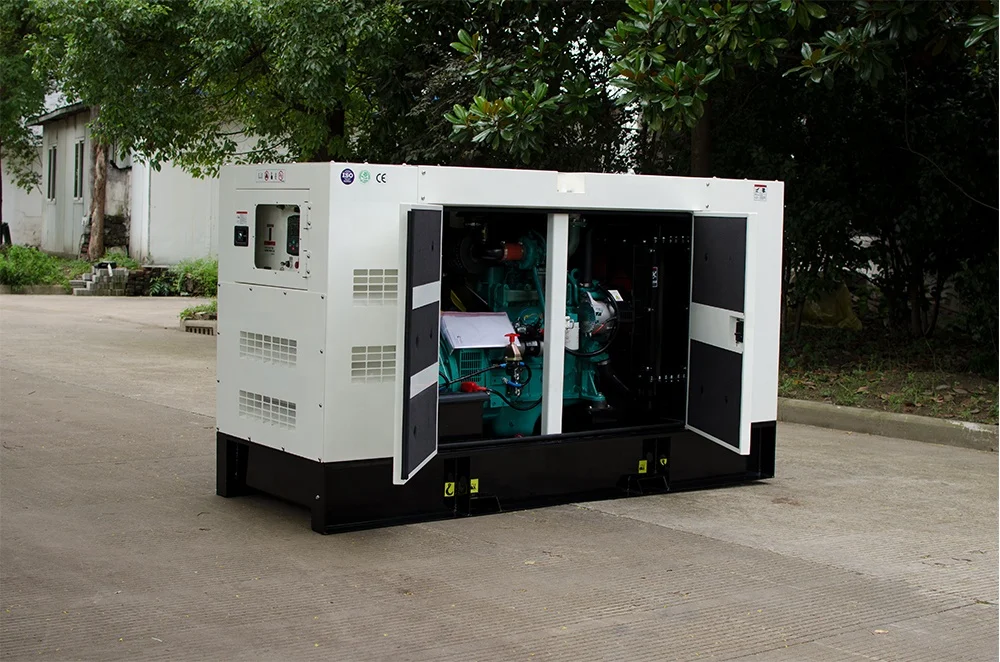

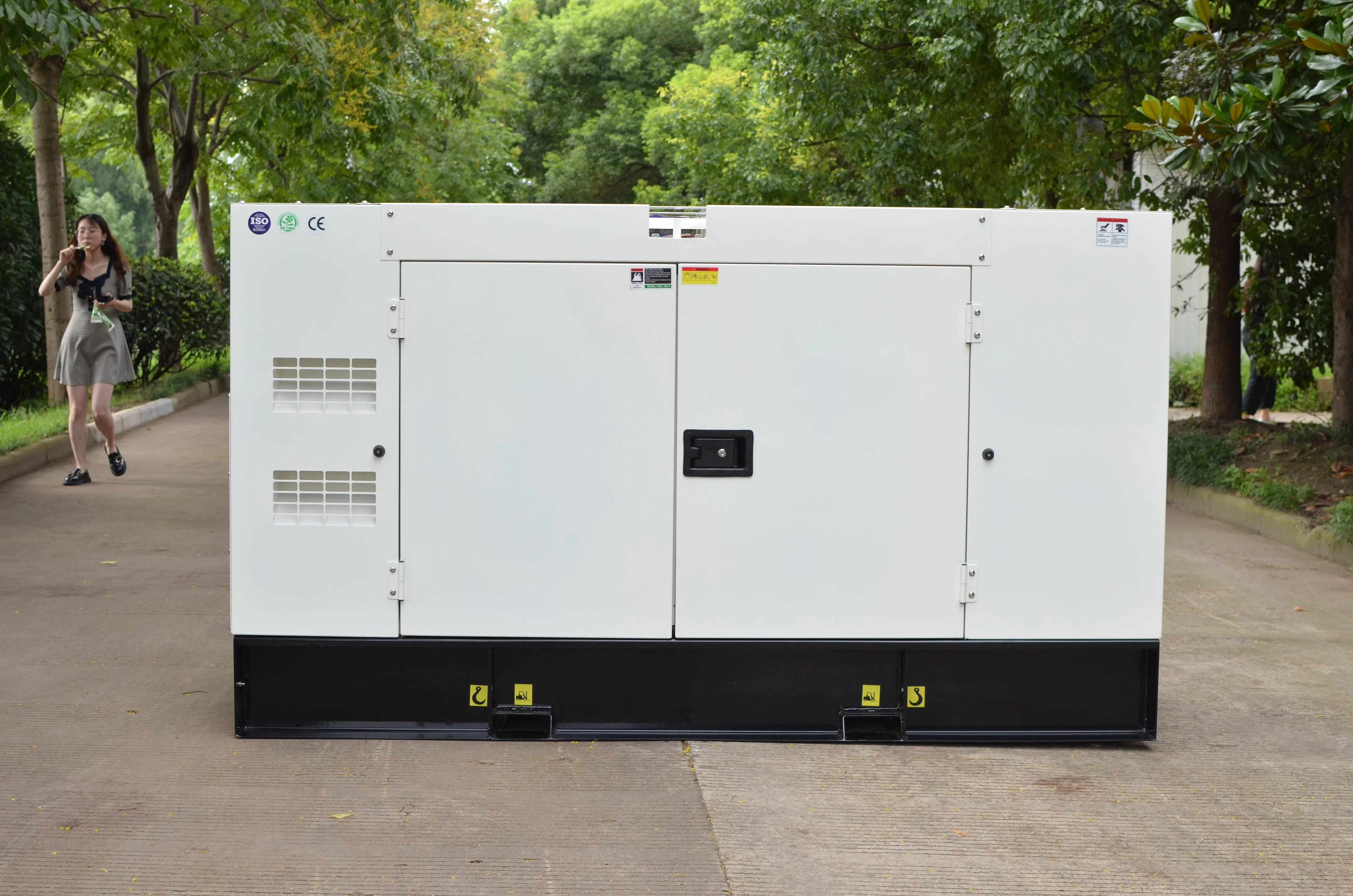

Silent Type

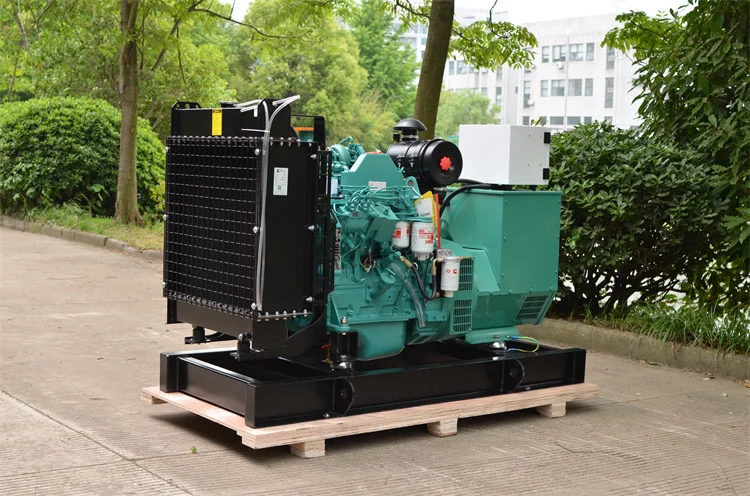

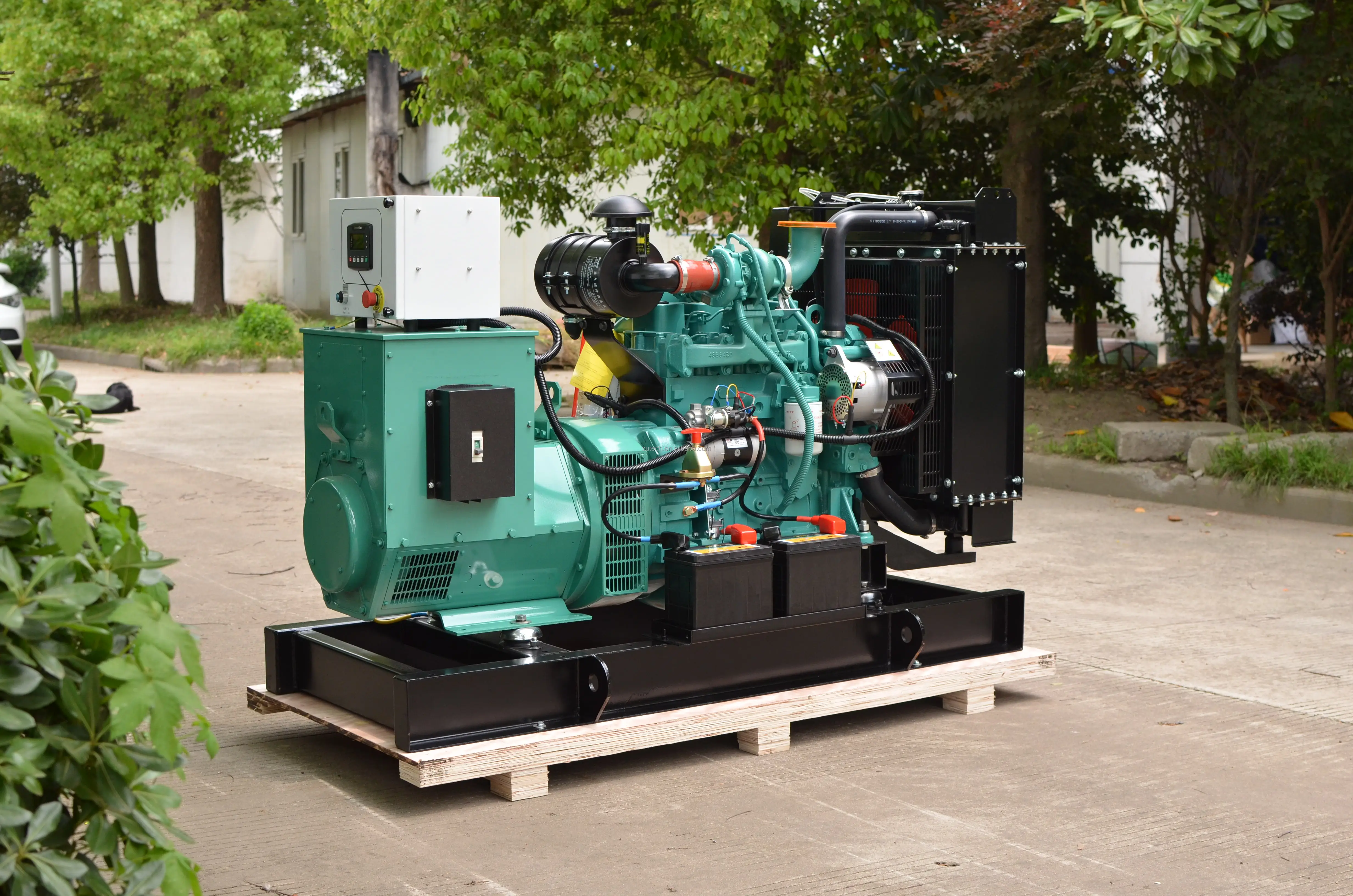

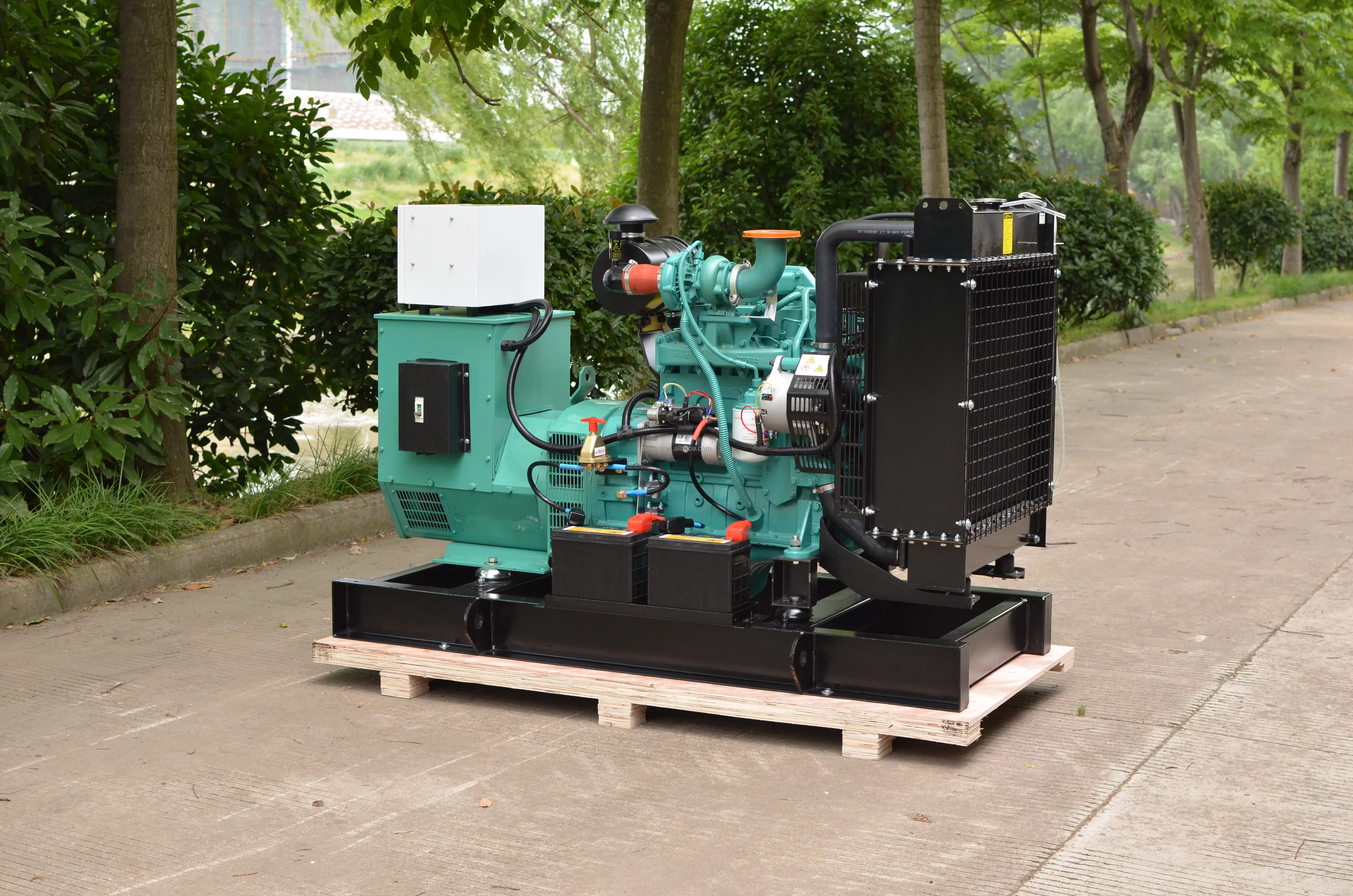

Open Type
Related Products
Company Introduction
mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 1kva to 3000kva
diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA, TWGII alternators.

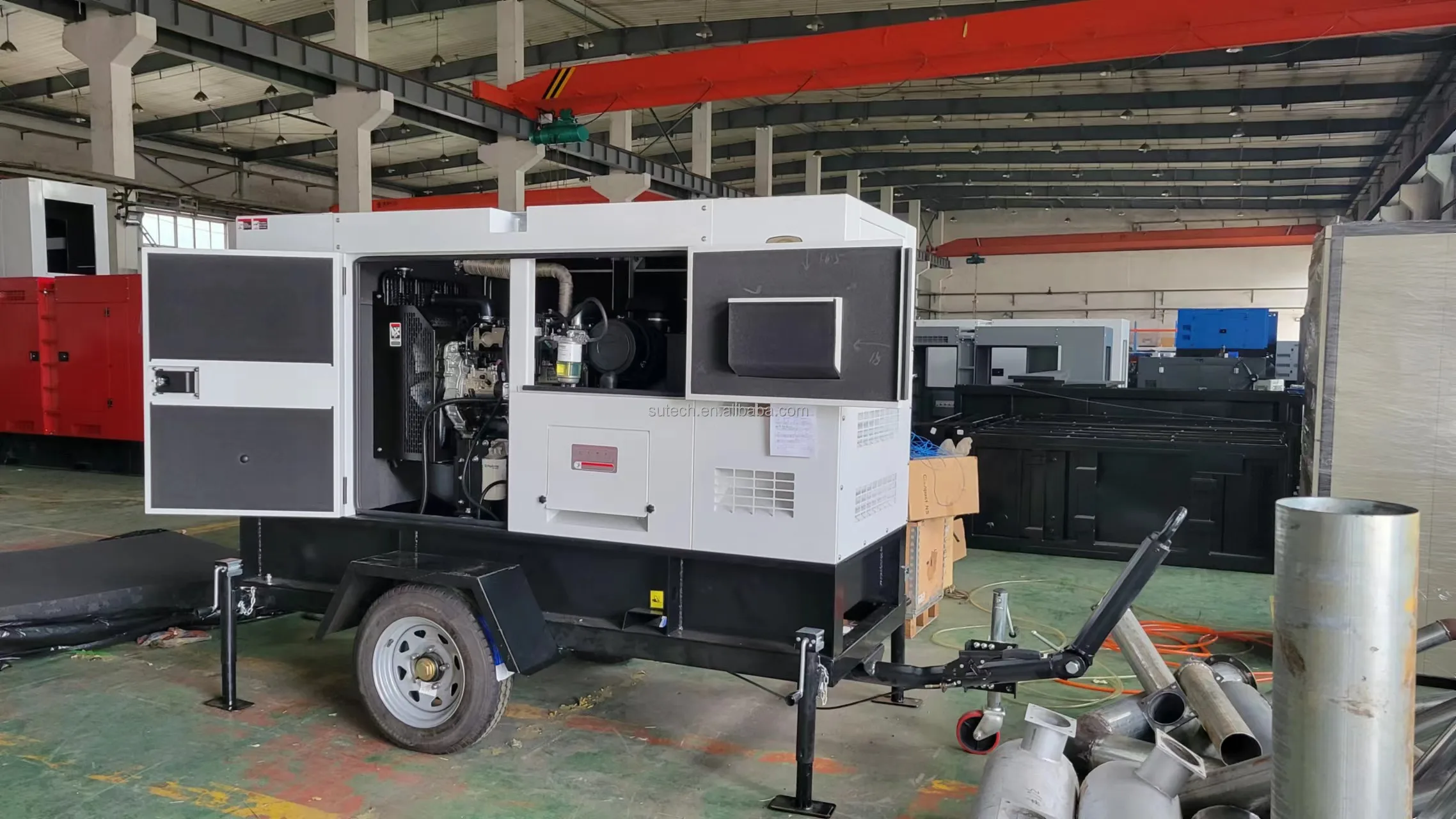

Our gensets mainly use DEEPSEA and SMARTGEN control panel. According to your requests, they can be open type, silent type, mobile type and container type.Our goal is to provide ourusers the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
Our Services & Strength
We have a strong team for our clinets,from the technician to the logstics.Giving you the best soultion is our forever pursuit.
Certifications
Packing&Shipping
FAQ
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
