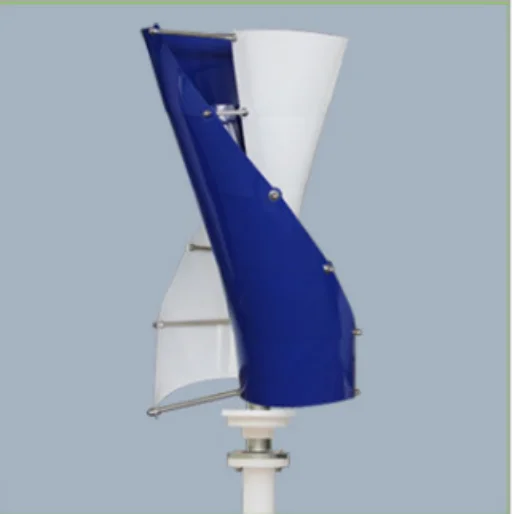

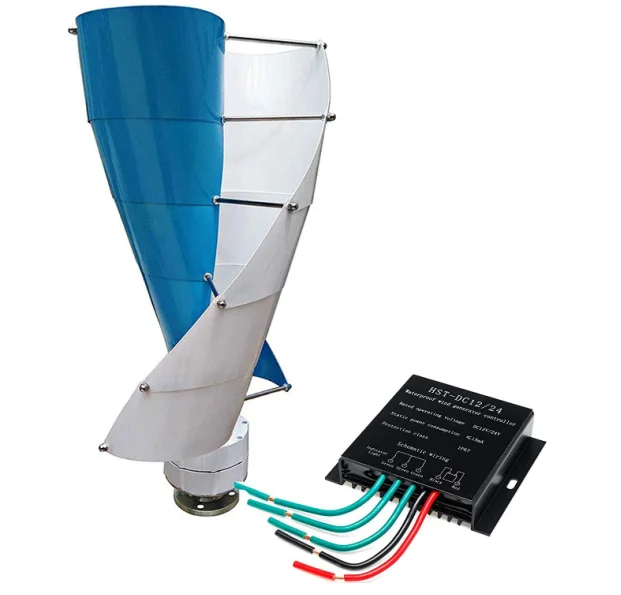

500w 5kw Helical Alternative Renewable Energy Generators Vertical Axis Wind Turbine
- Category: >>>
- Supplier: Linfen Kunyuan Science And Trade Co. Ltd.
Share on (1601005265783):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
Model | 500W | 1000W | 2000W | 3000W | 4000W | 5000W | |||||
Rated power | 500W | 1000W | 2000W | 3000W | 4000W | 5000W | |||||
Maximum power | 550W | 1050W | 1660W | 1940W | 2150W | 2050W | |||||
Rated voltage | 12V/24V/48v | 12V/24V/48v | 12V/24V/48v | 12V/24V/48v | 12V/24V/48v | 12V/24V/48v | |||||
Starting wind speed | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | 3m/s | |||||
Rated wind speed | 11m/s | 11m/s | 11m/s | 12m/s | 12.5m/s | 12.5m/s | |||||
Safe wind speed | 50m/s | 50m/s | 50m/s | 50m/s | 50m/s | 50m/s | |||||
Net weight of main engine | 12KG | 16KG | 18KG | 22KG | 25KG | 27KG | |||||
Wheel diameter | 0.7米 | 1米 | 1.3米 | 1.3米 | 1.3米 | 1.4米 | |||||
Number of blades | 0.46m | 0.46m | 0.46m | 0.5m | 0.54m | 0.56m | |||||
electric generator | 10片 | 10片 | 10片 | 12片 | 12片 | 12片 | |||||
generator | Three-phase permanent magnet alternator | ||||||||||
Blade material | Aluminium alloy | ||||||||||
Braking method | electromagnetic | ||||||||||
Wind direction adjustment | Automatic windward | ||||||||||
Operating temperature | -40—80℃ | ||||||||||
Recommend Products
SALES AND SERVICE NETWORK
Successful Project
Field power supply system
Installed next to the gas station
Wind and solar complementary monitoring system
Inner Mongolia Hohhot tower power supply system
Kunming wind-wind complementary street light
Company Profile
Our company is a company specializing in import and export business. Its business scope covers instrumentation, mechanical and electrical equipment, security equipment, electrical equipment, electronic products, fire-fighting equipment, plastic products, furniture, sporting goods, hardware and electrical appliances, household appliances, needle textiles, pipes, building materials,labor insurance supplies, environmental protection equipment, traffic safety equipment, laboratory equipment, chemical products,food import and export, business and other commodities. As a professional import and export company, we attach great importance to product quality and service process management.We strictly control the quality and safety of our products, and ensure compliance with relevant laws and regulations and nternational quality standards.Our team members have rich experience and solidprofessional literacy, and can provide customers with comprehensive and personalized solutions and high-quality services.
Product packaging
FAQ
First: Which is better for horizontal axis wind turbines and vertical axis wind turbines?
Answer: The horizontal axis is more efficient, and the vertical axis is easy to start. Foreign countries like the vertical axis, and domestic countries like the horizontal axis. It depends on personal preferences!Relatively speaking, the horizontal axis is widely used.
Second: Which one is suitable for home use?
Answer: Each one is suitable, first you need to tell me,.What electrical appliances do you have in your home?Which is the most powerful electrical appliance?Household electricity is 220VOR110VOR380V.We will configure the plan and quotation for you! We all have peripheral equipment for wind turbines, such as controllers, inverters, and towers.According to your own requirements, we can give you the corresponding configuration plan, or which you can purchase locally, and we provide parameters.
Third：
I have a farm and I want to install a wind turbine!
I am very interested in wind turbines!
Are there any recommended wind turbines?
Our country has very good wind resources. Can we install wind turbines?
The answer to the above question:
First of all, according to your own needs, you can ask me for a copy of the configuration of the wind turbine or according to the parameter requirements on my website, you can choose and choose your own wind turbine that suits you.
I need you to provide me with the following parameter table: What electrical appliances do you have in your home?Which is the most powerful electrical appliance?Household electricity is 220VOR110VOR380V.We will configure the plan and quotation for you!We all have wind turbines, controllers, inverters, towers, and batteries. It depends on whether you want to configure them fully, or which ones you can purchase locally. We provide parameters.
Off-grid is to generate and store electricity by yourself, and grid-connected is to connect to the national grid. Which one do you have?
Fourth: I have now installed a solar power generation system. Can I connect to a wind turbine?
answer:Can be connected to wind turbines.
Question: How much power is the solar system?Off-grid or connected to the grid?How is off-grid photovoltaic connected in series and parallel?What is the voltage of the off-grid battery?？
If it is a grid-connected system, how big is it grid-connected?？Must be informed
We can join the wind turbine system, which does not conflict with the original system!！
Fifth: I buy a 10-kilowatt wind turbine system.
Can it drive 10-kilowatt electrical appliances and household appliances?
Answer: It's not!The 10-kilowatt wind turbine is a model with 10 degrees of electricity per hour under normal conditions.It is the inverter that drives the household appliances, not the wind turbine.The inverter is divided into 220V and 380V, which one do you need to use!
Answer: It's not!The 10-kilowatt wind turbine is a model with 10 degrees of electricity per hour under normal conditions.It is the inverter that drives the household appliances, not the wind turbine.The inverter is divided into 220V and 380V, which one do you need to use!
