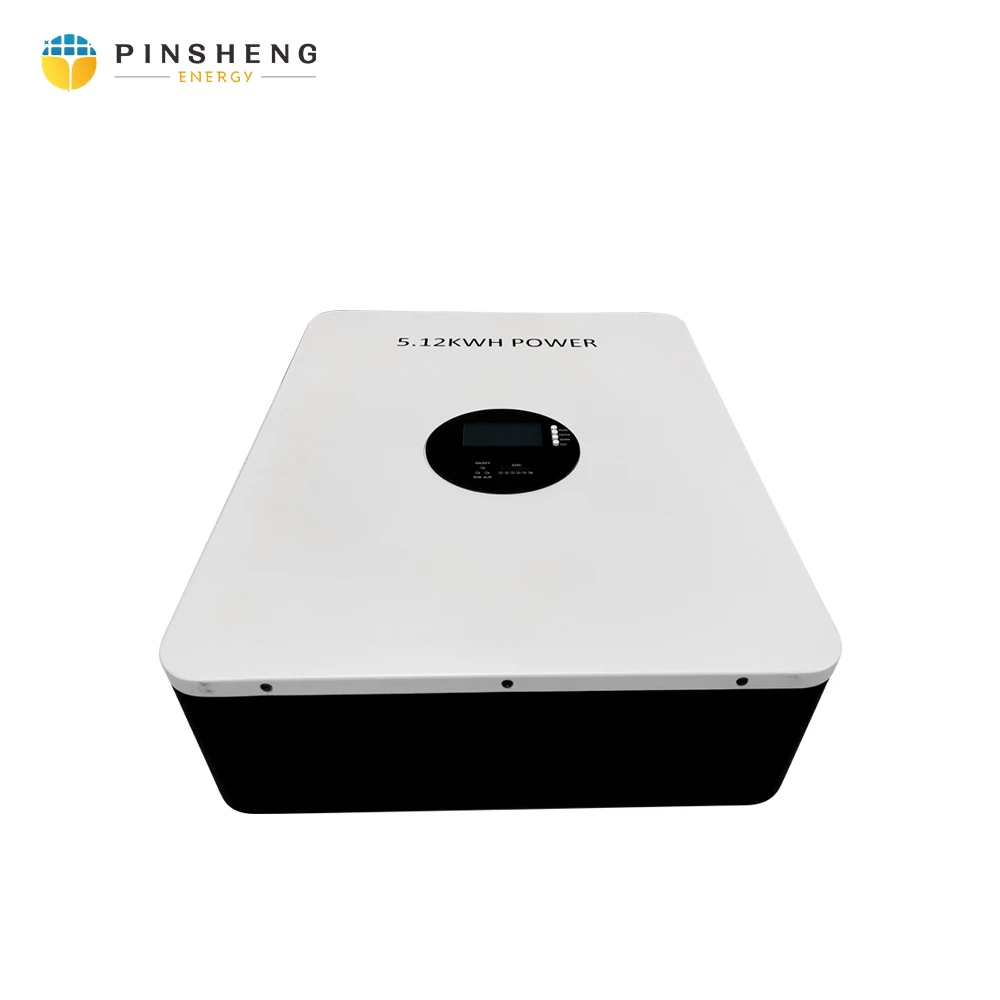

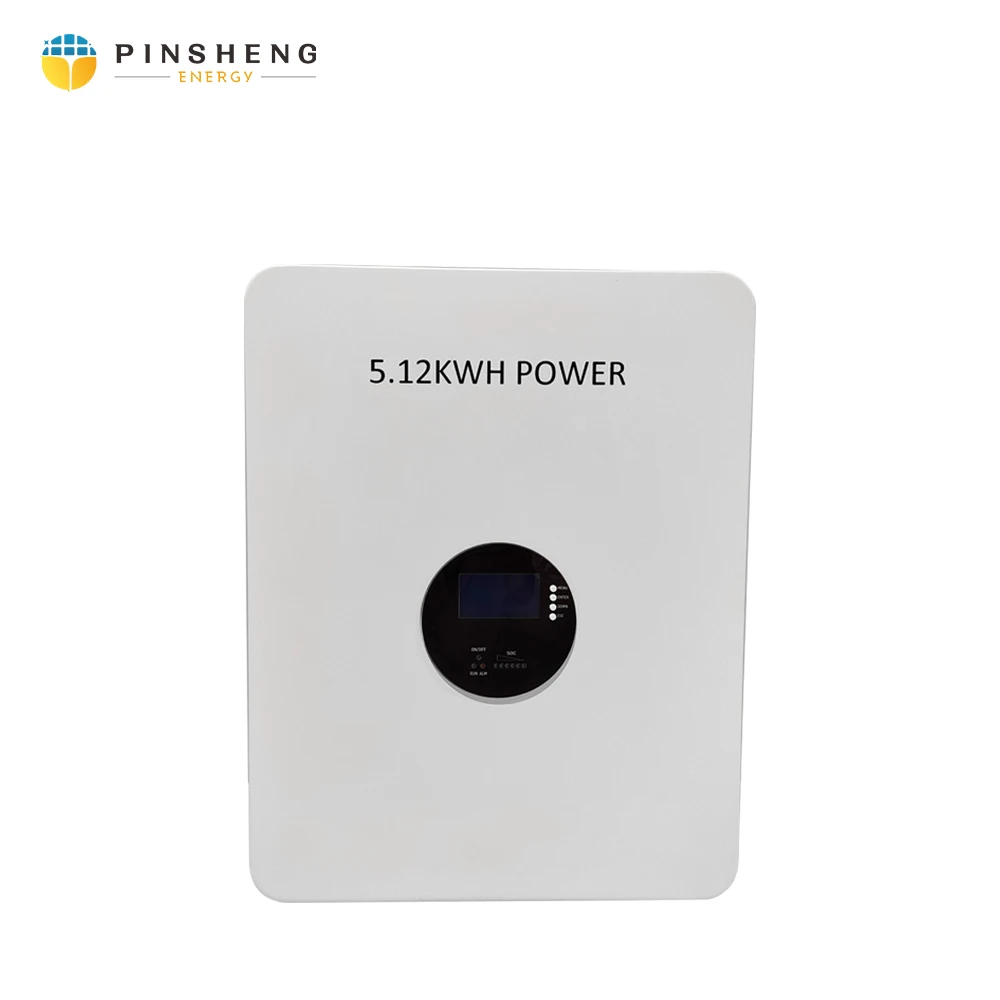

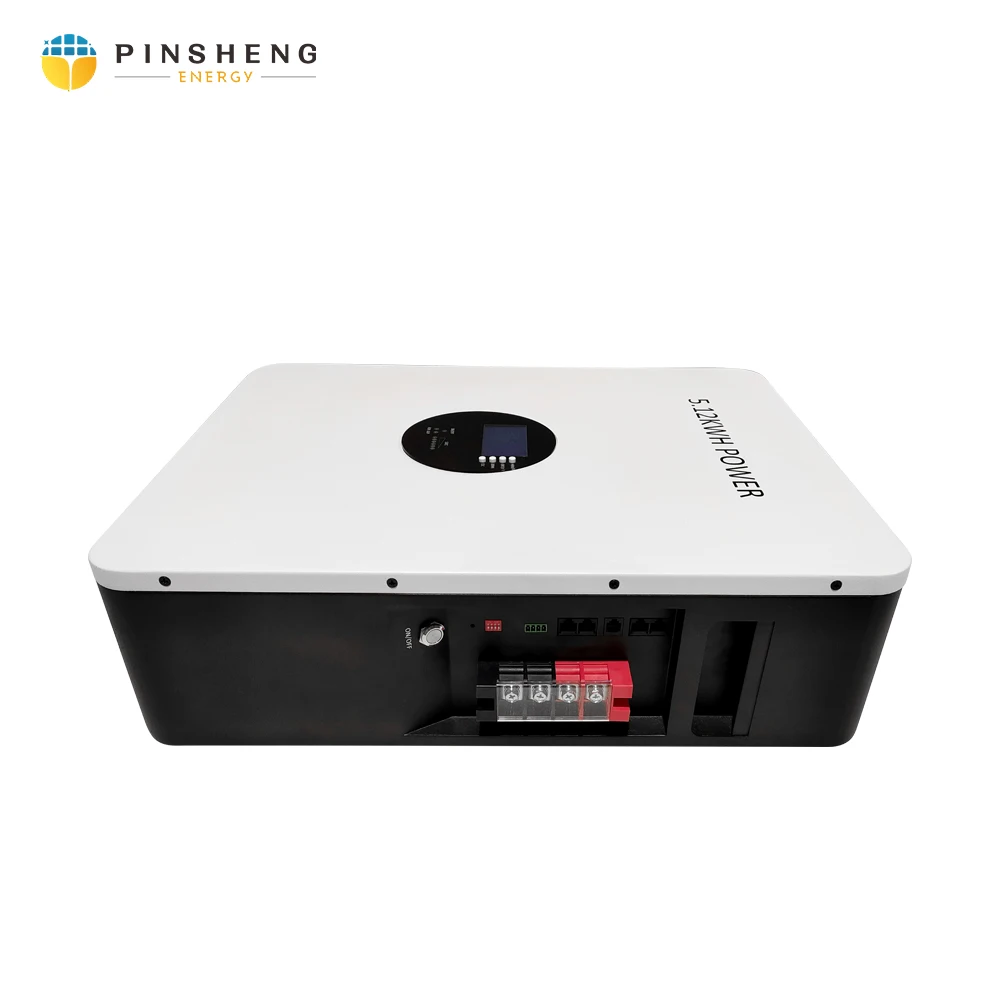

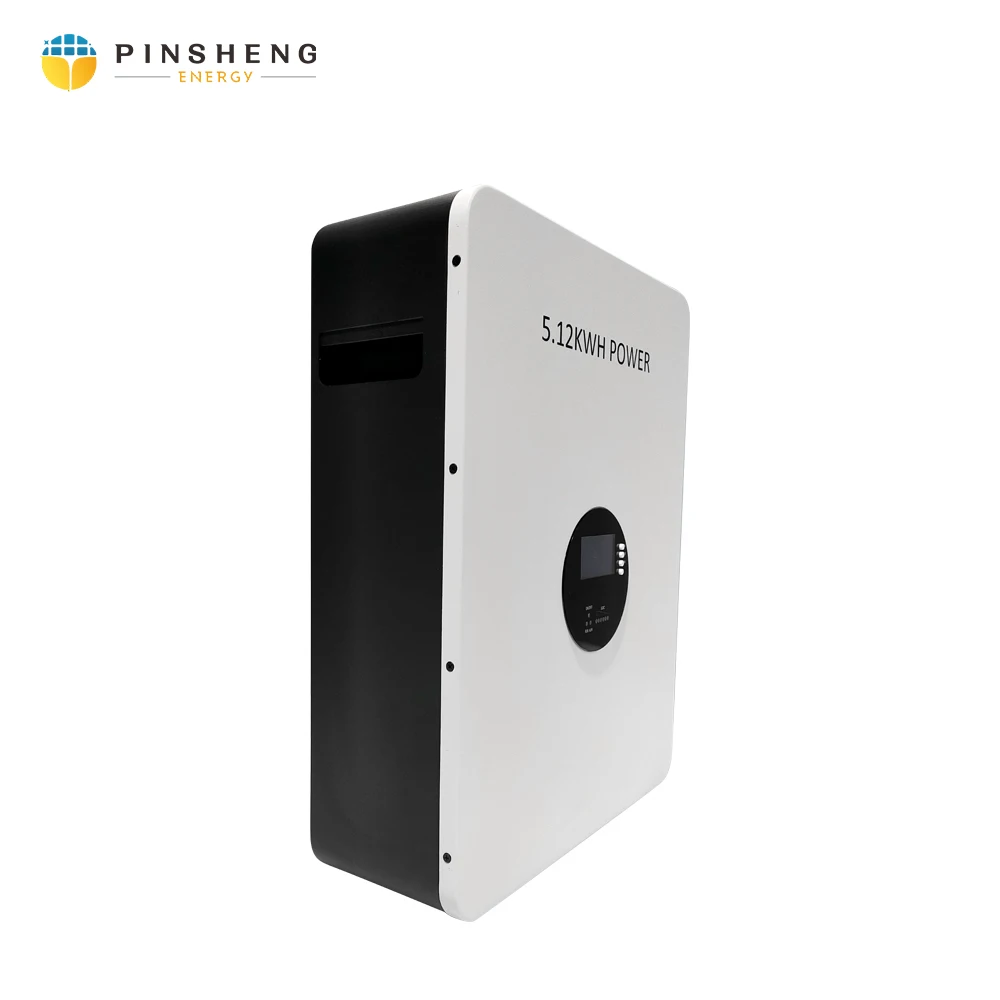

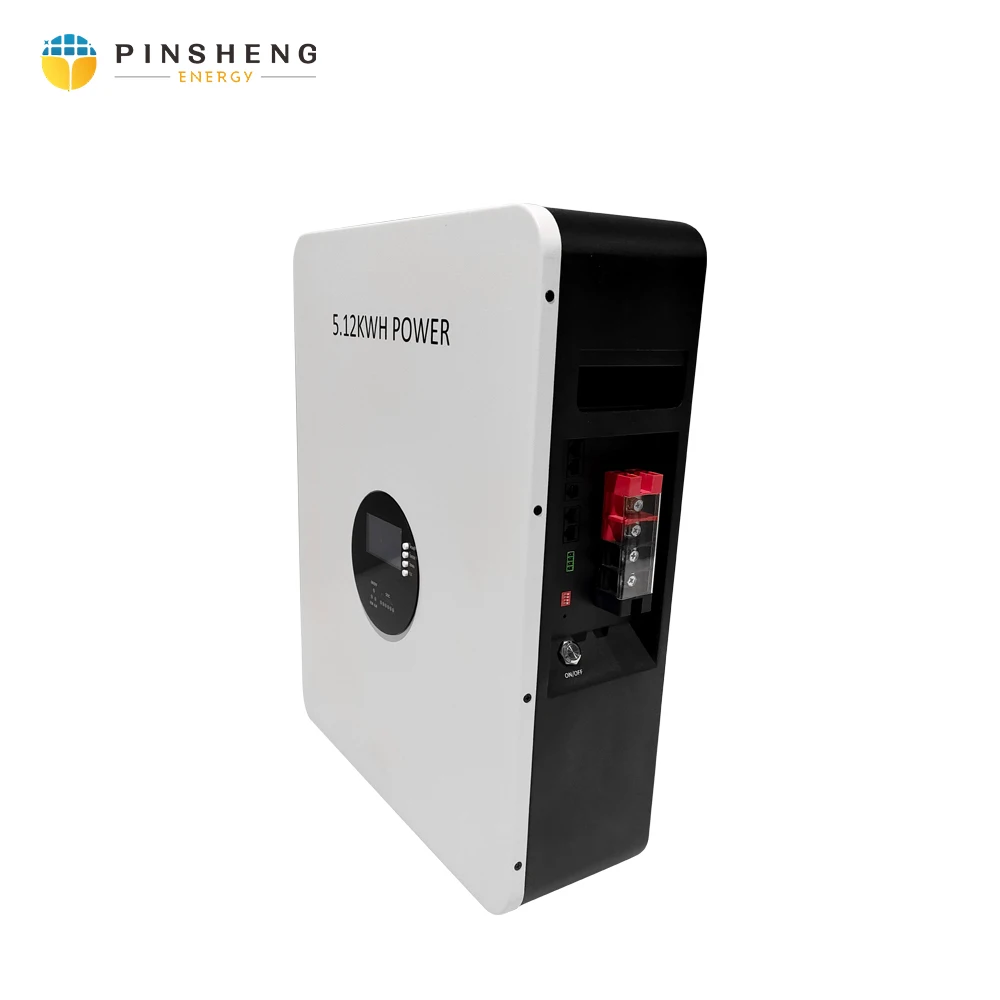

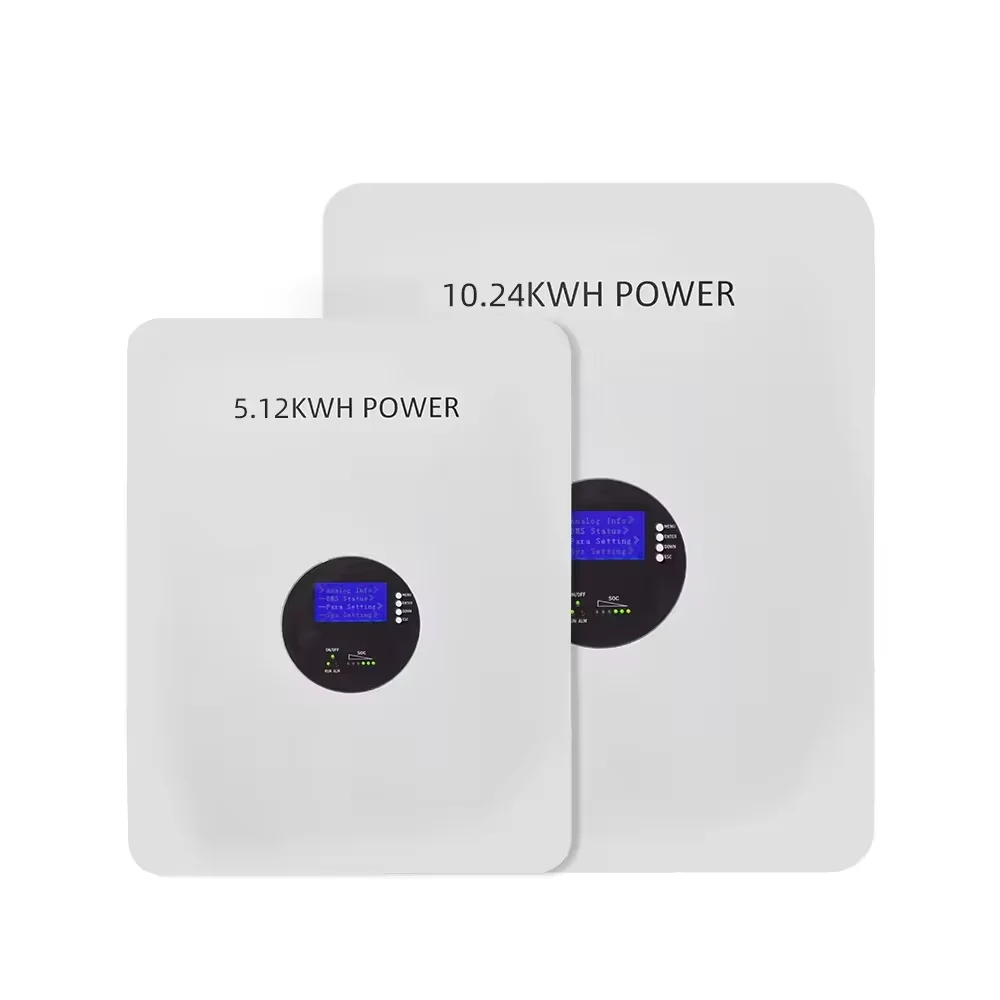

48v 5kwh wall battery 50ah 100ah 10kwh 15 kwh lithium ion battery lifepo 4 energy solar storage for ev car
- Category: >>>
- Supplier: Yongzhou Picell Electronics Co. Ltd.
Share on (1601005283586):
Product Overview
Description
Basic parameter | ||||
Battery Type | LiFePO4 | |||
Interface | RS485/CAN | |||
Protection grade | IP20 | |||
Operating temperature | -15°C-55°C | |||
Built-in interface | RS485 | |||
Protection grade | IP20, indoor use | |||

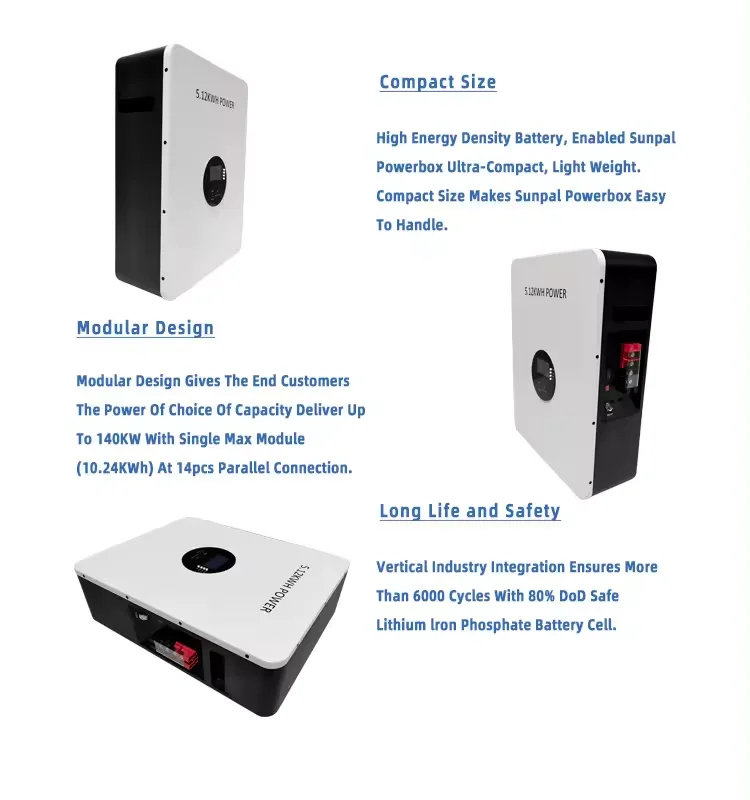

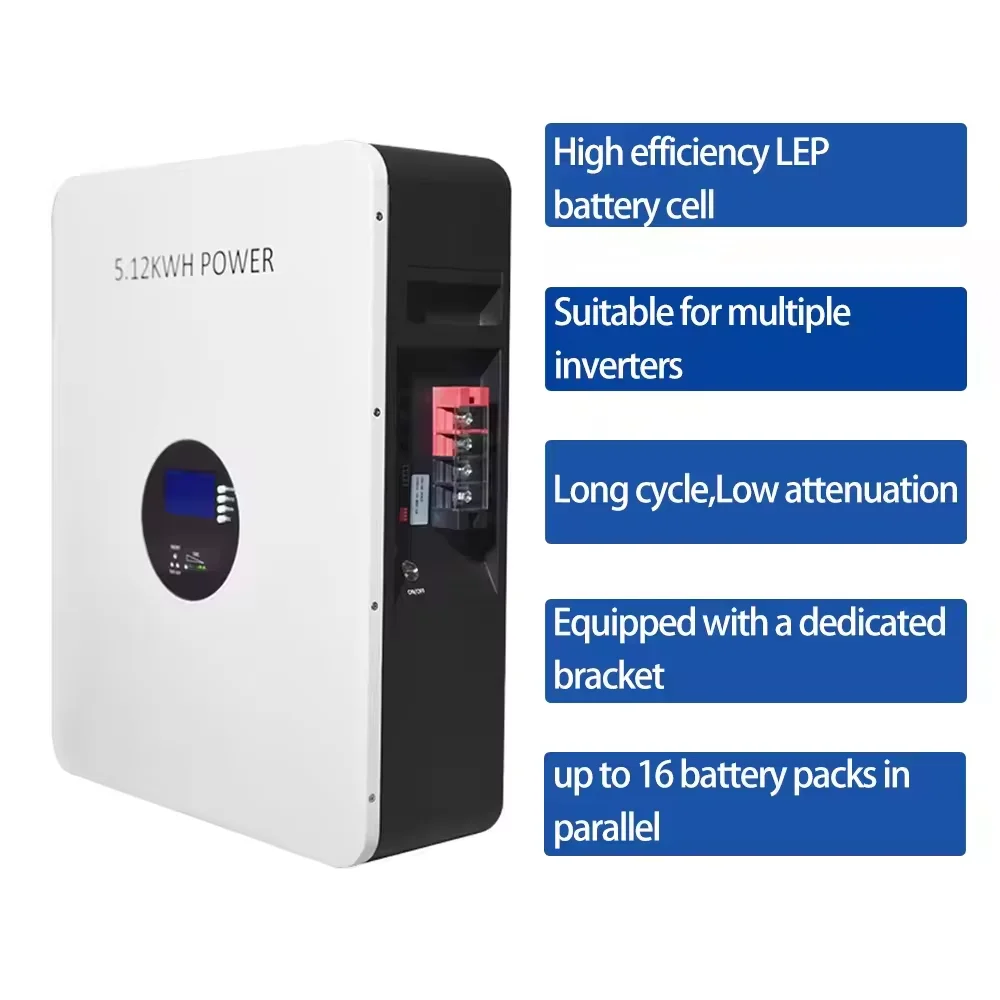

Statement | Up to 16 battery packs in parallel | |||
Battery parameter | ||||
Input battery voltage range | 40-58.4V | |||
Rated voltage of battery pack | 51.2V | |||
Total number of batteries | 1 | |||
Battery pack size (length *width * height) | 445*565*182mm | |||
Single Battery power | 5.12kwh | |||
Maximum charging/discharging current | 50A/100A | |||
Inverter parameter | ||||
Inverter output | 5kw | 10kw | ||
Rated output power | 5000VA | 10000VA | ||
Rated output voltage | 230Vac(L/N/PE single-phase) | |||
Load bearing motor capacity | 4HP | 6HP | ||
Rated frequency | 50Hz/60Hz | |||
Output waveform | Pure sine wave | |||
Rated battery voltage | 48Vdc | |||
Voltage range | 40~60Vdc | |||
Max mixed charging current | 140A | 200A | ||
Photovoltaic input | ||||
Max Input Power | 4,400W | 11000W | ||
Max input current | 50A | 22/22A | ||
Max open circuit voltage | 145Vdc | 500Vdc | ||
MPPT operating voltage range | 60~115Vdc | 125-425Vdc | ||
MPPT paths | 1 | 2 | ||
Mains/generator input | ||||
Max mains/generator charging current | 60A | 120A | ||
Rated frequency | 50Hz/60Hz | |||
Bypass overload current | 40A | 63A | ||
Size | 426*322*124mm | 620*445*130mm | ||
Ambient temperature | -15°C-55°C | -10°C-55°C，>45°C Derating | ||
Company Profile
Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energy focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehicles etc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.

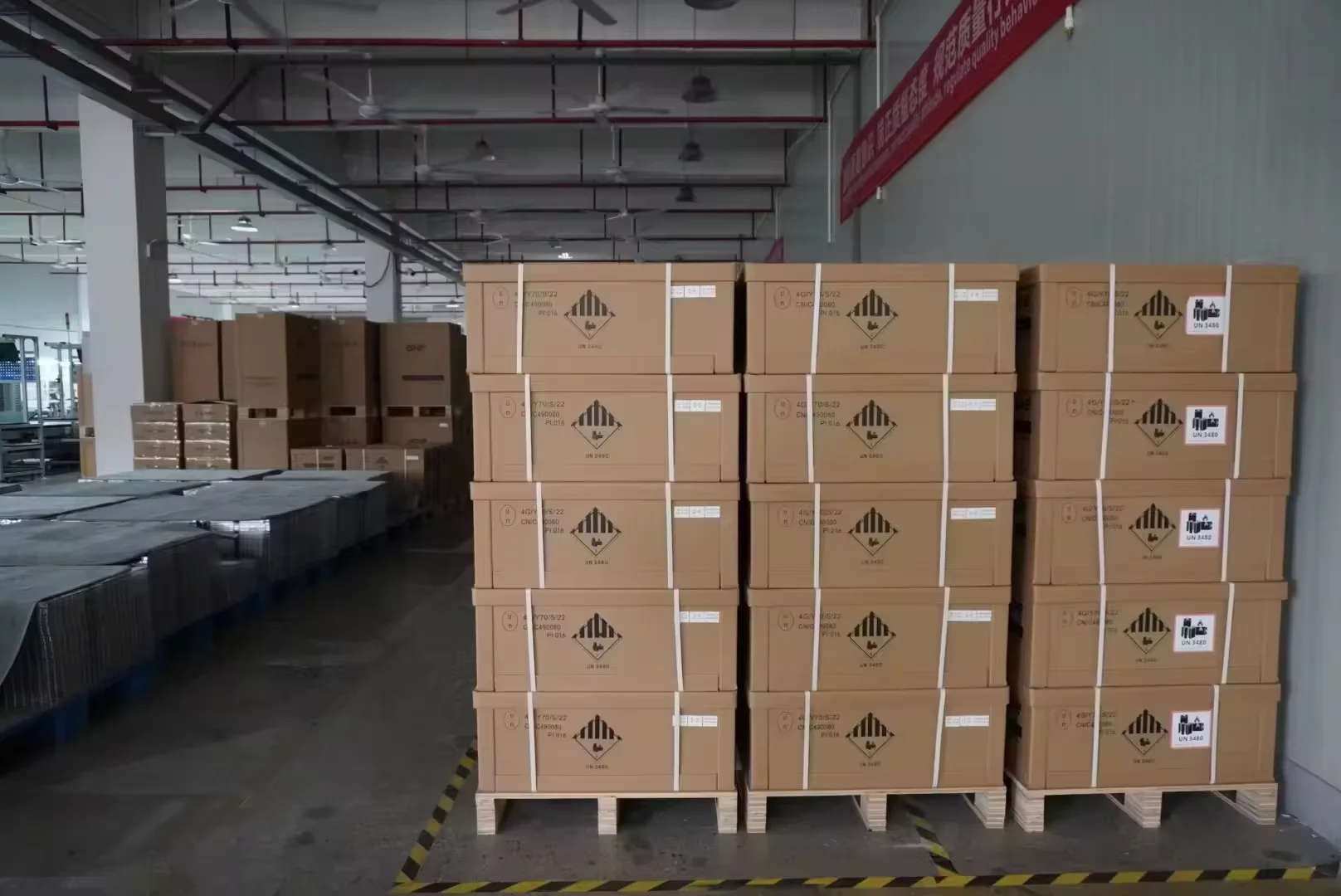

Packing & Delivery
