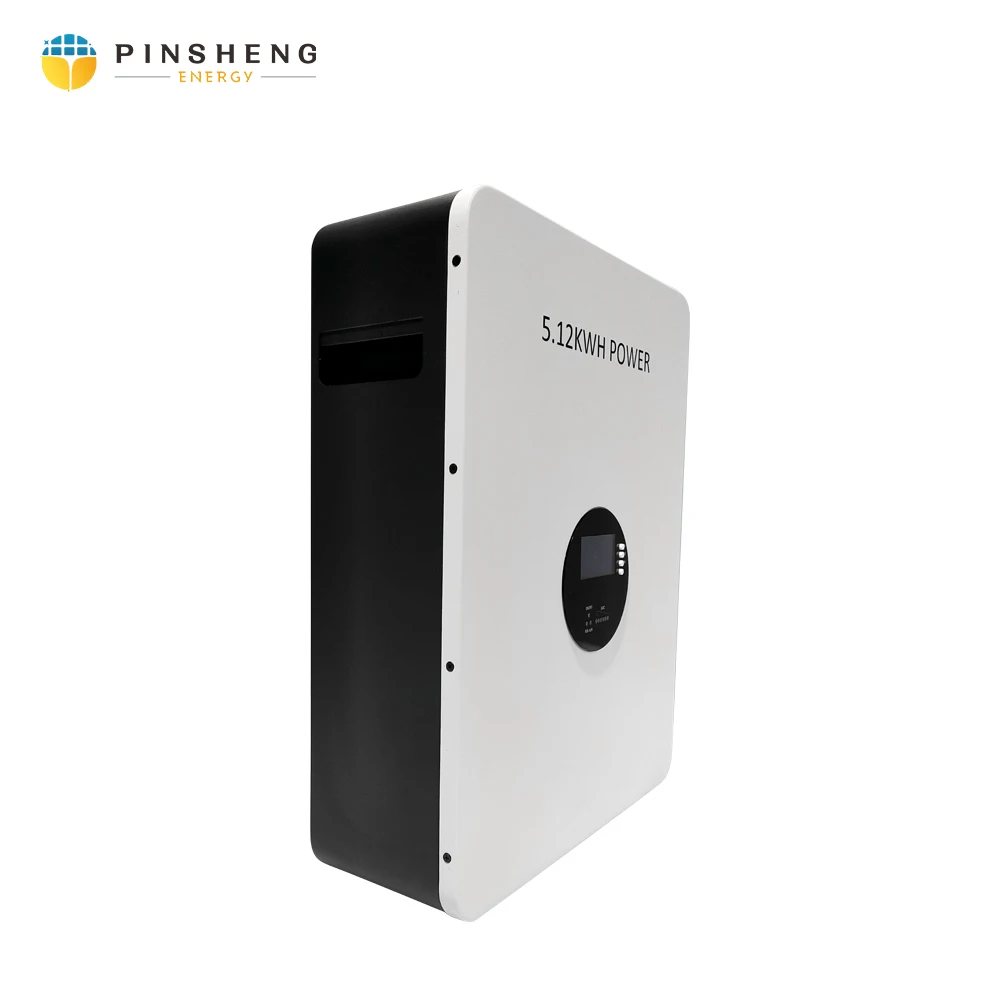

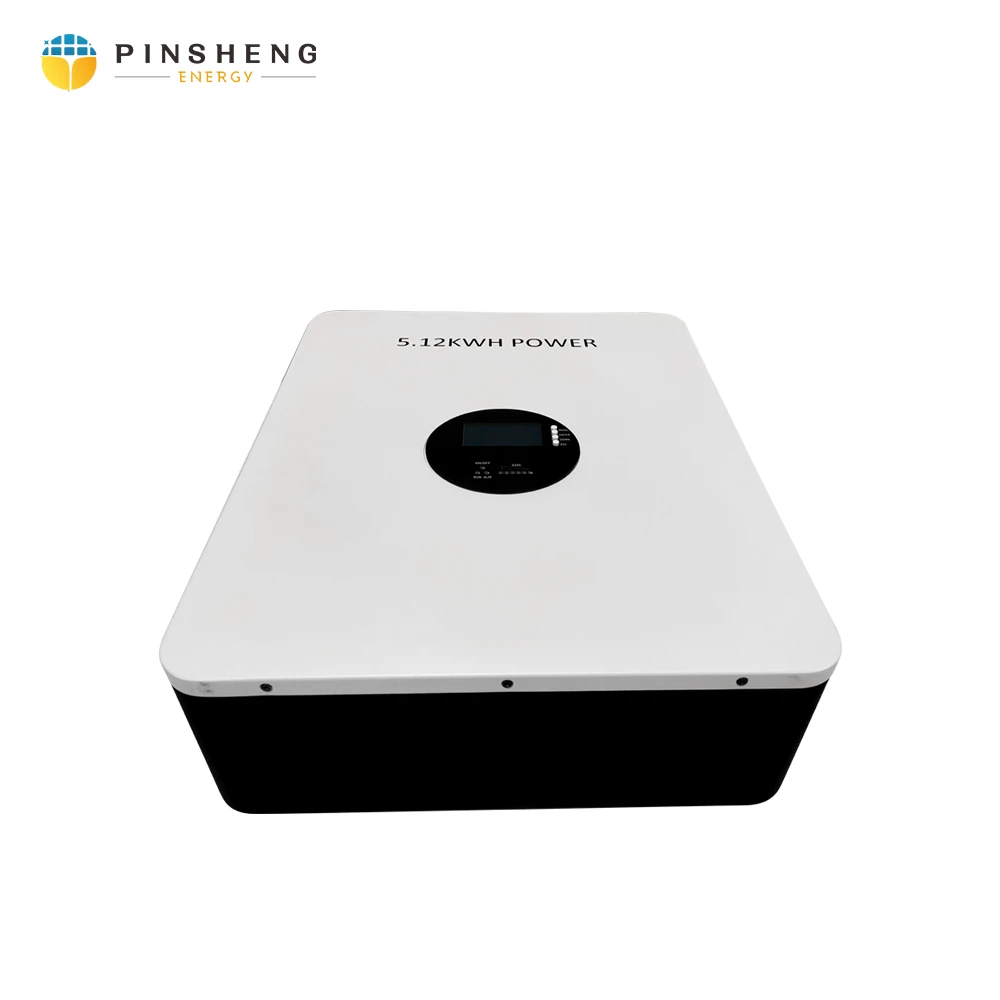

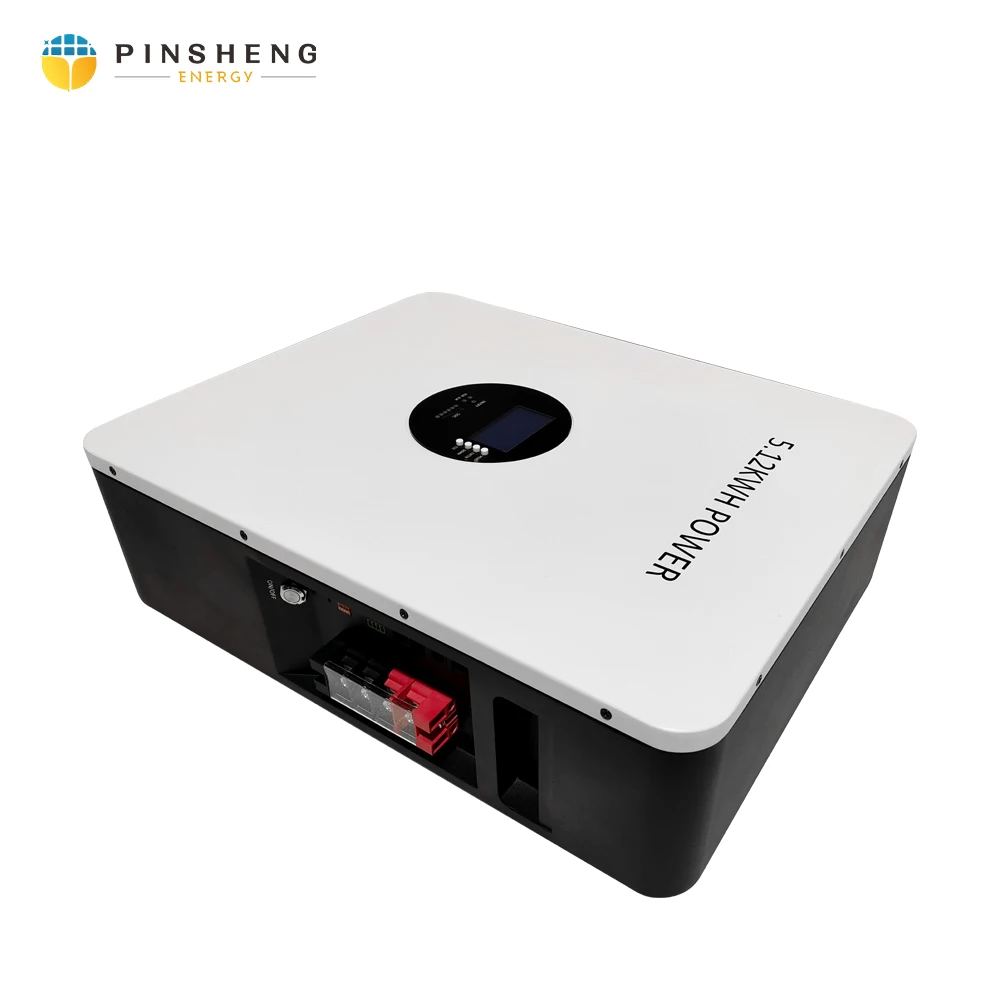

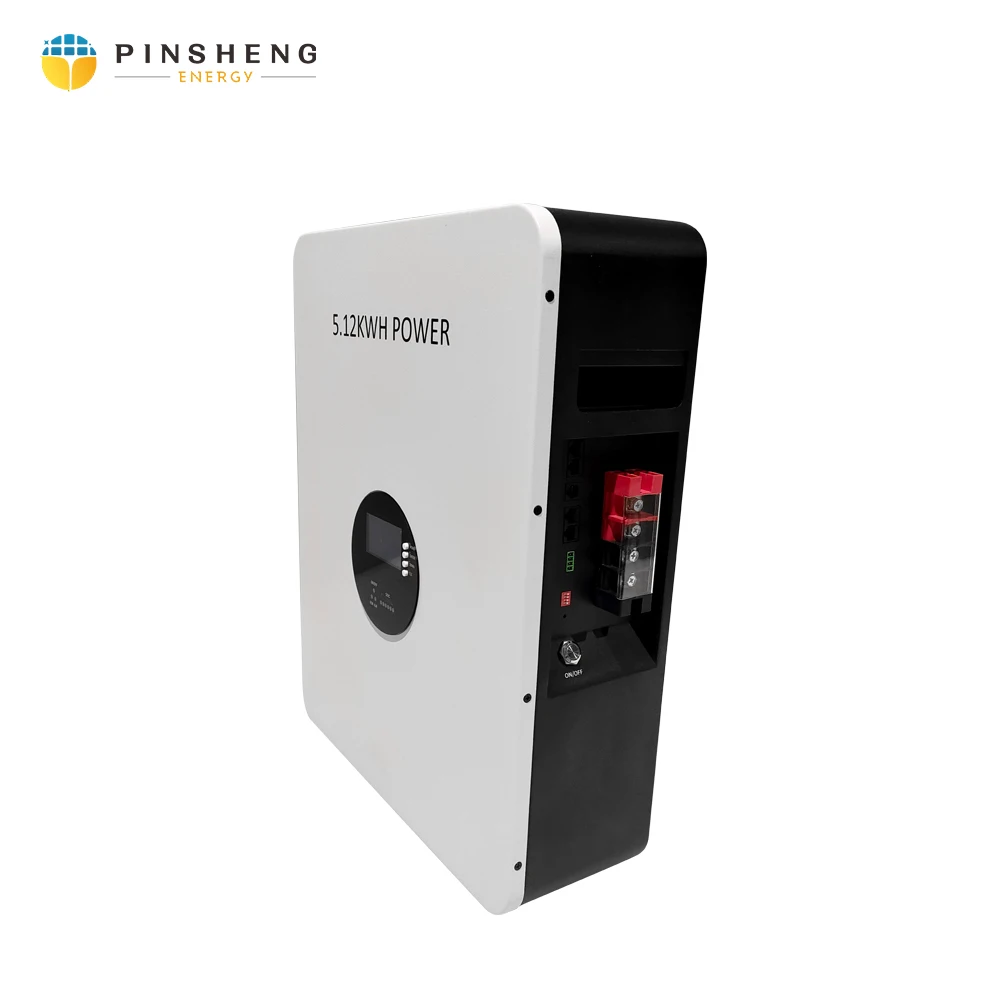

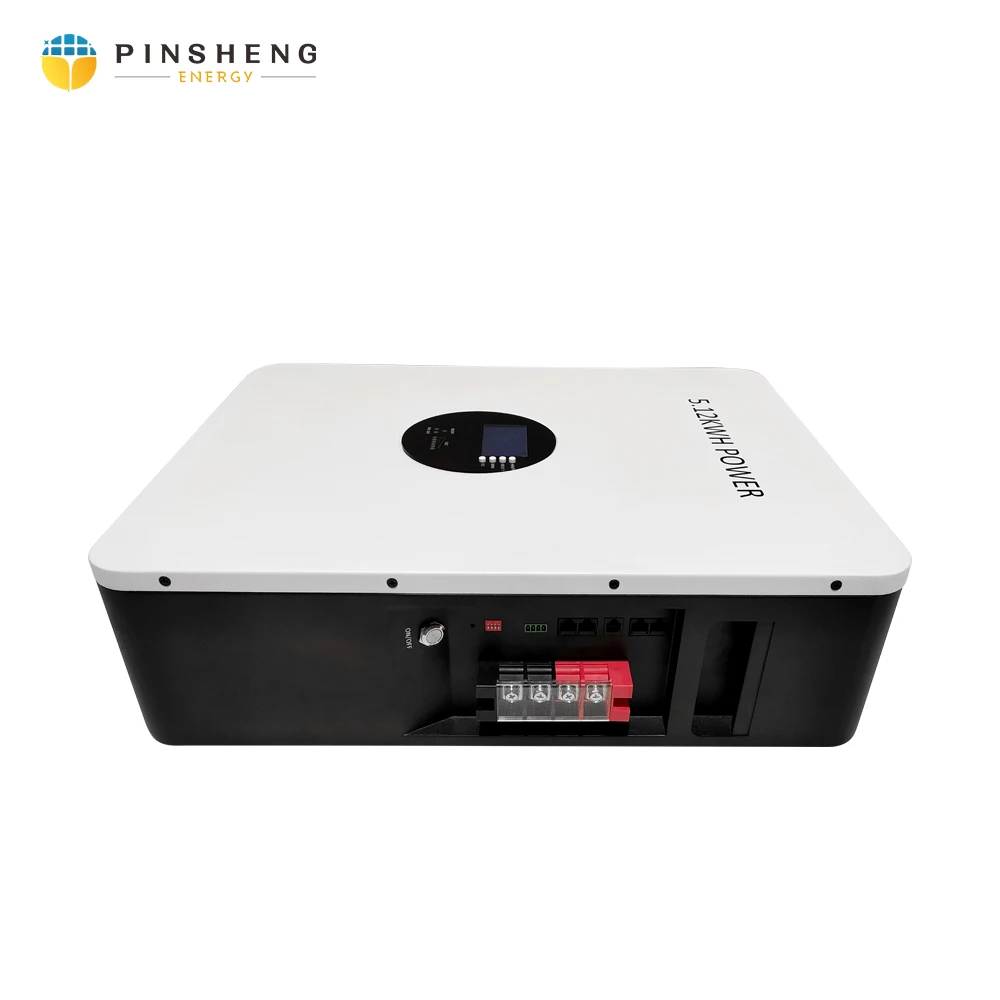

Pinsheng 2023 Solar 48 volt 10 kw 10kwh 200 amp 48v 5 kwh lifepo4 power wall home solar energy system

Share on (1601005287207):


Price:$965.00 - $1,550.00

Quantity:


Product Overview

Description





Product Description


























Specification


















































































































Performance



Nominal Voltage



51.2V




51.2V



Nominal Capacity



100AH




200AH



Battery Energy



5120Wh




10240Wh



Charge Voltage



55.68~56.16Vdc



Discharge Voltage



45.6-56.16 Vdc



Communication


Display



SOC status indicator, LED indicator



Communication



RS232, RS485, CAN



General Specification


Dimension



550*430*165MM




850*500*165MM



Weight



48KG




95KG



Installation



Wall mounted



Working Temperature



-20℃ ~ 60℃



Storage Temperature



≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months



IP Rating



IP20



Scalabilit



Max 15 batteries in parallel



Standard Compliance


Certification



UN38.3, IEC 62619, IEC61000, UL 1642(cell) (more available upon request)



Ordering and Deliverable Part


Product ordering part



Battery pack,Parallel cable, communication cable



















One Battery One Wooden Case









Company Profile




































Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energyh focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehiclesetc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.
