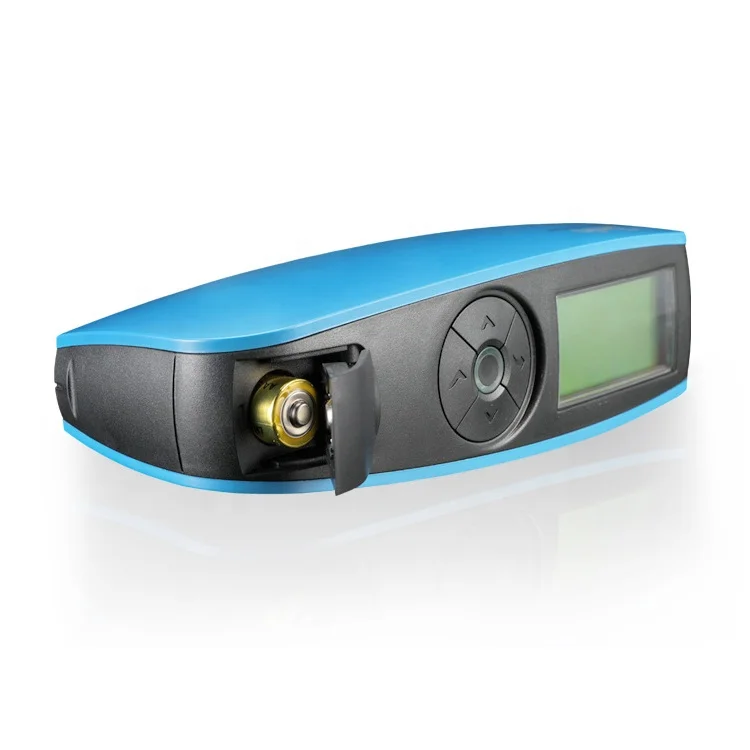

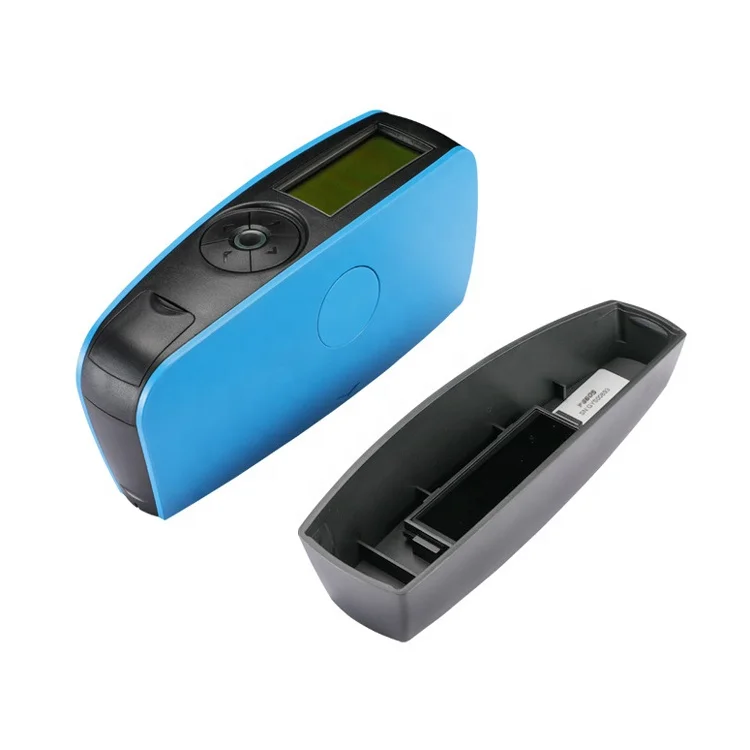

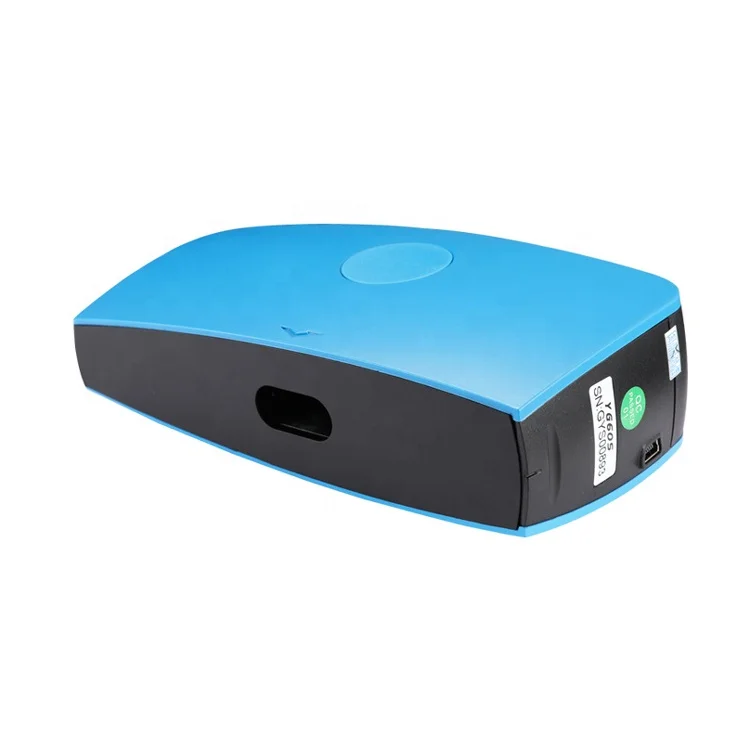

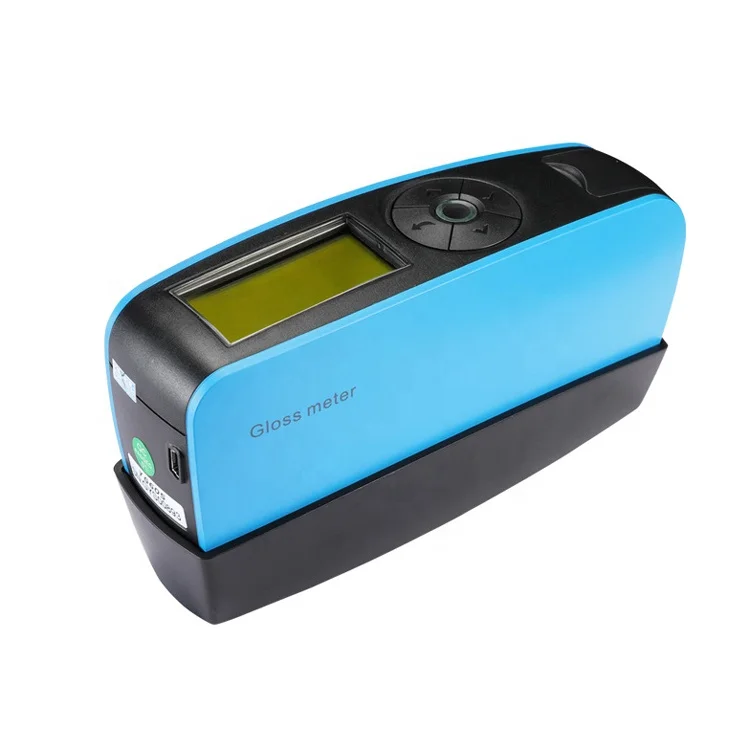

Three Angle Paint Gloss Meter Digital Portable Rechargeable Gloss Meter 20 60 85
- Category: >>>
- Supplier: Dongguan Right Instrument Co. Ltd.
Share on (1601005295032):
Product Overview
Description
Products Description

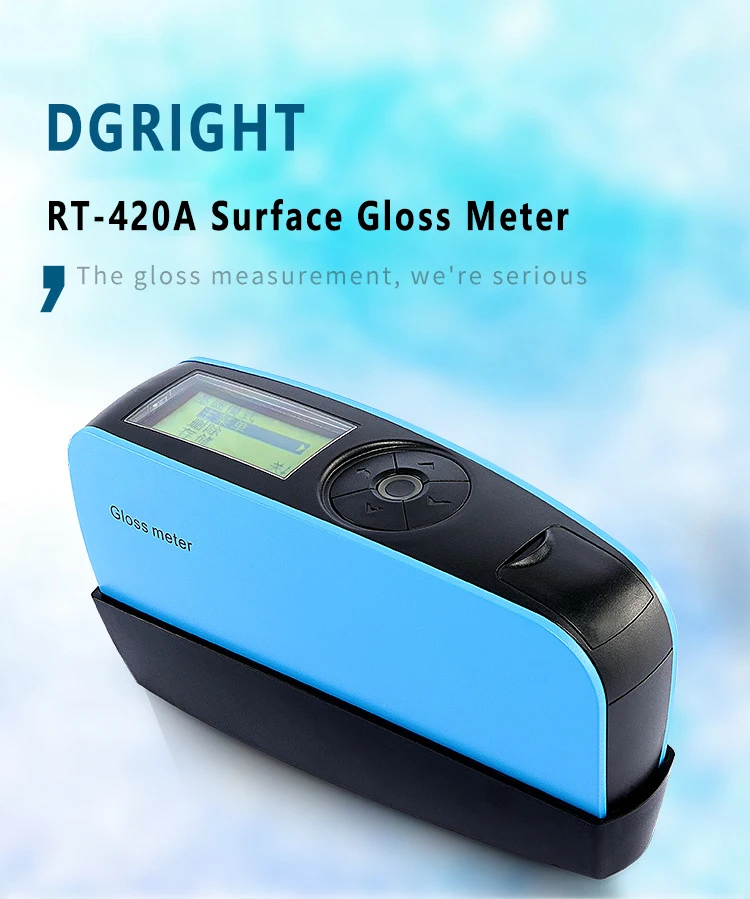

A gloss meter, also called a glossiness meter, is used to determine the surface gloss of the material instrument. The RT-420A gloss meter references the international standard 1502813 and the Chinese national standard GB/T9754 design and manufacture. Meet JJG696 first or second-class work gloss meter requirements.
The principle is: that through the light source sends a beam of light on the surface of the object under test, and then by the object under test will be diffuse reflection of the beam to the sensor, through the calculation of diffuse reflection to determine the gloss.
Applications:

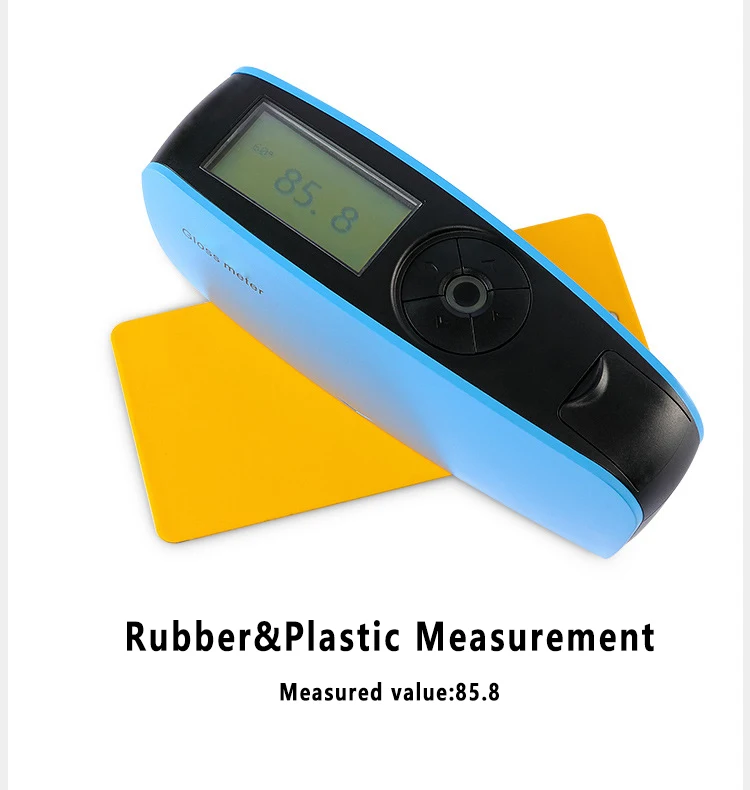

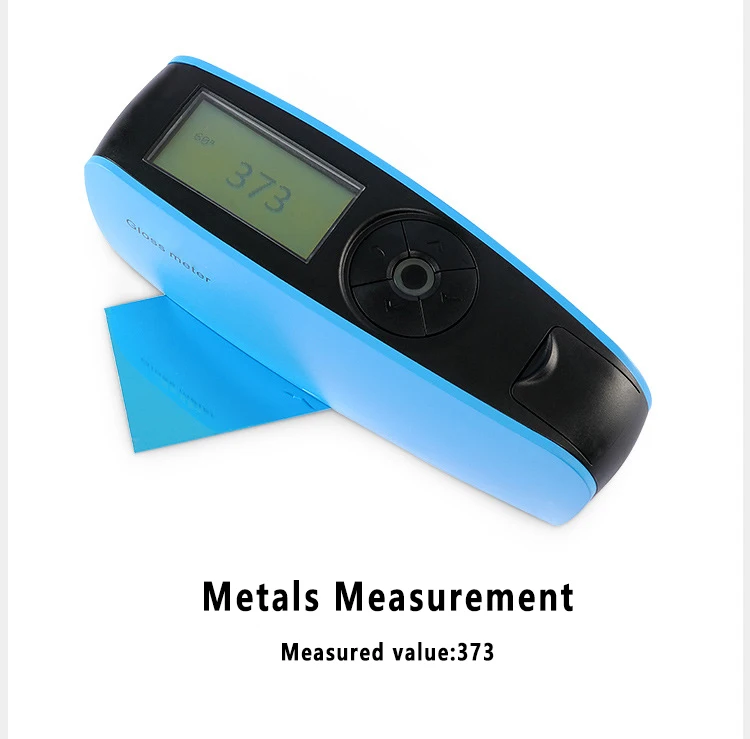

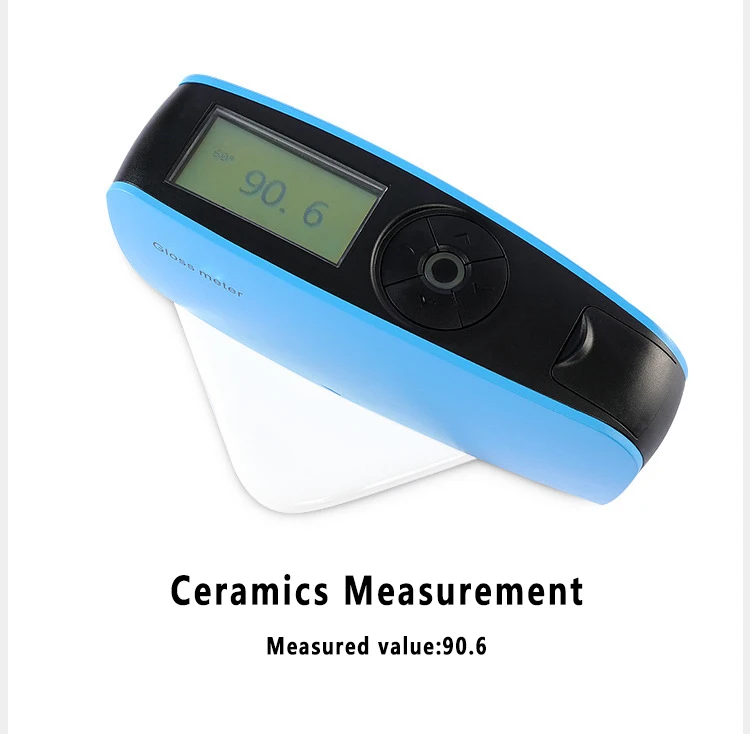

It can be used for gloss measurement and gloss data transfer in paint and ink, coating, paper printing, plastic and electronic, furniture, ceramics, electroplating, hardware, marble and other industries.
It can be used for gloss measurement and gloss data transfer in paint and ink, coating, paper printing, plastic and electronic, furniture, ceramics, electroplating, hardware, marble and other industries.
Meet Standards:
Implementation of the standards: GB9754 ISO2813, ASTM-D532, ASTM-C584, GB8807, GB9966
Product Paramenters
RT-420A Gloss Meter Specification:
Model | RT-420A |
Measure Angle | 20°/60°/85° |
Measuring Spot(mm) | 20°:9X10, 60°:9X15, 85°:5X38 |
Measure Range | 20°: 0~2000GU, 60°: 0~1000GU, 85°: 0~160GU |
Accuracy | 0.1GU |
Measurement Mode | Basic Mode, Statistical Mode, Continuous Mode, QC Mode |
Measuring Time | 0.5 sec/each angle |
Repeatability | 0~100GU:±0.2GU; 100~2000GU:±0.2%GU |
Standard | Meet JJG 696 class 1 working gloss meter |
Auto Power Off Time | 30~120 seconds available |
Calibration | Power-on auto-check and calibration/manual calibration |
Languages | Simplified Chinese, English, Traditional Chinese |
Storage Data | 35,000 entries (15,000 in basic and continuous mode, 10,000 in QM mode, 10,000 in statistical mode) |
Display Screen | 2.3 inch Black and white display |
Power | 1 x 5 battery (AA alkaline or Ni-MH rechargeable battery), can be measured more than 10,000 times; or use the USB port |
Optional Accessory | Microprinter |
Product Feature
Light source by the lens becomes a parallel or slightly convergent beam of light shooting at the test plate coating surface; the reflected light converged by the lens accepted by the site selected by the light batteries of light absorption.
Why Choose Us
Our Services & Strength:
1. 10 years manufacture in testing machine
2. 5 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
1. 10 years manufacture in testing machine
2. 5 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE
