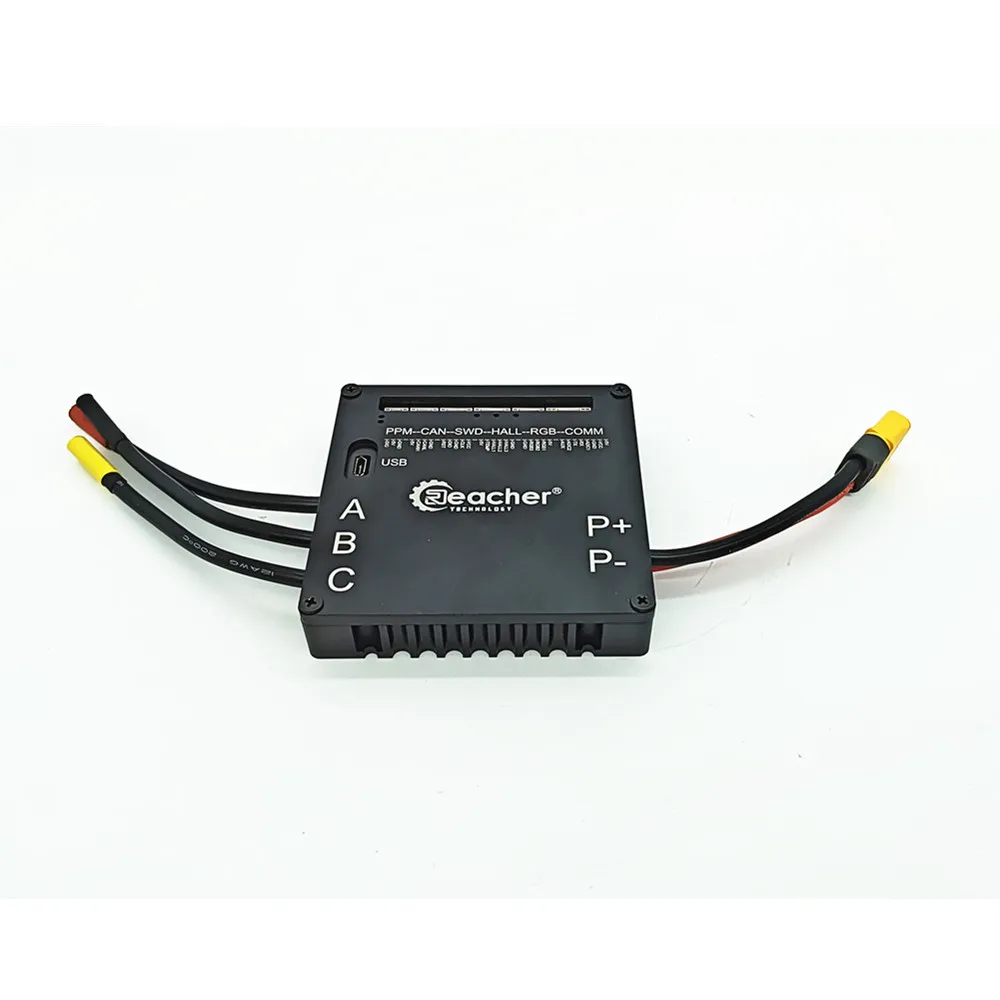

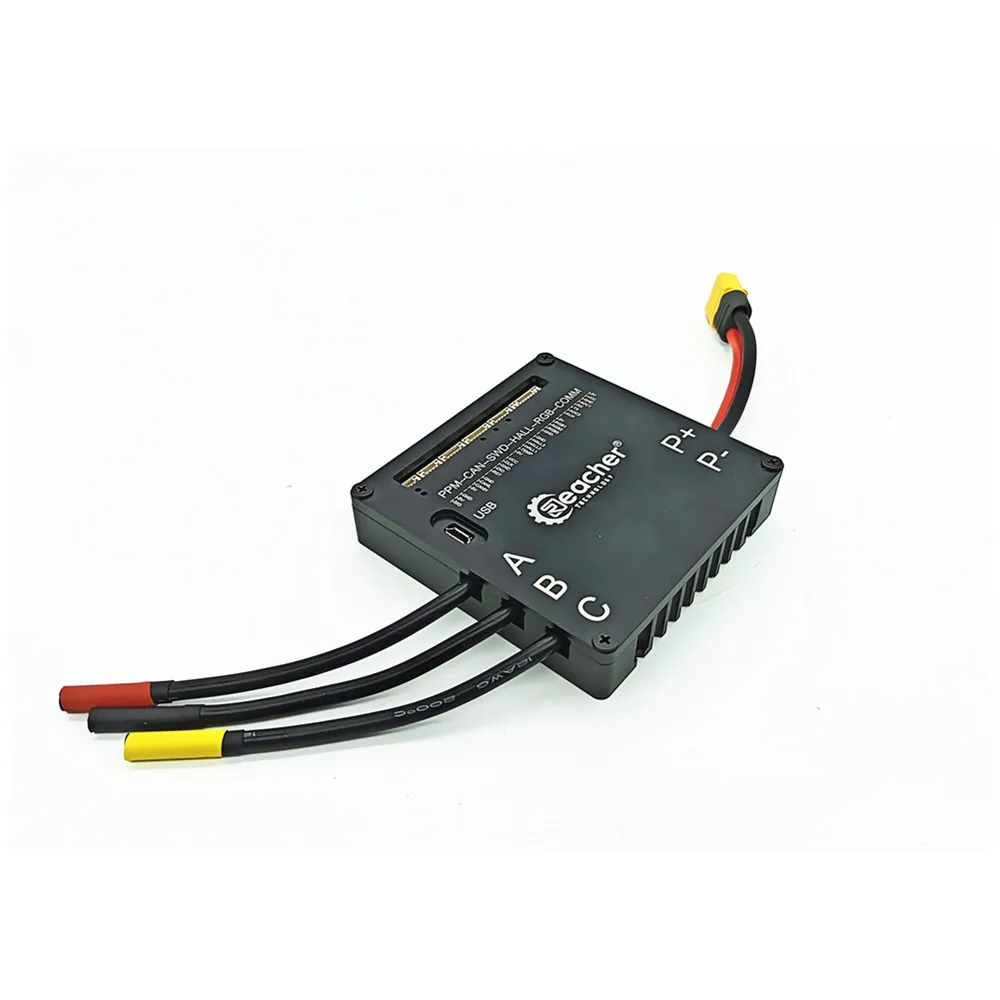

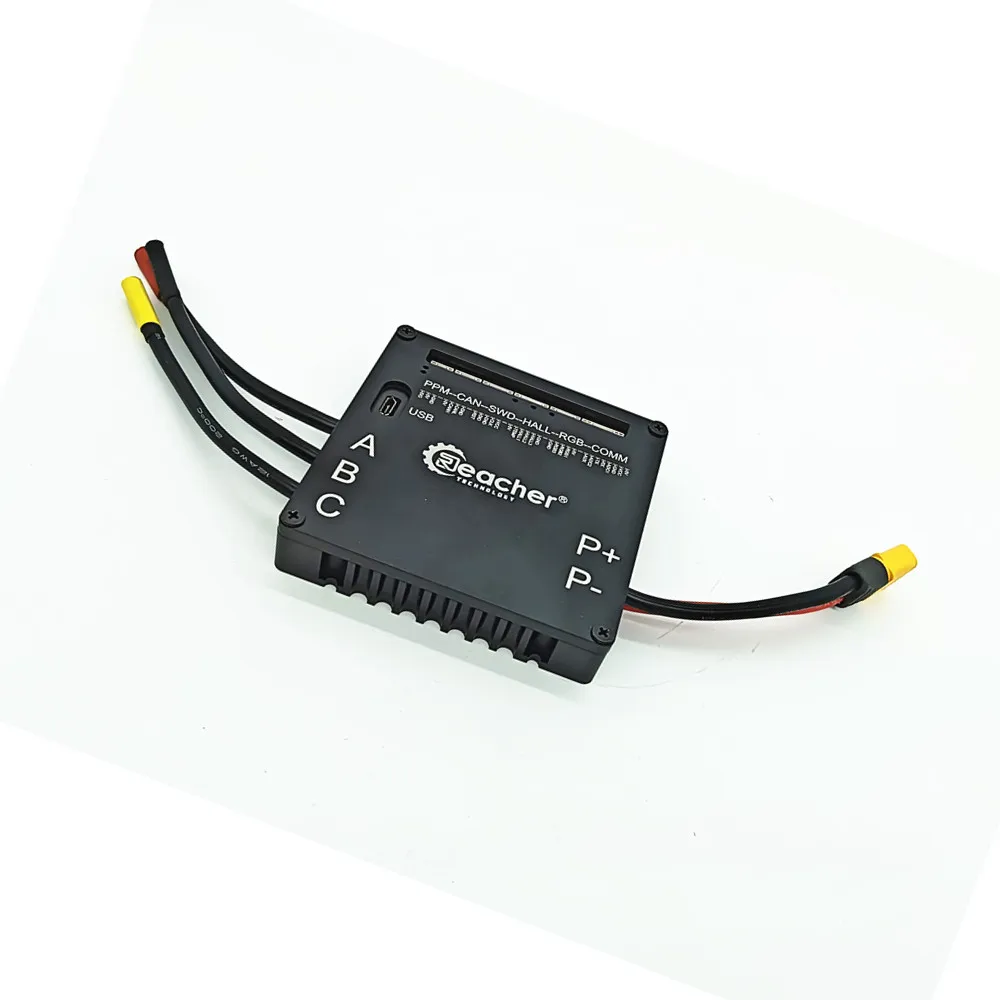

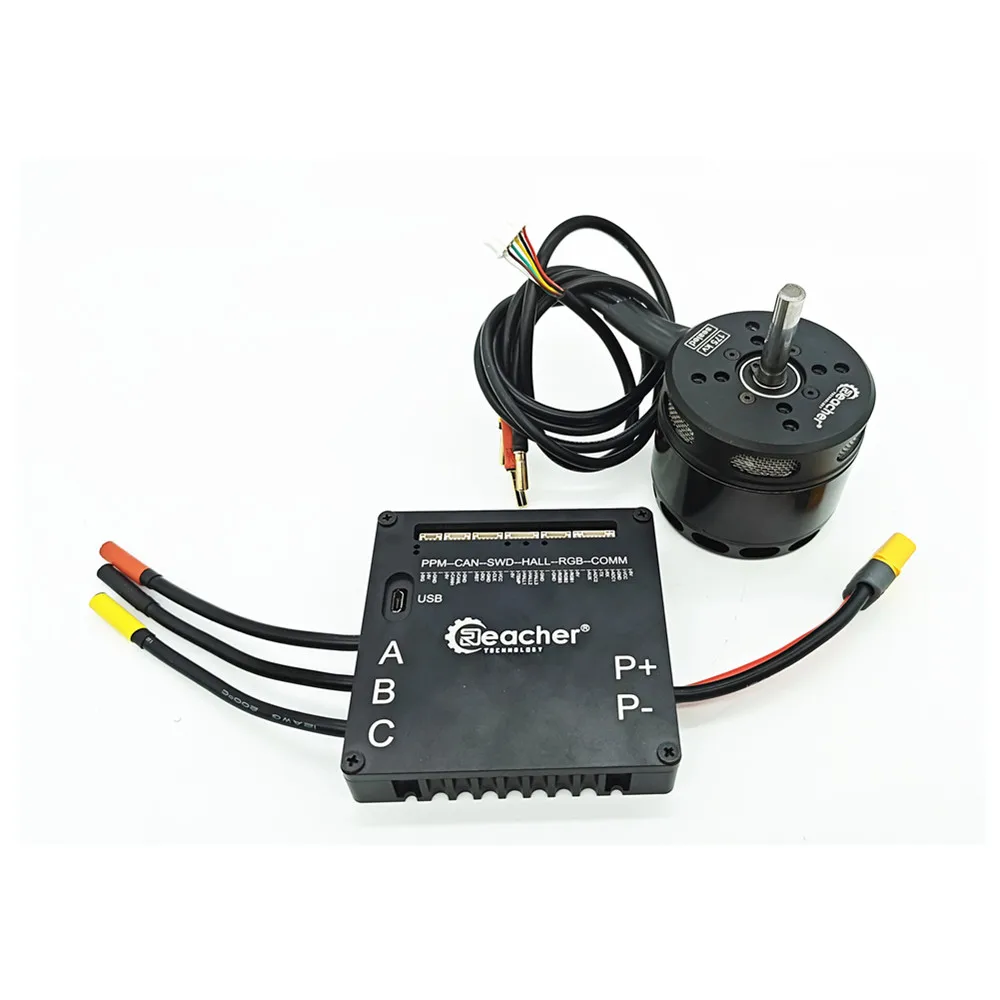

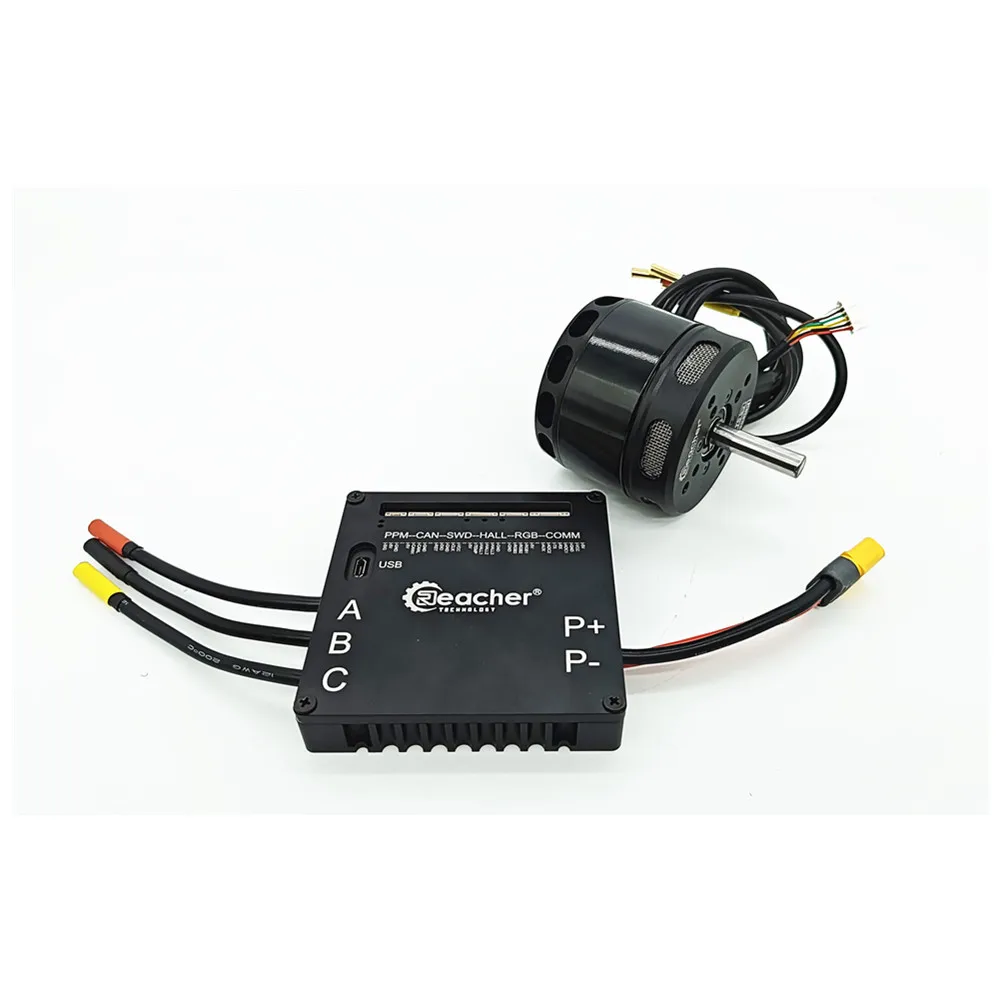

Reacher Tech open source 75v 100a controller PPM HALL UART CAN BUS communication port controller

Reacher 100A 75V 75100 with Aluminum PCB Controller for Scooter / Skateboard/ Speed Controller /Ebike Voltage 12-80V (safe for
4-16S) Modes DC, BLDC, FOC (sinusoidal) Continuous Current 100a Supported sensors: ABI, HALL, AS5047,AS5048A BEC 5V@1A EPRM 150000
Product Advatages 1.Size:L85.5mm*W85.5mm*H18mm 2.Working Voltage:12-80V (4-16S safey) 3.Current:continuous100A , max 200A,100%
duty cycle 4.Support BLDC square wave mode control and FOC sine wave mode 5.Firmware: latest (firmware update supported)
6.ERPM:150000 7.Control Interface Ports:USB,CAN,UART 8.Supported Sensors:ABI,HALL,AS5047,AS5048A 9.Input Set
Support:PPM,ADC,NRF,UART 10.Wire Size: 12AWG 11.Programmable: Yes 12.Regenerative Capacity: Yes Warm tips: Phase filering is not
available for Reacher Controller 75100 and 75200 75300 Please turn off the phase filter function and choose "false" in vesc_tool
when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please
do not restore the default parameters when using the wizard interface. Please be careful to limit the Absolute Maximum Current
below 250A.
