Good Price Valve Smart Head Multiple Connection Stainless Steel Sanitary Pneumatic Butterfly Valve
- Category: >>>
- Supplier: Dalian Ace Flow Tech Co. Ltd.
Share on (1601005340694):
Product Overview
Description

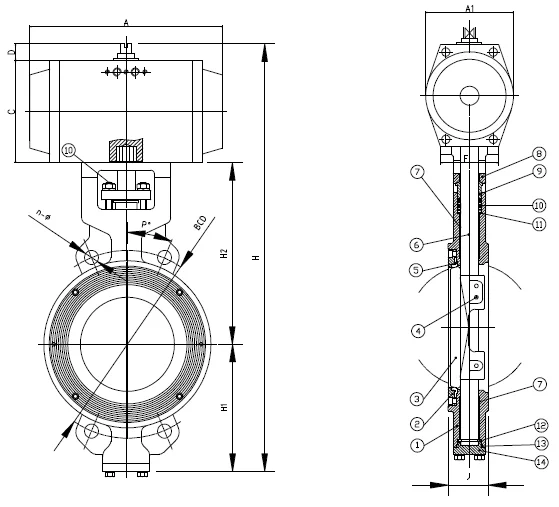

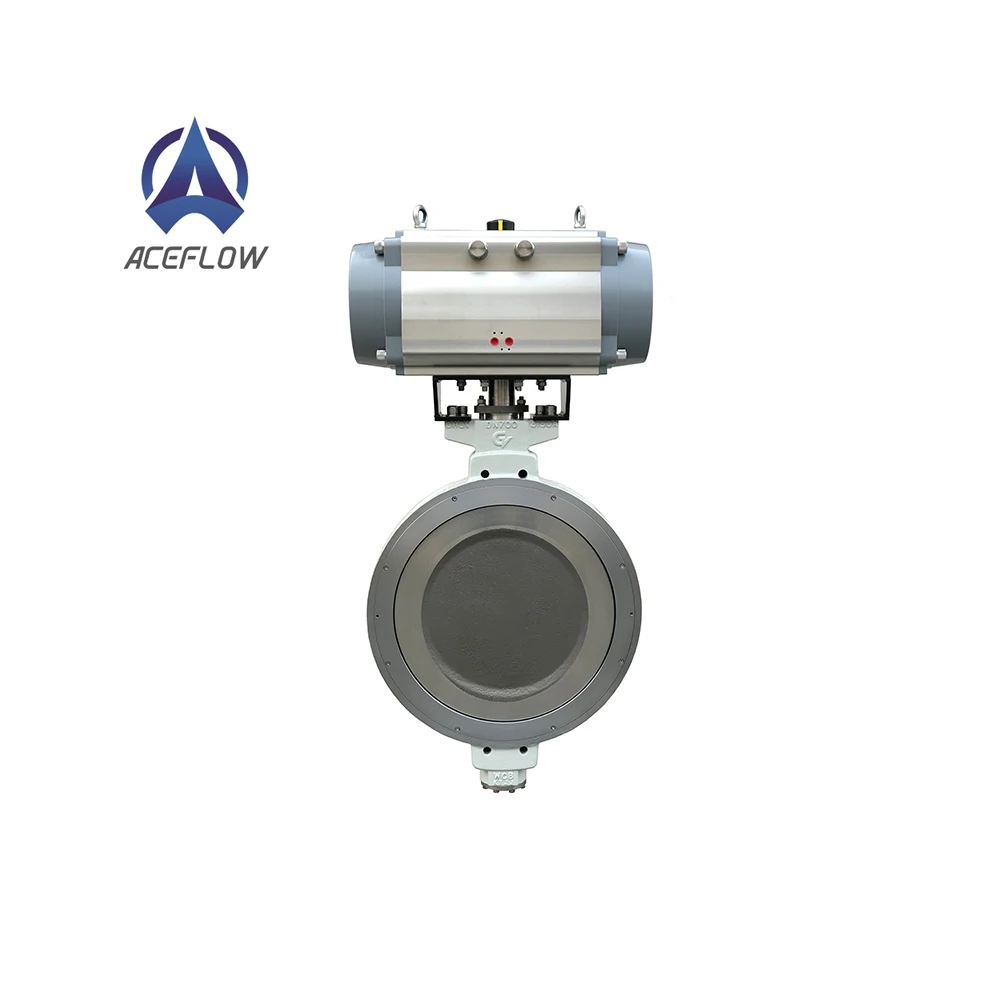

Pneumatic Butterfly Valve
Size: 2"(DN50)-24"(DN600)
Product Description
Valve Size | 50A-600A | |||
Actuator Model | AD50-AD200 | AS50-AS250 | ||
Actuator Acting | Pneumatic Double Acting | Pneumatic Single Acting | ||
Actuator Type | Scotch Yoke Type | |||
Operating Media | Compressed Dry Air | |||
Operating Pressure | 4 ~ 7 kg/cm2 | 4.5 ~ 7 kg/cm2 | ||
Rotating Angle | 90°± 5° | |||
Fluid Temperature | PTFE(-20 ~ 160 °C), RTFE(-20 ~ 180 °C), 316SS(-50 ~ 260 °C) | |||
Rating | JIS 10K, JIS 20K, ANSI 150#, ANSI 300# | |||
Body Material | Body: WCB, CF8, CF8M | Disc: CF8, CF8M, HF | Seat: PTFE, RTFE, 316SS | |

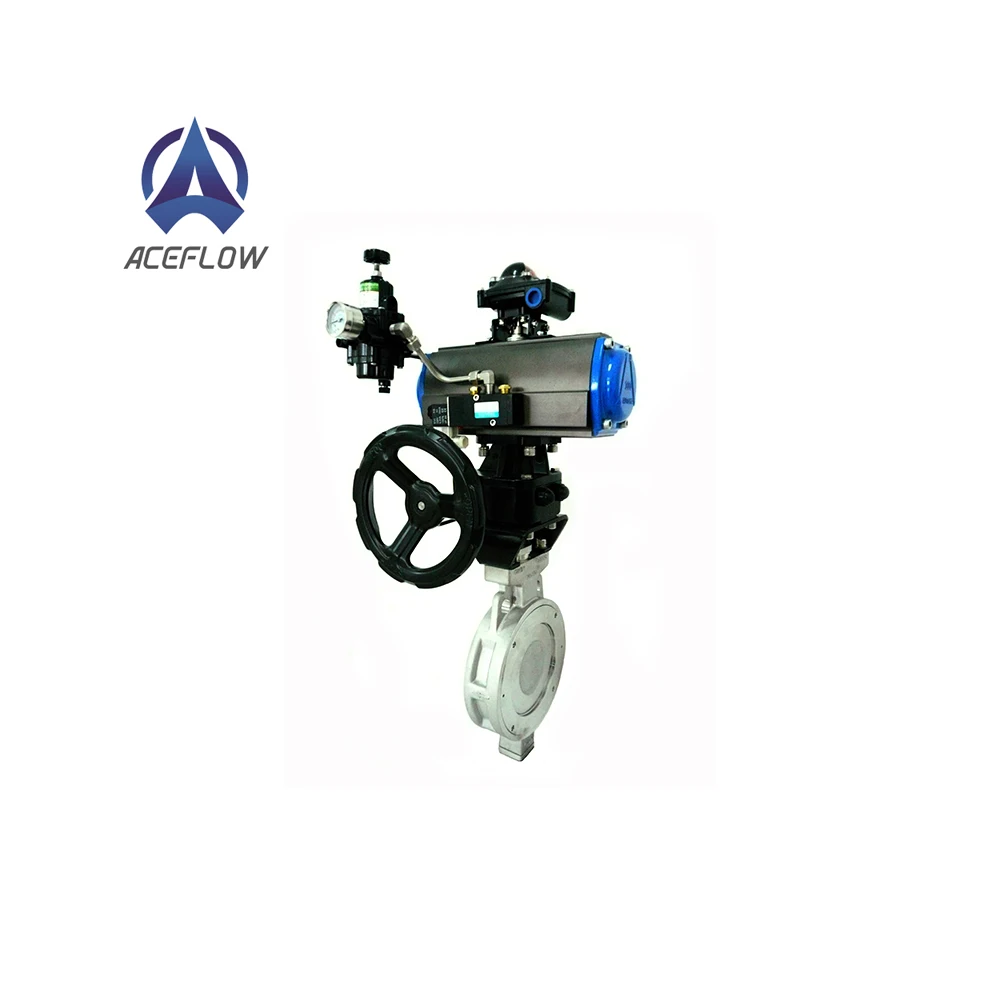

Accessory | Solenoid Valve, Limit Switch Box, Air filter Regulator, E/P Positioner , Declutchable Gear Box | |||
Reference Standard
Our Services
* Professinal design, high-qualified machining, strict testing, careful packing, prompt delivery
* Support OEM, ODM, Low MOQ, Fast delivery, Door-to-door service
Company Information
Dalian ACE Fluid Technolody Co., Ltd
Tel:+86-411-87122267
Fax:+86-411-87122207
