Product Overview
Description
Put the syringe honeycomb on the special fetal membrane manually, and hang the syringe on the
bottle comb plate together with the fetal membrane at one time, and then automatically enter the
filling dial row by row from the slide. The dial rotates intermittently and feeds at a time. Insert a syringe into the dial wheel and turn it to the corresponding work station.
◆Syringe filling: the syringe is brought to the filling station by the dial, a single filling needle is inserted into the syringe and rises while filling, and the syringe is sealed at the same time for vacuum during filling. The filling pump uses a special gel ceramic pump Filling.
◆Vacuum stoppering of the syringe: the filled syringe is rotated by the dial to the stoppering station. The rubber stopper is arranged by the oscillator and sent to the top of the syringe through the stopper track. A stopper rod first takes the rubber stopper on the stopper rod On the upper side, the stopper rod is integrated with a vacuum body, and at the same time, the syringe is pressed down to seal and vacuum, and then the stopper rod is added to the liquid level of the syringe.
◆The finished product comes out: the finished syringe after filling and stoppering can be collected manually after being suspended and slipped out by a chute
Filling Volume | 1～20ml |
Capacity | 200-1200bph |
Filling Head | 1 |
Capping head | 1 |
Accuracy | ±1%-1.5% Gel rotary valve plunger pump (the greater the viscosity, the greater the error) |
Vacuum pumping rate | 80m³/hour, close to |
Machine size | 1250x950x1800（mm） |

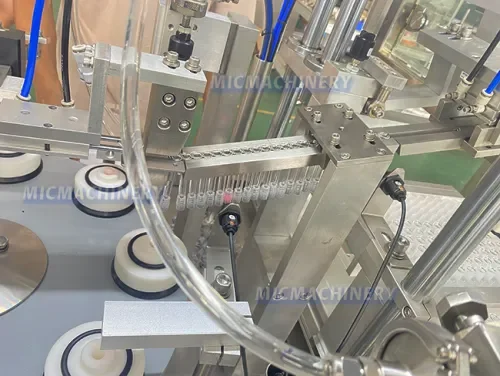

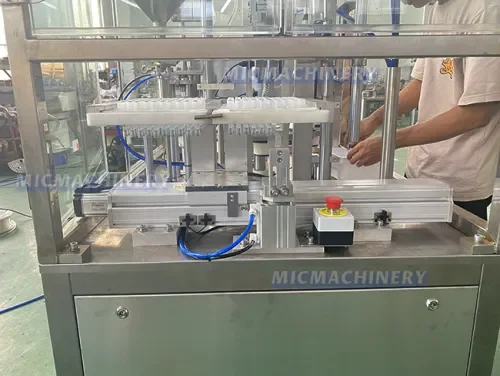

Syringe tube loading guider
Syringe sort of vibrating plate will sort of the syringe tubes and send to the loading guider one by one, loading guider will send syringe tub into turn table

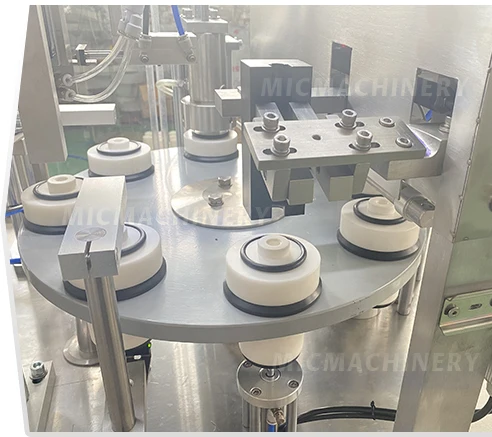

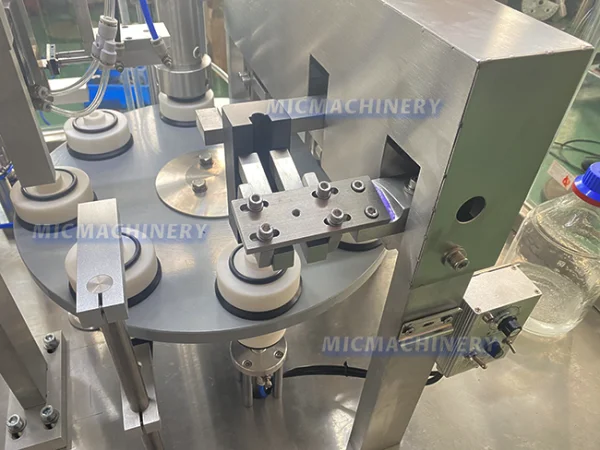

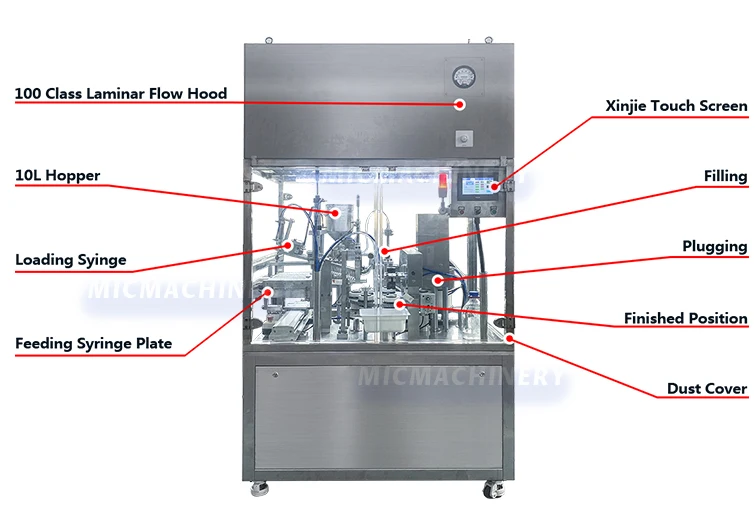

Working Station

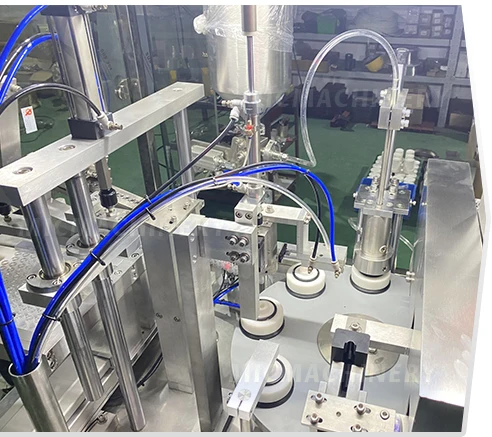

Included the syringe loading guider.Servo motor control filling Automatic plugging and vacuum.Output finish product guider
Vacuum plugging station

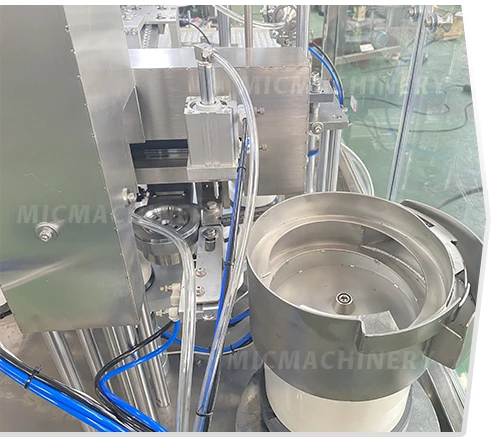

Vibrating plate will sort of the rubber plug automatically.And send plug into plugging station, Then plugging insert hear will insert it into syringe and vacuum at same time
Arrange and Feeding Caps

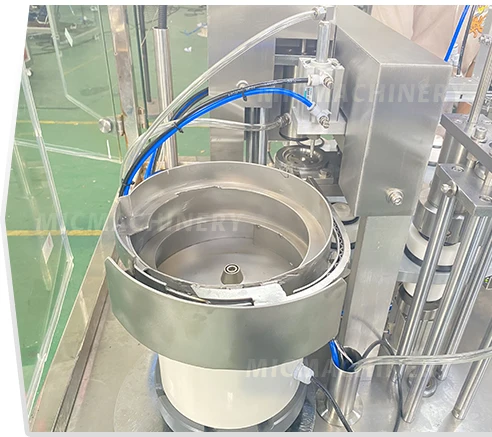

Using the vibrating disk to sort the caps automatically.Then the arranged caps will drop into capping station.

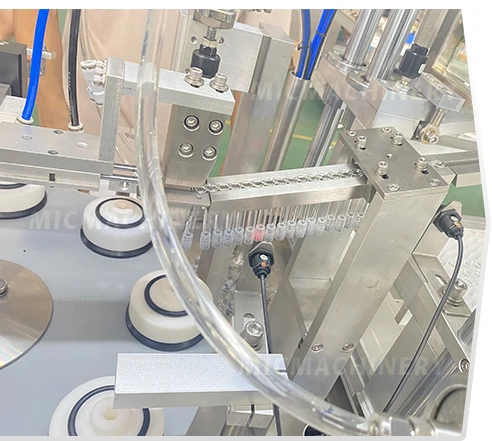

Vacuum plugging

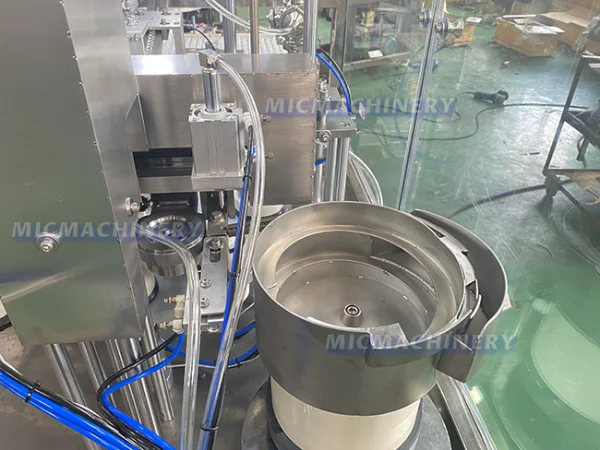

Sorting out the plugs from vibrating tray,through the loadingplug tunnel,sucking the plug on the plugging station, then vacuum pressed plugging.
