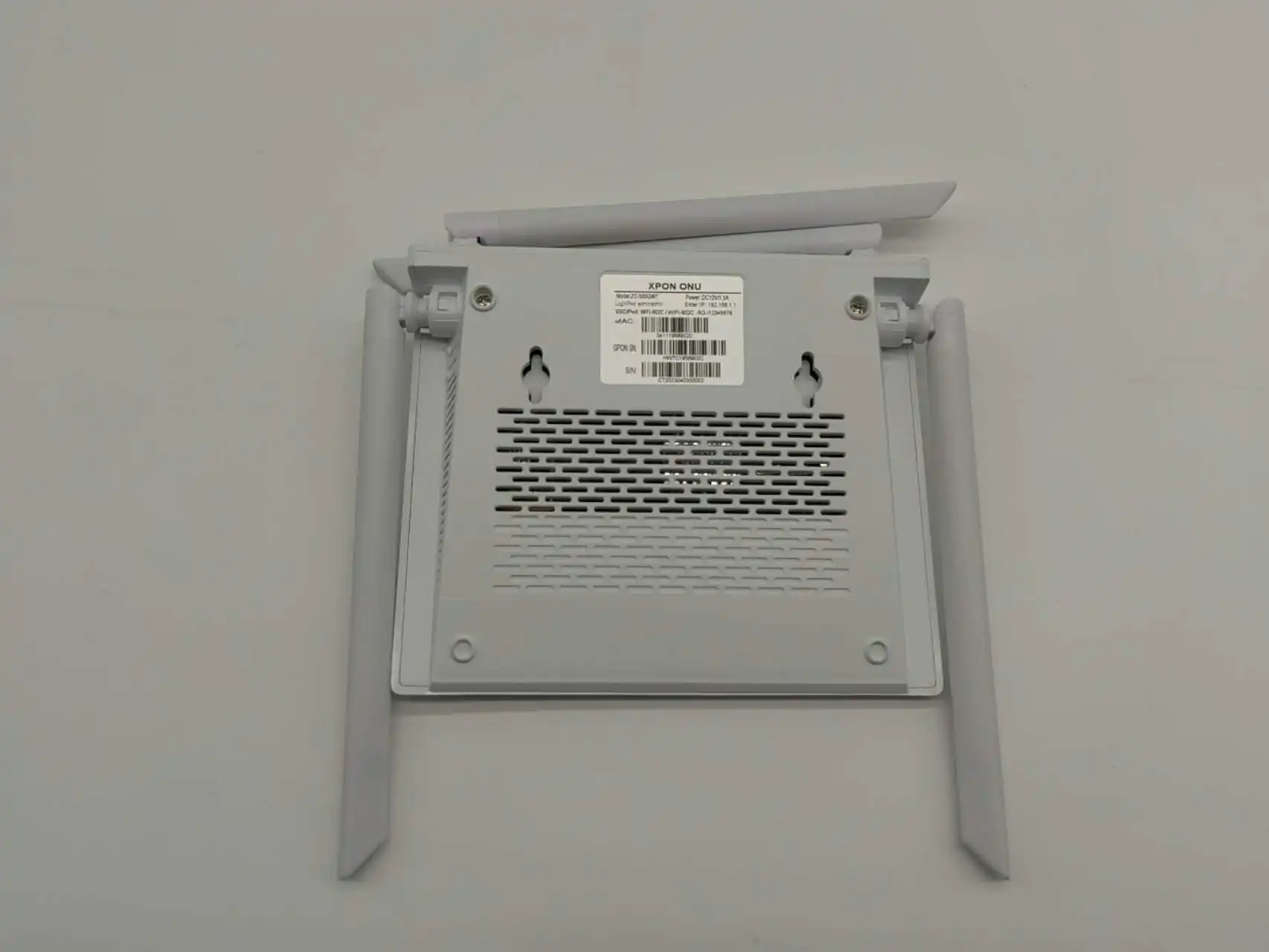

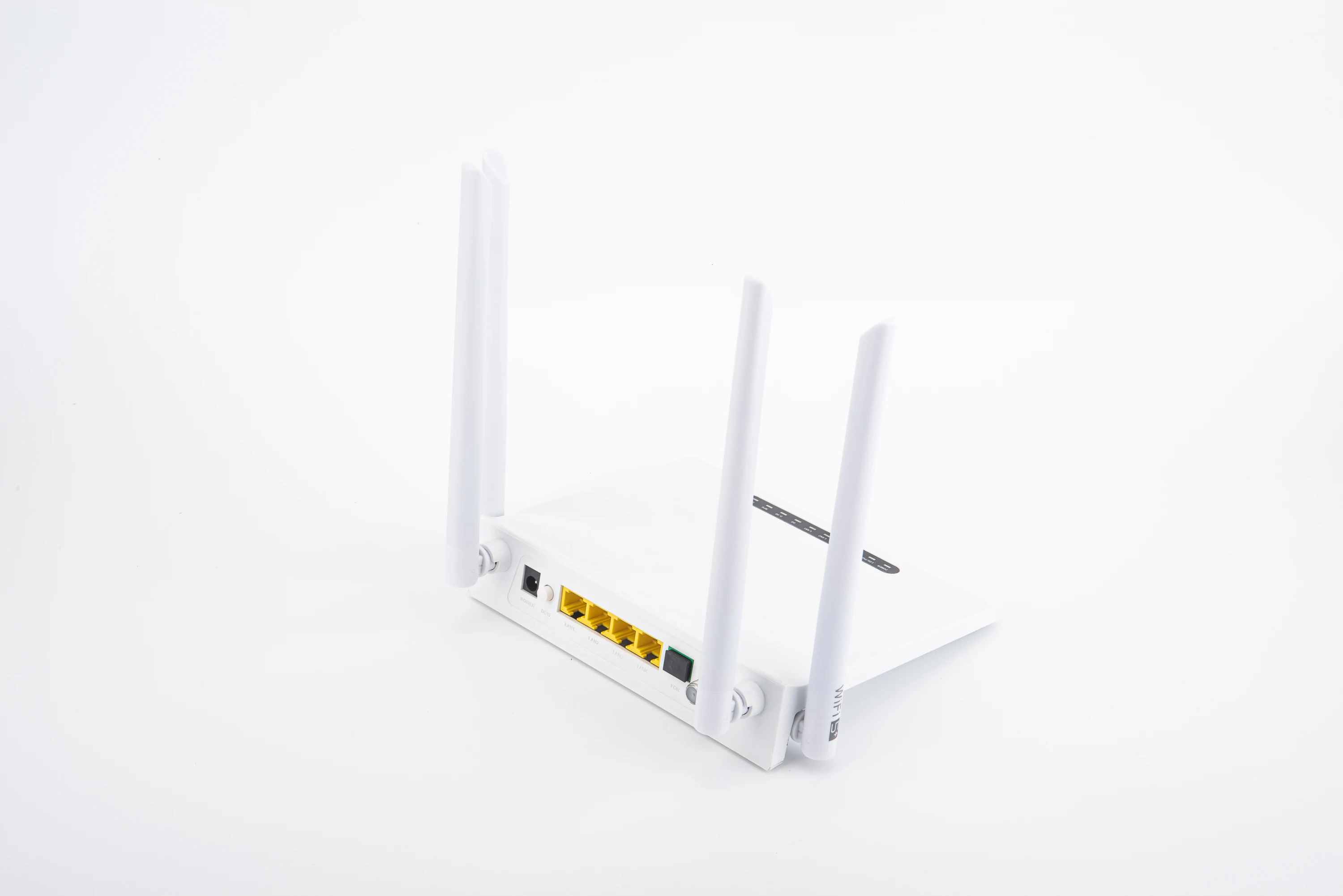

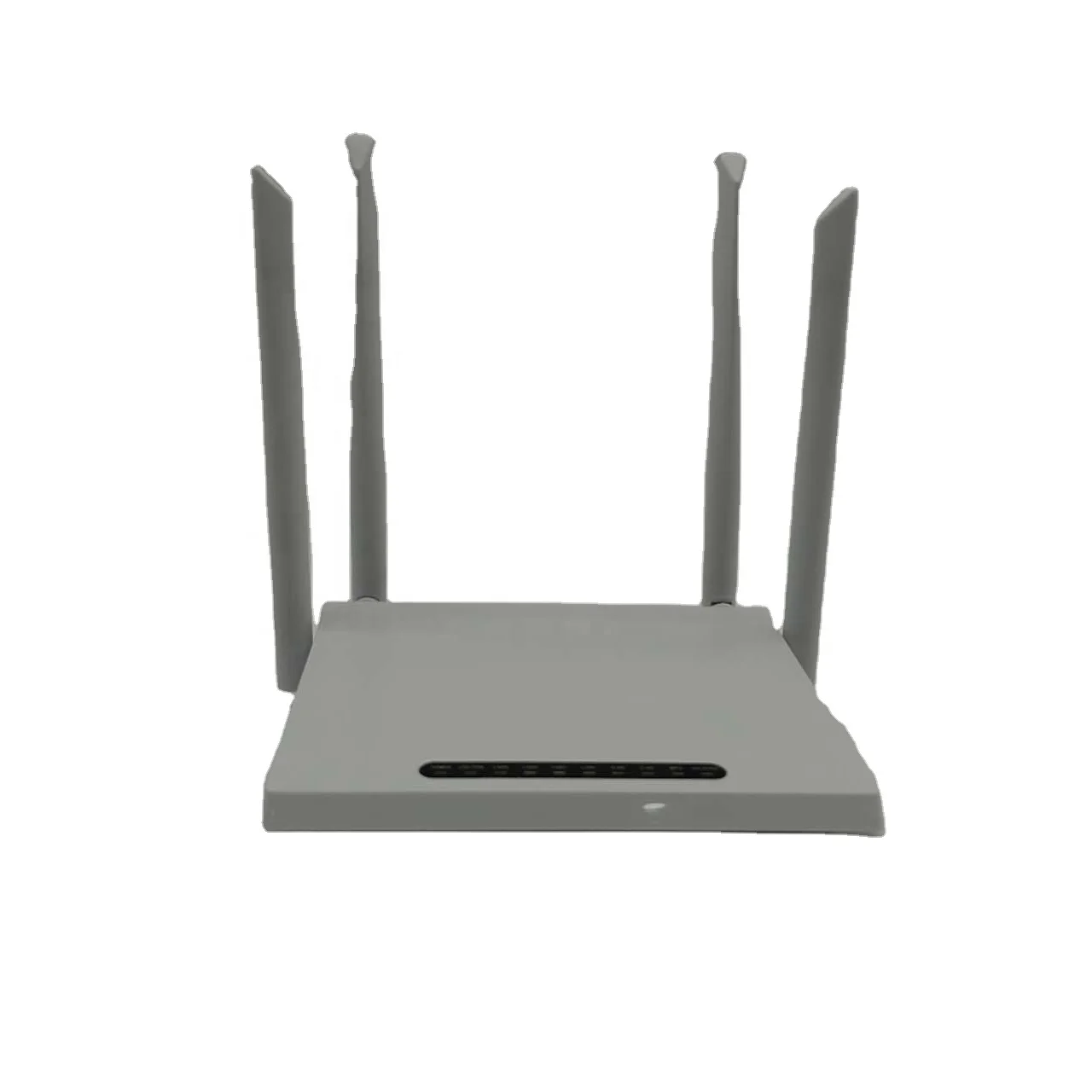

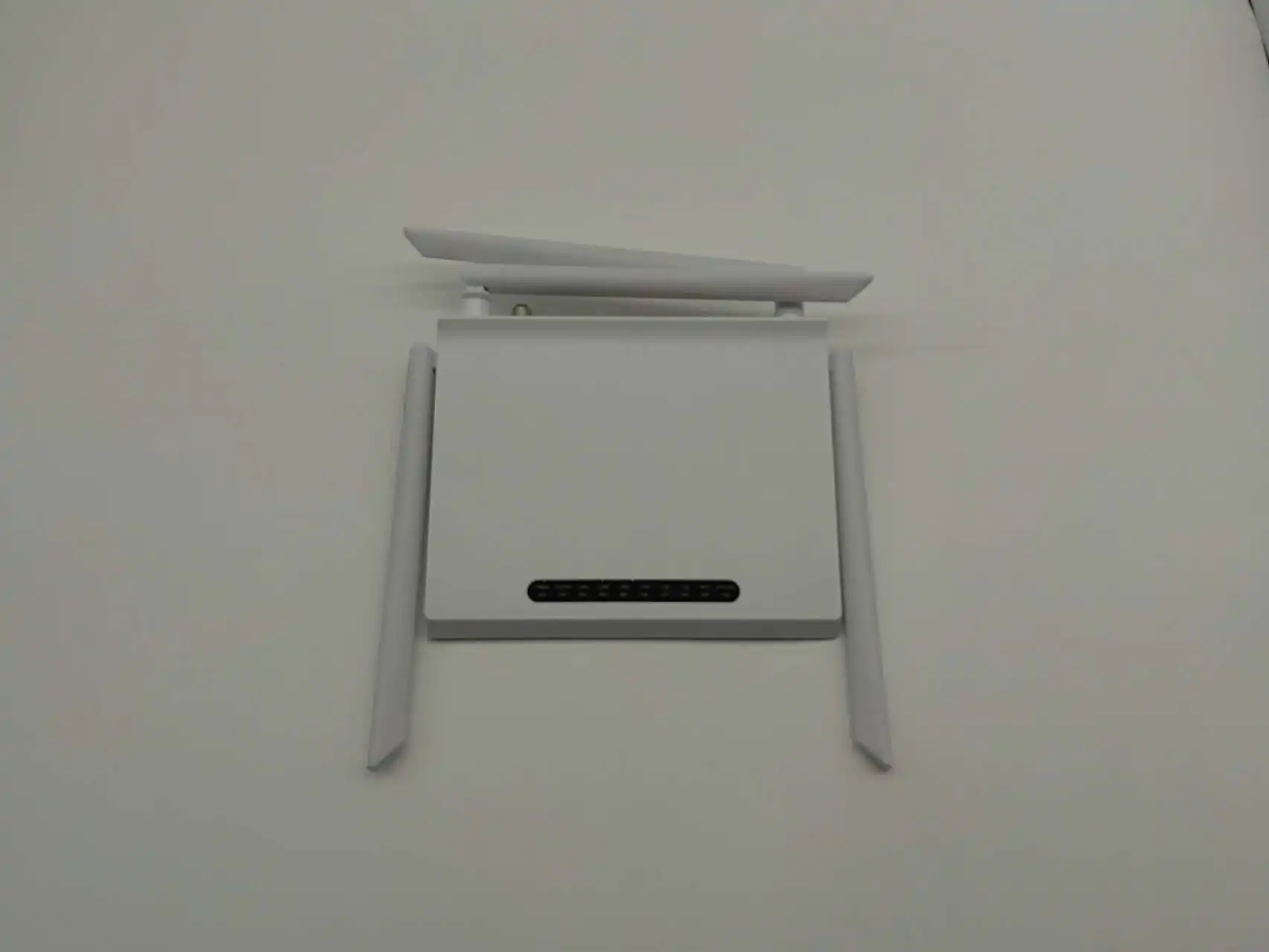

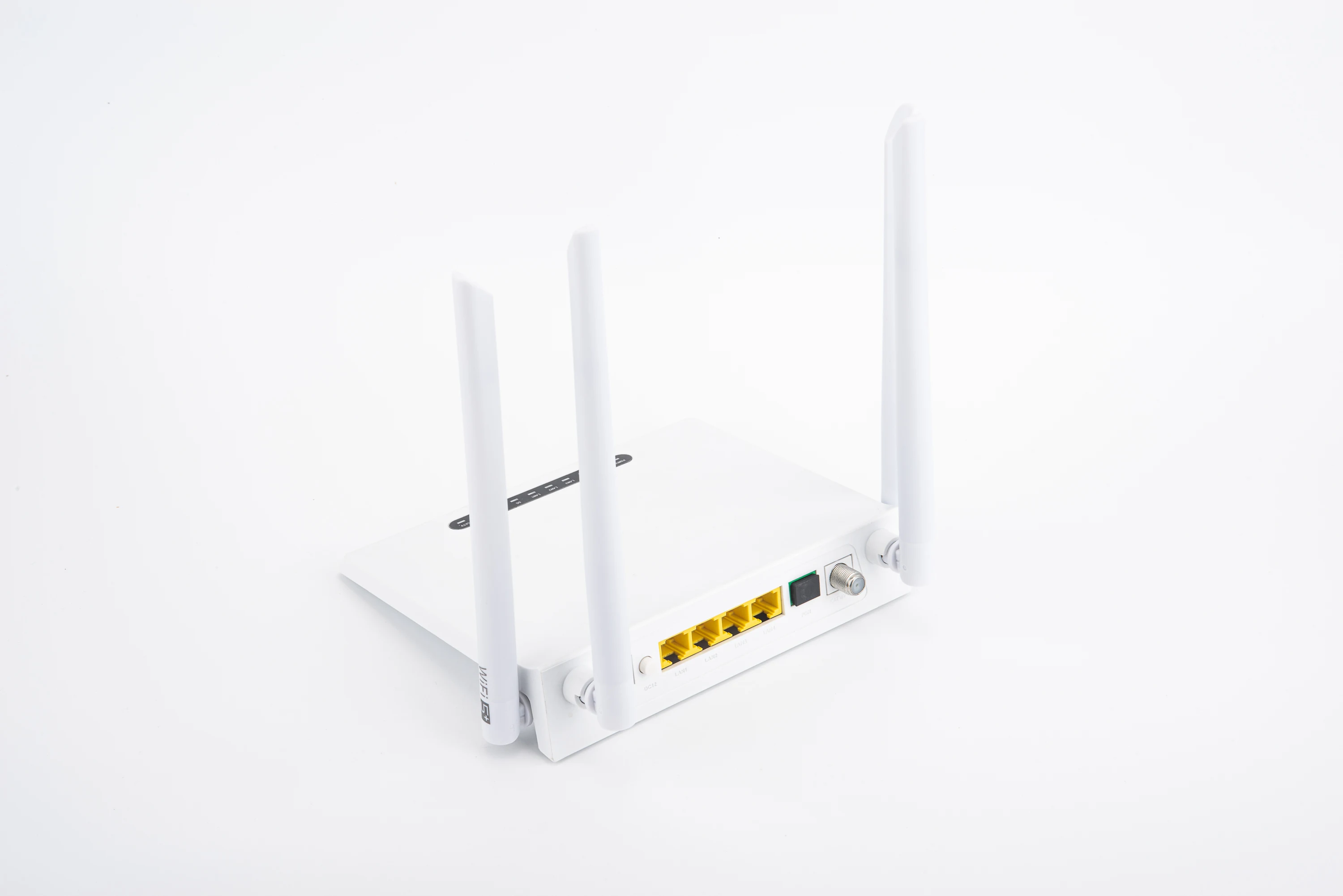

Hot selling FTTH Modem CATV ZC 500GWT XPON 4GE AC1200 WiFi 5 1CATV Dual Band ONT
- Category: >>>
- Supplier: Changsha Silun Network Technology Co. Ltd.
Share on (1601005382056):
Product Overview
Description
Specification
Model Number | ZC-500GWT XPON |
Type | ONU |
Place of Origin | China |
Brand Name | ZIKUN |
Use | FTTH FTTX |
Warranty Time | 1 year |
Color | White |
Weight | <0.3kg |
Power Consumption | <6W |
Power supply | DC 12V/1A |
Operating temperature | 0℃~+50℃ |
Connector | SC/APC |
Packing & Delivery
- Original Completed Package
- According to customer's requirement
- According to customer's requirement
Company Profile
Product Description
ZC-500GWT is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH
application provides data and video service access.
ZC-500GWT is based on mature and stable, cost-effective XPON technology. It could switch automatically
into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
ZC-500GWT adopts high reliability, easy management, configuration flexibility and good quality of service
guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON
Standard of ITU-TG.984.X
ZC-500GWT is designed by Realtek chipset 9607C
application provides data and video service access.
ZC-500GWT is based on mature and stable, cost-effective XPON technology. It could switch automatically
into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
ZC-500GWT adopts high reliability, easy management, configuration flexibility and good quality of service
guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON
Standard of ITU-TG.984.X
ZC-500GWT is designed by Realtek chipset 9607C
Technical Item | Details | ||||||
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM | ||||||
LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector | ||||||
IEEE 802.11 b/g/n (2.4G) IEEE 802.11 a/n/ac (5G) 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO(2.4G&5G), 5dBi external antenna Air interface rate:300 Mbit/s (2.4G); 867 Mbit/s(5G) Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm | |||||||
RF, optical power : +2~-18dBm Optical reflection loss: ≥60dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) | |||||||
Push-Button | 3 button for Function of Power on/off, Reset, WPS | ||||||
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） | ||||||
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） | ||||||
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed .If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Q: What other ways can i contact you?
A：wechat/whatsapp: +86 18152620399
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed .If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Q: What other ways can i contact you?
A：wechat/whatsapp: +86 18152620399
