Flexible Rubber Plastic Elastomeric Thermal Pipe for Insulation

Product Overview

Description

Flexible Rubber Plastic Insulation Material Description

Rubber plastic is a high quality heat-insulating and heat-preservation material  which use butyronitrile rubber and polyvinychloride(NBR,PVC) as main raw materials.

The productionprocess includes mixing, tensing and continuous extruding , heating andfoaming, cooling and cutting.



 FEATURES

Lower heat-conductivity

Higher fire-blockingperformance

Damp-proof andWater-proof

Softness

Neat and

Easy to installeasy handing and storage

Good flexibilityand tenacity



RUBBER PLASTIC SHEET

Standard Size





Remark: Othersized are available upon request. Other colors are available at customers request.

Application

rubber plastic arewidely used in sound isolation of wall planking, sound absorption in air ducts,and sound absorbing decorations in entertainment spaces. It can also be usedfor shock resistance and pressure relief in instruments and equipment.

Technical Parameters

Item	Specification	Standard
Density(kg/m3)	40-90	GB/T 6343
Temperature(℃)	-40~110	GB/T 17794
Flammability	Class B	GB/T 8624-2006
	Class 0	BS 476Part7∝Part6
Oxygen index  (%)	≥40	GB/T 2406
SDR	≤65	GB/T8627-1999
Conductivity  factor Average  temperature	≤0.031	GB/T 10294
Water vapor  permeability (%)	≥1.0x104	GB/T 17146-1997
	≤1.96x 10-11
Water  absorption ratio in vacuum (%)	≤10	GB/T 17794-2008
Dimension  stability(N/cm)	≤10	GB/T 8811
Crack  resistance	≥2.5	GB/T 10808
Compression  resilience ratio (%)	≥70	GB/T 6669
Anti-ozone	No cracking	GB/T 7762
Ageing-resistance	Slightly crumpling, no cracks no pin holes, not deforming	GB/T 16259



Packaging

Product is packed in cartoon.

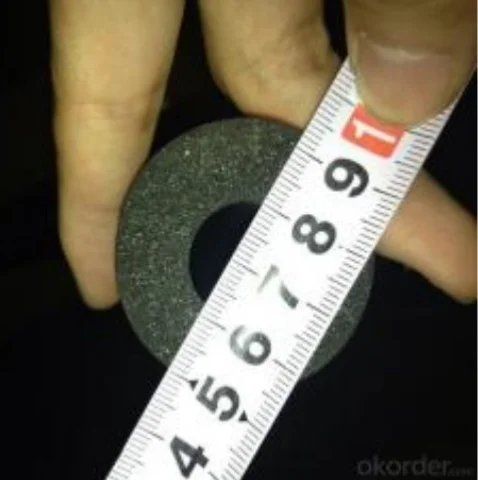

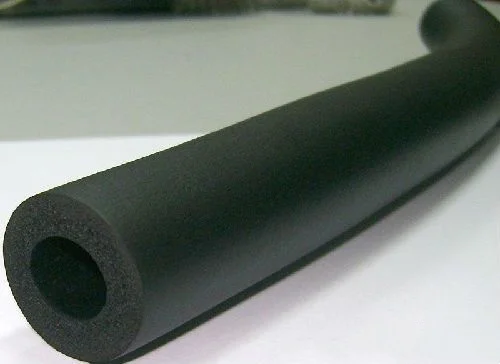

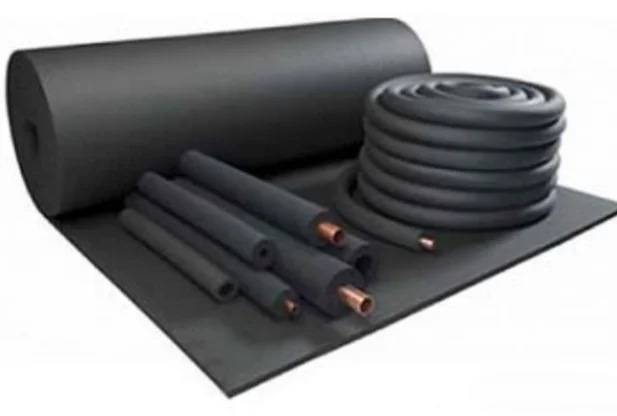

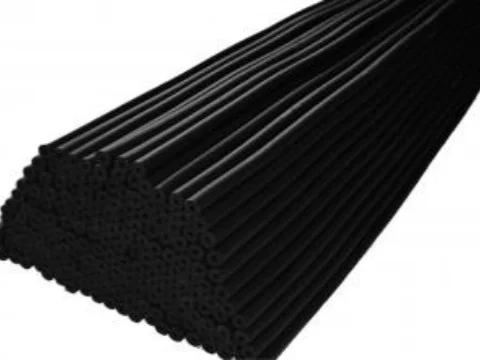

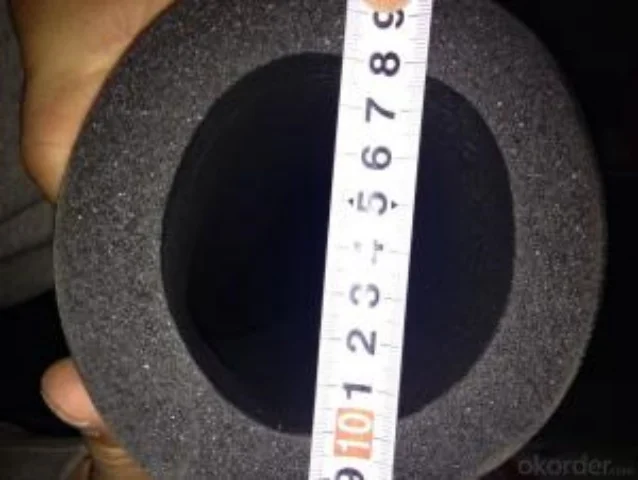

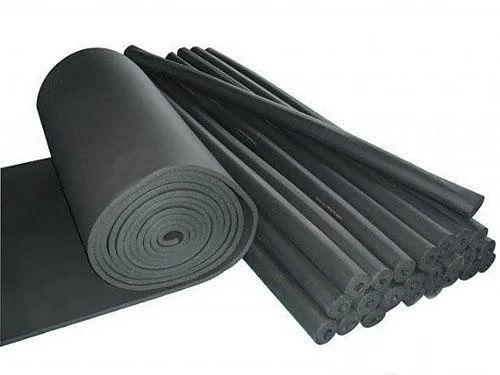

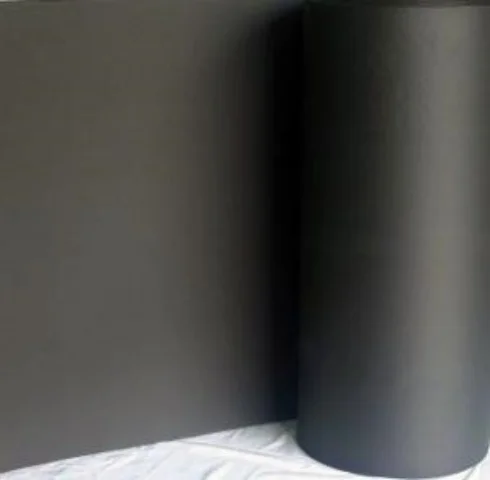

Rubber Plastic Images
