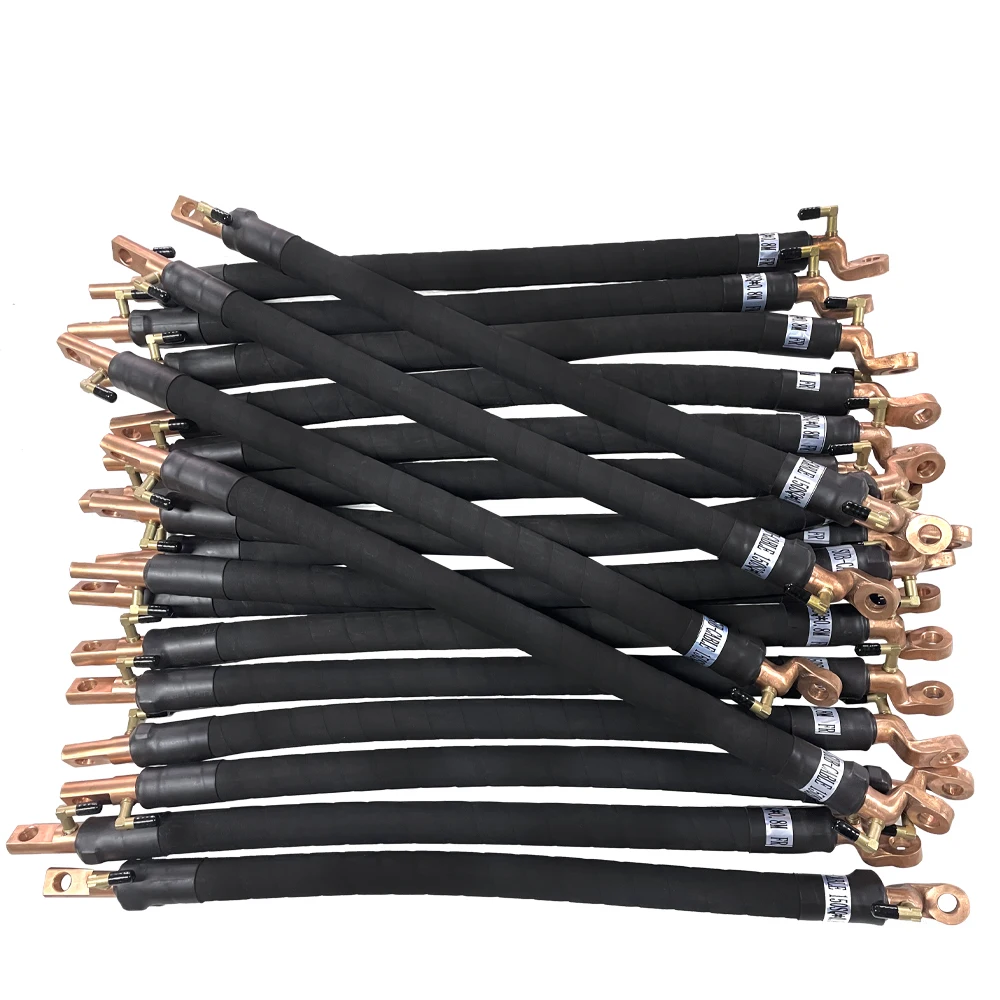

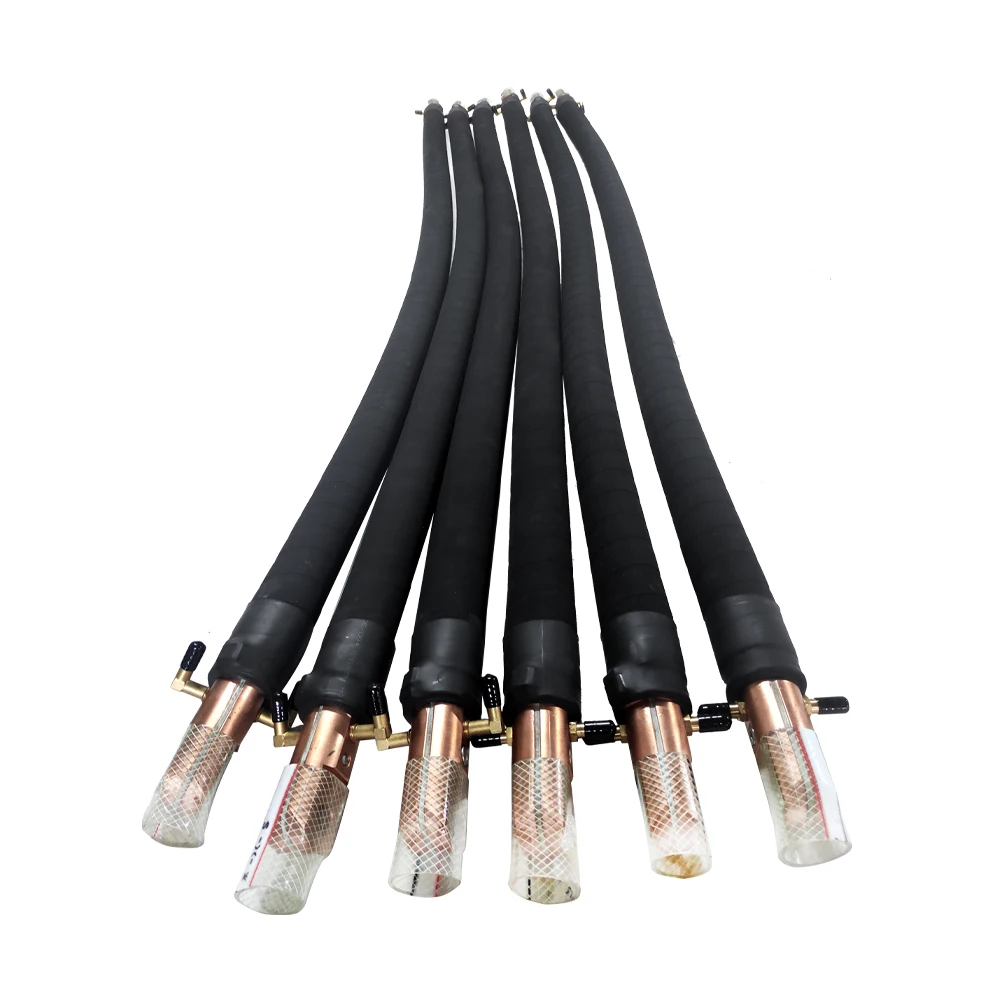

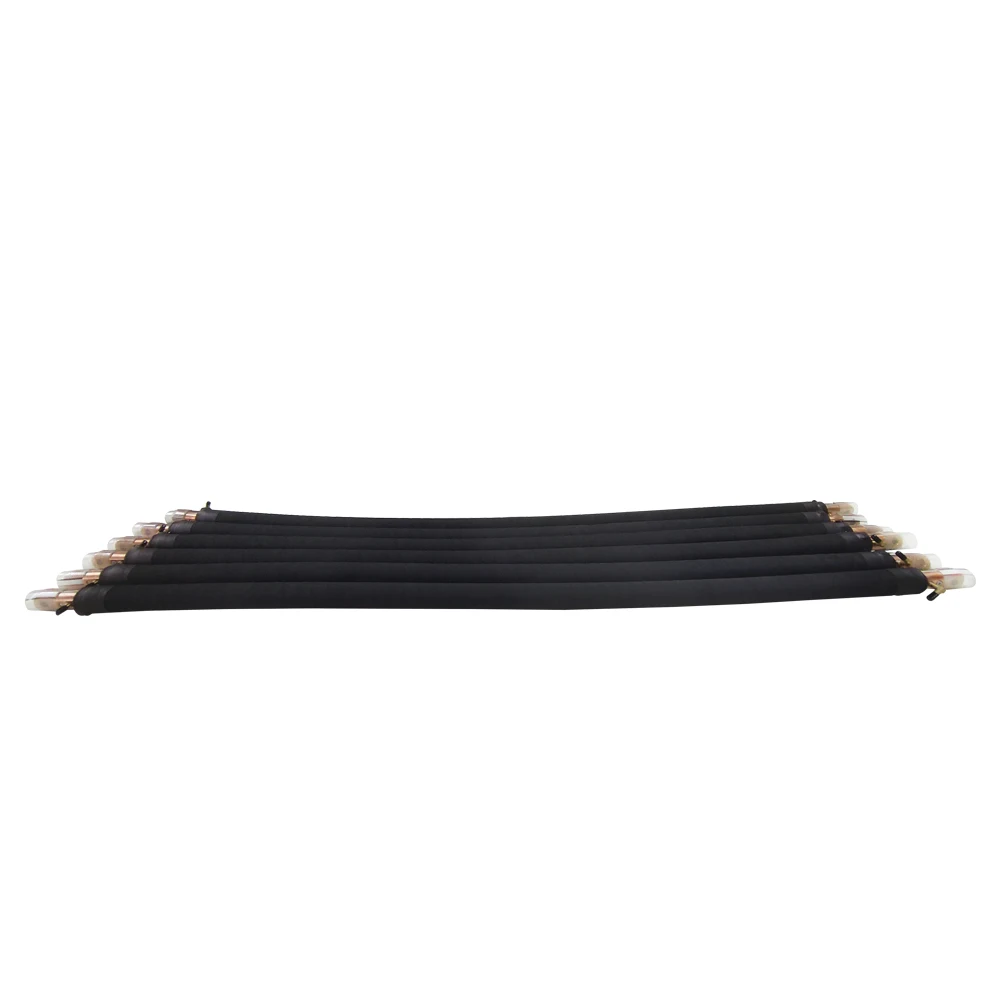

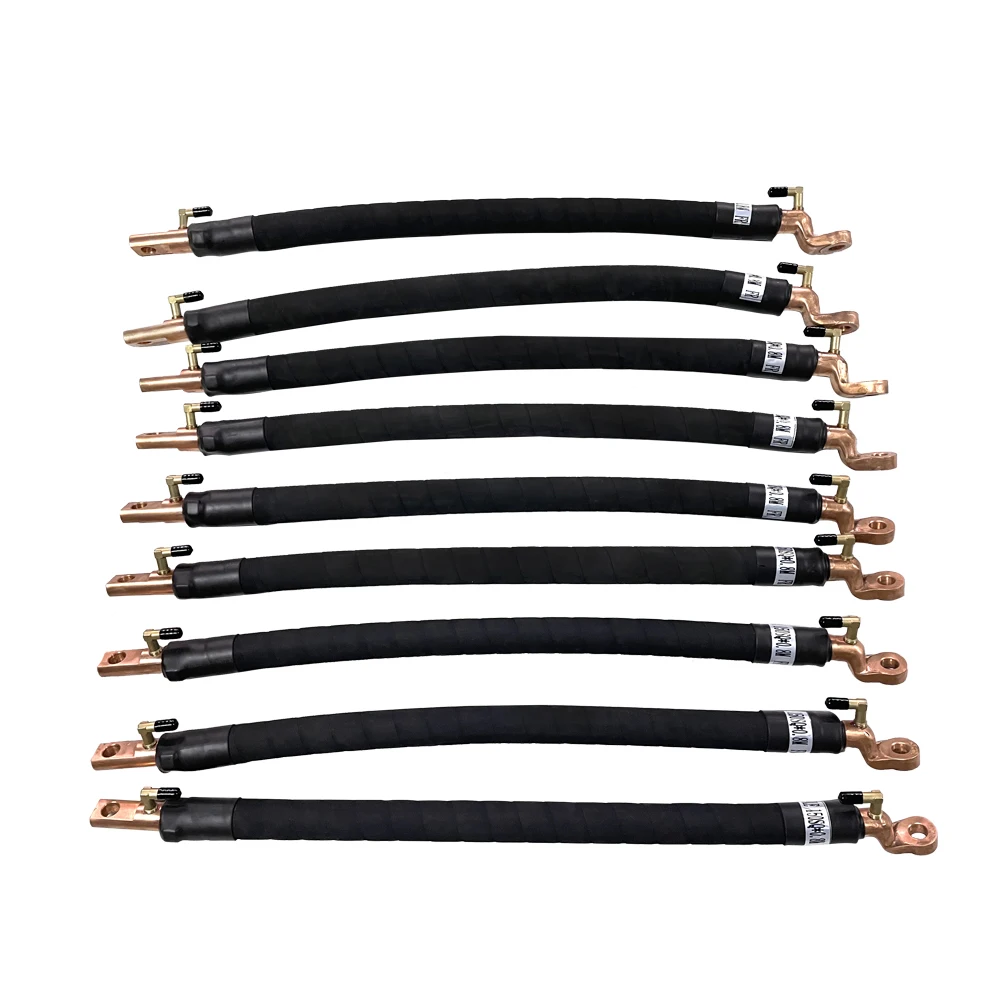

Water Cooling Kickless Cabled Secondary Cable 200Sq X 3M For Welder Machines
- Category: >>>
- Supplier: Chengdu Xingweihan Welding Equipment Co. Ltd.
Share on (1601005425916):
Product Overview
Description
Product Description
Secondary Cable, is a hollow specialized cable used for high current heating equipment, can be divided into kickless cables and secondary cables. Usually composed of electrodes (cable heads), wires, and external protective sleeves. Mainly used for hanging type spot welding machines or suspension spot welding machines.
Technical Parameters
Item/Cross Section | 150 mm² | 200mm² | 300mm² | 400mm² | |||
Length | 0.6m-1.2m | 2m-3.5m | |||||
Materials | Red Copper+ Rubber | ||||||
Customization | Yes | ||||||
Main Features
1. Terminal performance: Made of high-purity copper material with a one-time forging process to improve its high conductivity.
2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved.
3. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life.
4. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color.
5. Pipe clamp: Made of stainless steel sleeve and pressed by hydraulic locking machine, it has a longer service life and is more beautiful than traditional stainless steel belt locking.
2. Conductive structure: The wire core is made of high-purity red copper rods, which are drawn into single wires and tinned before being twisted together. Overcoming the drawbacks of traditional cable conductors such as fuzzing, breakage, and breakage, low impedance and high power have been achieved.
3. Joint welding technology: New high-temperature welding technology has been introduced, which is resistant to high temperature, low resistance value, and high conductivity, avoiding the phenomenon of breakage and detachment caused by high current impact in general brazing. Non welding cables have been developed, which are connected to wires through pressure to improve their service life.
4. Rubber sleeve: Special pipes with high rubber content, softness, wear resistance, and heat resistance are used, which have good elasticity, flexibility, and rich color.
5. Pipe clamp: Made of stainless steel sleeve and pressed by hydraulic locking machine, it has a longer service life and is more beautiful than traditional stainless steel belt locking.

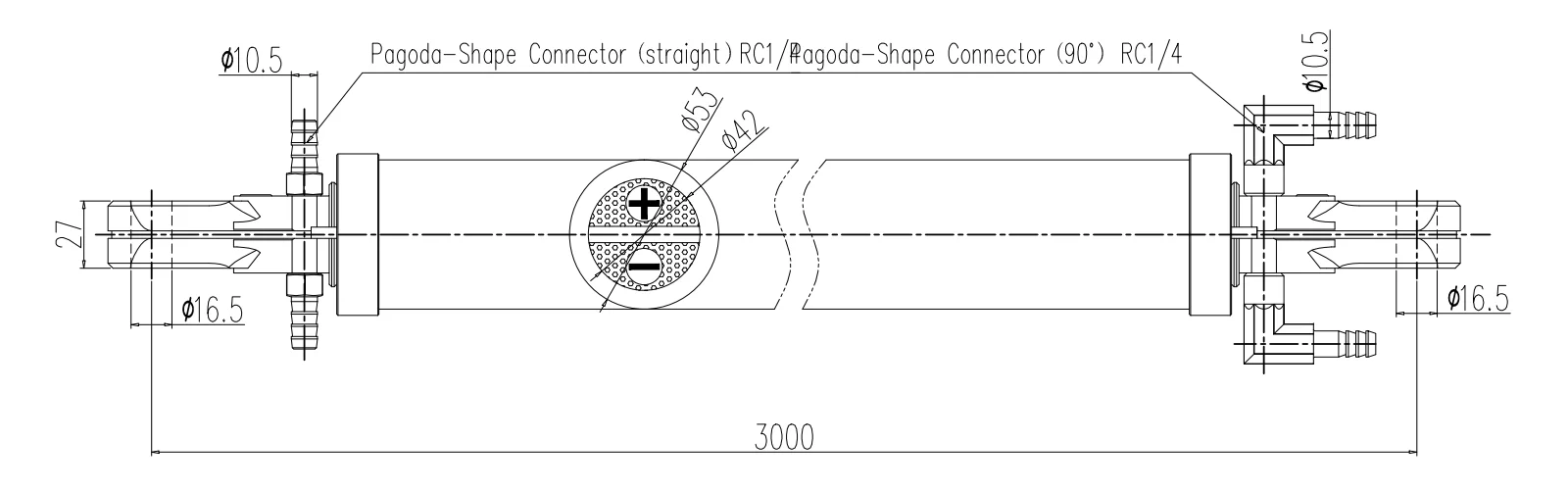

Some Standard Drawings

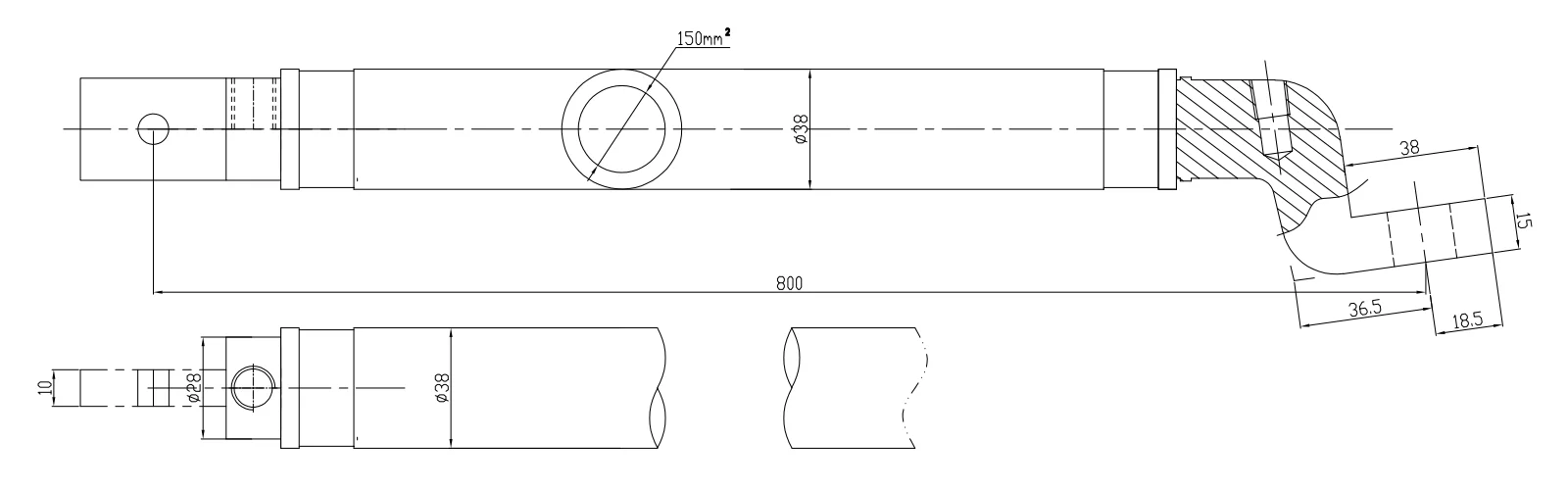

Cross Section 150mm²
Cross Section 300mm²
Besides standard models, we can customized according to your requirements. More details, please contact!
Scene images

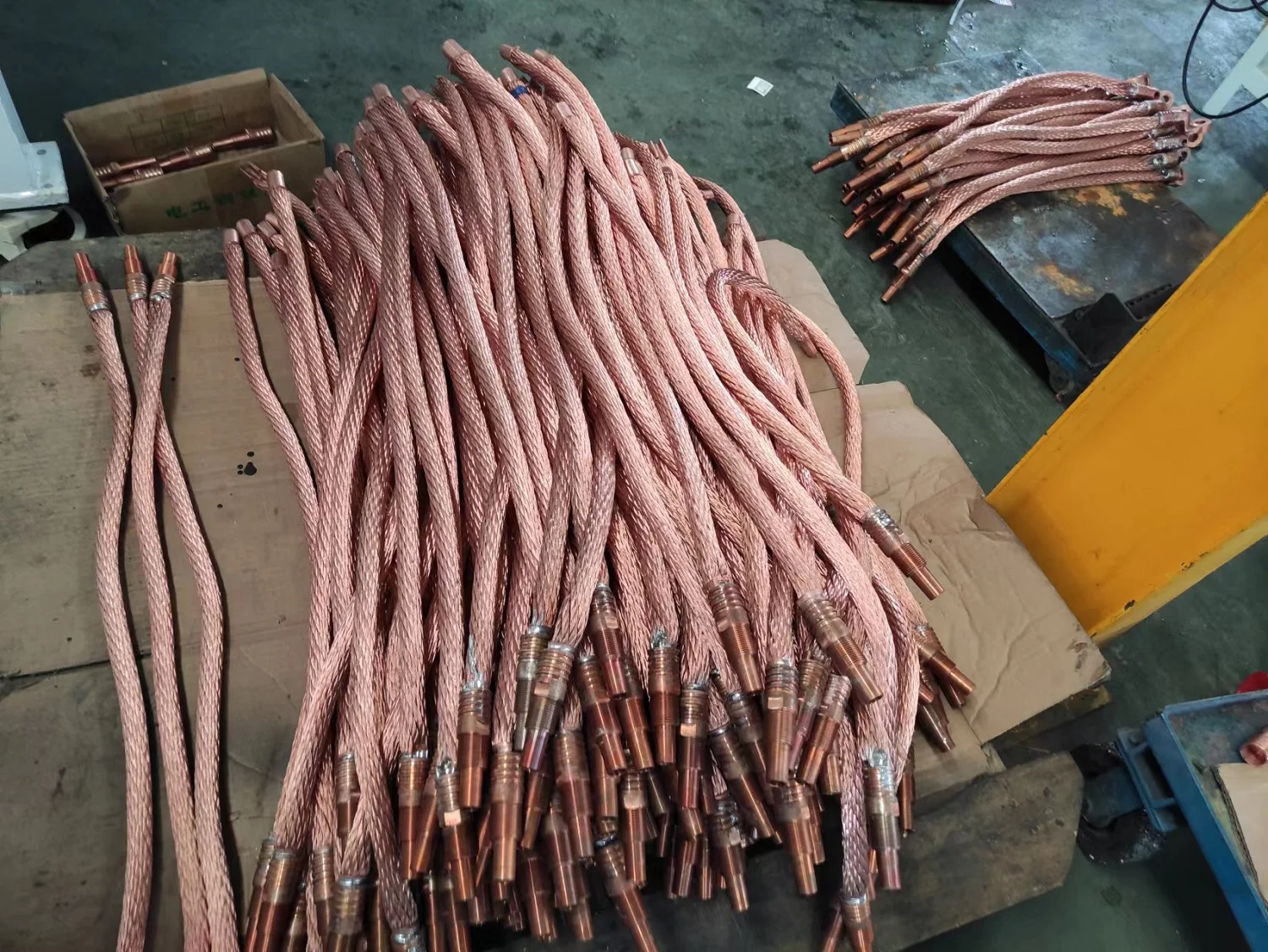

Raw Materials: Pure Red Copper

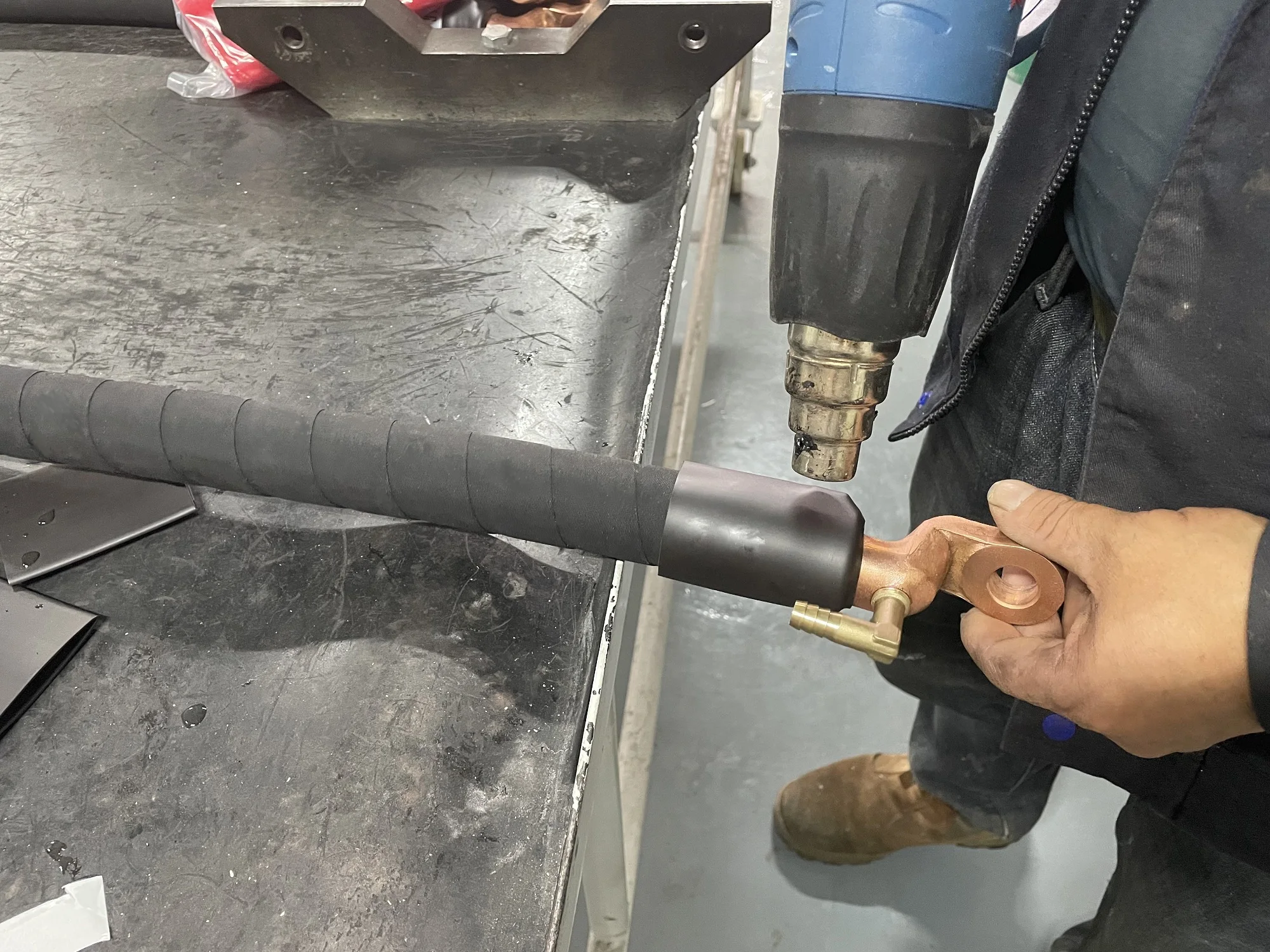

Careful Protection :Additional Rubber Sleeve

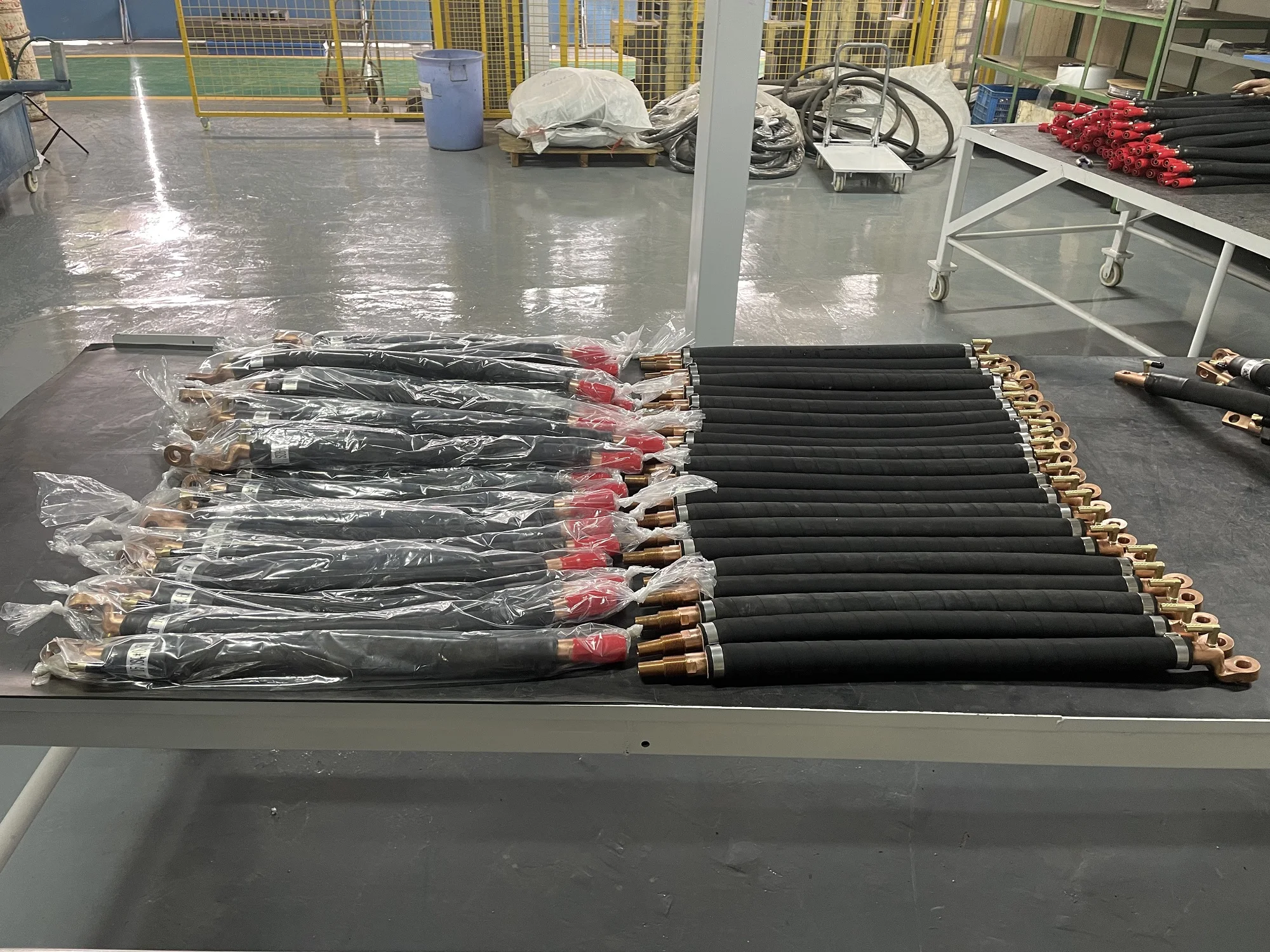

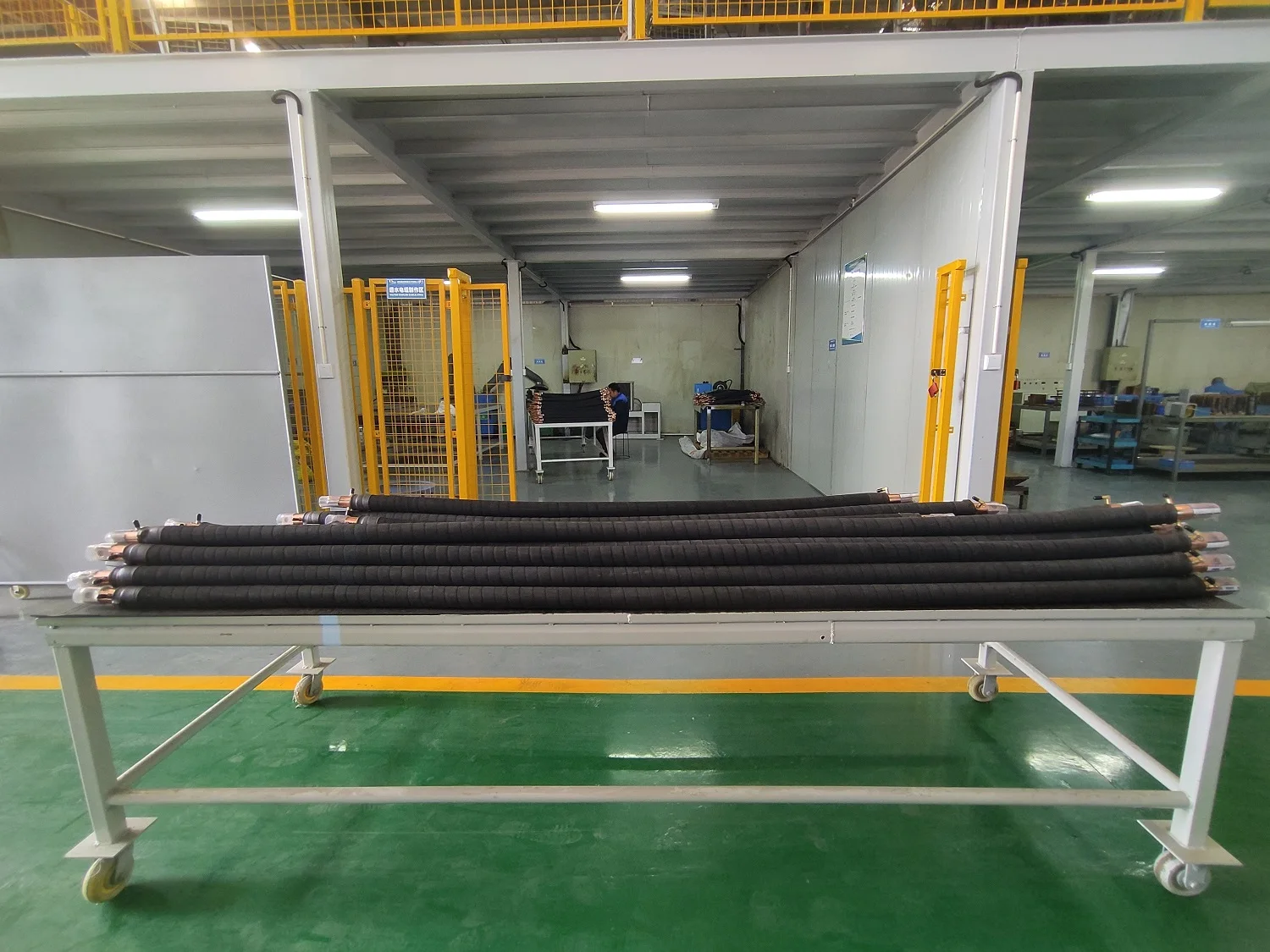

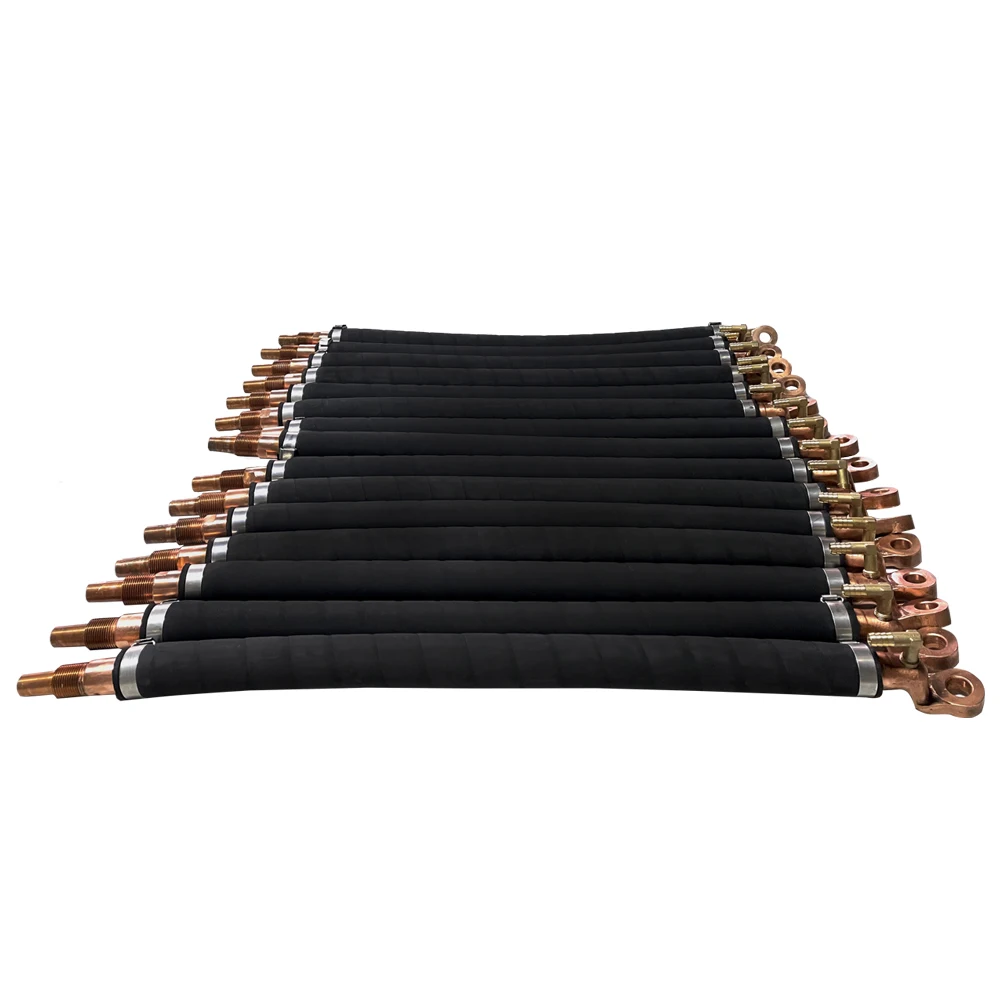

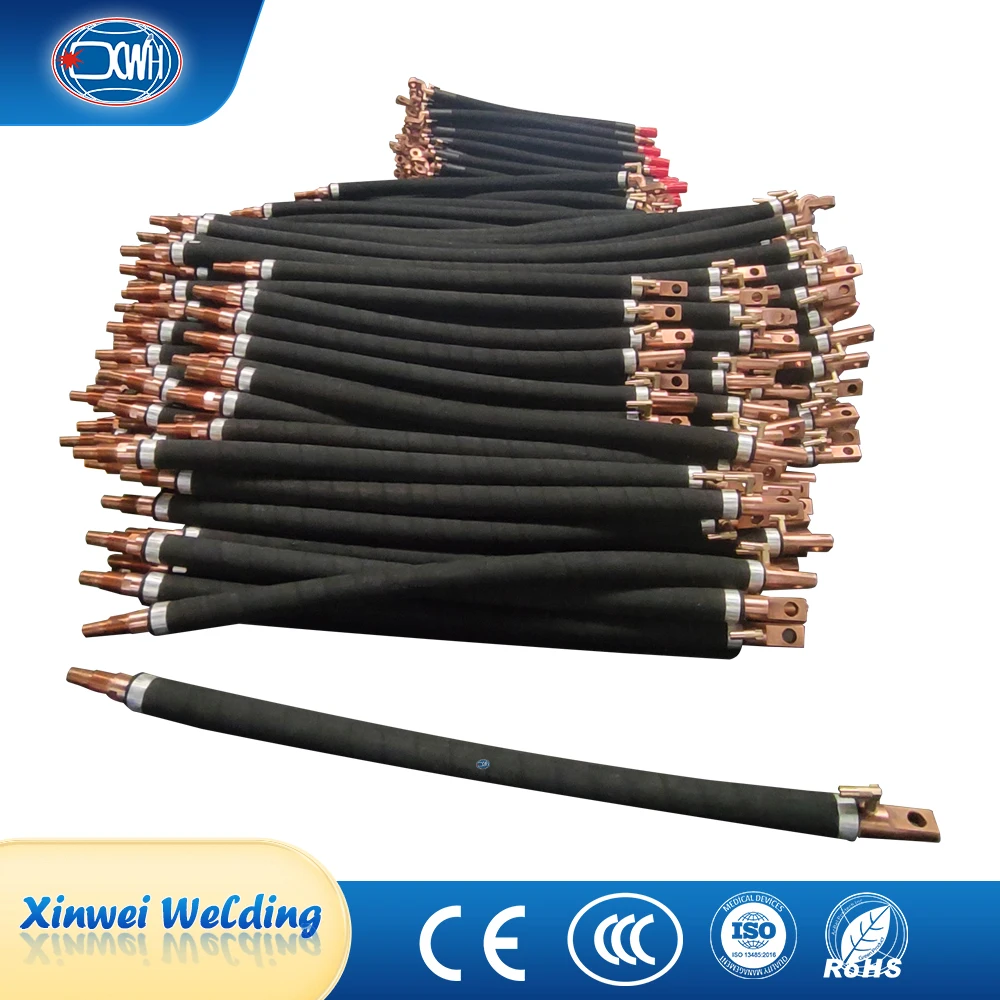

Finished Product
