Networking cabinets 15U 18U 20U 22U 23U 25U 27U 30U 32U 35U 36U 41U 42U

\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

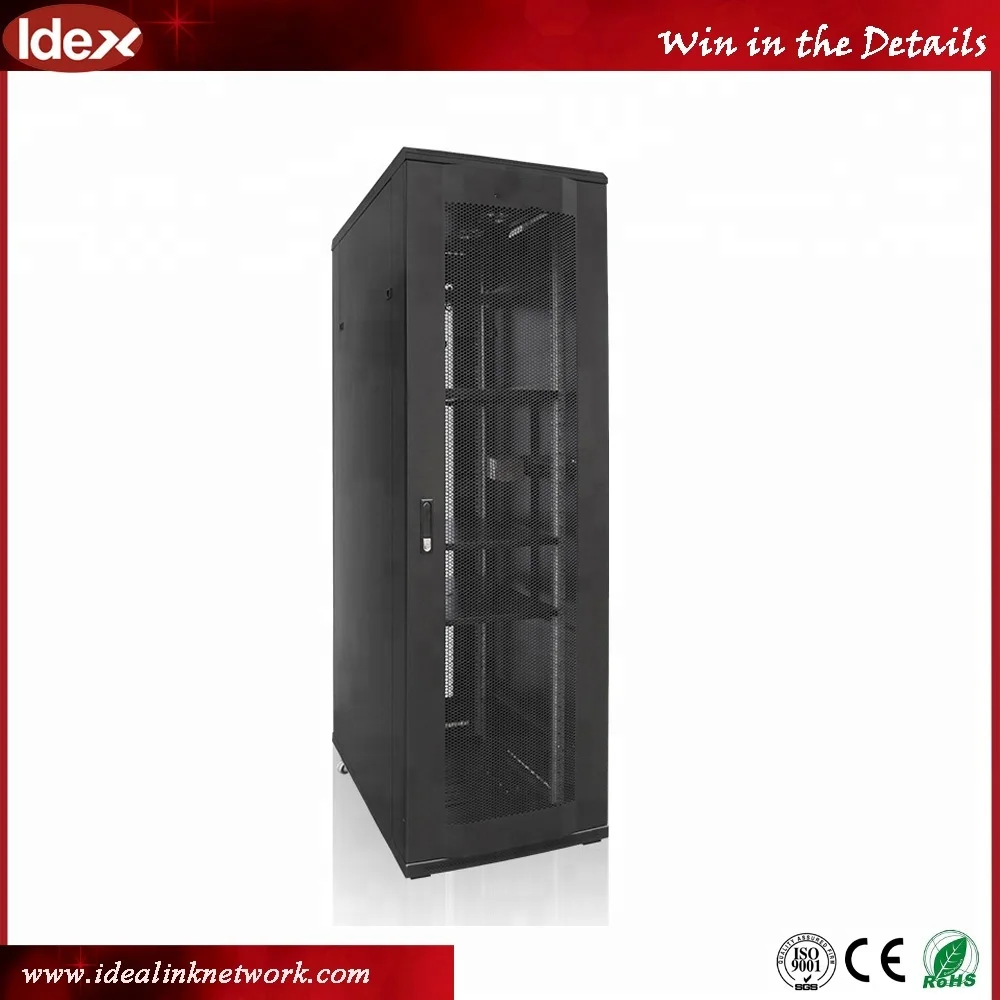

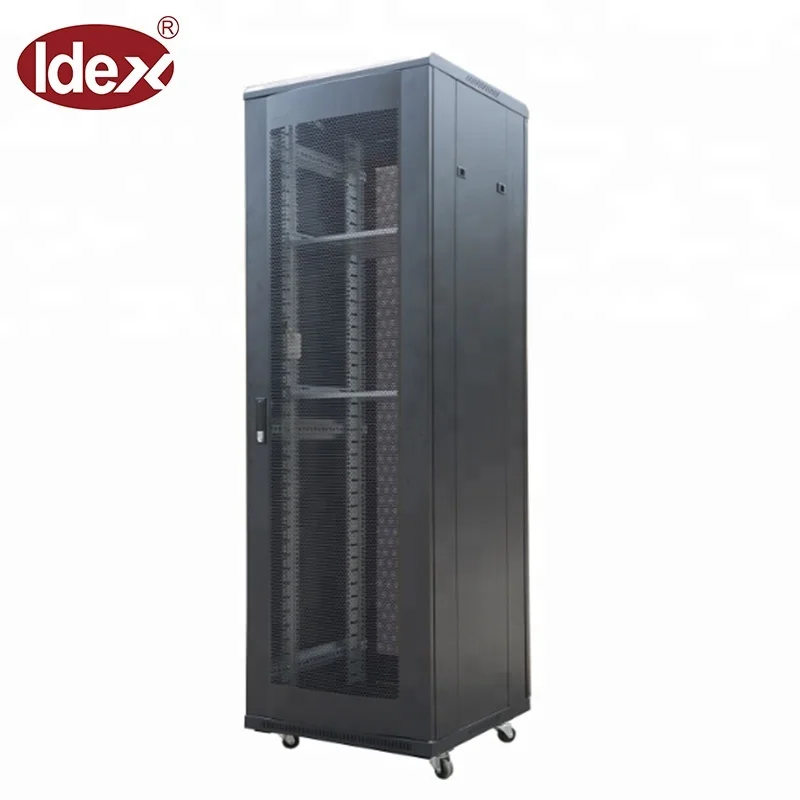

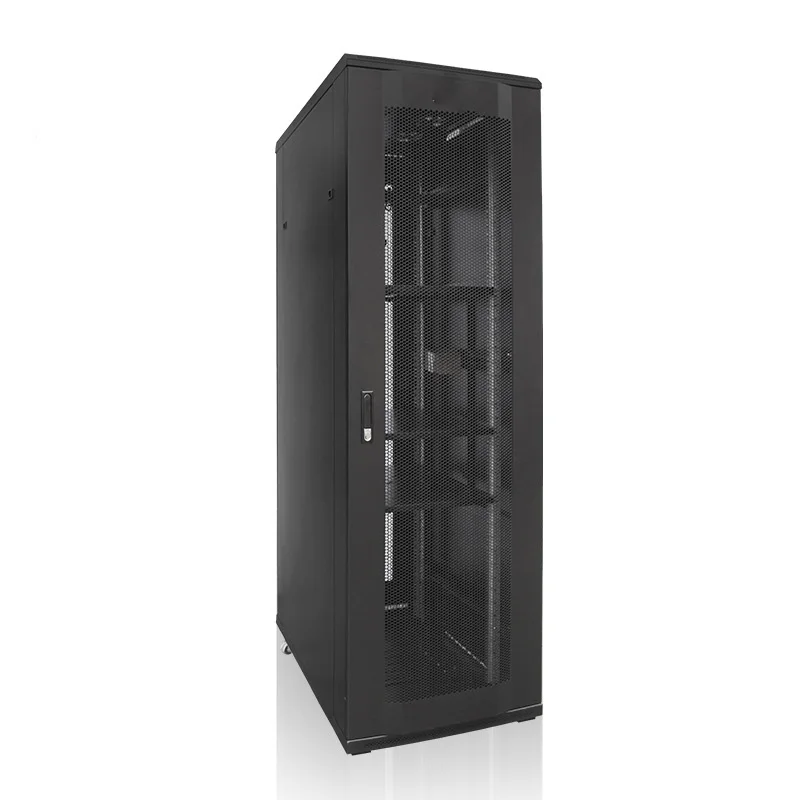

\t\t\t Item: \t\t\t	\t\t\t IRS Series Network Cabinet \t\t\t
\t\t\t Brand: \t\t\t	\t\t\t Idex \t\t\t
\t\t\t Cabinet material: \t\t\t	\t\t\t Cold Rolled Steel \t\t\t
\t\t\t Cabinet thickness: \t\t\t	\t\t\t Mounting rails 2.0 mm, others 1.2 mm \t\t\t
\t\t\t One \t\t\t	\t\t\t 19” active standard machine stand \t\t\t
\t\t\t One \t\t\t	\t\t\t Steel dismountable side door \t\t\t
\t\t\t One \t\t\t	\t\t\t Ventilation grid steel dismountable back door \t\t\t
\t\t\t One \t\t\t	\t\t\t Ventilation grid steel door with lock \t\t\t
\t\t\t One \t\t\t	\t\t\t fixed shelf (14-27 U have one board, 32 U have two board,and etc.) \t\t\t
\t\t\t Two \t\t\t	\t\t\t Ceiling-cover hear dissipation scavenger fan (600*600 have Two Fans, 800*1000 have Four Fans) \t\t\t
\t\t\t One  \t\t\t	\t\t\t Six- socket versatile electrical outlet \t\t\t
\t\t\t Four \t\t\t	\t\t\t Active chassis all-direction trundle \t\t\t
\t\t\t Some \t\t\t	\t\t\t M6 steel screw nut \t\t\t



\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t
\t

Cabinet Application:

The standing network cabinet is a cost effective cabinet that can be installed in equipment rooms or in office environments where aesthetics are important.

The frame made from comes with steel side, top and rear door plus a toughened glass front door, tow pairs of shelf rails are provided for mounting shelves and other accessories in the 600mm/800mm and 960mm deep cabinets.

19-inch telecommunication and data racks designed for installing patch panels, active components for LAN construction, modems, industry-controlling devices, stage lighting control, and monitor equipments.

Unassembled rack is equipped with 2 pairs of 19-inch movable vertical extrusions, one pair of side panels with quick release locking fastener, tempered glass front, door with lock, rear metal door with lock.

Increase operation reliability for inside equipments, strong structure with maximum static load more 500kg.

Several lockable cable entrances on the top bottom plate.

Cabinet Information :

SPCC high-quality Cold Roll Steel. And its thickness: Mounting rails 2.0 mm, others 1.2 mm.

Surface treatment: degreasing, rustproof, phosphoric spraying.

Steel frame. Range of medium duty cabinets of durable modular construction.

Tempered glass front door and rear door accelerate the convection inside enclosure. With tempered glass locking doors section doors, enable ventilation and reliable operation.

Removable side panels, leveling feet or castors, Max. Static load 800 KG, Max. Dynamicload 350 KG.

Special design, strength front/rear door shape beauty and structure fastness. Several lockable wiring holes on top/bottom, size of the large hole the bottom adjustable. The frame can be moved according to requirement, U-marked in the frame to identify the height. Bottom base can fix the cabinet, cable entry, airflow, and avoid arts.

Full set of optional accessories.

Installation can be optional for castors of standing.

Efficient cabinets connectors.

Cabinets are vented to allow cooling.

Standard color is computer gray.

No tools are required to change the door from left hand to right hand opening.

Standard Compliances:

Standard meet ANSI/EIA RS-310-D.

DIN41491,PART1.

IEC297,PRAT7.

GB/T3047.2-42 requirement.

Compatible with 19” international standard.

The ETSI standard.

OEM Serve:

Customize for your requirement:

Cabinet thickness: Mounting rails 2.0 mm, others 1.2 mm.

Surface treatment: degreasing, rustproof, phosphoric spraying.

Cabinet Height: 14U,18U,22U,27U,32U,37U,42U,……

Cabinet Size: 600*600 mm,600*800 mm,800*800 mm,……

Ventilation grid steel front door.

Lock.

Fan: standard configuration is above two Fan, 600*800 is Four Fan, ……

Fixed shelf: Above One fixed shelf,customize for your requirement.

Power style: standard configuration is six ways national standard power, customize for your requirement.

Caster.

M6 steel screw nut.

\t\t\t Cabinet color: Black \t\t\t

\t\t\t Packing ways: Carton \t\t\t
