12 volt 24 volt 10 amp mppt solar charge controller mini solar system solar charge controller 12v
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. ltd.
Share on (1601005469808):
Product Overview
Description
Product Description
MPPT Solar Charge Controller :
MPPT solar controller refers to the solar controller with Maximum Power Point Tracking function. MSC series solar charge controller is MPPT photovoltaic battery charge controller with our own technology. The MPPT solar controller can detect the power generation voltage of the solar panel in real time, and track the highest voltage and current value (VI), so that the solar system can charge the battery with the maximum power output.
The MPPT tracking efficiency is 99%, and the power generation efficiency of the entire system can reach 97%. Compared with the PWM controller, the MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.
The MPPT tracking efficiency is 99%, and the power generation efficiency of the entire system can reach 97%. Compared with the PWM controller, the MPPT can improve the control accuracy and the output power of the solar panel can be increased by 5%-30%.
Specification of MPPT Solar Charge Controller ：
Item No. | AN-MSC-20A | AN-MSC-30A | AN-MSC-40A | ||
DC Voltage(Auto) | 12/24V | 12/24V | 12/24V | ||
Maximum Charge Current | 20A | 30A | 40A | ||
PV Maximum Input Voltage | 60V | 100V | 100V | ||
Carton Dimension | 178*123.5*48mm | 195*133*55mm | 218*149*67mm | ||
PC/Carton | 30 | 20 | 12 | ||
G.W | 19kg | 18kg | 19kg | ||
Remark | Color LCD display/Support charging Lead-acid battery & lithium battery/Plastic Cover | ||||

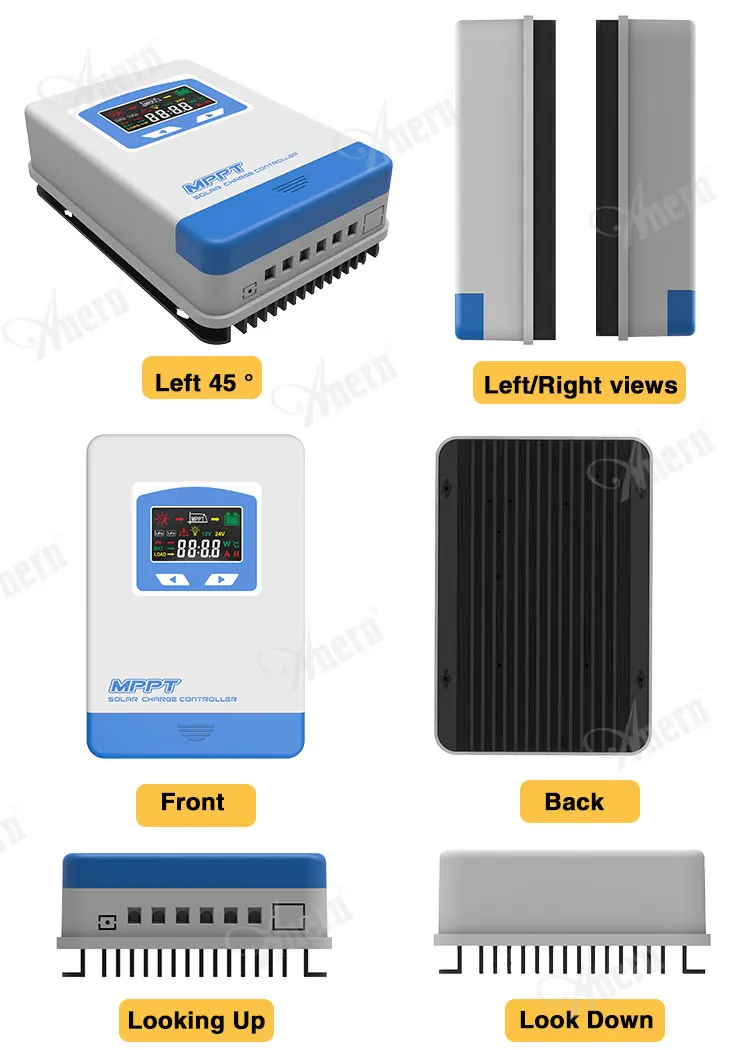

Product Details
Compatible with a variety of cell types
the user's custom option
Supported battery types: Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 battery types are available.
the user's custom option
Supported battery types: Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 battery types are available.

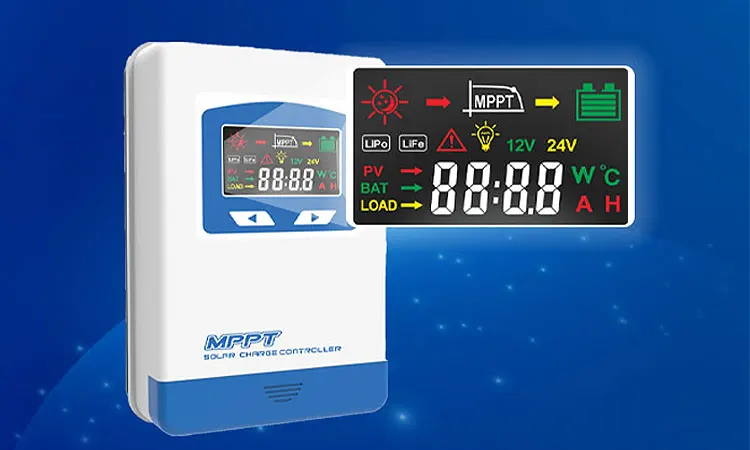

Color LCD
Color LCD is designed to dynamically display
the operation data and working status of equipment.
Color LCD is designed to dynamically display
the operation data and working status of equipment.
Anern Factory
We can offer OEM services as your specific requirements, provide a cost effective, energy efficient, and long term outdoor solar solution.
Packaging & Shipping
Certification
Anern products have passed international testing and certification reports including UL, TUV，CE, FCC，ROHS, etc which is sure to meet the import needs of different countries. So far, Anern LED and solar series of products have put into use in many important government projects around the world and won high praise from our customers.
Company Information
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm,among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
