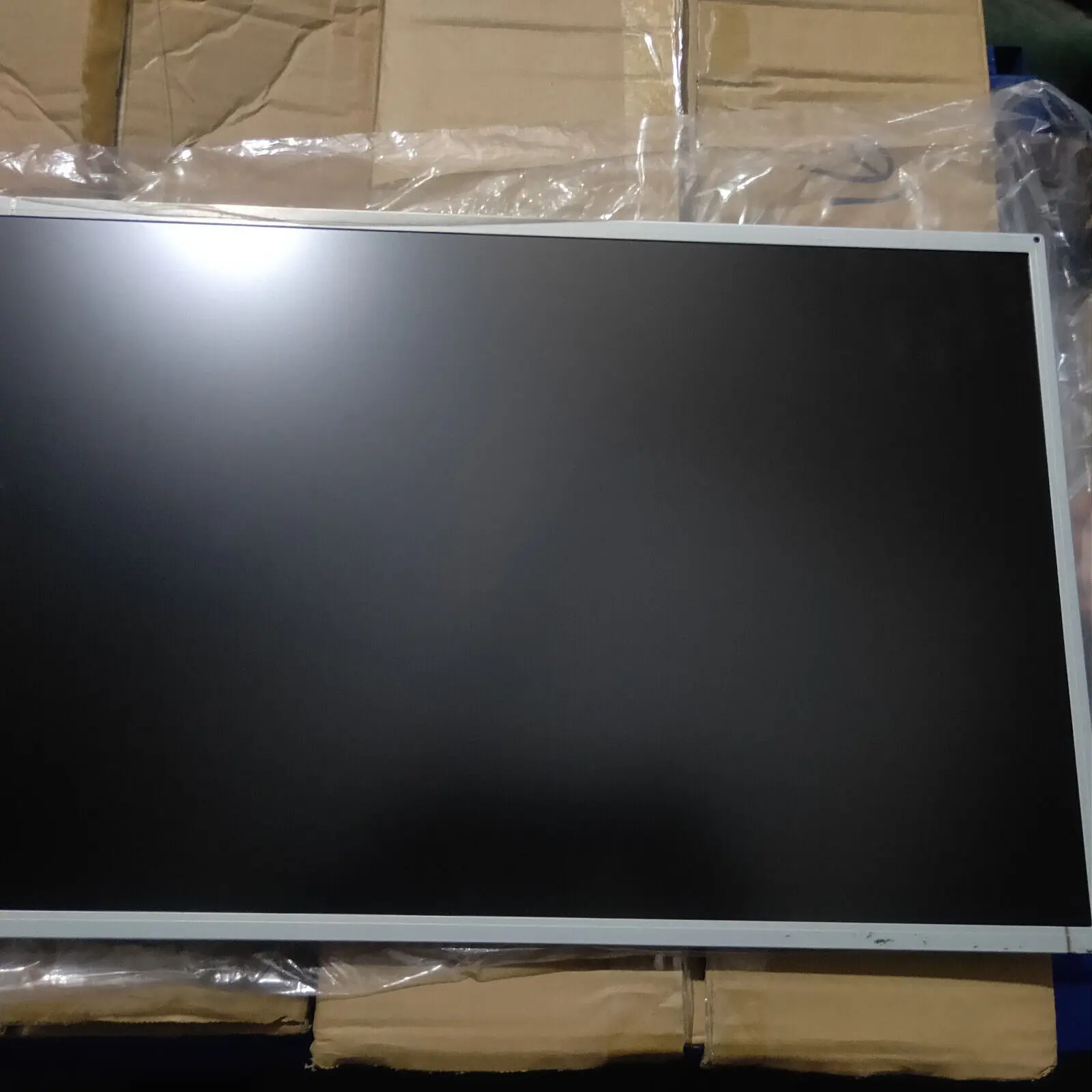

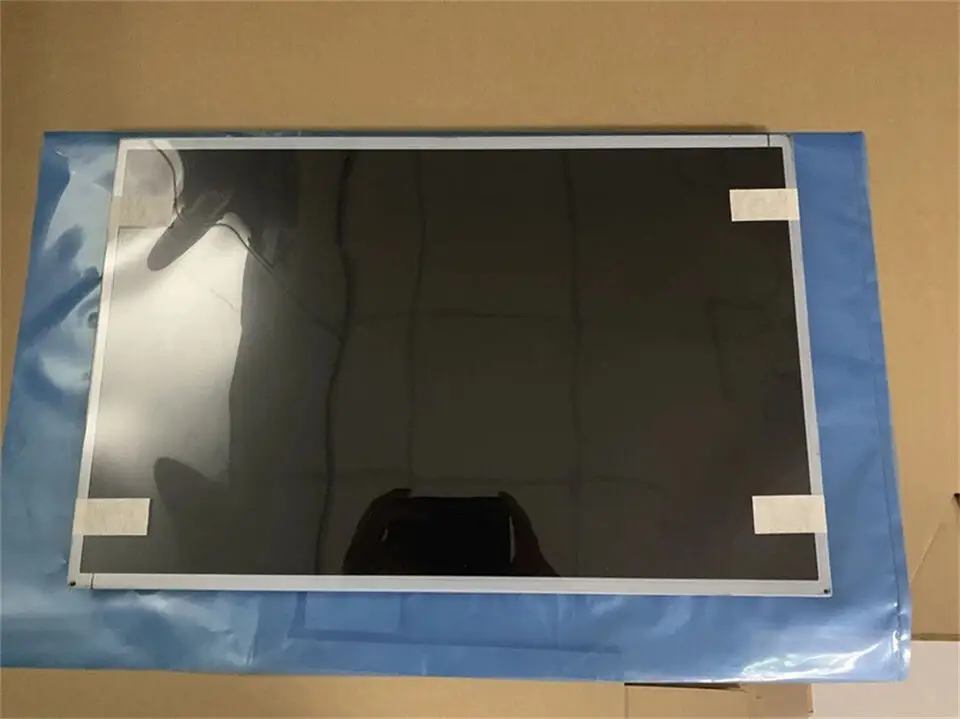

22 Inch 1680x1050 22 Inch Tft Lcd Display Panel 250 Brightness a Si TFT LCD Module
- Category: >>>
- Supplier: Shenzhen Ibr Electronics Co. Ltd.
Share on (1601005488452):
Product Overview
Description
Product Description

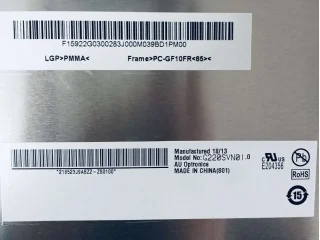

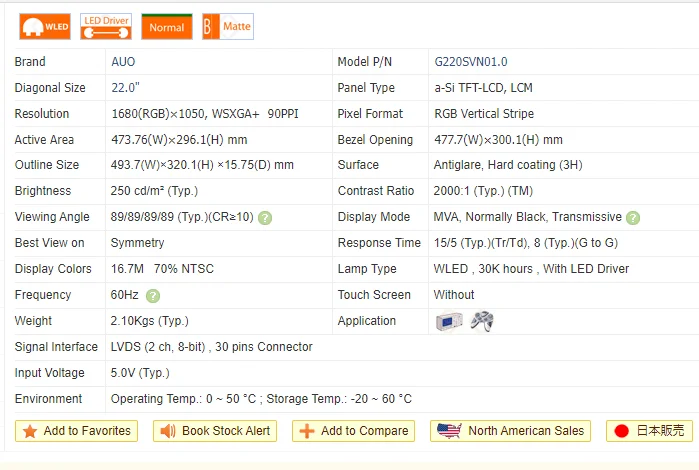

Brand | AUO | Model | G220SVN01.0 | ||
Screen Size | 22.0" | Panel Type | a-Si TFT-LCD, LCM | ||
Pixel Format | RGB Vertical Stripe | Resolution | 1680(RGB)×1050, WSXGA+ 90PPI | ||
Active Area(mm) | 473.76(W)×296.1(H) mm | Outline Size | 493.7(W)×320.1(H) ×15.75(D) mm | ||
Bezel Opening | 477.7(W)×300.1(H) mm | Surface | Antiglare, Hard coating (3H) | ||
Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (TM) | ||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)89/89/89/89 (Typ.)(CR≥10) | Response | 15/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G) | ||
Display Colors | 16.7M 70% NTSC | Lamp Type | WLED , 30K hours , With LED Driver | ||
Panel Weight | 2.00Kgs (Typ.) | Frequency | 60Hz | ||

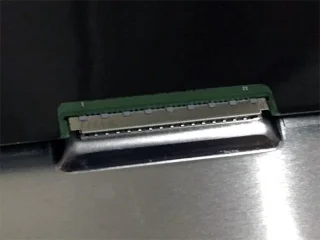

Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||||
Input Voltage | 5.5V (Typ.) | ||||
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C | ||||
