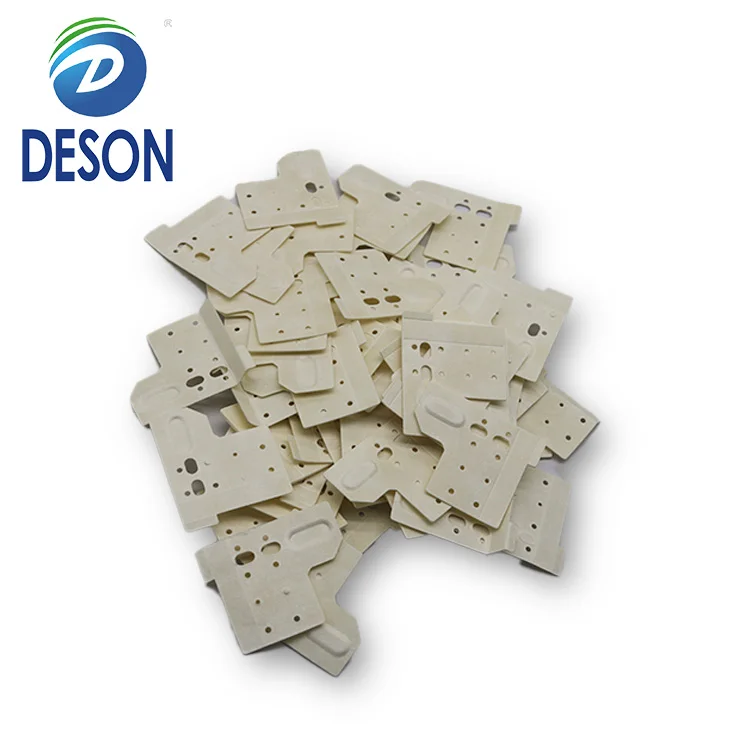

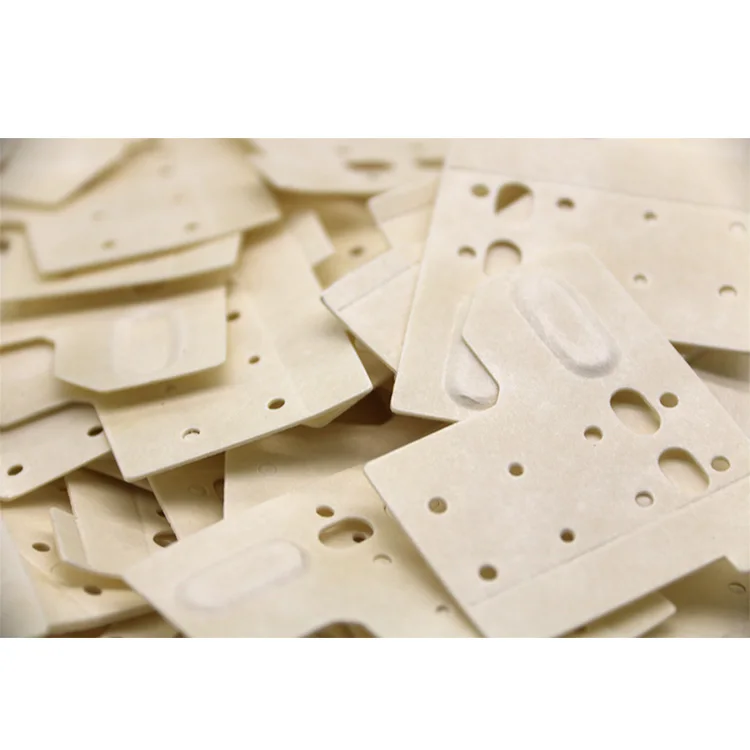

Deson Die Cut T410 Aramid Nomex Battery Packing Insulation Paper Fireproof Tape For Electrical Insulation
- Category: >>>
- Supplier: Dongguan Deson Insulated Materials Co. Ltd.
Share on (1601005491820):
Product Overview
Description

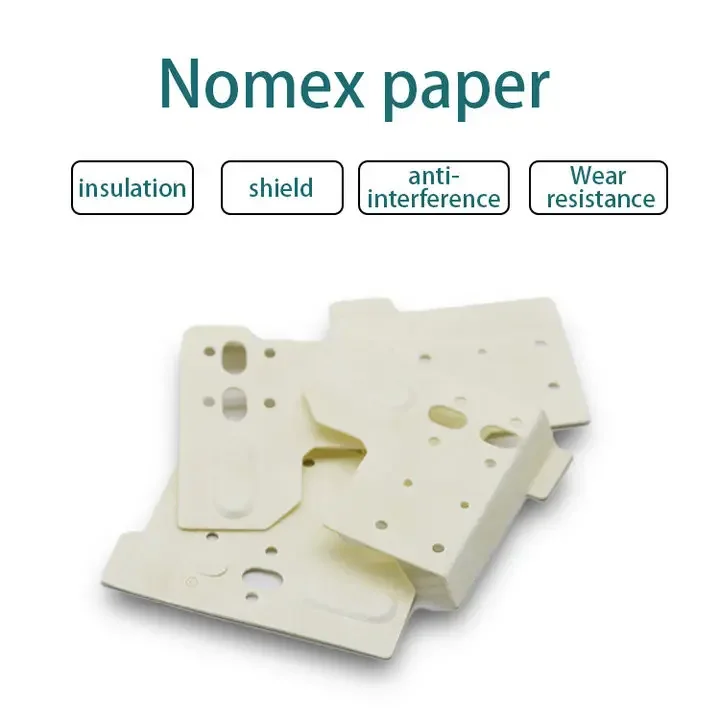

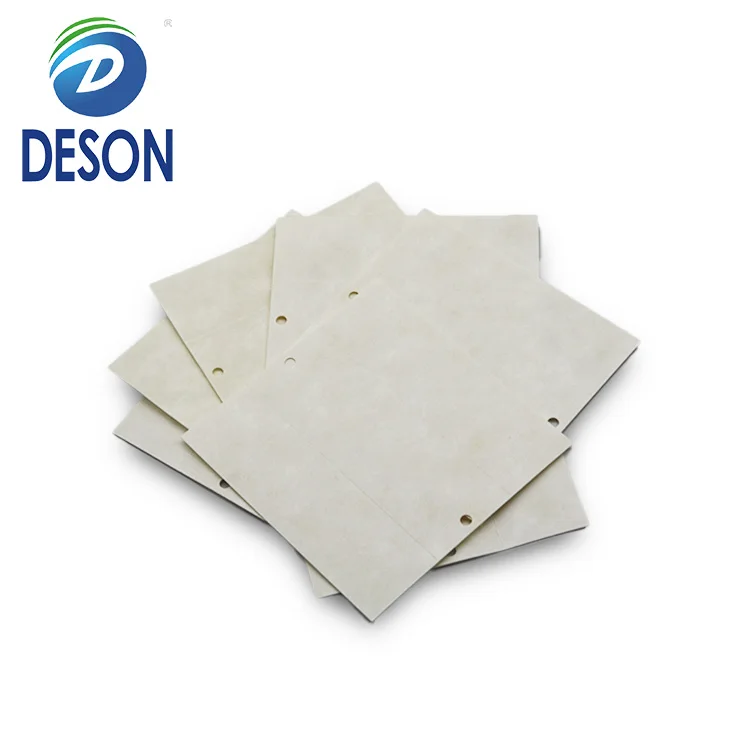

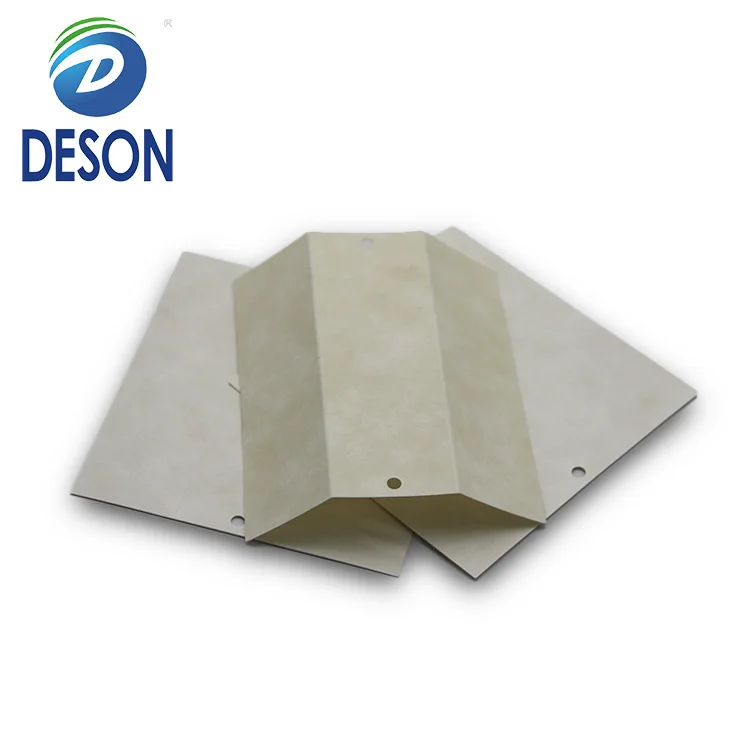

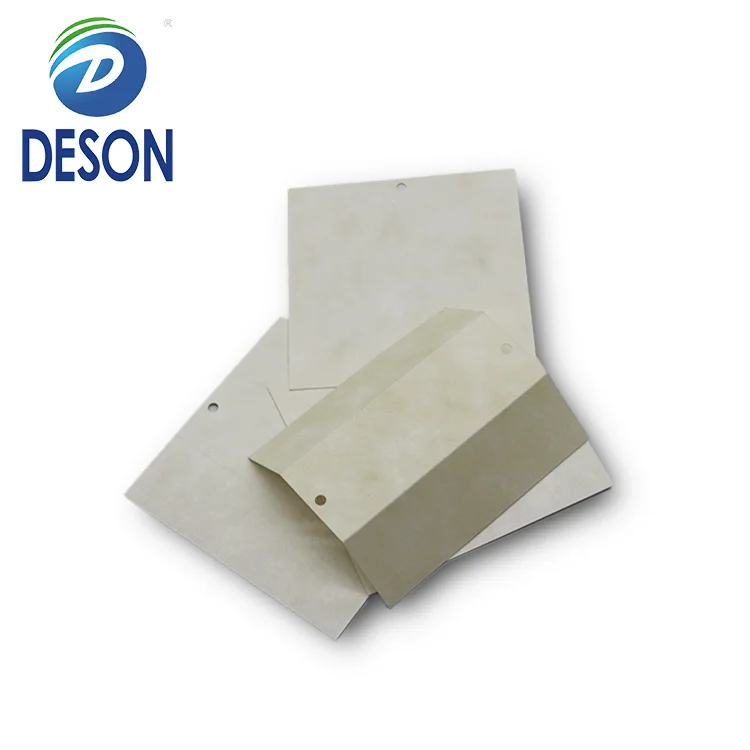

X-FIPER Nomex paper
It is hot-rolled at high temperatures.
It is a pure Meta polyaramid component. X630H meta-aramid paper has 7 standard thickness specifications from 0.05mm to 0.38mm.
Product name: | Calendered X-FIPER aramid paper | ||||||
Temperature resistance: | 220℃ | ||||||
Acceptable temperature: | 90°C-140°C | ||||||
Thickness: | 0.04 - 0.84mm | ||||||
Application | Transformer | ||||||
Product Length | 25m / 50m | ||||||
Sample: | Free samples can be ready in 24 hours | ||||||
MOQ: | Low MOQ | ||||||
UL Date | ||||||||||
Min. Thk | Flame | HWI | HAI | RTI | ||||||
mm | Class | Elec | Mech Str | |||||||
0.040 - 0.062 | VTM - 0 | 4 | 4 | 220 | 210 | |||||
0.070 - 0.129 | VTM - 0 | 4 | 4 | 220 | 210 | |||||
0.130 - 0.160 | V - 0 | 4 | 4 | 220 | 210 | |||||
0.180 - 0.190 | V - 0 | 4 | 1 | 220 | 210 | |||||
0.25 - 0.28 | V - 0 | 4 | 1 | 220 | 220 | |||||
0.38 - 0.42 | V - 0 | 4 | 1 | 220 | 220 | |||||
0.76 - 0.84 | V - 0 | 5 | 1 | 220 | 220 | |||||

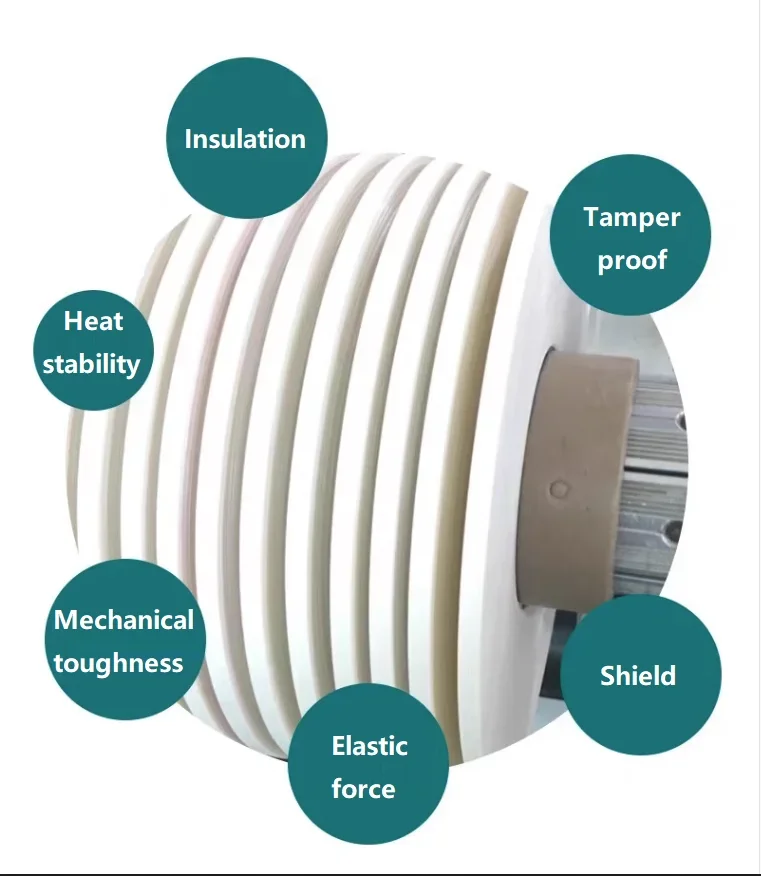

Advantages
1.Dielectric strength: Calendered X-FIPER aramid paper has excellent dielectric properties, and impregnating it with insulating paint or resin can further improve the dielectric properties of the product.
2.Mechanical toughness: The calendered X-FIPER aramid paper has a smooth surface, high tensile strength and tear resistance, which is convenient for processing or forming.
3.Heat stability: X-FIPER aramid paper has almost no impact on its electrical and mechanical properties when the temperature is no higher than 200 °C. Performance remains unchanged over time even at 220 °C. X-FIPER aramid paper passed the U.S. UL94 flame retardant certification (E320646) in 2008; the inherent characteristics based on the internal molecular structure are non-toxic and harmless, and fully comply with green environmental protection requirements.
2.Mechanical toughness: The calendered X-FIPER aramid paper has a smooth surface, high tensile strength and tear resistance, which is convenient for processing or forming.
3.Heat stability: X-FIPER aramid paper has almost no impact on its electrical and mechanical properties when the temperature is no higher than 200 °C. Performance remains unchanged over time even at 220 °C. X-FIPER aramid paper passed the U.S. UL94 flame retardant certification (E320646) in 2008; the inherent characteristics based on the internal molecular structure are non-toxic and harmless, and fully comply with green environmental protection requirements.
4.Chemical Compatibility: X-FIPER aramid paper is not affected by most solvents and is very resistant to acid, alkali and ketone corrosion. Compatible with all types of insulating varnishes, adhesives, transformer oils and other components of electrical equipment.
5.Other: The product also has properties such as moisture resistance, low temperature resistance, and radiation resistance.
FEATURES & APPLICATIONS

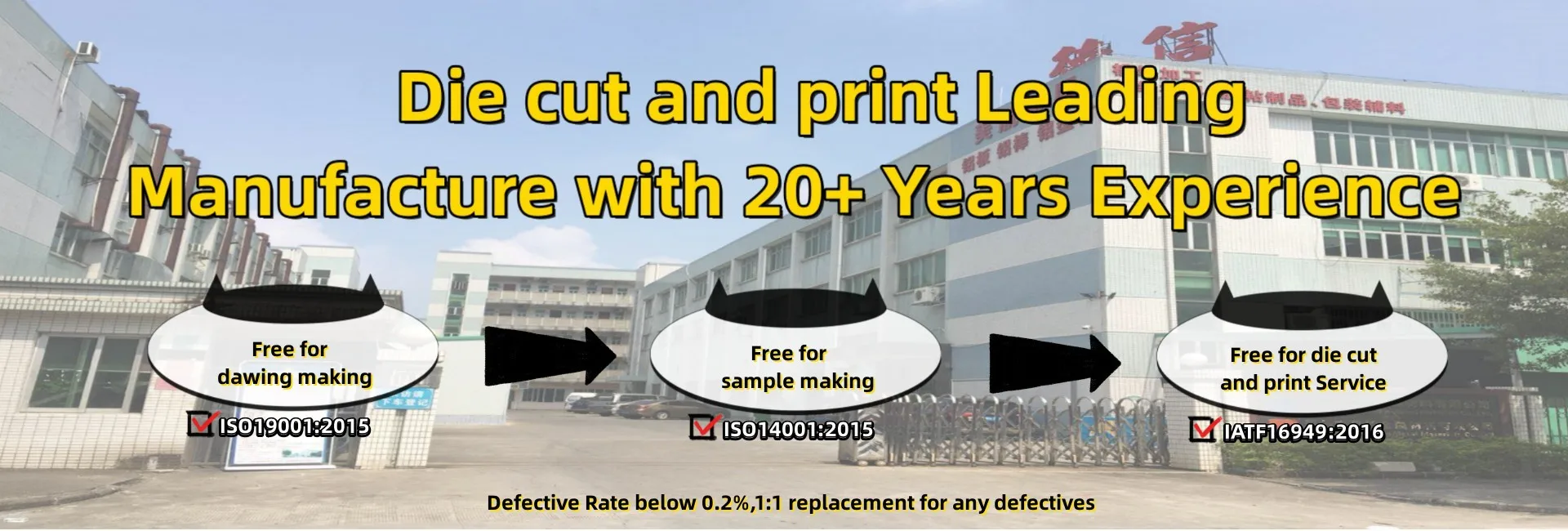

Company Information
--->>>Click it or Chat Now to Get Free Samples
--->>>Click it or Chat Now to Get Free Samples
FAQ
Deson Service
1.Free Samples:
Pls advise usage and application, we will offer you 3ea different free samples with die cut shapes to test.
2.Quotation:
2.Quotation:
To make it worth ,it's better you can test our samples first ,then once you test the most suitable sample ,we will quote you in 1hour !
3.Production time:
3.Production time:
24hours for free samples ,7days for mass production.
4.Service:
4.Service:
All steps will be showed by videos or pictures ,to make everything under your control.
Payment
1.Please create a personal buyer account before you buy from Alibaba
2.Write your email address, when place an order.
3.Go to your email and click the link, “Send Initial Payment / Pay Balance “or “go to pay" ,
4.Then choose “+Add a new card to pay in USD ($)"
5.Fill in the bank card information, "Confirm and Pay" , that charge from your card directly, place an order successfully
Shipping
1.Delivery time: 1~3 working days after payment
2.Main mode of transport: by express, DHL, UPS or FedEx. Other mode of transport also support
3.Get tracking no.: The tracking number will be offered in 1~2 days once we get from our forwarder.
Payment
1.Please create a personal buyer account before you buy from Alibaba
2.Write your email address, when place an order.
3.Go to your email and click the link, “Send Initial Payment / Pay Balance “or “go to pay" ,
4.Then choose “+Add a new card to pay in USD ($)"
5.Fill in the bank card information, "Confirm and Pay" , that charge from your card directly, place an order successfully
Shipping
1.Delivery time: 1~3 working days after payment
2.Main mode of transport: by express, DHL, UPS or FedEx. Other mode of transport also support
3.Get tracking no.: The tracking number will be offered in 1~2 days once we get from our forwarder.
