tshirt screen printing machine printer roll to roll multic color tshirt screen printing setup impresoras
- Category: >>>
- Supplier: Dongguan Ruida Machinery And Equipment Co. Ltd.
Share on (1601005495558):
Product Overview
Description
6 color 6 station manual stencil Silk Screen Printing Machine full set DIY clothes T shirt for sales
color | 6 color |
pallet size | 450X610 mm |
station | 6 station |
max frame size | 500x700mm |
net weight | 350KGS |
Gross weight | 380KGS |
packing size | 122x118x134cm |
Product Details

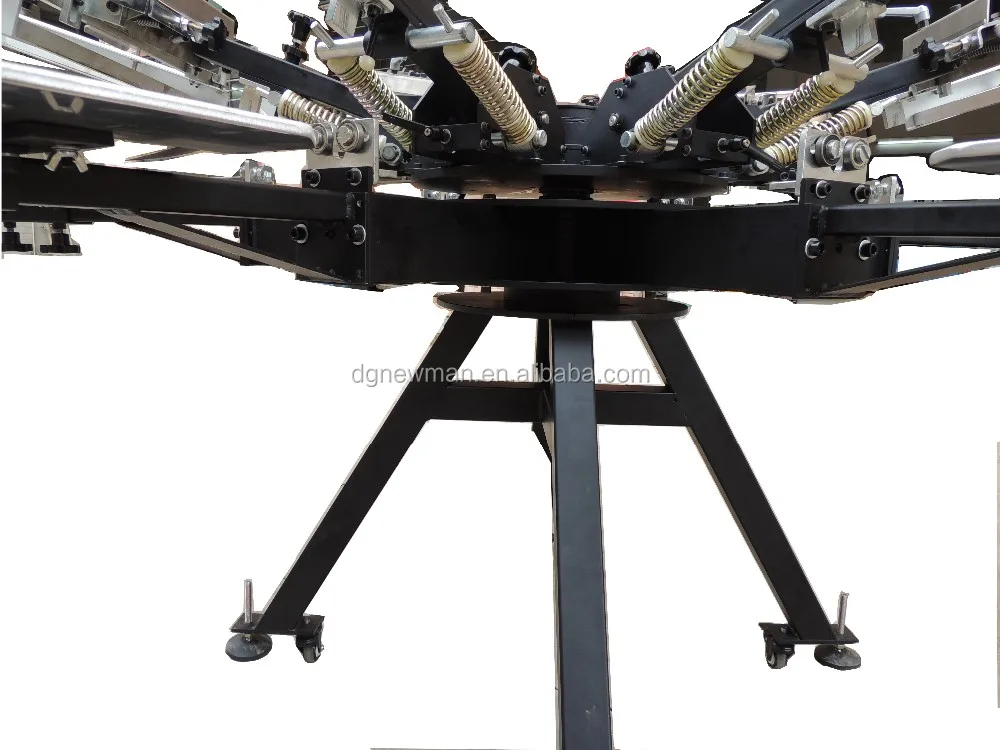

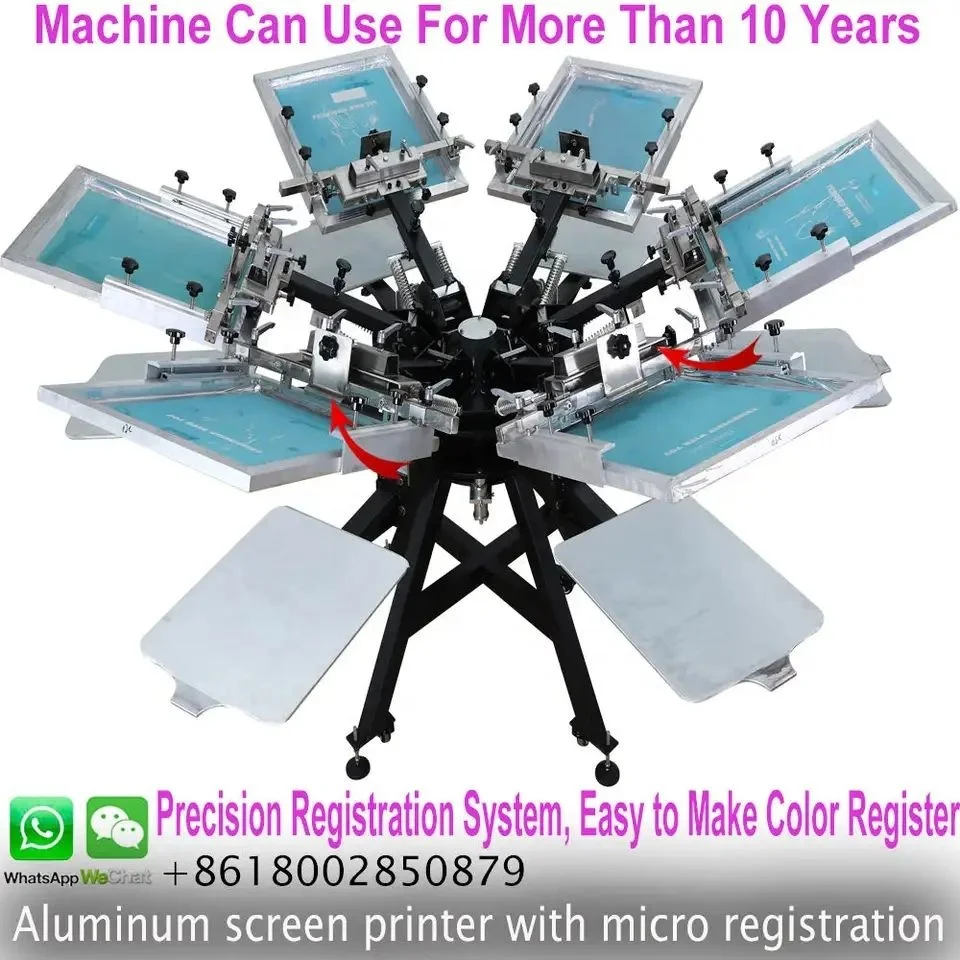

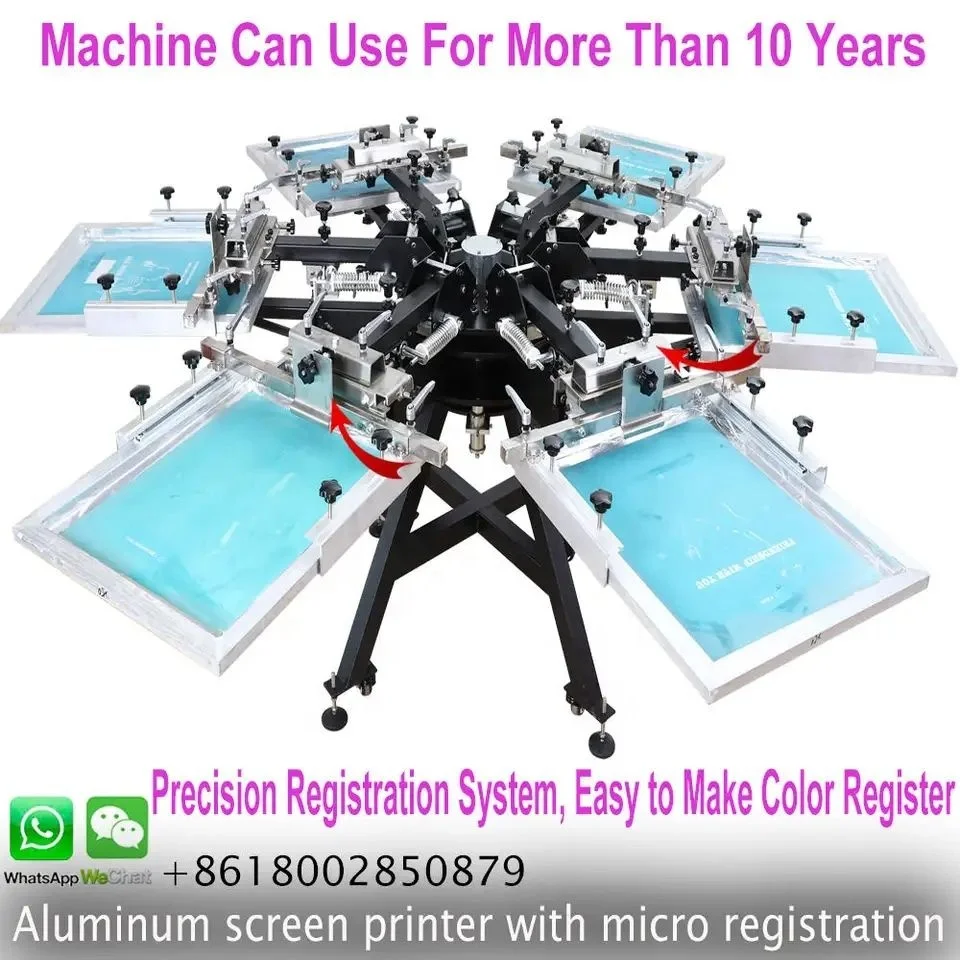

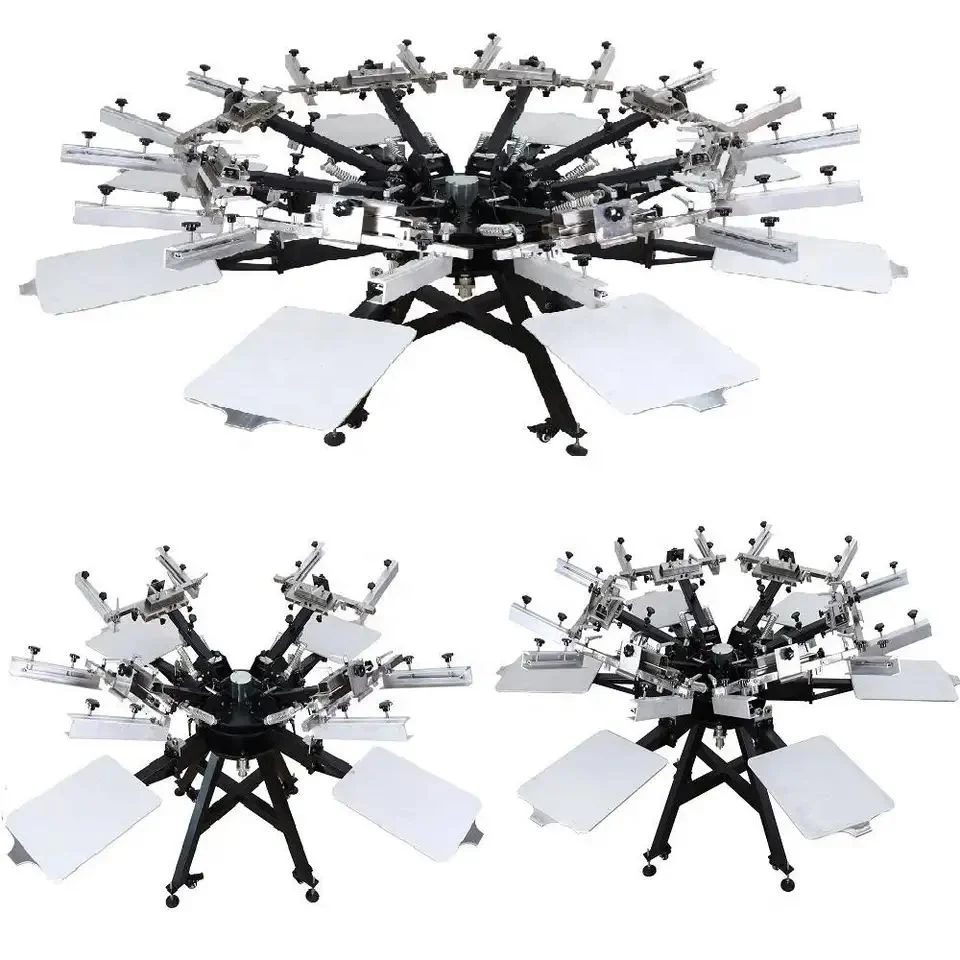

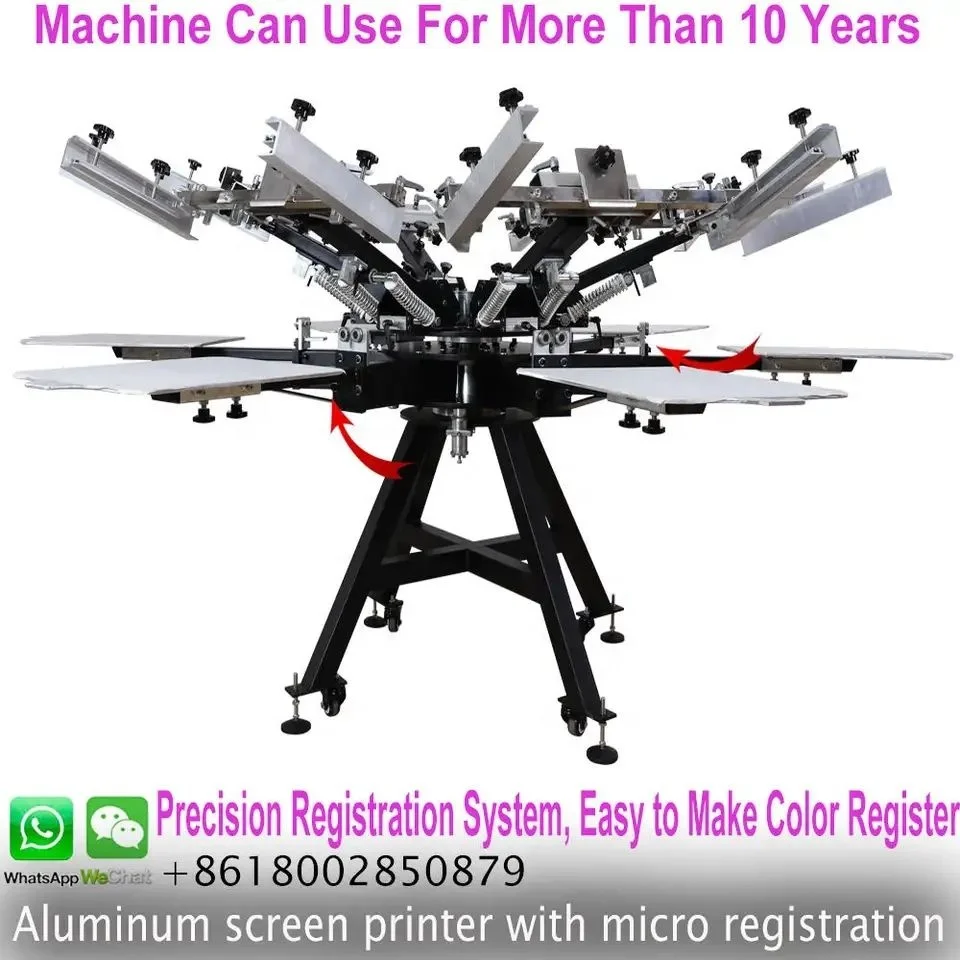

NS606-HD heavy duty double clamp 6 color 6 stations screen printer with micro-registration and with Aluminum Pallet(Silver color)
Pallet size : 450 x 610mm
Max frame size:600*700mm
Max printing area:450*550mm
Adjusted your silk frame on exact place with our Easy Adjusting System, can move to up-down, back-forth,left-right and angles
Double rotary,Shirtboard and screen can rotate independently.
With double self stopper system
Main Feature:
1.Multi-functions for different objection
2.Stainless steel bolts increase using life
3.Heavy weight to keep the machine steady in printing time.
4.Uniform double clamps system to keep the frame steady.
5.With adjustable and high temperature resistance stations

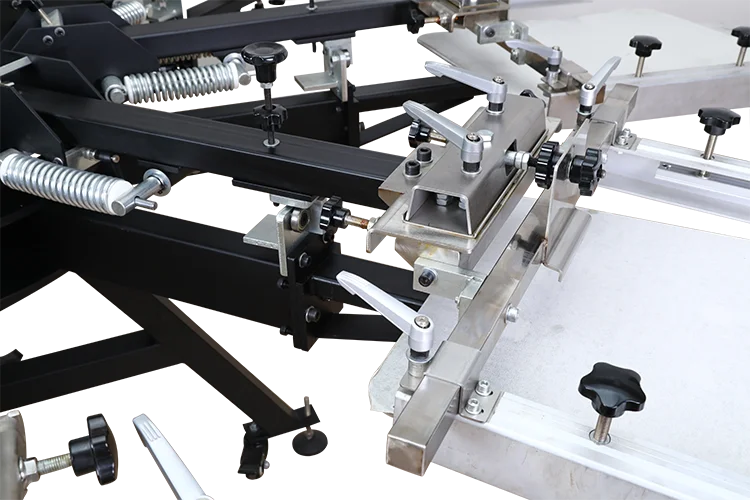

6.With micro-registration system on left-right/front-back angles on horizontal and vertical.
7. Double self stopper system
Double self stopper system:

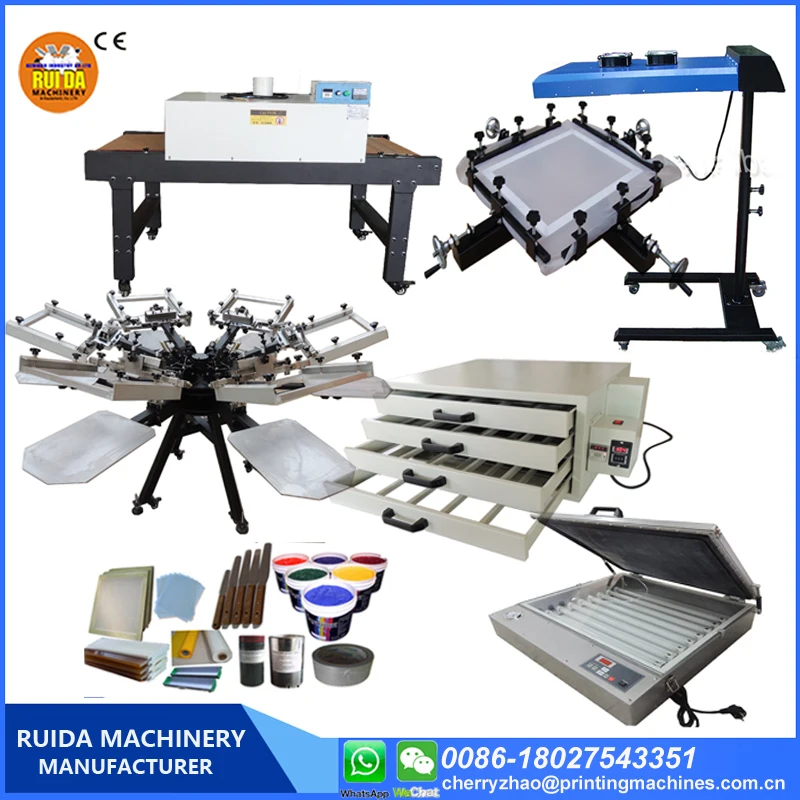

ND2565 Tunnel Dryer Machine
Machine Legth : 250CM
Heating area: 150 x 65cm
IR heating lamp
220V 7.2KW
0-250 Degree
• Model : ND606 IR Automatic Flash Dryer With Sensor
• Power : 220 V 50 Hz, 6000W
• The machine with sensor, when the platen coming, automatic turn on to working according to your setting time
• Full 20" x 24" (500 x 600mm) heating area
• Adjustable height floor stand ( from 750mm to 1200mm)
• IR lamp, heating temperature gone up quick
NA104 Manual hand screen stretcher
max area:60*60cm
•Model : MD6075 New Vacuum Exposure Unit
•Power: 110V,220V/50Hz, 400W
• Light source:UV light
• Lamp power*amount: 30W*10pcs
• Digital display of exposure time setting
• Max.frame size : 600*750mm
Drying Cabinet
Power : 110V/220V, 2000W
Max.screen plate drying quantity : 4pcs
Max.frame size : 64*53*4.5cm
Company Information
Applications
1. Widely suitable for screen printing t-shirts, garments, towel, leather,umbrella ,clothes and backpack, etc.
2. The printing base and screen can be rotated, and screen plate can be turned backward and forward, left and right, which makes the operation much easier and a more accurate printing position.
3. It suitable for printing with heating set ink, rubber cement and other printing inks.
If you want to print in multiple colours, then you will require one of our ‘Carousel’ systems. They are called Carousel because the screens and the clothes pad can be rotated respectively hence you can apply 6 colors on the clothes at one go.
Our carousel machines pack many features that only found on very expensive machines. For example, they have screen mesh micro adjustments function that allows you to get really fined tune printing image, also we choose to use the aluminium pad instead of wood which will be warped after a period of time,This is not an issue with aluminium platen).
Heavy duty -strong arm tension springs, high quality bearings self stopper system and all metal mechanism makes our silk screen printing machines having outstanding quality enjoying good reputation from our esteemed western customers .
Any question pls feel free to contact with me:
Endy Lee
Mobile/WhatsApp/Wechat: +86-18027543351
Facebook:+86-18027543351
QQ: 3232918284
Thank you very much for viewing this page, and wish you have a nice day!
