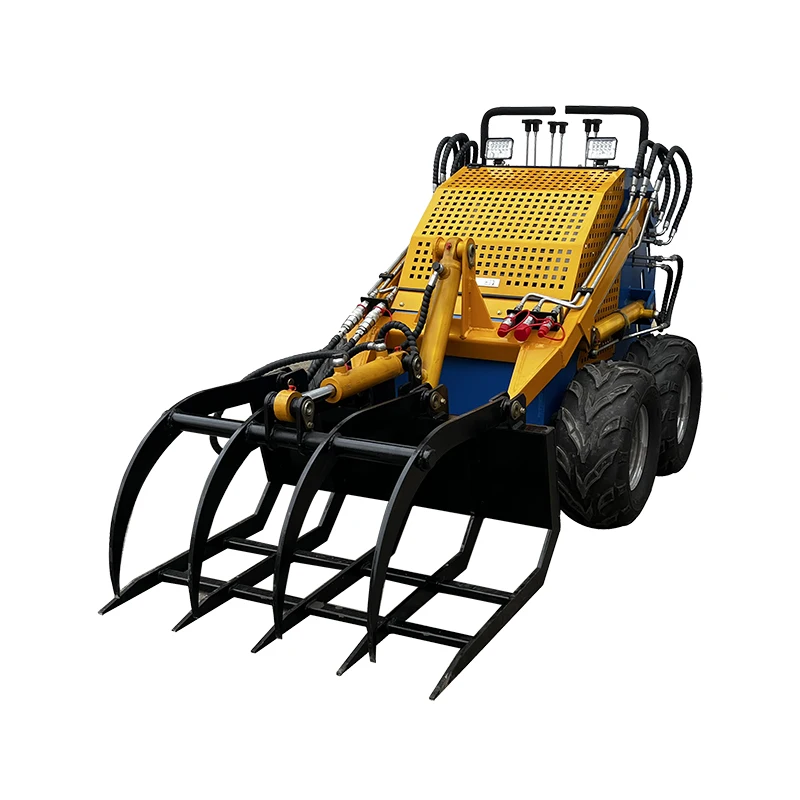

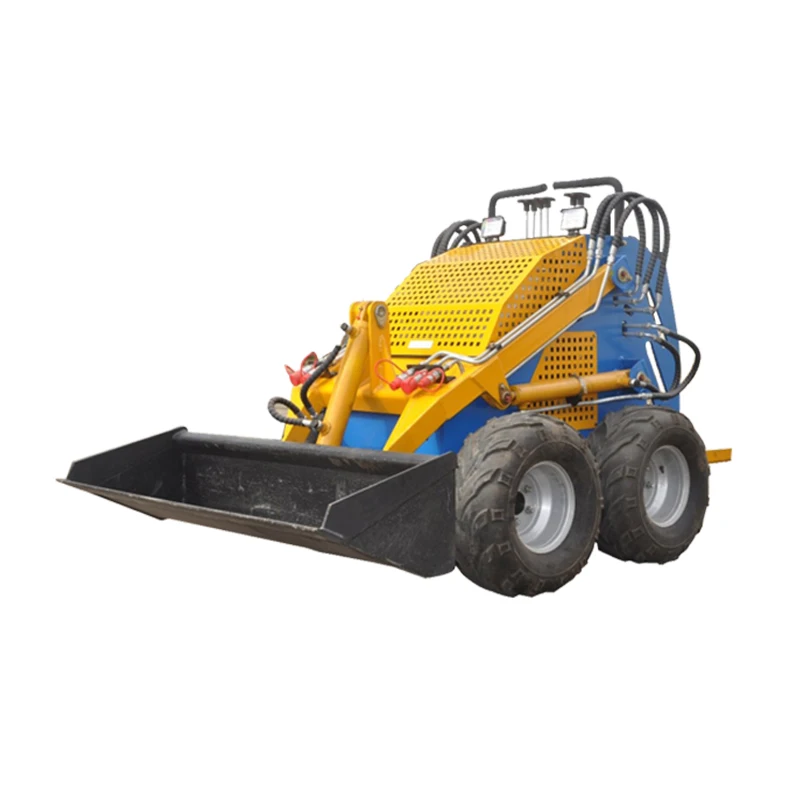

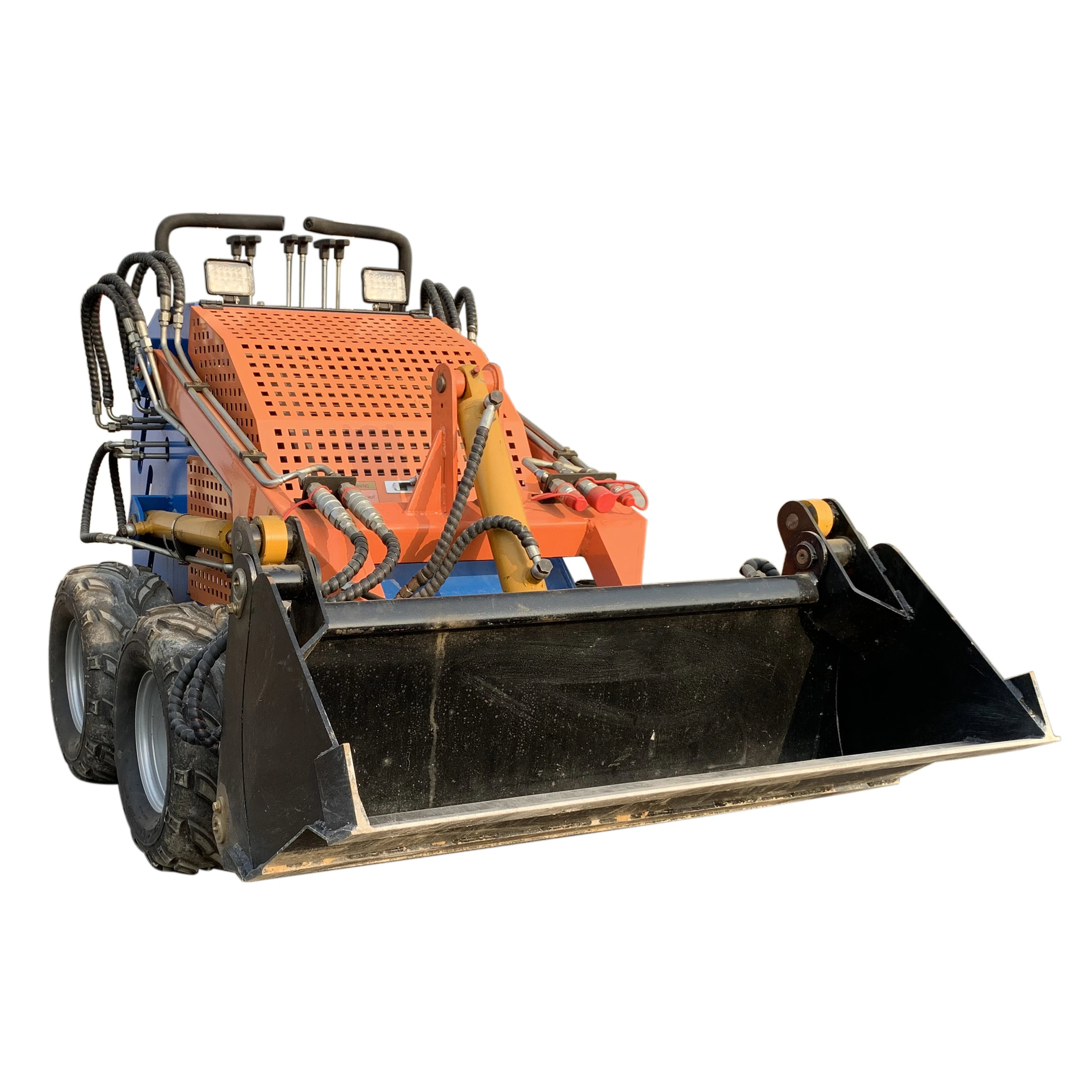

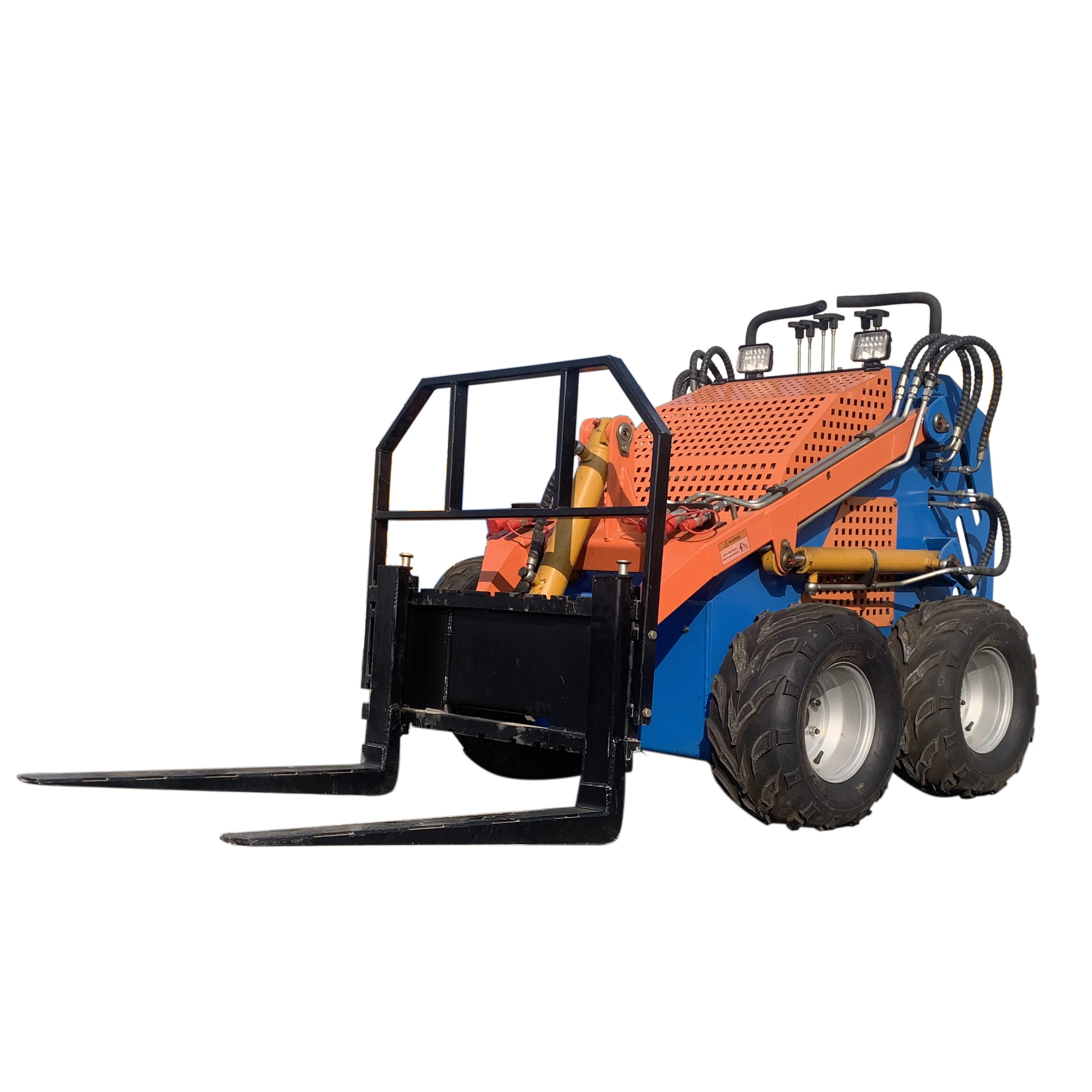

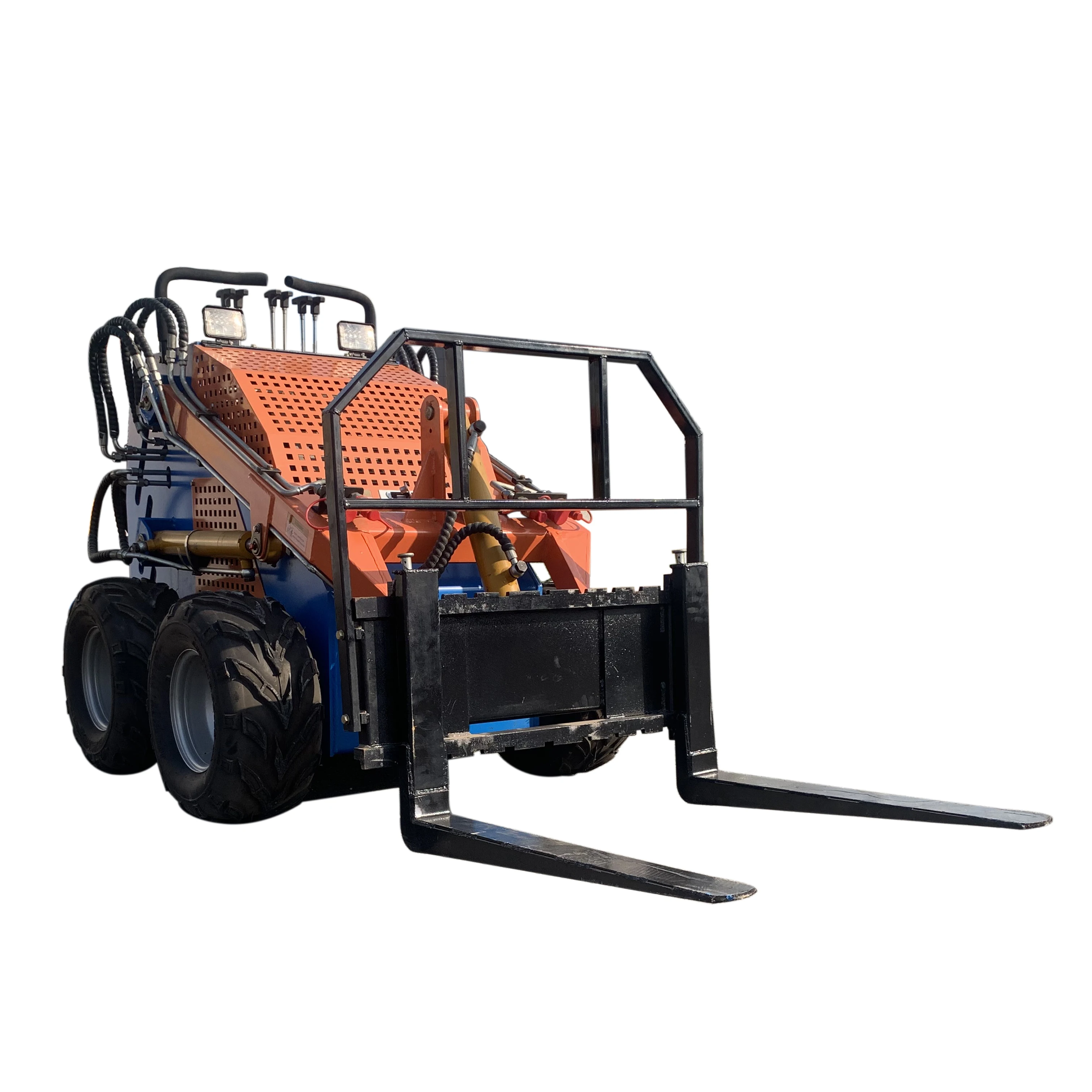

cheap price big flow wheel or track skid steer loader petrol engine mini loader made in China factory

Main Specification

DIMENSIONS

VF30 (US.)

VF30 (Meter)

Operating height

101in

2695mm

Height to bucket hinge pin

74.8in

2000mm

Height to top

58.9in

1496mm

Overall length with GP bucket

106.4in

2694mm

Overall length without bucket

81.7in

2067mm

Wheelbase

30.3in

1080mm

Overall width

41.7in

1070mm

Mini ground clearance

6.3in

94mm

Angle of departure

23°

23°

Rated loading capacity

880lbs-1320lbs

400kgs-600kgs

Kerb weight

3630lbs

1650kgs

POWER

VF30 (US.)

VF30T(Meter)

Engine maker

KUBOTA engine

Kubota engine

Fuel type

Diesel

Diesel

Rating power

35HP

35HP

Number of cylinder

4

4

Displacement

1.496L

1.496L

Rated speed

2400 rpm

2400 rpm

TRAVEL SPEED

VF30

VF30 Tracked

Max. drive speed

7.8 km/ h

6.8 km/h

HYDRAULIC SYSTEM

TY-327T

TY-327T Tracked

working system pressure

180bar

180bar

working system Flow rate

16gal/min

62.4L/min

DRIVING SYSTEM

Driving System pressure

250 bar

250 bar

Driving system Flow rate

16 gal/min

62.4 L/min

Auxiliary circuit Pressure

180bar

180bar

Auxiliary circuit flow rate

16gal/min

62.5L/min

FLUID CAPACITIES

VF30( U.S )

VF30 Tracked

Fuel tank capacity

10.6gal

40 L

Engine oil

1.25gal

4.7 L

Hydraulic reservior capacity

10.6gal

40 L
