Stock Hik night vison DS 2CD2043G0 I 4MP Outdoor IR Two way Audio face detection Fixed Bullet Network Camera Cctv Camera
- Category: >>>
- Supplier: Shenzhen Lin Wei Ke Xun Technology Co. Ltd.
Share on (1601005502851):
Product Overview
Description
We sell all Hikvison ,Da hua products! OEM All Hikvsion, Da hua products !
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount
If you are Wholesalers/ Contractors/ Retailers/ Installers，please click here contact us to get more discount
key features

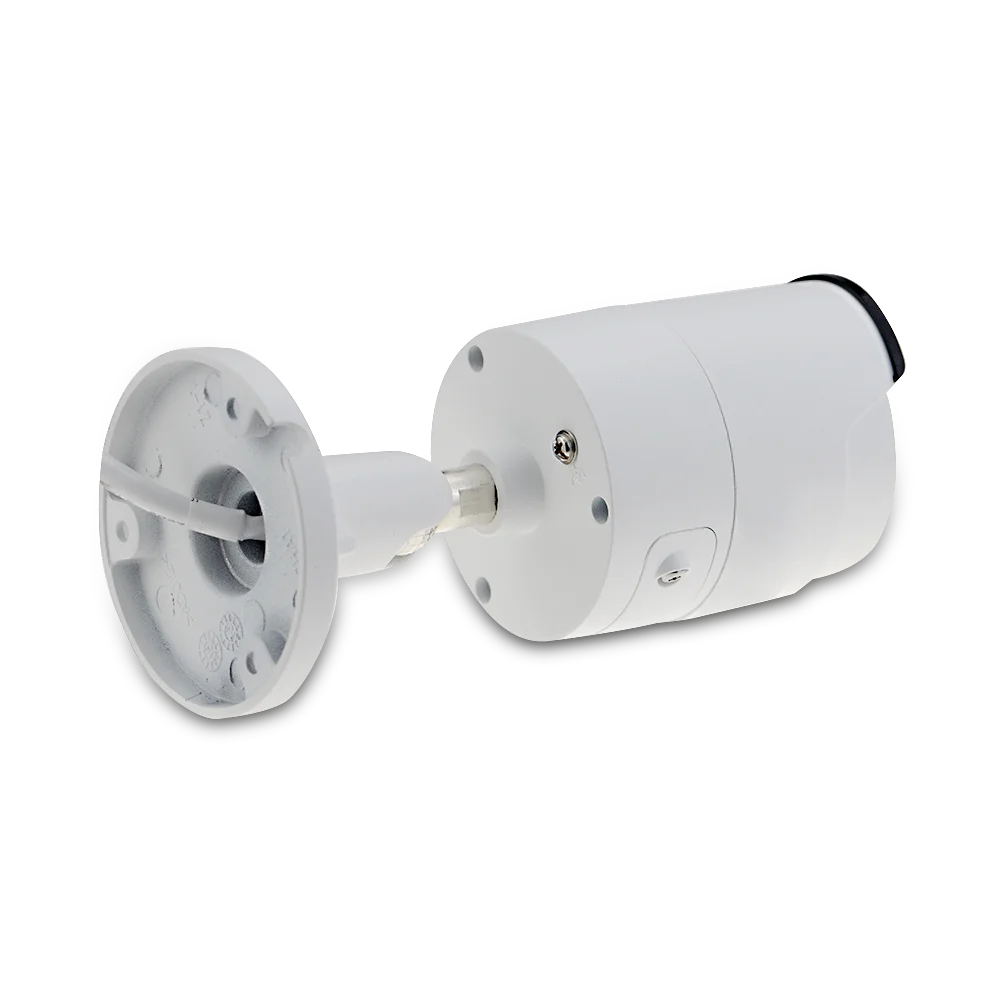

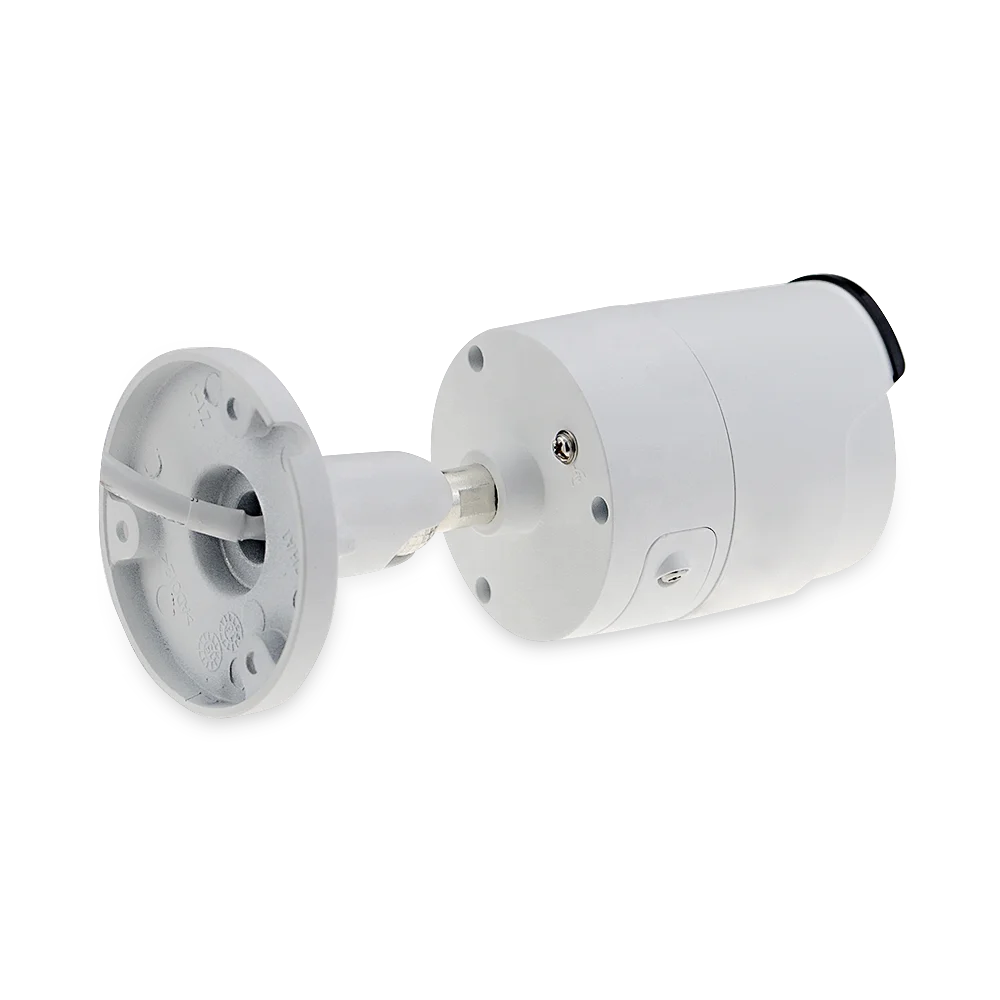

Original Hik IPC DS-2CD2043G0-I Security Surveillance System 4MP Outdoor WDR Fixed Bullet Network Mini ip Camera
High quality imaging with 4 MP resolution
Realizing Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
EXIR 2.0, advanced infrared technology with long IR distance
Support on-board storage up to 512 GB (SD cardslot)
Water and dust resistant (IP66)
Product Description
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Min. Illumination | Color: 0.5 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Max. Resolution | 2560 × 1440 |
Shutter Time | 1/25 s to 1/10000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
Lens | |
Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV | 2.8 mm, horizontal FOV 97°, vertical FOV 53°, diagonal FOV 117° 4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 100° |
Aperture | F1.6 |
Lens Mount | M12 |
Iris Type | Fixed |
Depth of Field | 2.8 mm: 1 m to ∞ 4 mm: 1.5 m to ∞ |
DORI | |
DORI | 2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | Up to 30 m |
IR Wavelength | 850 nm |
Smart Supplement Light | Yes |
Video | |
Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440), 30 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (768 x 432, 512 × 288) 60 Hz: 30 fps (768 x 432, 512 × 288) |
Video Compression | Mainstream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 256 Kbps to 4 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR, VBR |
Audio | |
Audio Compression | G.711/G.722.1/G.726/PCM/AAC-LC |
Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC) |
Audio Sampling Rate | 8 kHz/16 kHz |
Environment Noise Filtering | Yes |
Network | |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, Bonjour |
Simultaneous Live View | Up to 4 channels |
API | SDK |
User/Host | Only one user: administrator |
Security | Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS |
Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
Client | Wired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible. |
Wi-Fi | |
Transfer Rate | 11n: up to 300 Mbps |
Wi-Fi Protocol | 802.11n: OFDM, 802.11b: DSSS, 802.11g: OFDM |
Frequency Range | 2.412 GHz to 2.472 GHz |
Channel Bandwidth | 20 MHz |
Modulation | 802.11n: BPSK, QPSK, 16QAM, and 64QAM, 802.11b: DBPSK and DQPSK, CCK, 802.11g: BPSK, QPSK, 16QAM, and 64QAM |
Wireless Range | Up to 120 m (The performance varies based on actual environment) |
Antenna | 2 Antennas |
Image | |
Image Settings | Auto |
Day/Night Switch | Auto, Schedule, Day, Night |
Wide Dynamic Range (WDR) | 80 dB |
SNR | ≥ 52 dB |
Image Enhancement | BLC, 3D DNR |
Interface | |
Built-in Microphone | Yes |
Built-in Speaker | Yes |
On-Board Storage | Built-in memory cardslot, support microSD/microSDHC/microSDXC card, up to 512 GB |
Reset Key | Yes |
Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), exception |
Linkage | Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture |
General | |
Power | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, A switching adapter is included in the package. |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
General Function | Heartbeat, mirror, password protection, flash log |
Material | Base: metal, front cover: metal, back cover: plastic |
Dimension | 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5") |
Package Dimension | 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9") |
Weight | Approx. 345 g (0.8 lb.) |
With Package Weight | Approx. 635 g (1.4 lb.) |
Approval | |
EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
RF | CE-RED (EN 301489-1 V2.1.1(BT or 2.4G) |
Safety | CE-LVD: EN 62368- 1: 2014/A11: 2017 |
Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP66: IEC 60529-2013 |
Our Advantages
Notice
Dear customers, choose us and you will definitely feel the value.If the same product we compete with Quality, if the same quality we compete with Price, if the same price we compete with Service, if the same service we compete with Consistency
We sell Dahua and HIK all the network products,Please contact us freely.
What is IP camera how it works?
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via
the Internet. They are commonly used for surveillance. Unlike analog closed-circuit television (CCTV) cameras, they require no
local recording device, but only a local area network
An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via
the Internet. They are commonly used for surveillance. Unlike analog closed-circuit television (CCTV) cameras, they require no
local recording device, but only a local area network
It is can multi-platform monitor anywhere,any country and anytime .
normally requires two connections to be made when it is installed: A network connection, in order to be able to communicate with
video recording and display equipment.
How to Choose the camera resolution
How to choose the camera lens
How the CCTV system work
Company Profile
FAQ
Q. What's the actual products I can get?
A: Usually OEM made by Hik/Dahua(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU warehouse, we provide most lines of stock products. So if stock products, the ETA
is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
A: Usually OEM made by Hik/Dahua(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU warehouse, we provide most lines of stock products. So if stock products, the ETA
is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the
products to your forwarder or will find a best shipping way for you.
