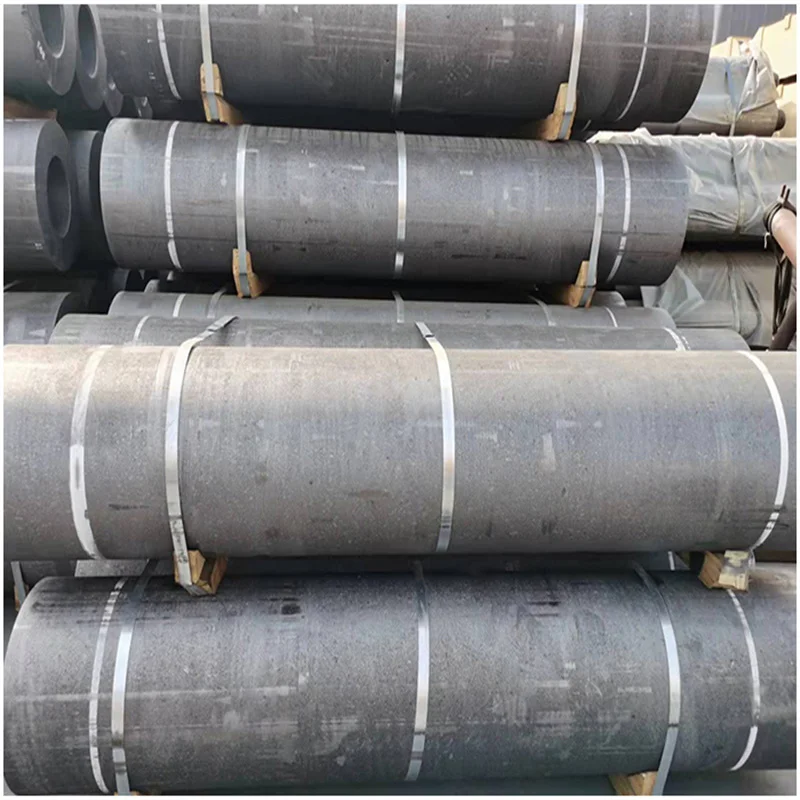

Best Quotation Chinese Manufacturer Uhp 400 Graphite Electrode
- Category: >>>
- Supplier: Hebei Xingwangxiang Trade Co. Ltd.
Share on (1601005508241):
Product Overview
Description
Product Description

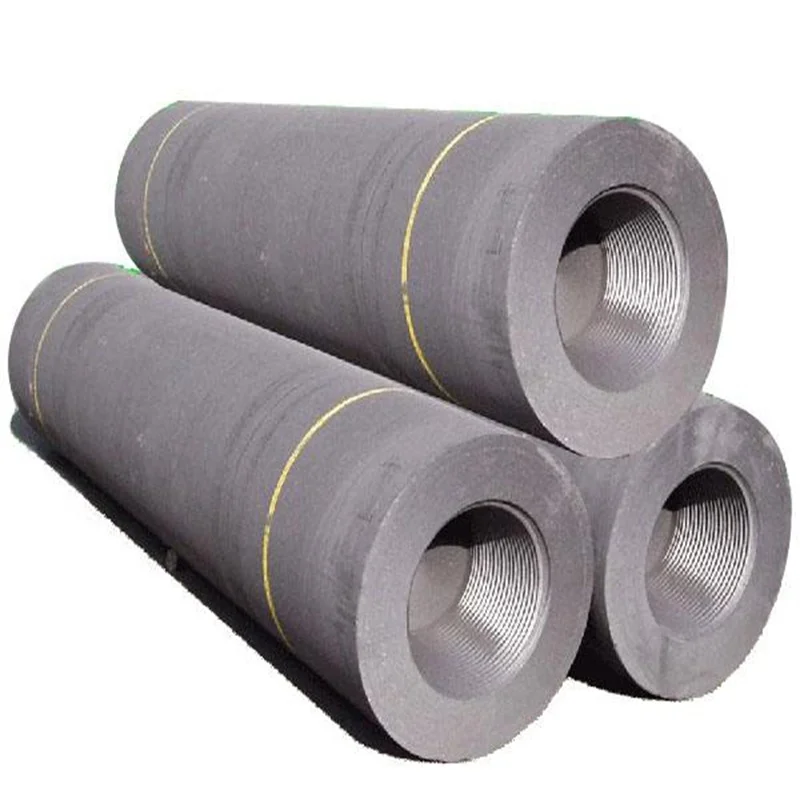

The graphite electrode is mainly made of petroleum coke and needle coke, and the coal bitumen is used as a binder. Graphite Electrodes has good electrical properties and chemical resistance, which has high mechanical strength at high temperature and good seismic performance.
Specification
Item | Unit | Nominal Diameter | ||||||
|
| UHP | HP | RP | ||||
|
| Φ300-400 | ≥Φ450 | Φ250-400 | ≥Φ450 | Φ250-400 | Φ450-600 | |
Electric Resistivity | electrode | μΩ·m | ≤5.0 | ≤5.5 | ≤6.0 | ≤6.5 | ≤8.5 | ≤9.0 |
| Nipple |
| ≤4.0 | ≤4.5 | ≤5.5 | |||
Transverse Strength | electrode | MPa | ≥15.0 | ≥10.5 | ≥8.0 | ≥7.0 | ||
| Nipple |
| ≥24.0 | ≥20.0 | ≥16.0 | |||
Young's Modulus | electrode | GPa | ≤14.0 | ≤12.0 | ≤9.3 | |||
| Nipple |
| ≤18.0 | ≤16.0 | ≤14.0 | |||
Bulk Density | electrode | g/cm3 | ≥1.68 | ≥1.65 | ≥1.54 | |||
| Nipple |
| ≥1.76 | ≥1.74 | ≥1.70 | |||
Coefficient of thermal expansion | electrode | 10-6/ºC | ≤1.5 | ≤2.0 | ≤2.5 | |||
| Nipple |
| ≤1.2 | ≤1.6 | ≤2.0 | |||
Ash | % | ≤0.2 | ≤0.2 | ≤0.2v
| ||||
Features
The graphite electrode is mainly made of petroleum coke and needle coke, and the coal bitumen is used as a binder. Graphite Electrodes has good electrical properties and chemical resistance, which has high mechanical strength at high temperature and good seismic performance.
Application
It is good conductor of heat and electricity, widely used in electric arc furnace steelmaking, refining furnace, ferroalloy production, industrial silicon, phosphorus corundum and other submerged arc furnace with an electric arc furnace smelting and other high temperature furnace.

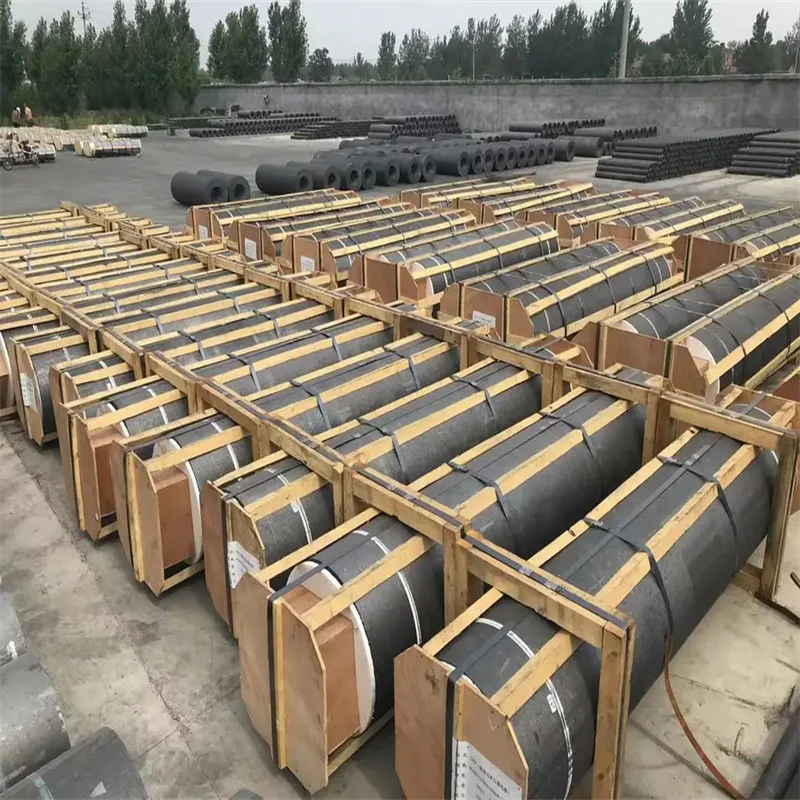

Packaging & Shipping

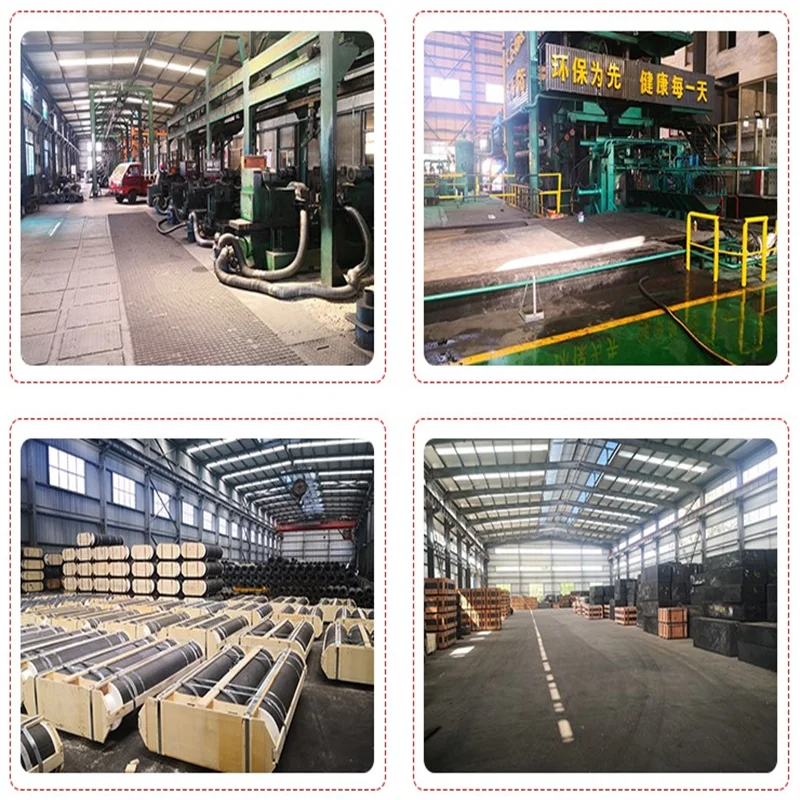

Factory Show
Our Service
1. Supply diverse materials meeting customers' demands.
2.Offer suggestions for material selection, specification presentation, use condition.
3. Maintain after-sale service.
4.Provide the high quality and low price product
5. Offer the safest package and transportation
Why choose us?
1. Instant Delivery
2. Responsible After-sales Team
3. Experienced engineering and technical personnel
4. Supply the best cost-efficiency solution
5. High quality product and high-level service
FAQ
Q: How can you control your quality?
A: For each production processing, We have a complete QC system for the chemical composition and physical properties.
Q: What is your company's transportation form?
A: A large number of goods can be transported by land or water.
Q: Can I get a low price if I order a large quantity ?
A: Sure, because of the raw material price floating is bigger, before purchasing, you need contract with our sales, according to your purchase quantity and request, we will give you the lowest price.
Q: When can I get the price?
A: We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc... If it is an urgent order, you can call us directly.
