Product Overview
Description
Product Description

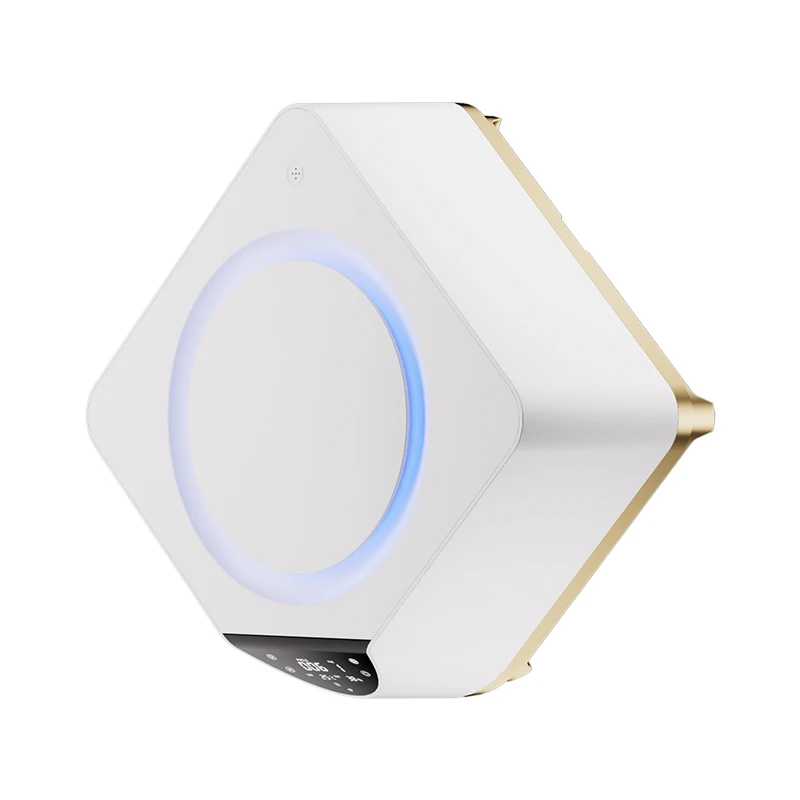

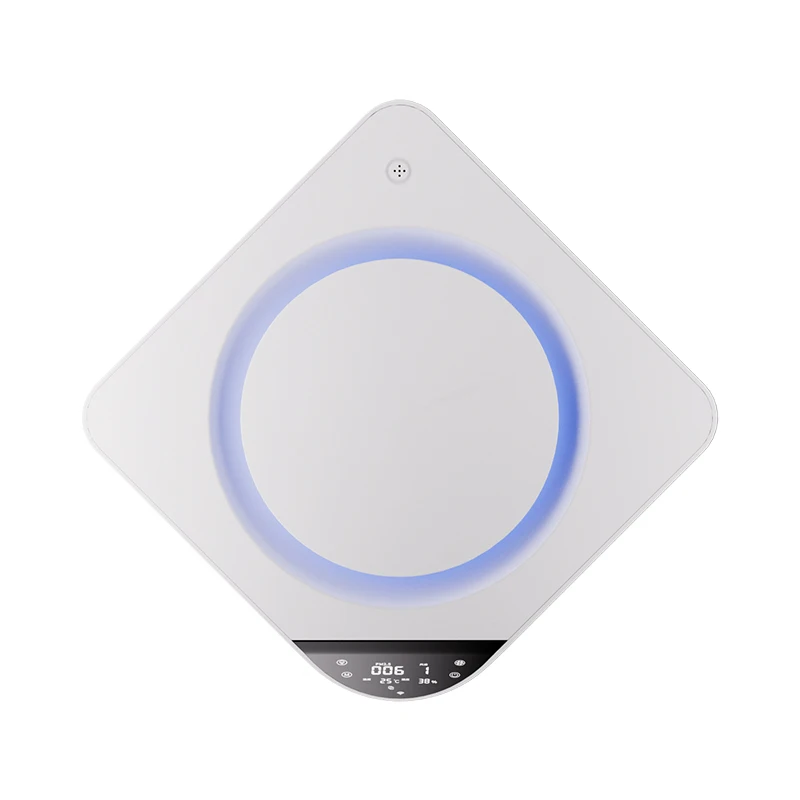

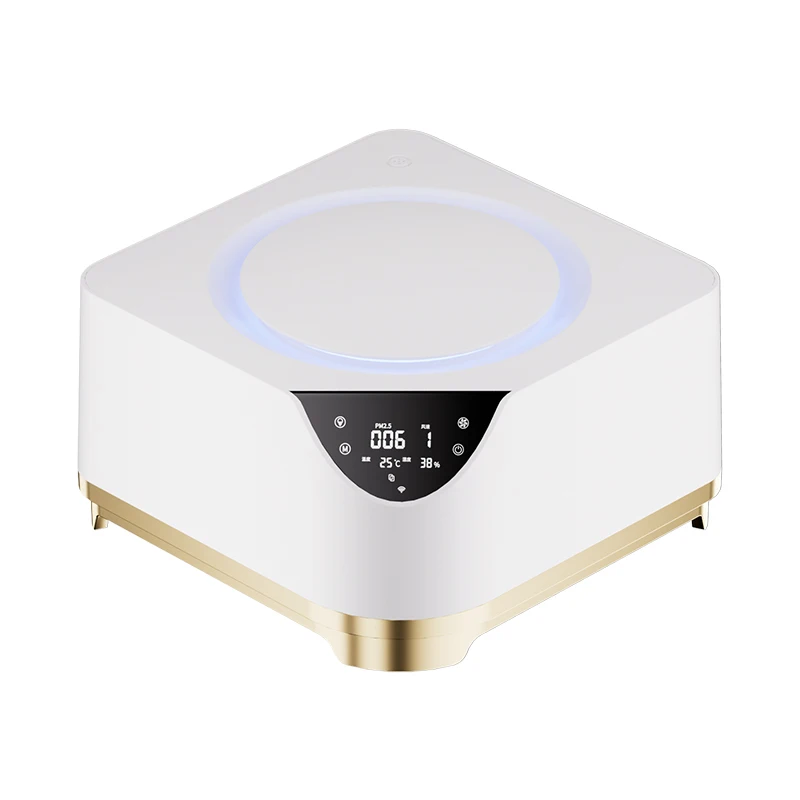

G05 Wall mounted micro positive pressure ERV
High quality primary filter
Fine hole filter large particles of dust and hair, etc., can be cleaned and reused to extend the life of HEPA
High efficiency HEPA
The density of ultra-fine fiber structure HEPA filter can intercept particles as small as 0.00lum and various microorganisms
High quality modified activated carbon
High quality modified activated carbon particles, larger adsorption surface, larger adsorption capacity, micropore with decomposition agent, can effectively decompose the adsorption of formaldehyde and other harmful gases
Nano photocatalyst
A large number of high-concentration TIO2 adhered to the surface of the aluminum-based honeycomb, under the irradiation of the ultraviolet lamp, a large number of light-based free radicals were generated, which actively decomposed various harmful gases in the air, and at the same time could be sterilized
Ozone-free UV lamp
The long wavelength ozone-free UV lamp can quickly kill the bacteria and viruses that are intercepted on the HEPA filter screen, and purify the cavity without dead corners
Plasma organ
The powerful plasma organ is formed in the outlet, which is quickly blown into the air through the no-resistance wind, actively decomposes various harmful gases in the air, and can also kill bacteria and viruses in the air to freshen the air
Maximum applicable area/number of people
60 ㎡ /6 persons (adults) /12 persons (students) (based on the room height of 3 meters, the ventilation rate is once an hour, the fresh air demand for adults 30㎥/h, the fresh air demand for students 15㎥/h)
Specification
Parameter | Value |
Filters | Primary + HEPA filter with honeycomb activated carbon + Plasma |

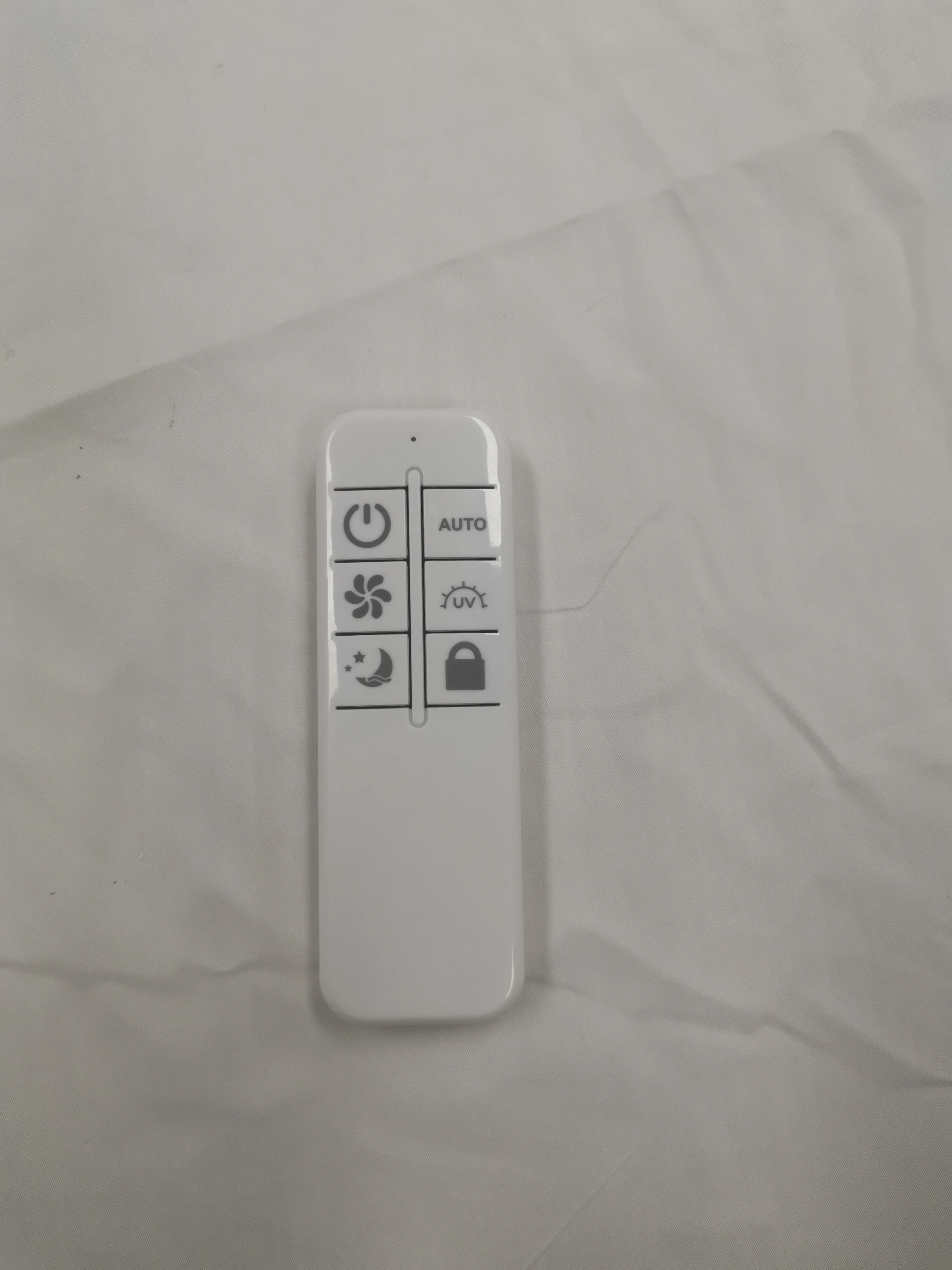

Intelligent Control | Touch Control /App Control/Remote Control |
Maximum Power | 28W |
Ventilation Mode | Micro positive pressure fresh air ventilation |
Product Size | 180*307*307(mm) |
Net Weight (KG) | 14.2 |
Maximum Applicable Area/Number of People | 60m²/ 6 adults/ 12 students |
Applicable Scenario | Bedrooms, classrooms, living rooms, offices, hotels, clubs, hospitals, etc. |
Rated Air Flow(m³/h) | 150 |
Noise（dB) | <55(maximum airflow) |
Purification efficiency | 99% |

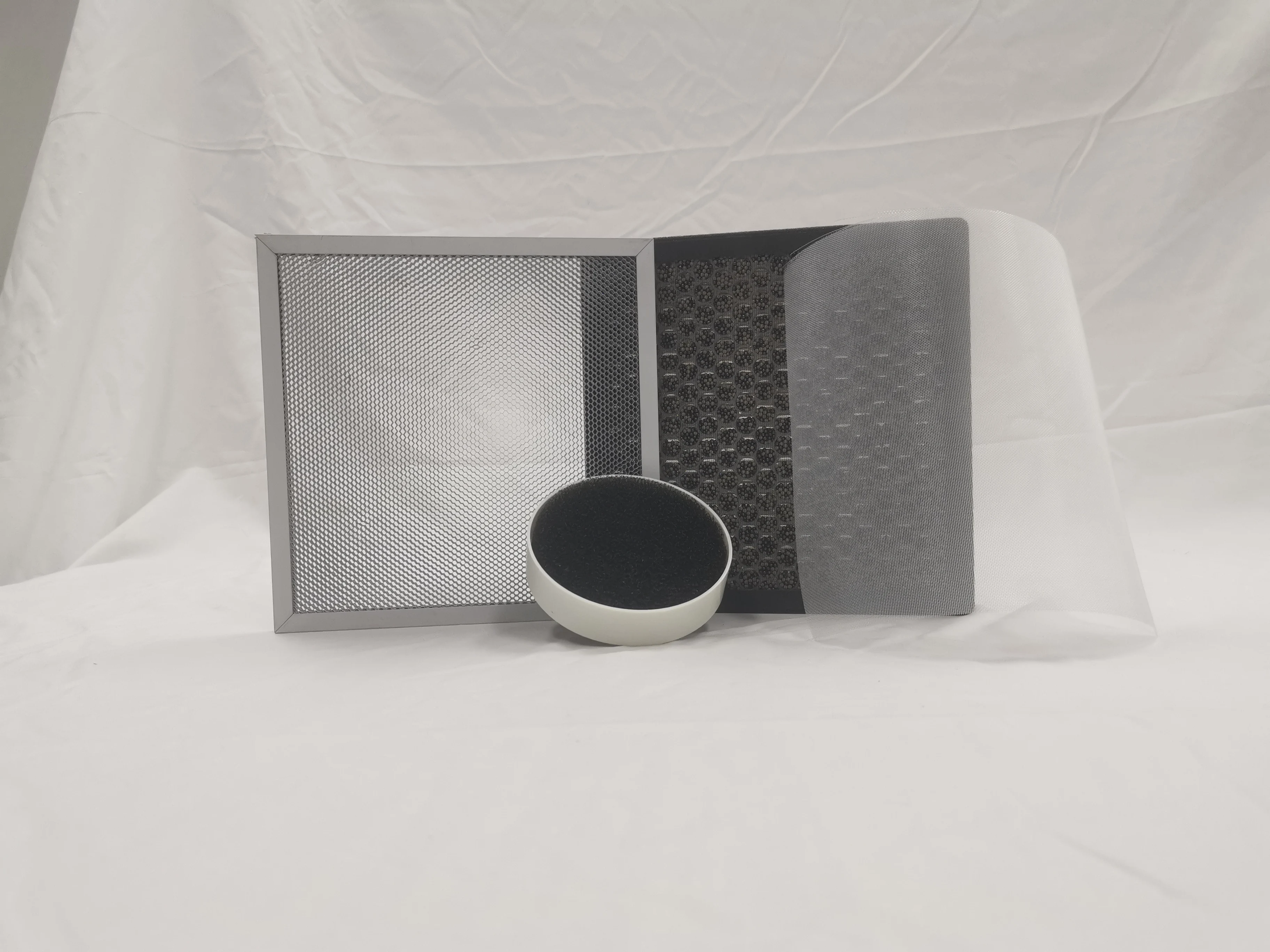

Replace Filters
1、Cut off the power supply, invert the product as shown in the picture. Follow the arrow, and open the bottom cover door latch of the product.
2、Take out the back cover of the product, press the arrow as shown, and flip the screenlatch.
3、Remove the old filter element.
4、Remove the filter with the PE tape, pull back the filter buckle at the filter, cover the back cover of the product, and then place the product normally.
5、Plug the power plug into the power port on the machine. Turn on the power and listen for a "di" sound.The power button will be red, indicating that the product has entered the standby workina state.

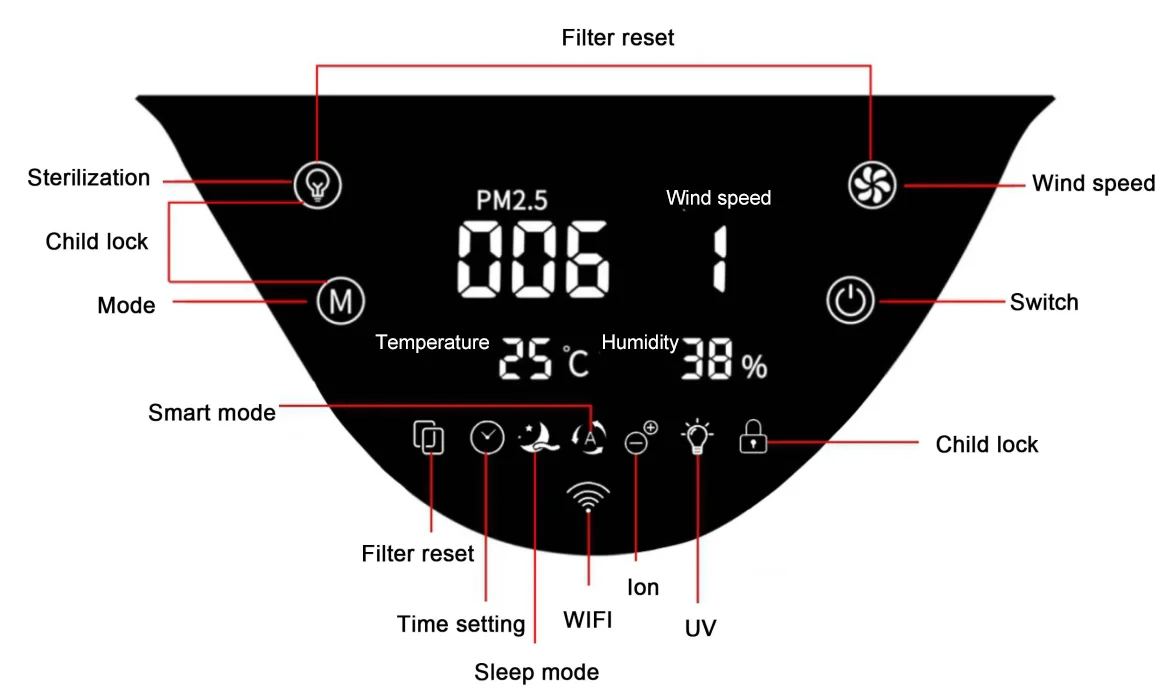

6、After the replacement is completed, long press the two keys for 5 seconds as shown in the picture, and the machine will beep. The filter icon will appear as off and will be timed again

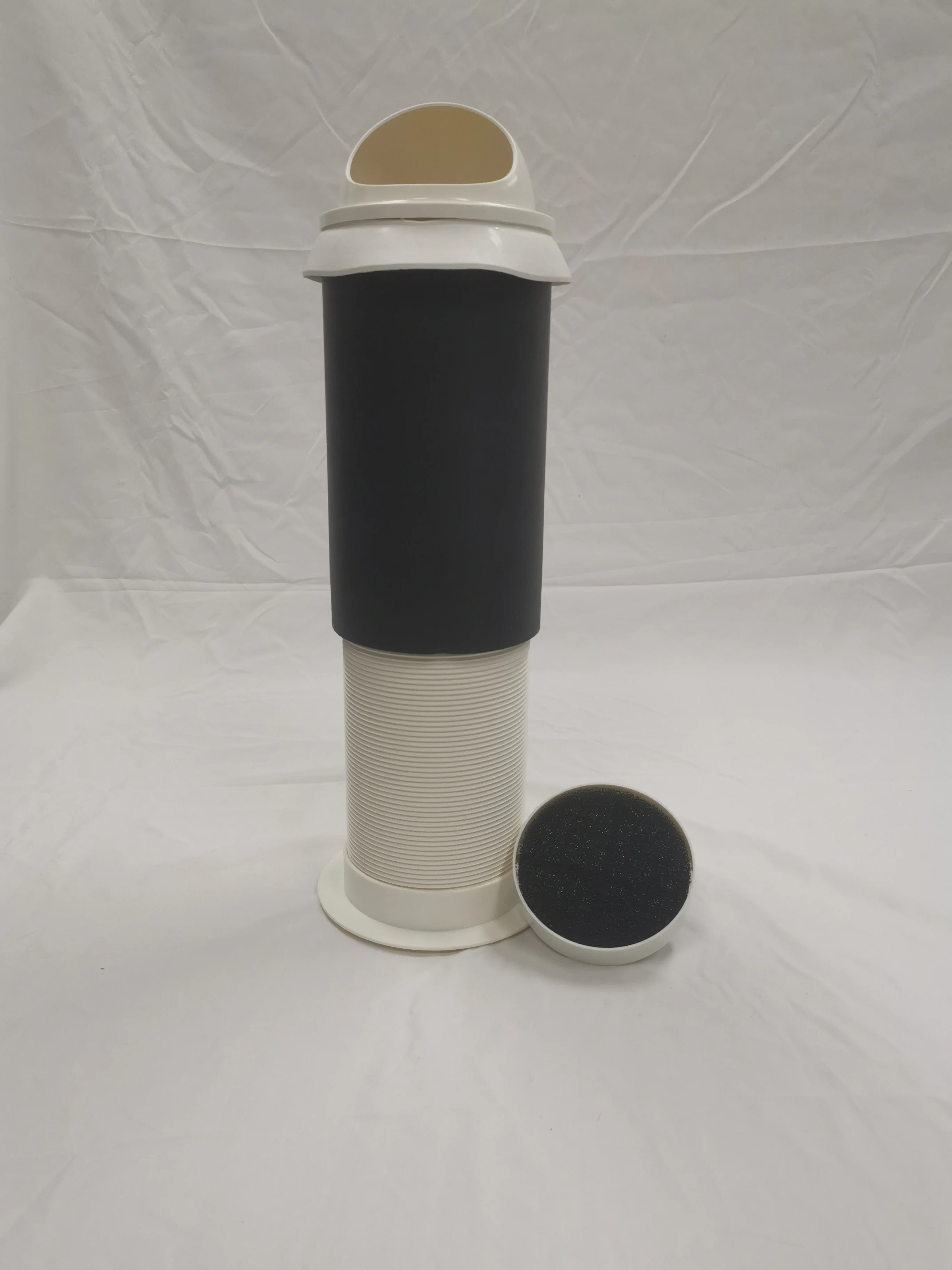

Other Parts
FAQ
About us
1.Have 2 plants meet the capacity demands 2.Possess 80 patents certificates
3. 10+ years experience HVAC industry 4. Have strong R&D and HVAC design team
5. Free installation plan design service 6.A full set of ventilation system installation pipe fitting supply
7.Have 2 laboratories(national approved enthanlpy and 30m³ laboratory
8. Duilt a sound certificate system of ISO9001, ISO 14001， ISO45001， CE certificate and other product certification system.
