12Way Marine Power Distribution Block 150A Bus Bar For Boat
- Category: >>>
- Supplier: Shenzhen Cheng Shuo Technology Co. Ltd.
Share on (1601005589287):
Product Overview
Description
Products Description
Product Name | 4-way double row solid plastic base with PC dust cover busbar+OT terminal |
Product Model | ZH-1703B4 |
Gross Weight | 258.5g |
Product Size | 180*40*42.8mm |
Package Size | 225*100*43mm |
Packaging Method | PE bag packaging |
Input Voltage | 12-48V/DC; 110-300V/AC |
Maximum Voltage | 300V/AC； 48V/DC |
Rated Current | 130A/AC； 150A/DC |

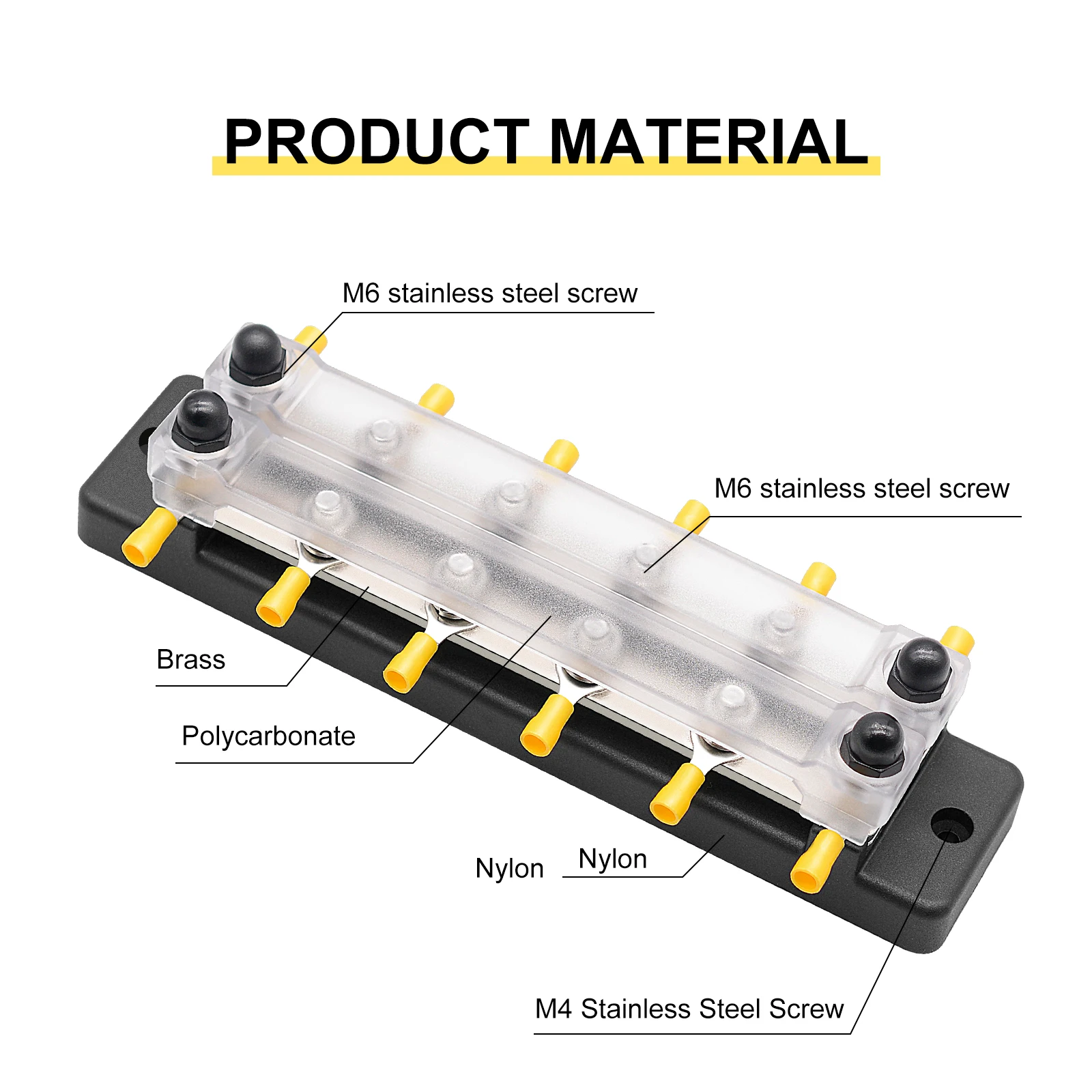

Product Material | Nickel plated brass contact plate/PC insulating cover/polycarbonate nylon base/stainless steel screws |
Terminal Stud | M6*12 |
Scope of use: Automobile, pickup truck, trailer, RV, motorcycle, recreational vehicle, truck, truck, caravan, yacht, ship, etc

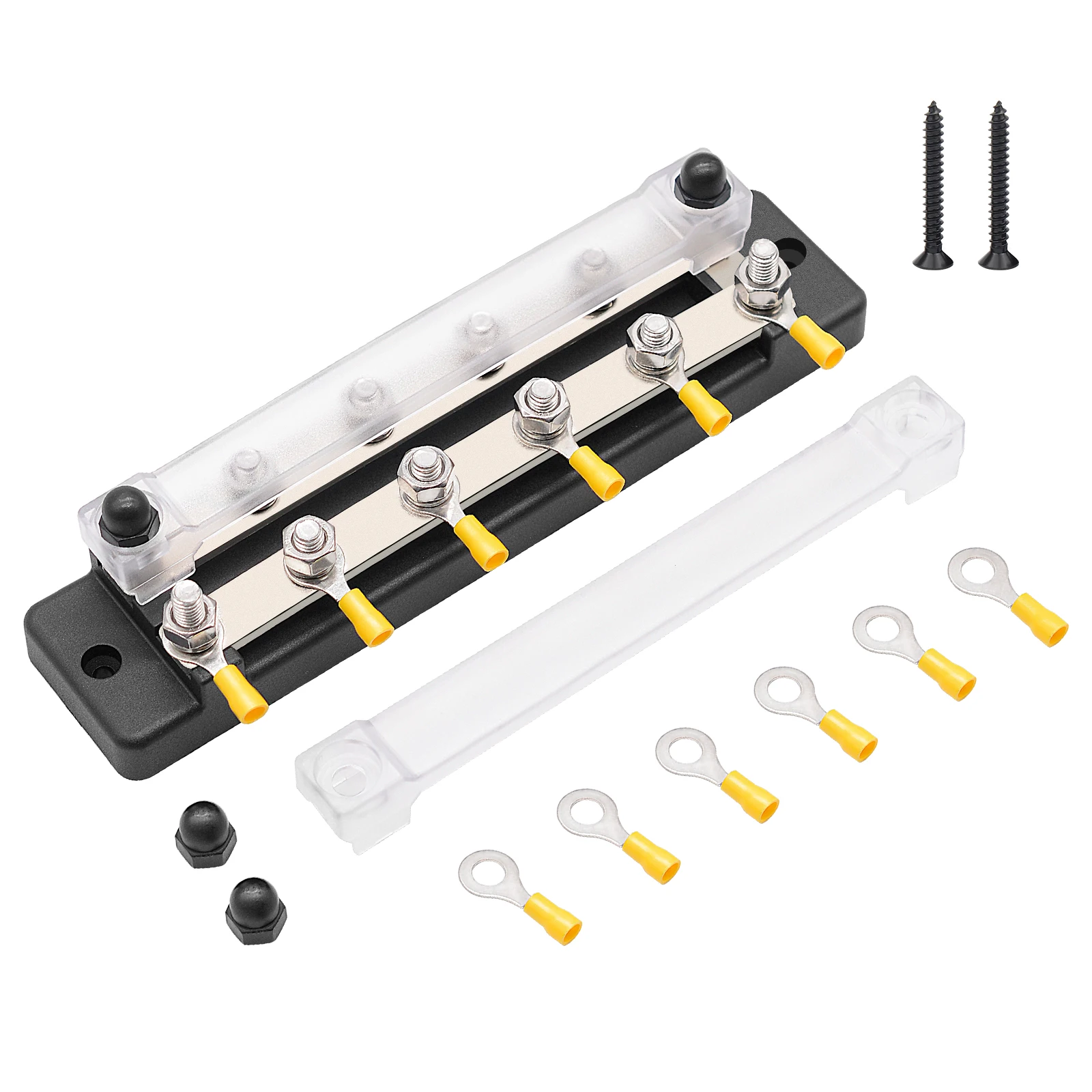

Product accessories:M4 stainless steel fixing screw * 2; O-terminal RV1.25-6 * 12
Product Advantages:

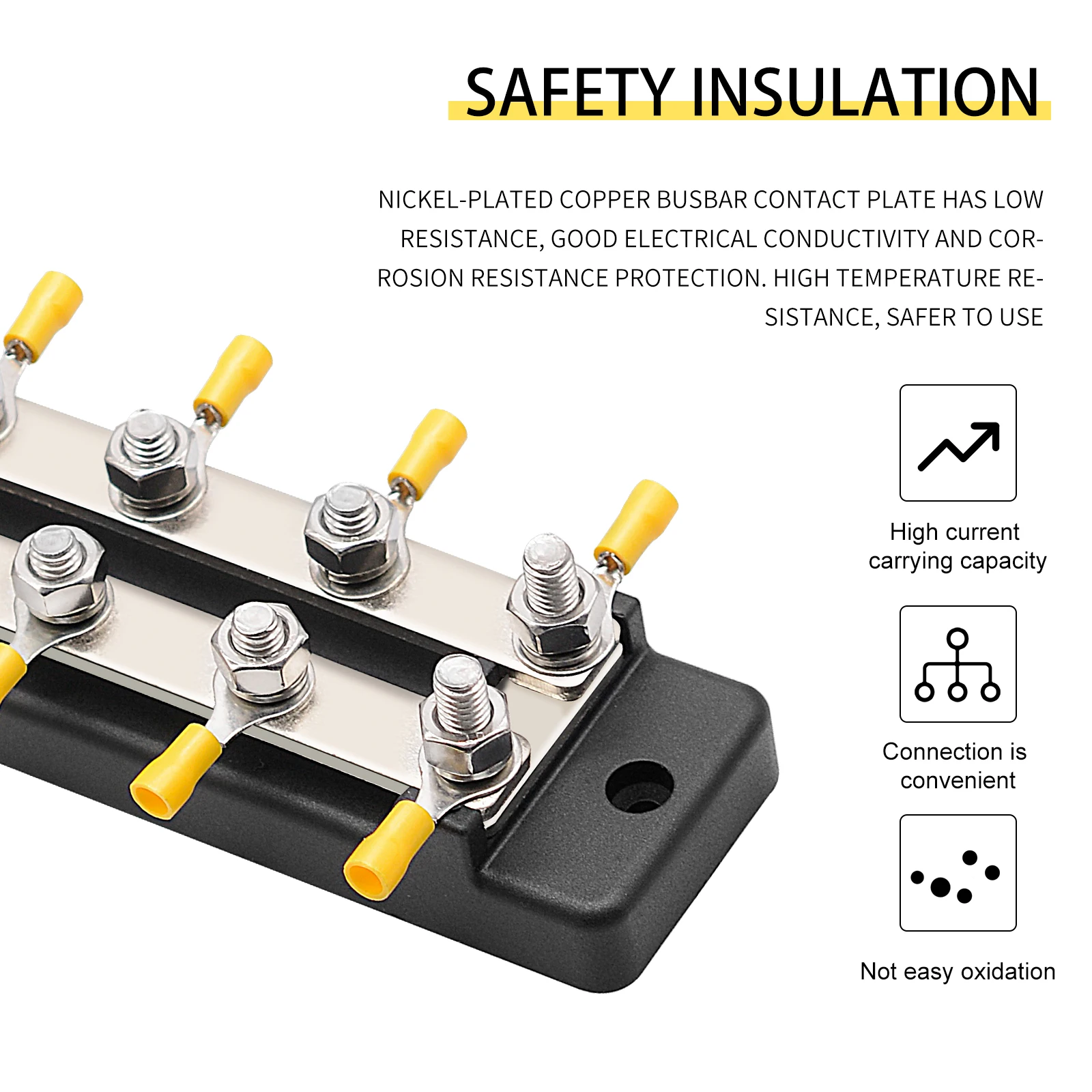

【1】Nickel plated copper bus contact plate has low resistance, good conductivity and corrosion resistance protection. Hightemperature resistance, wear resistance, more safe to use. Multiple terminal bus poles are very suitable for automobile and ship wiring, help to sort out and clean up the messy wiring, and are suitable for various types of power supply and ground distribution.
【2】Reinforce the connection between polycarbonate cover and nylon nut to prevent accidental short circuit

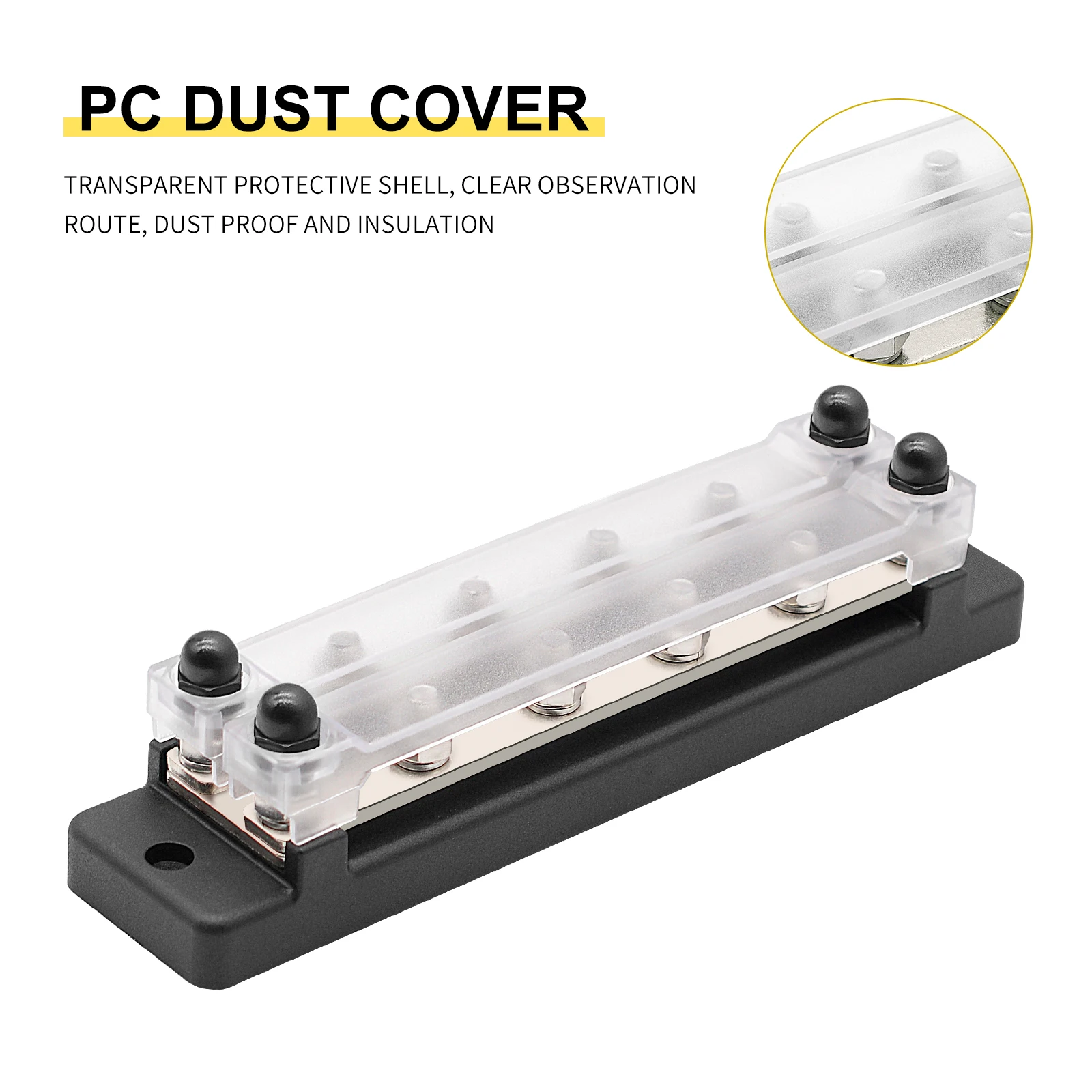

【3】The transparent polycarbonate shell adds additional protection, fire protection, dust prevention and accidental touch prevention. Environmentally friendly flame retardant nylon base, with the best mechanical strength and durability. Stainless steel studs and screws are rust proof and anti-corrosion, suitable for any environment

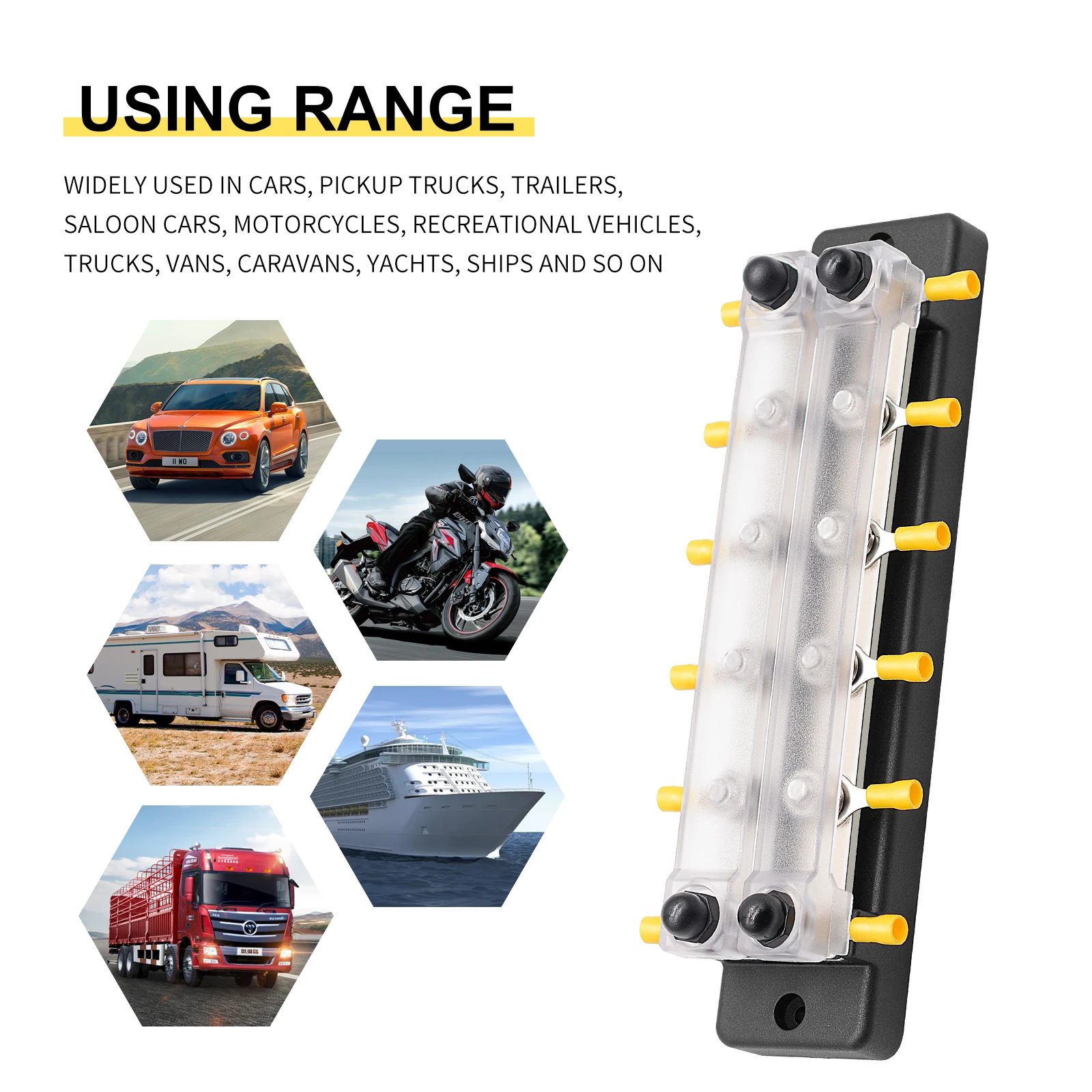

【4】Widely used in automobiles, pickup trucks, trailers, RV, motorcycles, recreational vehicles, trucks, trucks, caravans, yachts, ships, etc. Multi position single row bus provides a clean and tidy surface for any installation of your ship or car, which is very suitable for all your electrical wiring projects. Easy to install and secure with M4 screws
【5】The terminal thread fastener is made of stainless steel opening and ring lock washer, which can maintain stability in high vibration environment

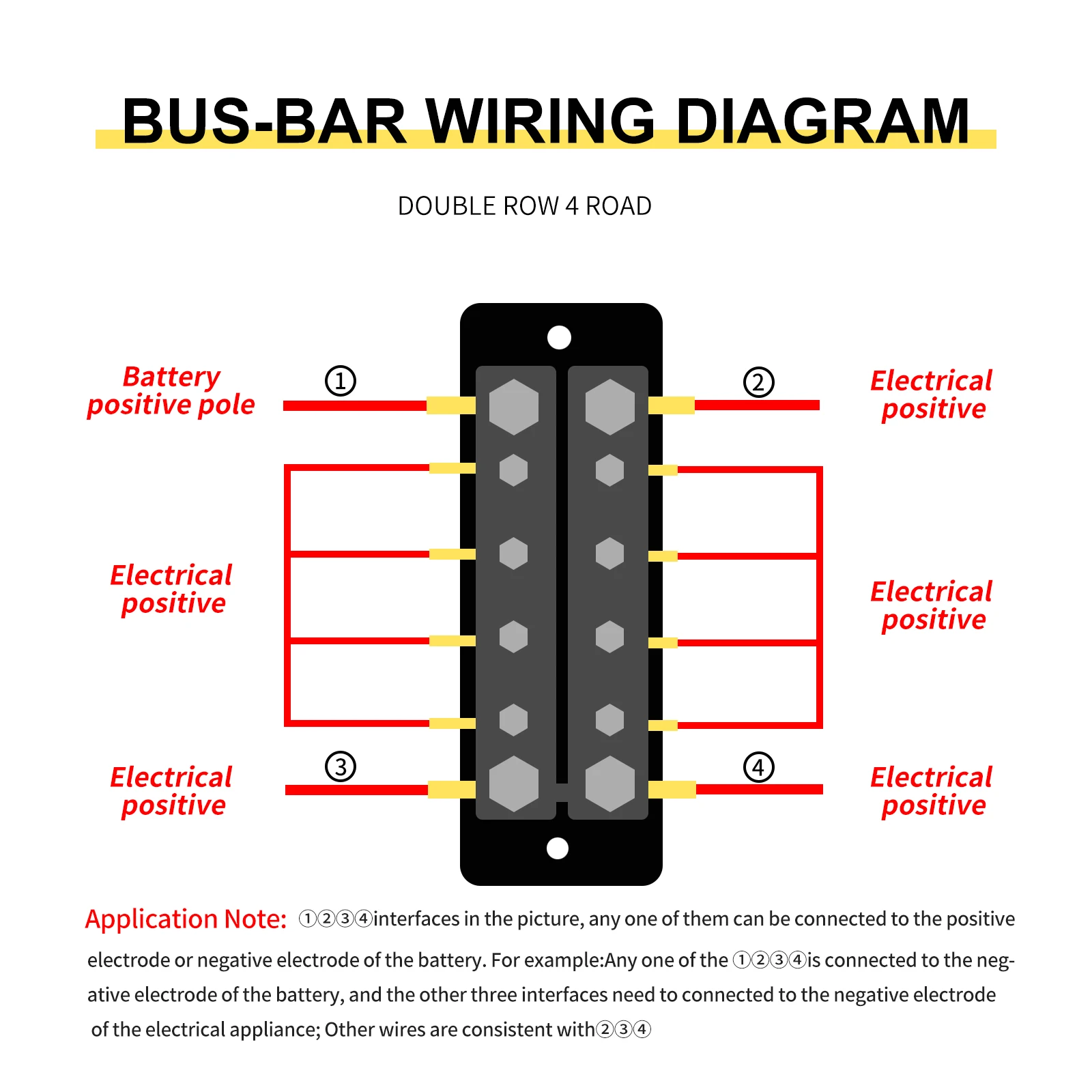

Application Note:
①②③④interfaces in the picture, any one of them can be connected to the positiveelectrode or negative electrode of the battery.For example:Any one of the ①②③④is connected to the neg-ative electrode of the battery, and the other three interfaces need to connected to the negative electrodeof the electrical appliance; Other wires are consistent with②③④
Contact US
Company Profile
Our factory ：We are an industry and trade company with more than ten years' experience in automobile and motorcycle parts manufacturing. We can provide OEM/ODM customized services!!!
Shenzhen Chengshuo Technology Co.,LTD is specialized in development,production and sales of car and motorcycle modified accessories for many years. Our main products are covering USB charger, switch, phone holder, fuse box,etc.
Our products have been exported to more than 30 countries in the world because of fashionable appearance,new unique design and superior quality. We are based on customers' opinions, honest and trustworthy with customers to win together.Providing satisfactory products and services for our worldwide customers is our permanent pursuit and commitment.
Certifications
Packing & Delivery
According to your needs, the actual situation for you to match the best mode of transportation!
If you have your own forwarder, you can also tell us directly, and we will contact your forwarder!!
If you have your own forwarder, you can also tell us directly, and we will contact your forwarder!!
Strictly control the whole process of R & D, production, sales, testing and packaging to ensure the high quality of products!
FAQ
Q1: Do you have any certificates?
A: Yes, We have CE,FCC,ROHS,UL and other certificates, which can support to ship to your place safely.
Q2: How do you quick response to customer inquiry?
A: Professional lines, widely supplier sourcing and we will try our best to reply you at first time!
Q3: Can you accept OEM/ODM?
A: Yes, we are professional factory with experience more than 15 years , we can accept your all customized needs and we are glad to help you with your own design.
Q4: Do you test all the goods before delivery to make sure the 0% defective rate?
A: Yes, We have 100% test before delivery and we will test the goods twice under the surveillance cameras, the first time is after production and the second time is before packing your goods, and in the same time we will take the detailed photos of your goods for your checking.
Q5: What is your sample policy?
A: We can supply the sample immediately if we have stock, but the customers have to pay the sample cost and the courier cost.
Q6: How about your lead time?
A: It will depends on the quantity and your other requirements, but normally the goods will be ready in 7-15 days.
Q7: How would you ship the goods?
A: We could ship you goods by Sea/Air/Train DDP shipping, express like FedEx, UPS, DHL, ARAMEX, etc, if you have your own forwarder in China, we could ship the goods to your forwarder directly, we will tell you the shipping time and the cost for your kind reference after we confirm the quantity you need, there will be definitely a best shipment for you.
