factory price refractory low conductivity zirconium oxide ceramic crucible cup
- Category: >>>
- Supplier: Sta Refractory (zhengzhou) Co. Ltd.
Share on (1601005615529):
Product Overview
Description
Product Description

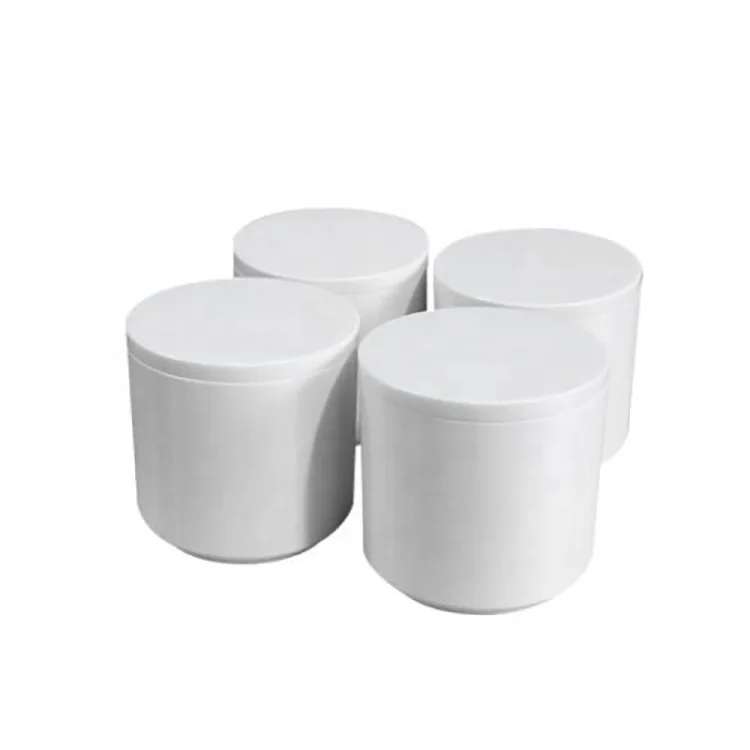

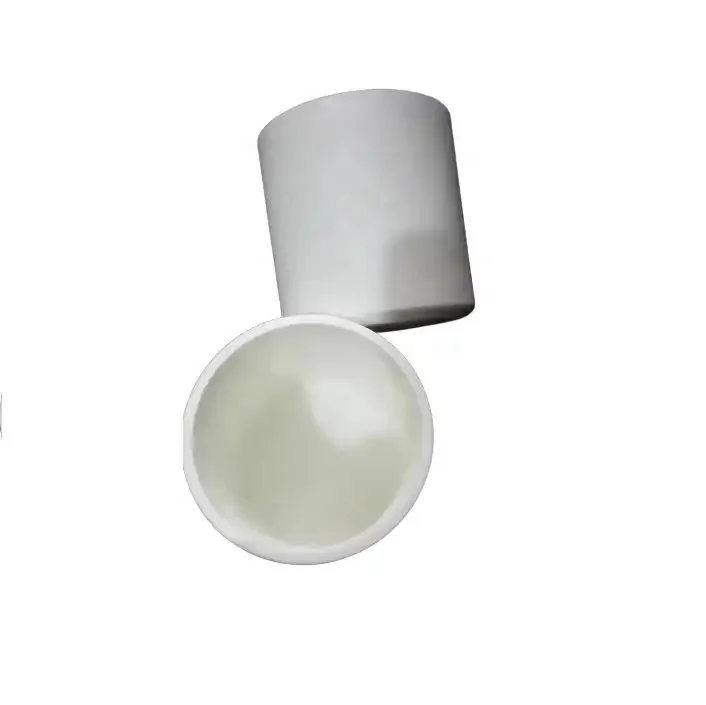

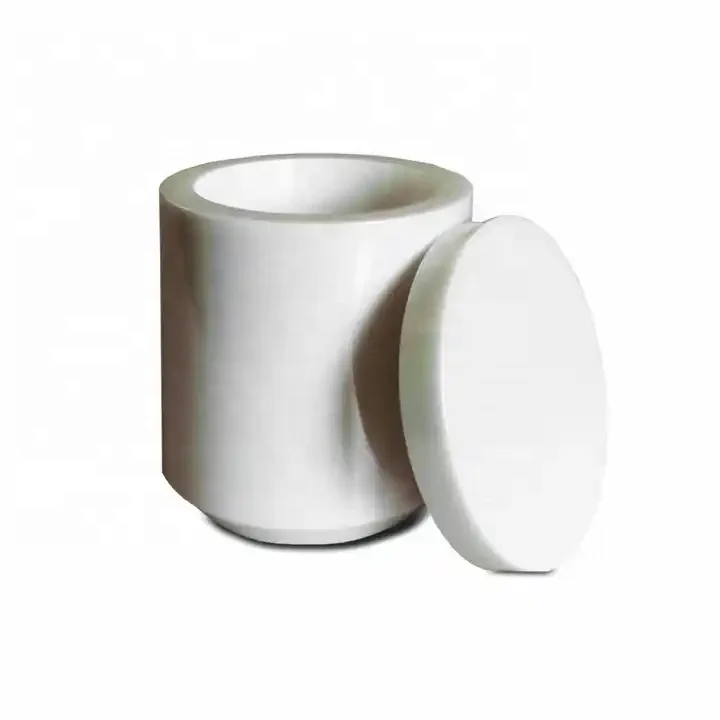

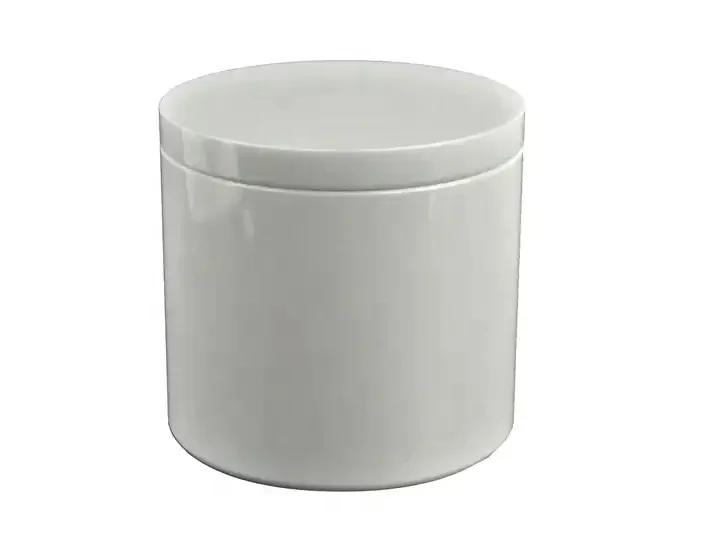

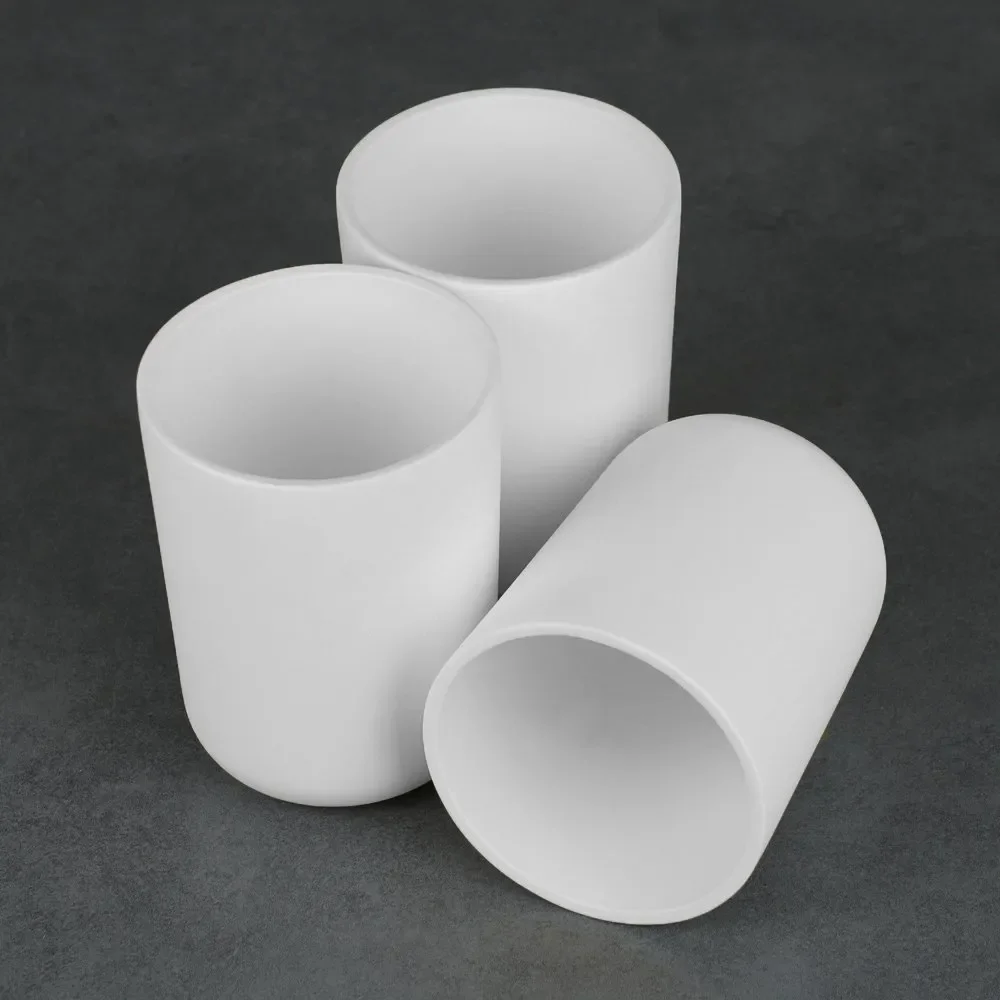

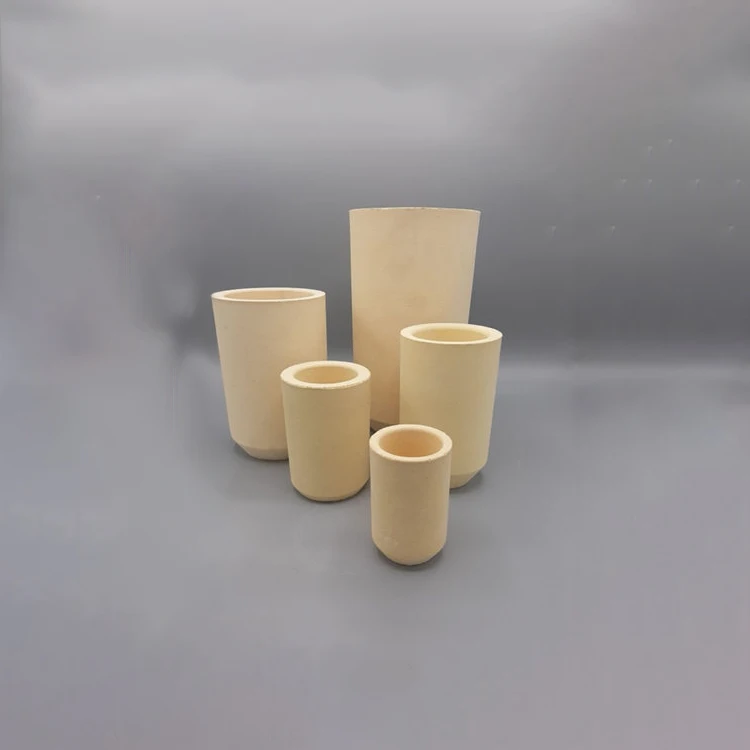

Zirconia Crucible, ZrO2 Crucible
Zirconia (ZrO2) crucibles are great refractory and insulating containers. They have a clean melt at temperatures above 1900°C and above and are specially manufactured for melting superalloys and precious metals. They also have excellent chemical inertness, superior thermal shock resistance to temperatures reaching up to 2200°C, and good corrosion resistance to acids and alkalis. The material for the Zirconia crucible will be Yttrium oxide fully stabilized zirconia (8mol-YSZ), while partially stabilized zirconia ceramics are mostly used for corrosion and wear resistant products.

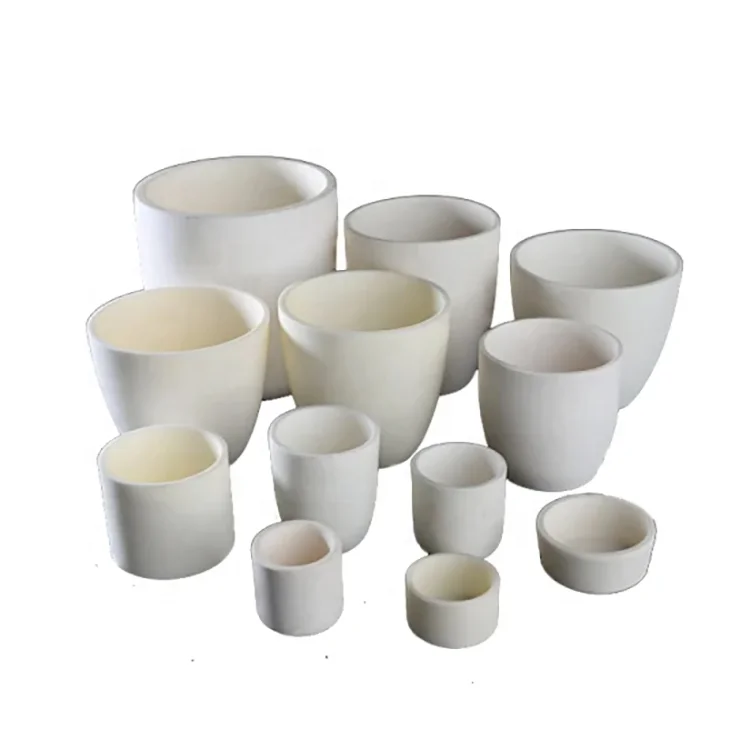

Zirconia Crucible Types:
Our zirconia crucible’s temperature resistance is around 2000 ℃， two types of them are divided as follows:
Refractory grade zirconia crucible, Density: 4.5g/cc, has micropores inside, also named a semi-ceramic crucible. It exhibits
corrosion resistance performance of zirconia, is stable in the oxidizing and reducing atmosphere, and it is very resistant to many solutions and slag. At the same time, it has the thermal shock resistance of refractory materials, which greatly improves the change of temperature gradient during use, and is widely used in the smelting of platinum and other rare precious metals. Three main size of this type: 250ml, 5.0mmOD x 8.0mm H, 6.8mmOD x 4.0mm H. The last one is used as a thermal analysis crucible; it solves the analysis for materials that will react with alumina crucible at a high temperature.
Ceramic grade zirconia crucible, density: 6.0g/cc, fully densified, and no pores. High-purity ceramic zirconia crucible is white, it will show yellow or grey if the purity is lower. It has stable chemical properties, except for sulfuric acid and hydrogen sulfuric acid, it has good stability to other acids, alkalis and alkali melts, glass melts and molten metals, low thermal conductivity, good thermal stability, and high temperature creep. The thermal conductivity is low, and the coefficient of thermal expansion is close to that of metal materials. It is an important structural ceramic material.
Refractory grade zirconia crucible, Density: 4.5g/cc, has micropores inside, also named a semi-ceramic crucible. It exhibits
corrosion resistance performance of zirconia, is stable in the oxidizing and reducing atmosphere, and it is very resistant to many solutions and slag. At the same time, it has the thermal shock resistance of refractory materials, which greatly improves the change of temperature gradient during use, and is widely used in the smelting of platinum and other rare precious metals. Three main size of this type: 250ml, 5.0mmOD x 8.0mm H, 6.8mmOD x 4.0mm H. The last one is used as a thermal analysis crucible; it solves the analysis for materials that will react with alumina crucible at a high temperature.
Ceramic grade zirconia crucible, density: 6.0g/cc, fully densified, and no pores. High-purity ceramic zirconia crucible is white, it will show yellow or grey if the purity is lower. It has stable chemical properties, except for sulfuric acid and hydrogen sulfuric acid, it has good stability to other acids, alkalis and alkali melts, glass melts and molten metals, low thermal conductivity, good thermal stability, and high temperature creep. The thermal conductivity is low, and the coefficient of thermal expansion is close to that of metal materials. It is an important structural ceramic material.
Zirconia Crucible Applications
Zirconium Oxide Crucibles deliver cleaner melts at temperatures up to 1900°C and beyond. They are engineered for the melting of superalloys and precious metals and deliver heat-up and cool-down schedules that keep your foundry productive. They are widely used in:
-Chemical calcining
-Metal casting
-Metal melting, especially in superalloy and precious metals industries
-Thermal analysis crucibles
-Chemical calcining
-Metal casting
-Metal melting, especially in superalloy and precious metals industries
-Thermal analysis crucibles
Specification
Working temperature | 2200℃ |
Corrosion Resistant | Acids, alkalis |
Approx. Capacity | 2~300 mL |
OD | 9~80 mm |
Height | 15~80 mm |
Wall thickness | 1.5~3.5 mm |
Different sizes and shapes of zirconia crucibles can be manufactured according to customers’ requirements. Please send us an inquiry for the zirconia crucible price.
Packing & Delivery
We are a global zirconia crucibles manufacturer. Our Zirconia Crucible is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Company Profile
located in Henan, China, Zhengzhou STA Universe Group Co., Ltd is brazing the trail in the refra-ctory materials industry. It was founded in 2013. We have our own fully automated plants. We have been focusing on the development and innovation of refractory materials and high tem-perature furnace, and striving to provide customers with top-notch products. Our products are widely used in laboratories, metallurgy, petrochemical and other fields, and are exported to more than 70 countries and regions around the world, such as Europe, America, Oceania, South -east Asia, and Middle East.
FAQ
1. Are you trading company or manufacturer ?
--We are factory and manufacturer.
2. Can you accept OEM?
--Yes! We can manufacture as per your specification.
3. Can you deliver the goods via our shipping agent?
--Yes, we could help you make the delivery using your shipping agent.
4. How long is your delivery time?
--Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock. And order quantity also plays a part in delivery time.
5.When we can contact you?
--You can contact us 24 hours every day. It is our pleasure to service you at any time.
6. What about your After-sales service?
--Yes. We have a professional after-sales team to help you solve problems.
--We are factory and manufacturer.
2. Can you accept OEM?
--Yes! We can manufacture as per your specification.
3. Can you deliver the goods via our shipping agent?
--Yes, we could help you make the delivery using your shipping agent.
4. How long is your delivery time?
--Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock. And order quantity also plays a part in delivery time.
5.When we can contact you?
--You can contact us 24 hours every day. It is our pleasure to service you at any time.
6. What about your After-sales service?
--Yes. We have a professional after-sales team to help you solve problems.
