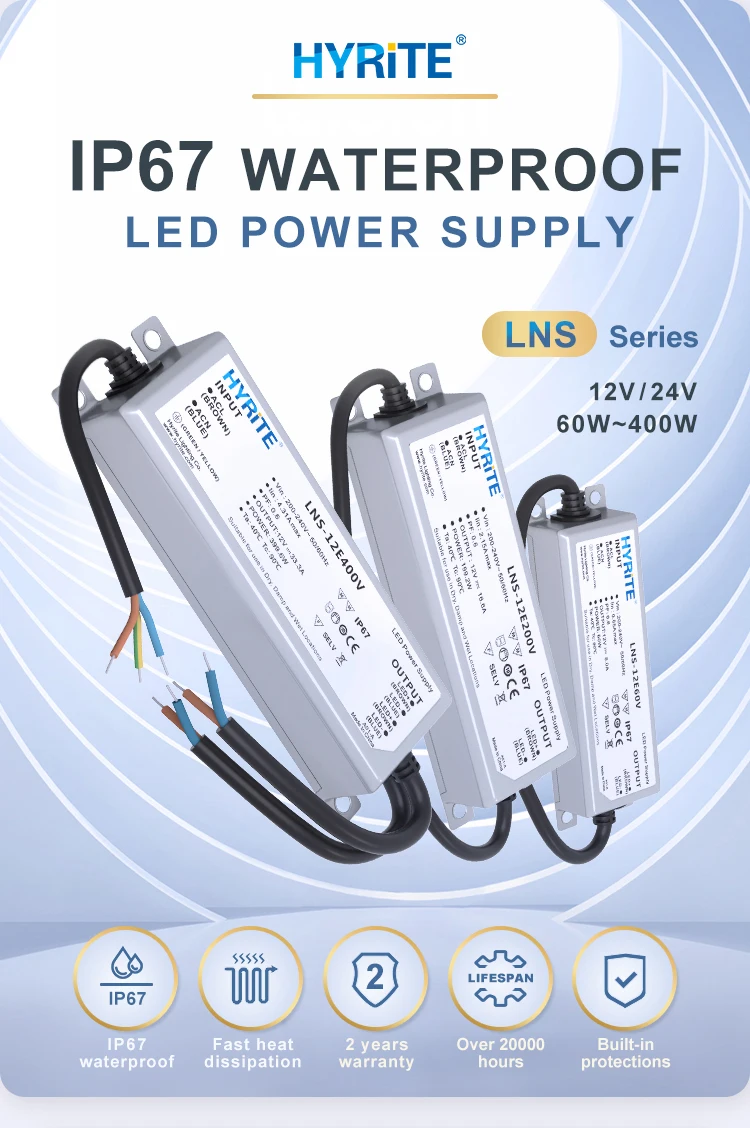

Wide Voltage IP67 Waterproof Switching Power Supply Constant Voltage Compact Size 60W 100W 150W 200W 300W 400W 12V24V LED Driver
- Category: >>>
- Supplier: Hyrite Lighting Co.
Share on (1601005670161):
Product Overview
Description
A) Features of led driver
·Small size,High efficiency,High reliability,Long lifetime;
·IP67 rating;
·Working temperature -25~+80°C;
·Protection:Overload,Short-circuit pratection,Over-temperature;
·Typical efficiency:90%;
·Start delay design,which can reduce the starting current when multiple simulatance start;
·CE,IP67 certifide,ROHS compliant;
·Low output ripple moises.
B) Applications of led driver
*Office lighting, Artwork lighting, Display case
*Home lighting, Hotel, Restaurant lighting and so on
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Other public lighting...

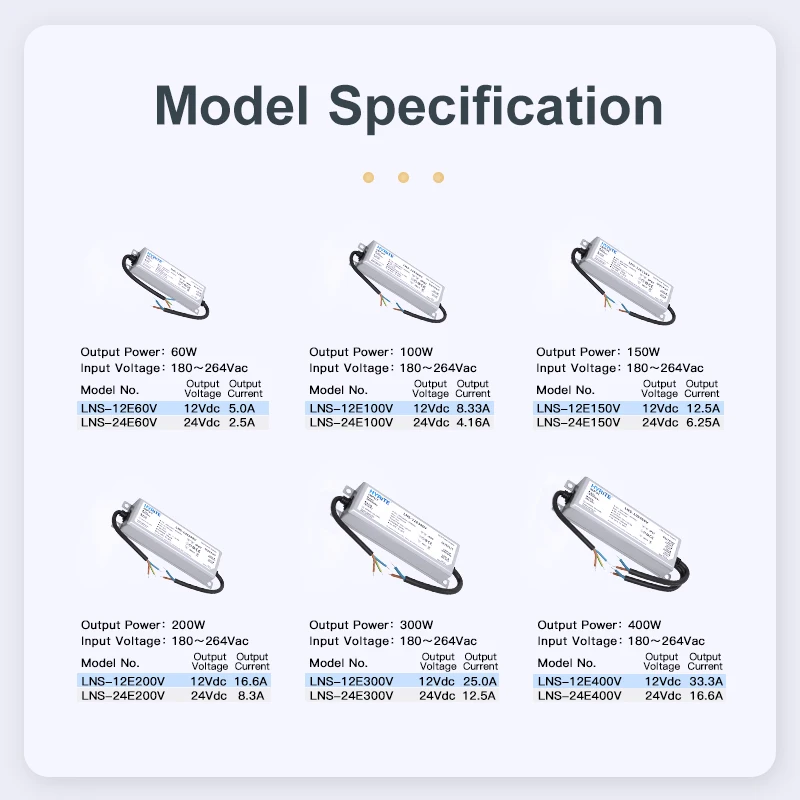

ITEM NO. | 12/24E-60W | 12/24E-100W | 12/24E-150W | 12/24E-200W | 12/24E-300W | 12/24E-400W | |||||
INPUT VOLTAGE | 180-264Vac | ||||||||||
OUTPUT VOLTAGE | 12V/24V | ||||||||||
OUTPUT CURRENT | 2.5/5.0A | 4.16/8.33A | 6.25/12.5A | 8.3/16.6A | 12.5/25A | 16.6/33.3A | |||||
PF | >0.9 | ||||||||||
EFFICIENCY | 82% ~ 90% | ||||||||||

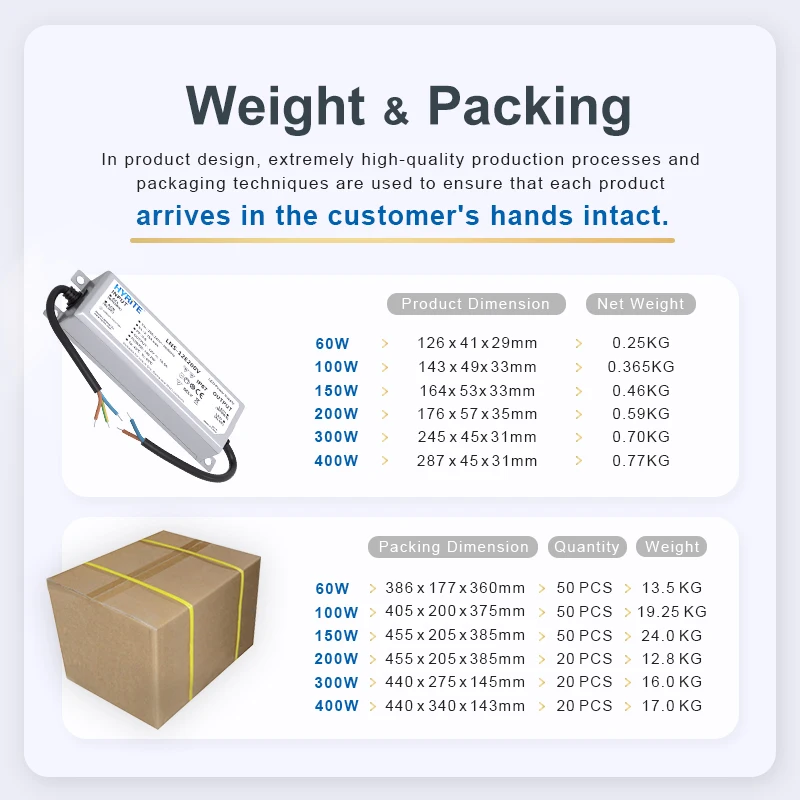

PRODUCT SIZE(mm) | 126x41x29 | 143x49x33 | 164x53x33 | 176x57x35 | 230x67x38 | 230x67x38 | |||||
IP | 67 | ||||||||||
Warranty | 3 years | ||||||||||
FREQUENCY RANGE | 50～60Hz | ||||||||||
Short circuit | Protection type:Hiccpe mode,recovers automatically after condition is removed | ||||||||||
Overload | 100-120% | ||||||||||

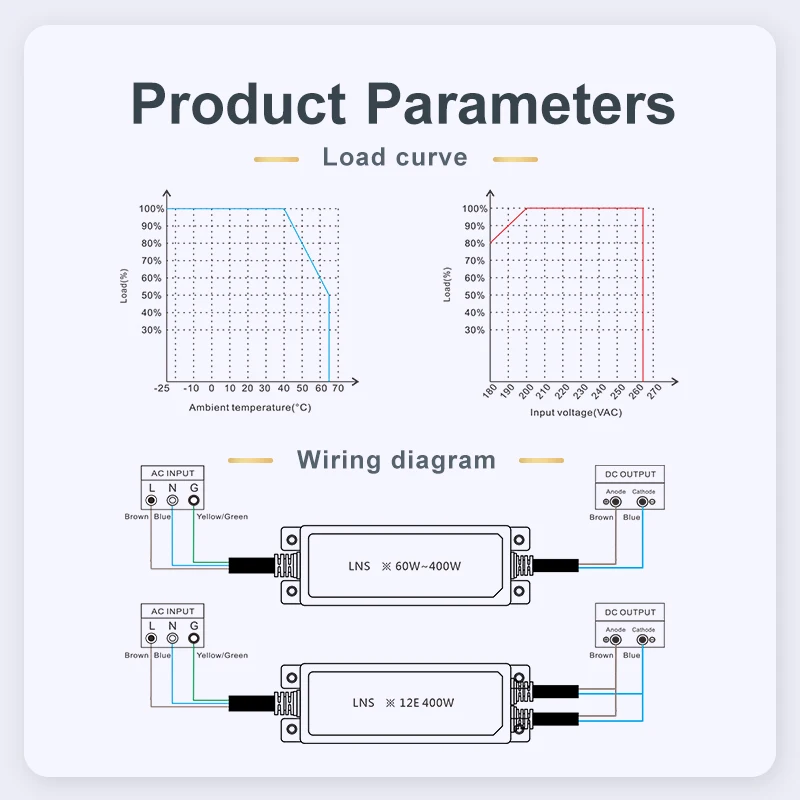

WORKING TEMP. | -25~+65℃ (Refer to output load derating curve) | ||||||||||
FAQ
Q1: Are you a manufacturer?
A: Of course, We are the manufacturer.

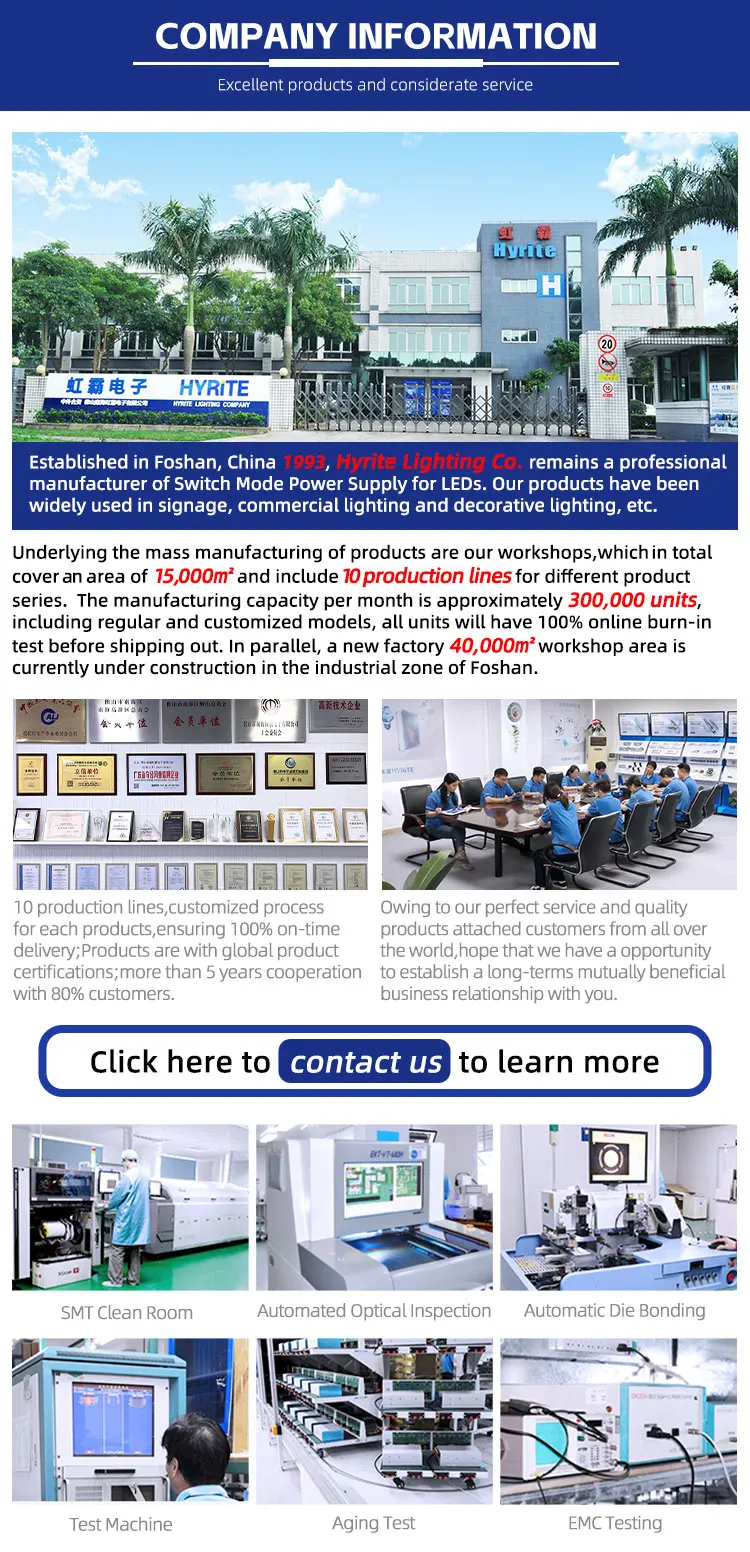

Our Hyrite Lighting Co. (formerly NeonPro Co.) was built in 1993, with 15,000m² clean workshops in China, and offices in USA.
Our China Factory is located in Shishan Industry Zone A, Nanhai, Foshan city, Guangdong. Welcome to visit us.
Q2: Do you have any MOQ requirement? Can I place a sample order?
A: Yes, sample order for testing and checking our quality is available.
Our MOQ is 1 carton at least for better packing. Also, mixed samples are acceptable.
Q3: Is it OK to print my logo on LED driver and use my own package and trade mark?
A: Yes. Using your own design is acceptable.
Kindly please inform us formally before our production and confirm the design firstly.
Q4: Does your company accept OEM & ODM?
A: Sure, OEM or ODM is no problem for us.
Q5: Do you have any certifications?
A: All of our products have CE certificate; some series have special SAA & C-Tick for Australia market; SASO certificate for Saudi Arabia; and UL & FCC for USA market.
Q6: Why choose you?
A: Here list our advantages as below:
● 30 years Manufacturer.
● Offer 3-5 years warranty.
● Stable quality, burn-in tests with 100% full load.
● More than 5 years cooperation with 80% customers.
● Manufacturer of full range LED/SMPS power supply.

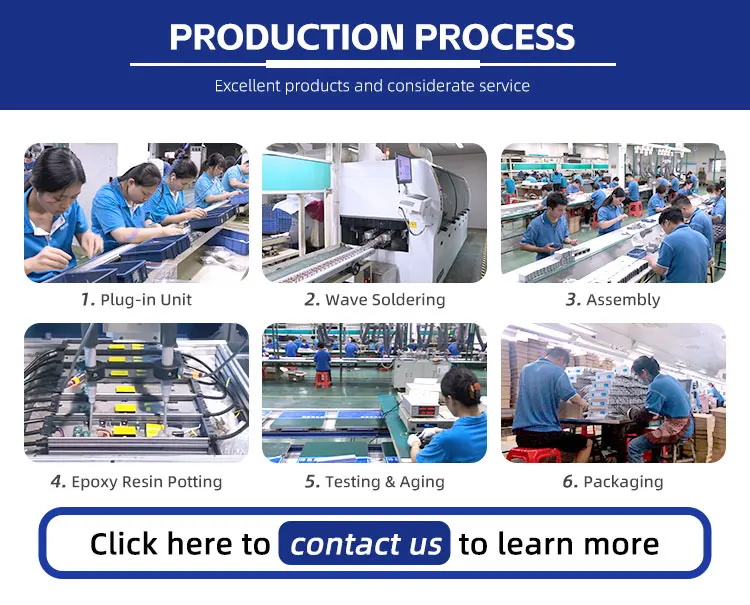

● 10 production lines, customized process for each product, ensuring 100% on-time delivery
● With global product certifications: CE, RoHs, SAA, C-tick, RCM, FCC, UL, SASO, TUV, BIS approved.
● Products have been used in many landmark projects, such as Hong Kong-Zhuhai-Macao Bridge, 2008 Beijing Olympic Stadium, Xi'an Metro station etc.
A: Of course, We are the manufacturer.
Our Hyrite Lighting Co. (formerly NeonPro Co.) was built in 1993, with 15,000m² clean workshops in China, and offices in USA.
Our China Factory is located in Shishan Industry Zone A, Nanhai, Foshan city, Guangdong. Welcome to visit us.
Q2: Do you have any MOQ requirement? Can I place a sample order?
A: Yes, sample order for testing and checking our quality is available.
Our MOQ is 1 carton at least for better packing. Also, mixed samples are acceptable.
Q3: Is it OK to print my logo on LED driver and use my own package and trade mark?
A: Yes. Using your own design is acceptable.
Kindly please inform us formally before our production and confirm the design firstly.
Q4: Does your company accept OEM & ODM?
A: Sure, OEM or ODM is no problem for us.
Q5: Do you have any certifications?
A: All of our products have CE certificate; some series have special SAA & C-Tick for Australia market; SASO certificate for Saudi Arabia; and UL & FCC for USA market.
Q6: Why choose you?
A: Here list our advantages as below:
● 30 years Manufacturer.
● Offer 3-5 years warranty.
● Stable quality, burn-in tests with 100% full load.
● More than 5 years cooperation with 80% customers.
● Manufacturer of full range LED/SMPS power supply.
● 10 production lines, customized process for each product, ensuring 100% on-time delivery
● With global product certifications: CE, RoHs, SAA, C-tick, RCM, FCC, UL, SASO, TUV, BIS approved.
● Products have been used in many landmark projects, such as Hong Kong-Zhuhai-Macao Bridge, 2008 Beijing Olympic Stadium, Xi'an Metro station etc.
