Good Quality Plastic Pipe Making Machine PVC/UPVC/CPVC/PVC Pipe Extruding Machinery for Sale
- Category: >>>
- Supplier: Zhangjiagang Horserider Machinery Co. Ltd.
Share on (1601005793845):
Product Overview
Description

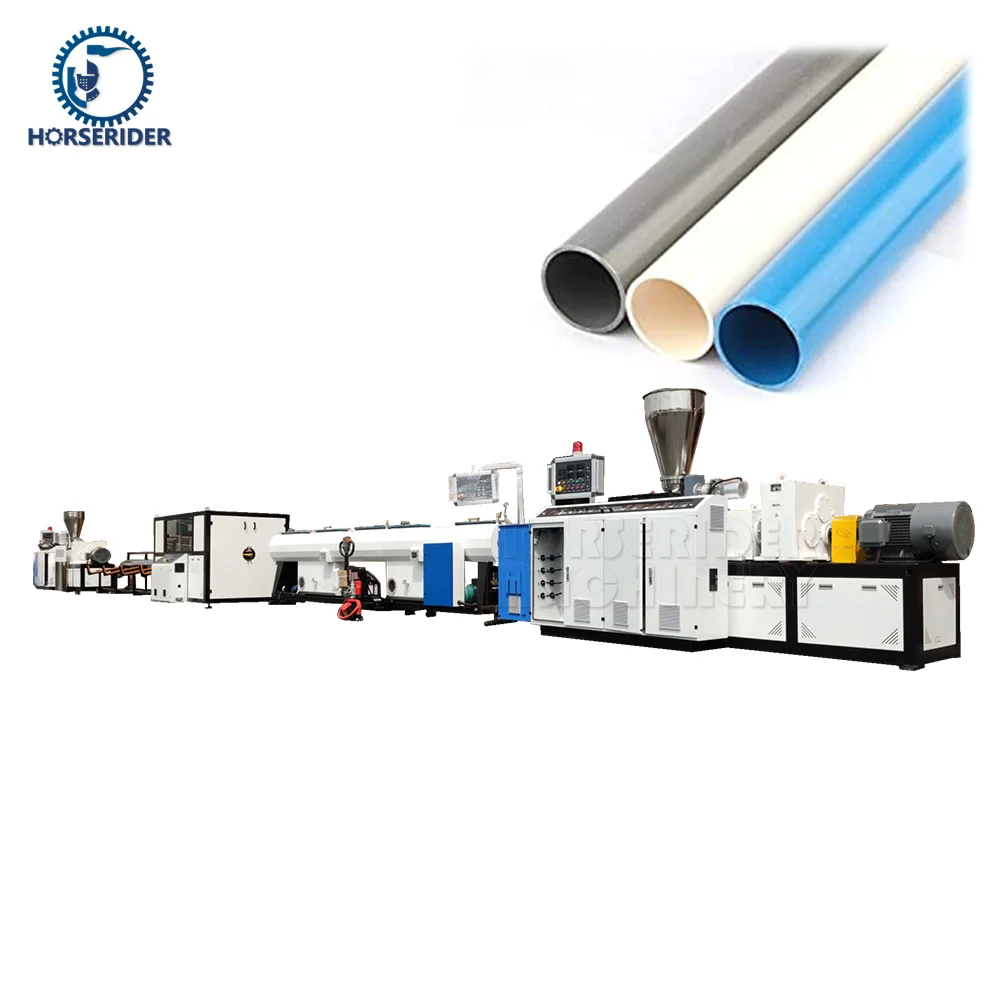

PVC pipe extrusion production line
Application :

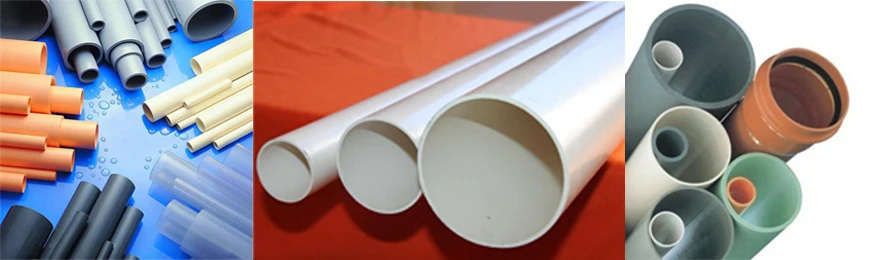

PVC pipe is widely used for drainage and water supply of agriculture and buildings, cable laying pipe, wire threading pipe, house decoration, etc.
PVC pipe is widely used for drainage and water supply of agriculture and buildings, cable laying pipe, wire threading pipe, house decoration, etc.
PRODUCT PARAMETERS
Model | Pipe range | Extruder machine | Main Power | Output | Speed(m/min) |
PVC-32*4 | 16-32mm | SJSZ65/132 | 37kw | 300 kg/h | 10 |
PVC40*2 | 16-40mm | SJSZ65/132 | 37kw | 300 kg/h | 10 |
PVC63*2 | 16-63mm | SJSZ65/132 | 37kw | 300kg/h | 10 |
PVC-63 | 16-63mm | SJSZ51/105 | 18.5kw | 120kg/h | 10 |
PVC-110 | 20-110mm | SJSZ55/110 | 30kw | 200kg/h | 10 |
PVC-160 | 50-160mm | SJSZ65/132 | 37kw | 300kg/h | 5 |
PVC-250 | 75-250mm | SJSZ80/156 | 55kw | 400kg/h | 3.5 |
PVC-315 | 110-315mm | SJSZ80/156 | 55kw | 400kg/h | 3 |
PVC-450 | 160-450mm | SJSZ92/188 | 90/110kw | 600kg/h | 1.5 |
PVC-630 | 315-630mm | SJSZ92/188 | 90/110kw | 600kg/h | 0.9 |
Production process：
preparation of raw materials + additives → mixing → feeding →conical twin-screw extruder → extrusion die → Vacuum calibration tank→ printer → haul-off → cutter → pipe stacking rack → finished product inspection and packaging.
PVC one-cavity production line----------------------------------------------------

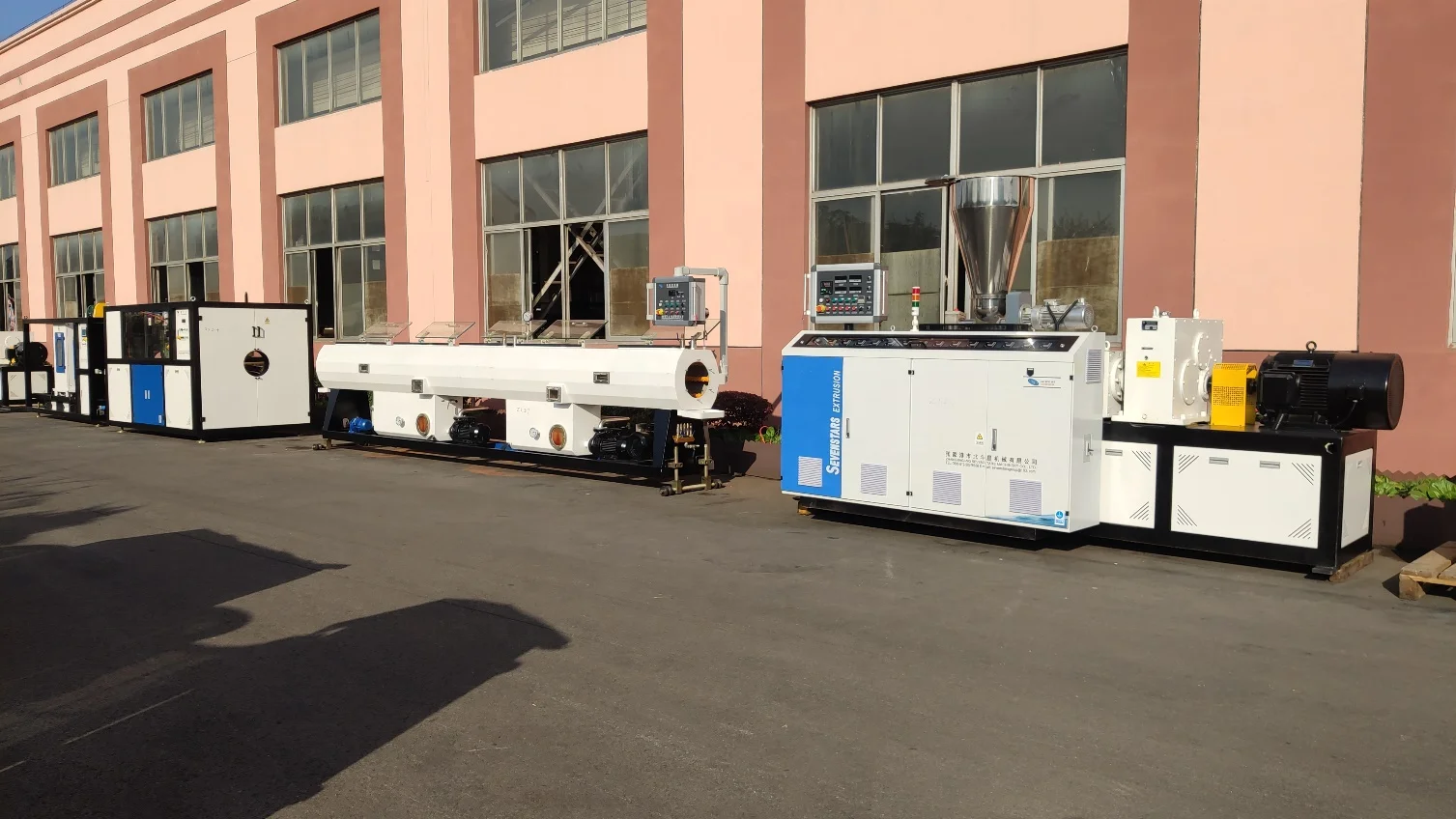

This production line is mainly applicable to production Φ20-Φ630 PVC pipes of various wall thicknesses.It is composed of screw feeder, conical twin screw extruder,extrusion die, vacuum calibration tank,haul-off, motors, cutter and stacker etc.
This production line is mainly applicable to production Φ20-Φ630 PVC pipes of various wall thicknesses.It is composed of screw feeder, conical twin screw extruder,extrusion die, vacuum calibration tank,haul-off, motors, cutter and stacker etc.
The extruder and haul off methods are two-claw, three-claw, four-claw, six-claw, eight-claw, ten-claw, twelve claw etc. You may choose saw blade cutting type or planetary cutting type.
It is aditionaly attached with length counter and intensifying device. This line with reliable performance and high production eficiency. Our company can also manufacture special pipe production lines,e.g. spiral silencing pipe and core foaming pipe according to your requirements.
Conical twin screw extruder
Single Die Mould

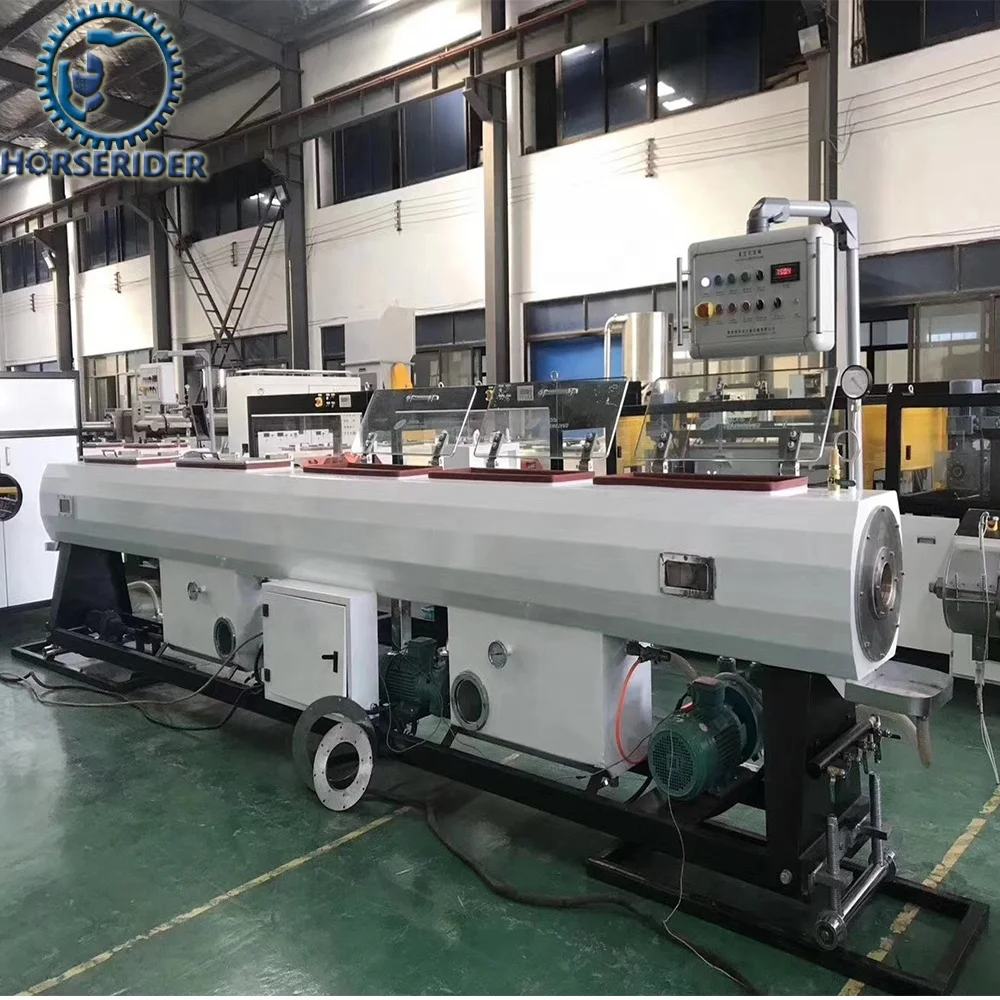

Vacuum calibration tank

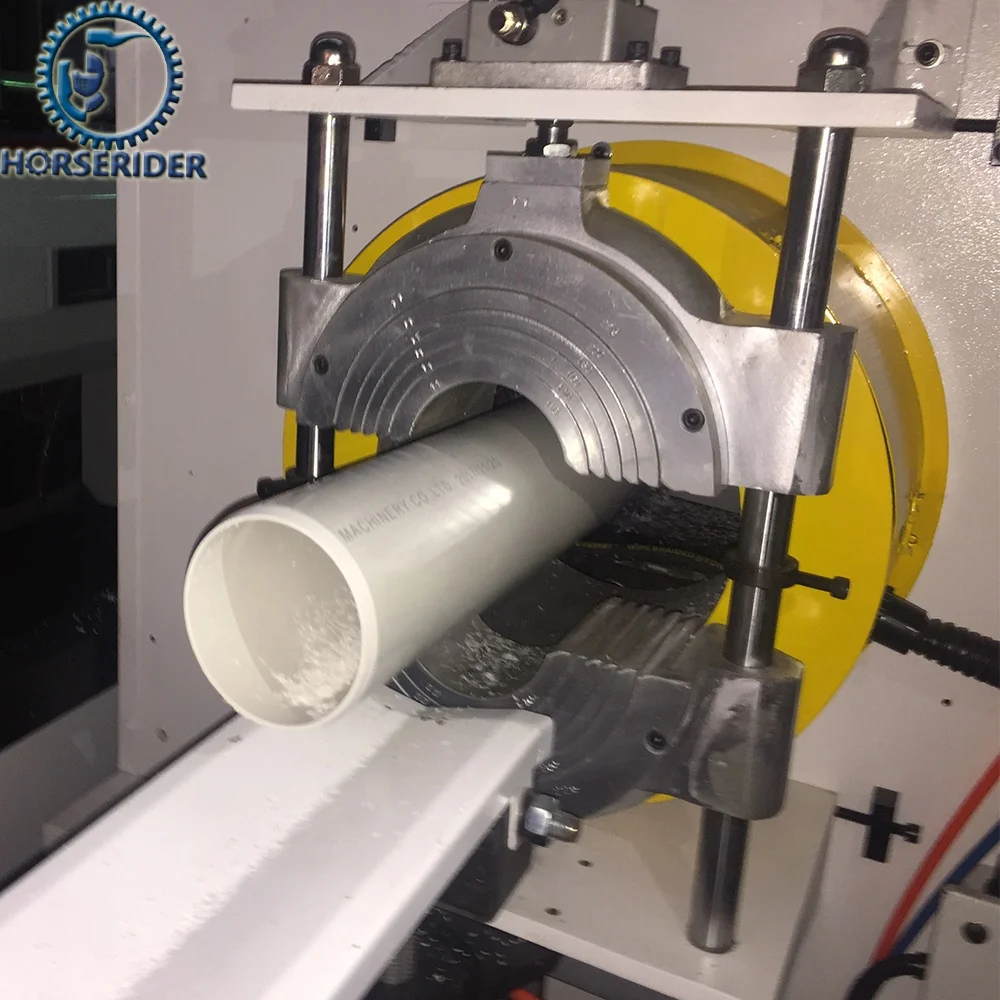

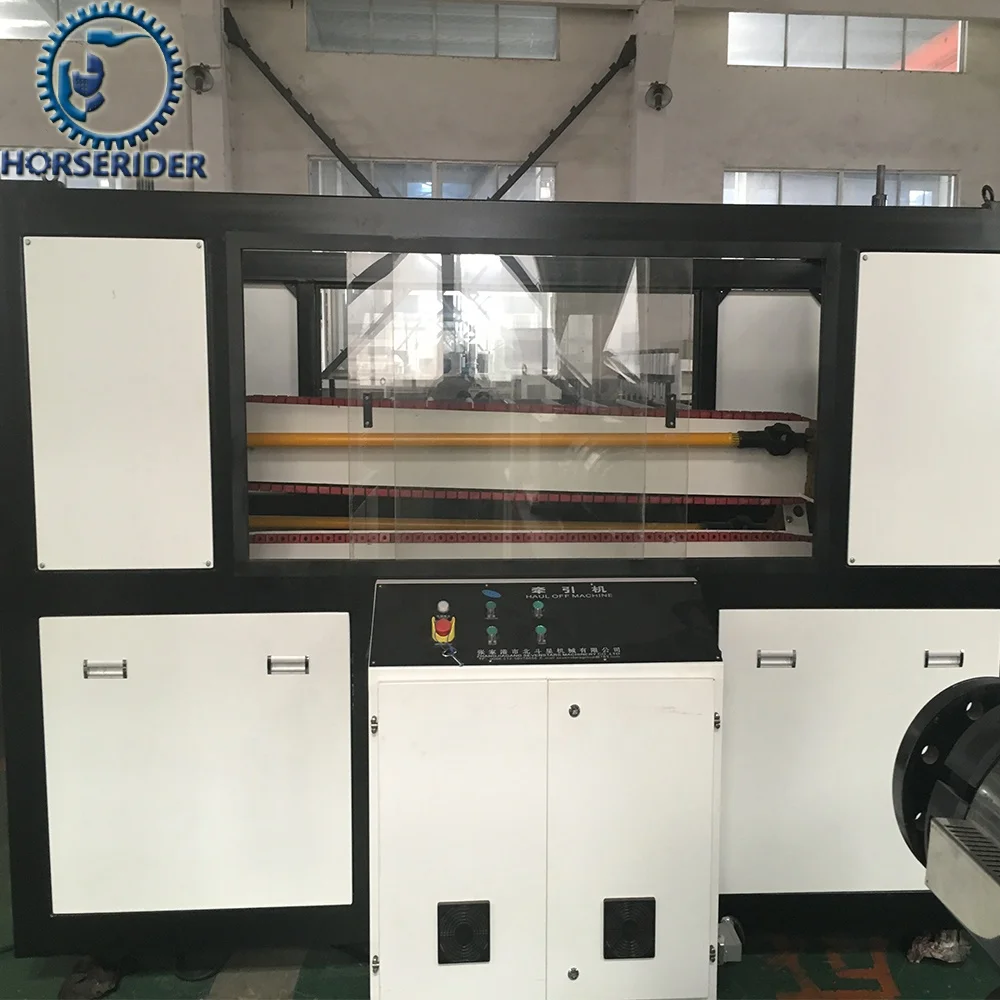

Haul-off Unit

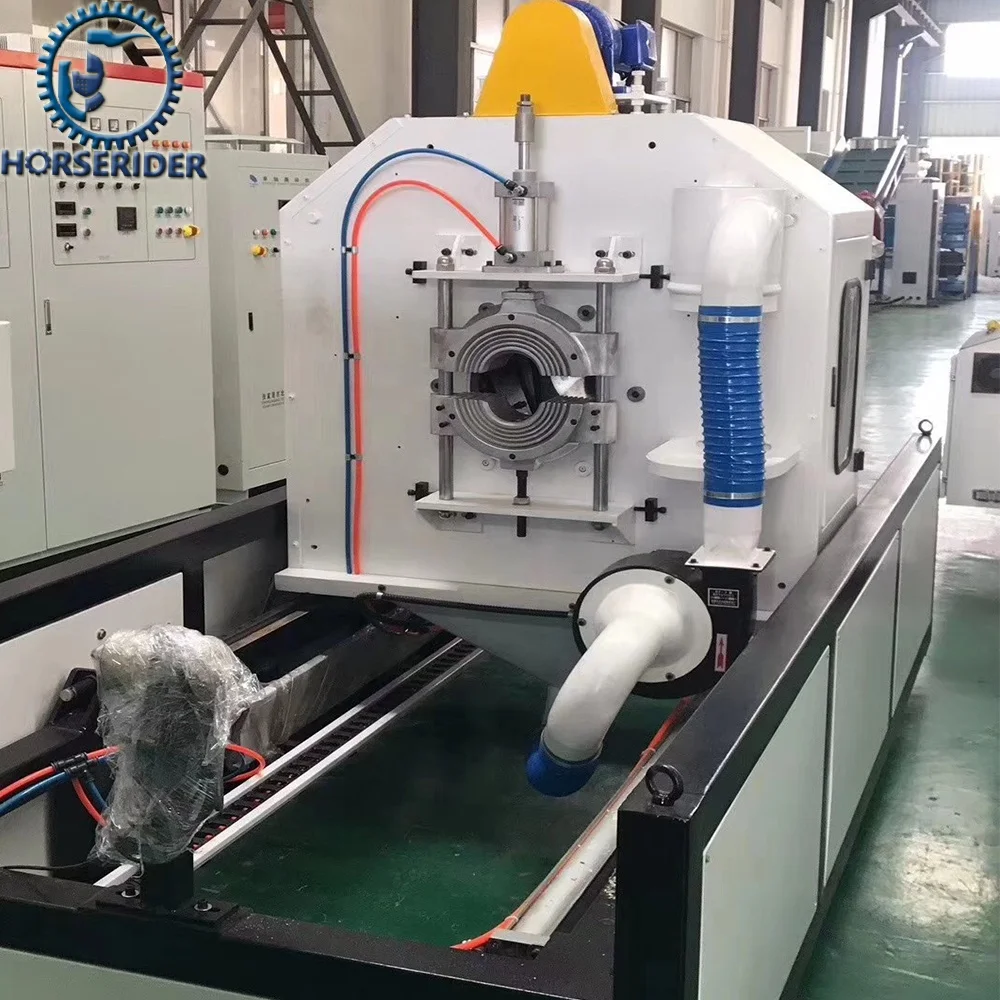

Cutter Machine
PVC 2cavity production line---------------------------------------------------------
The production line is developed with the advanced technology of west Europe which is brought by separate-control double tube extruding by our company. This line is mainly applicable to double-cavity which has Φ16-40mm or Φ16-63mm. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit.
The production line is developed with the advanced technology of west Europe which is brought by separate-control double tube extruding by our company. This line is mainly applicable to double-cavity which has Φ16-40mm or Φ16-63mm. The main machine is SJSZ55/110 or SJSZ65/132 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected. The auto single-control double drawing machine and cuting machine arecombined with the front double calibration technology to make operation more flexible let you enjoy economic benefit.
Conical twin screw extruder
2 cavity Die Mould
Vacuum calibration tank
Haul-off Unit
Cutter Machine
PVC 4-cavity production line-----------------------------------------------------------
Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
Four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
Conical twin screw extruder
4 cavity Die Mould
Vacuum calibration tank
Haul-off Unit
Cutter Machine
Related Products

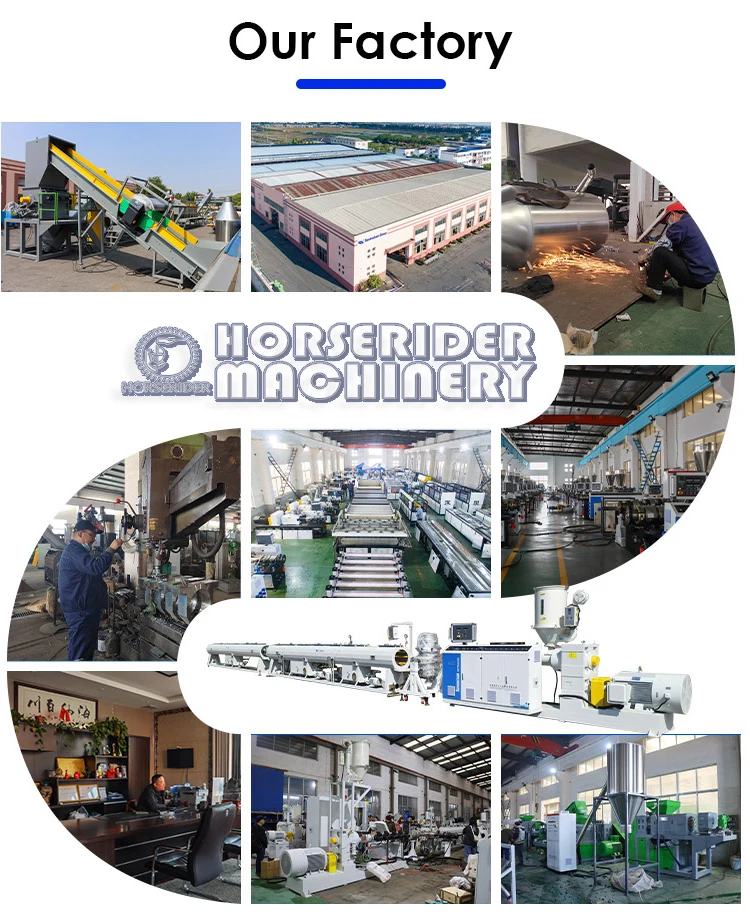

Our Company and Certifications
