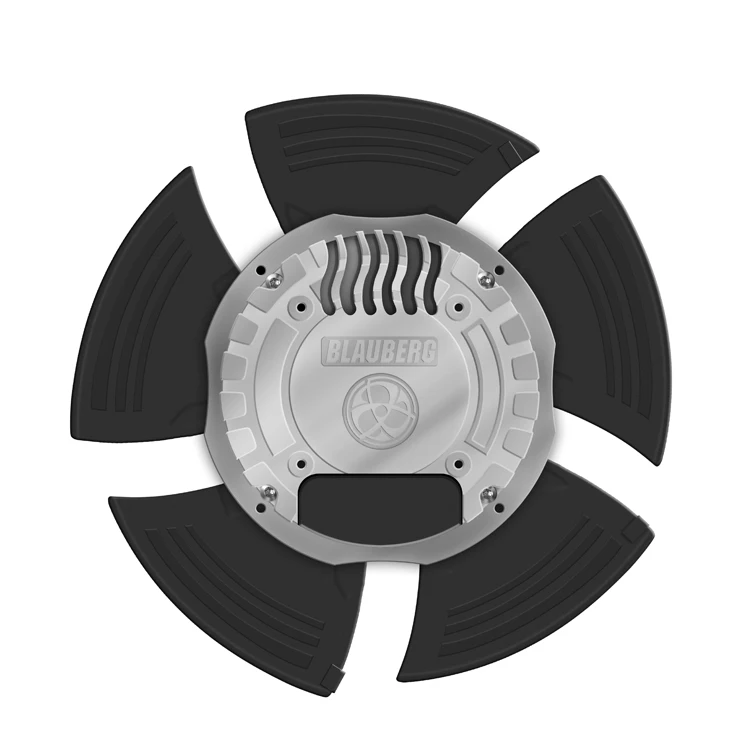

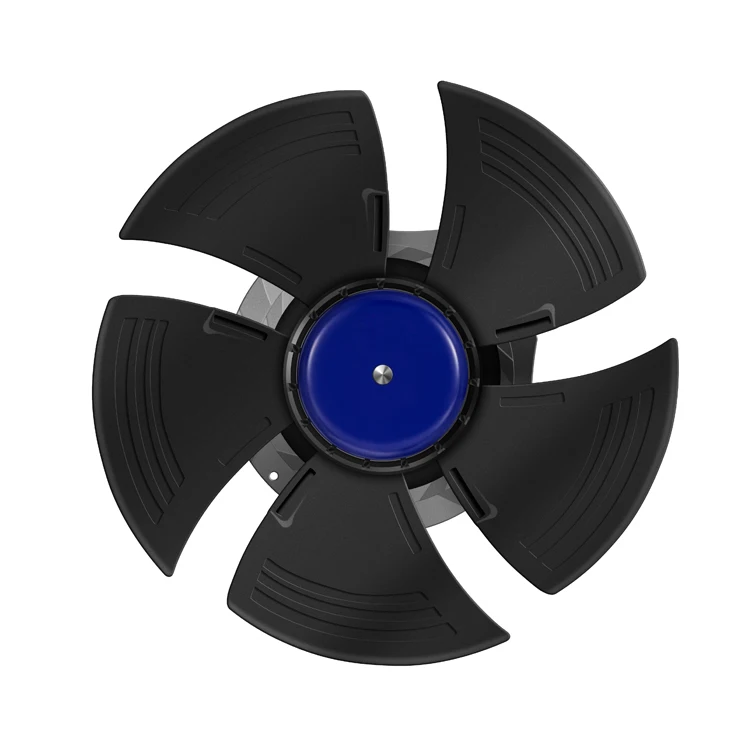

Blauberg 350mm 380v axial ventilation fan industrial EC fan ball bearing for AHU
- Category: >>>
- Supplier: Suzhou Blauberg Motoren Technology Co. Ltd.
Share on (1601005810689):
Product Overview
Description
Technical Description
Dimension: | 350*350*160mm | Mode of operation: | S1 |
Materials Impeller: | PA6+GF | Bearing: | ball bearings |
Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
Direction of rotation : | clockwise,seen on rotor | Air Flow: | 5200M³/H |
Number of Blades: | 5 | Static Pressure: | 620Pa |
Speed Control: | 0~10VDC / PWM | Life Expectance: | 50,000 Hours(L10) |
Operating Voltage: | 380VAC | Operating Humidity: | 5%-90% RH |
Type of protection: | IP55 | Signal Output: | FG (Frequency Generator) |
Insulation class: | F | Authentication: | CCC,CE |

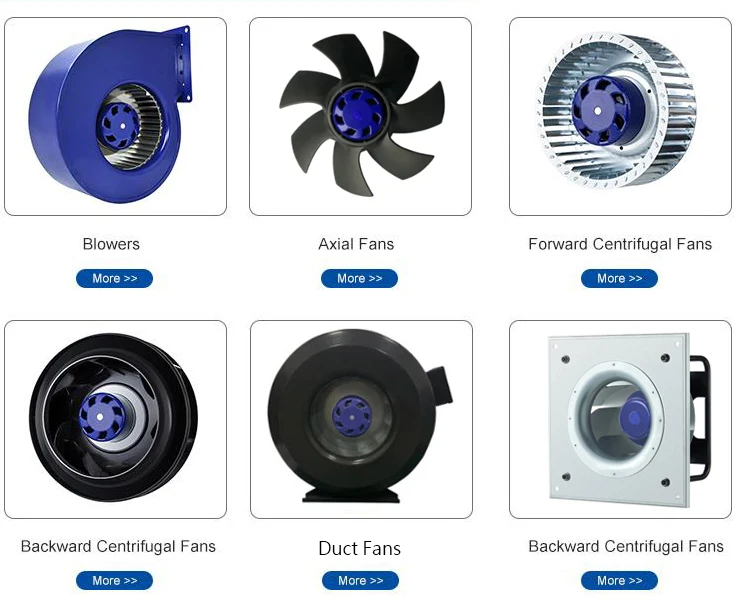

Related Product
Parameter summary table
Model | Nominal voltage[VDC] | Speed (RPM) | Power input max(W) | Current max(A) | Sound pres level[dB(A)] | Perm amb temp[*c) | Electrical connection |
BY-A400C-EC-05 | 380 | 2000 | 1000 | 1.7 | 84 | -25 ºC ~ +60 ºC | E2 |
BY-A450C-EC-05 | 380 | 1900 | 1000 | 1.7 | 83 | -25 ºC ~ +60 ºC | E2 |
BY-A350C-EC-05S | 380 | 2860 | 1000 | 1.85 | 72 | -25 ºC ~ +60 ºC | E2 |
BY-A400C-EC-05S | 380 | 2000 | 1000 | 1.7 | 84 | -25 ºC ~ +60 ºC | E2 |
BY-A450C-EC-05S | 380 | 2860 | 1000 | 1.85 | 72 | -25 ºC ~ +60 ºC | E2 |
Industries
1 | Ventilation & Purification | 7 | Automobile Industry |
2 | Air Conditioning | 8 | Household Electric Appliances |
3 | Cold Storage and Cold Chain | 9 | Cloud Date Center |
4 | IT & Electronic Industry | 10 | Mechanical Equipment and Systems |
5 | Medical Industry | 11 | Energy-saving & Intelligent Retrofitting |
6 | Heating |
Product Application
1 | Charging Column | 9 | Equipments Cooling Project |
2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
3 | FFU Project | 11 | AHU（Air Handing Unit）Project |
4 | Computer room cooling | 12 | Air Purifier Project |
5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
6 | Electrical appliances | 14 | Telecom Container Project |
7 | FanGrid Project | 15 | Data Center Cooling Project |
8 | Ventilation Equipments Project |

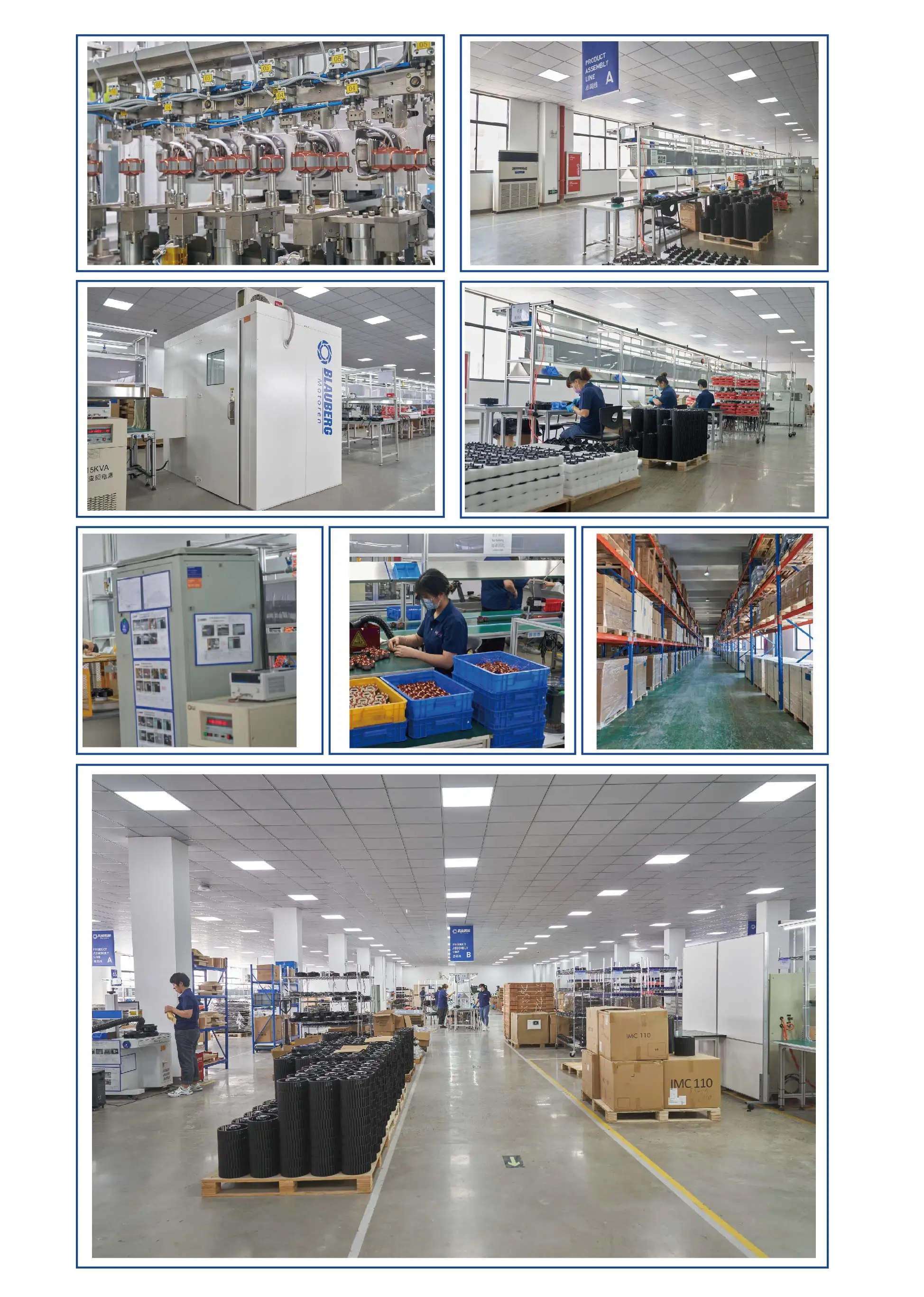

Product Process
Packing&Shipping
Our Certificate | ||||||||||
RoHS | ISO 9001 | ISO 45001 | CCC | CE | CB | |||||
FAQ
Title goes here.
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you
ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or
tell us in your mail, so that we could regard your inquiry priority.
Q7: Is Blauberg a Chinese Brand?
A7: We are a branch company of Blauberg Group.Blauberg Group is a Germany company.Our headquater in Munich ,Germany.Chinese
factory is the main production plant of Blauberg Group.
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you
ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q7: When can I get the quotation ?
A7: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or
tell us in your mail, so that we could regard your inquiry priority.
Q7: Is Blauberg a Chinese Brand?
A7: We are a branch company of Blauberg Group.Blauberg Group is a Germany company.Our headquater in Munich ,Germany.Chinese
factory is the main production plant of Blauberg Group.
