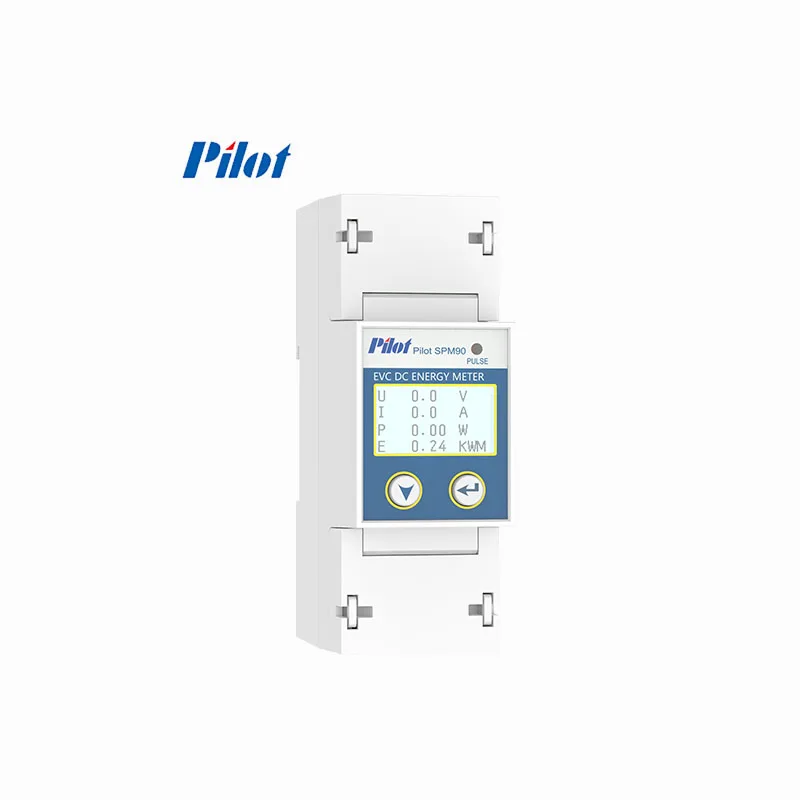

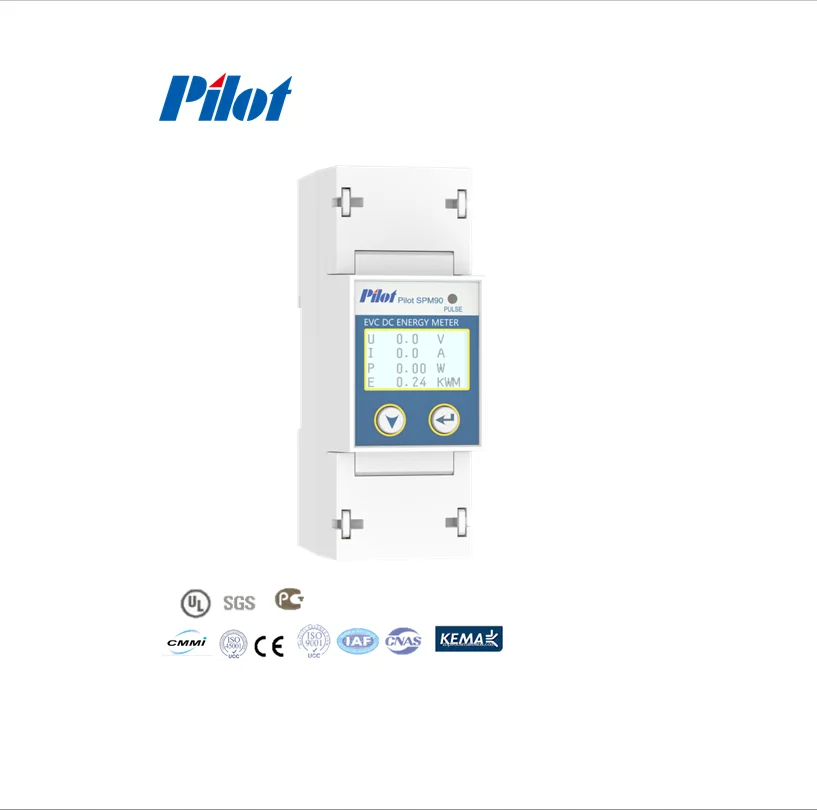

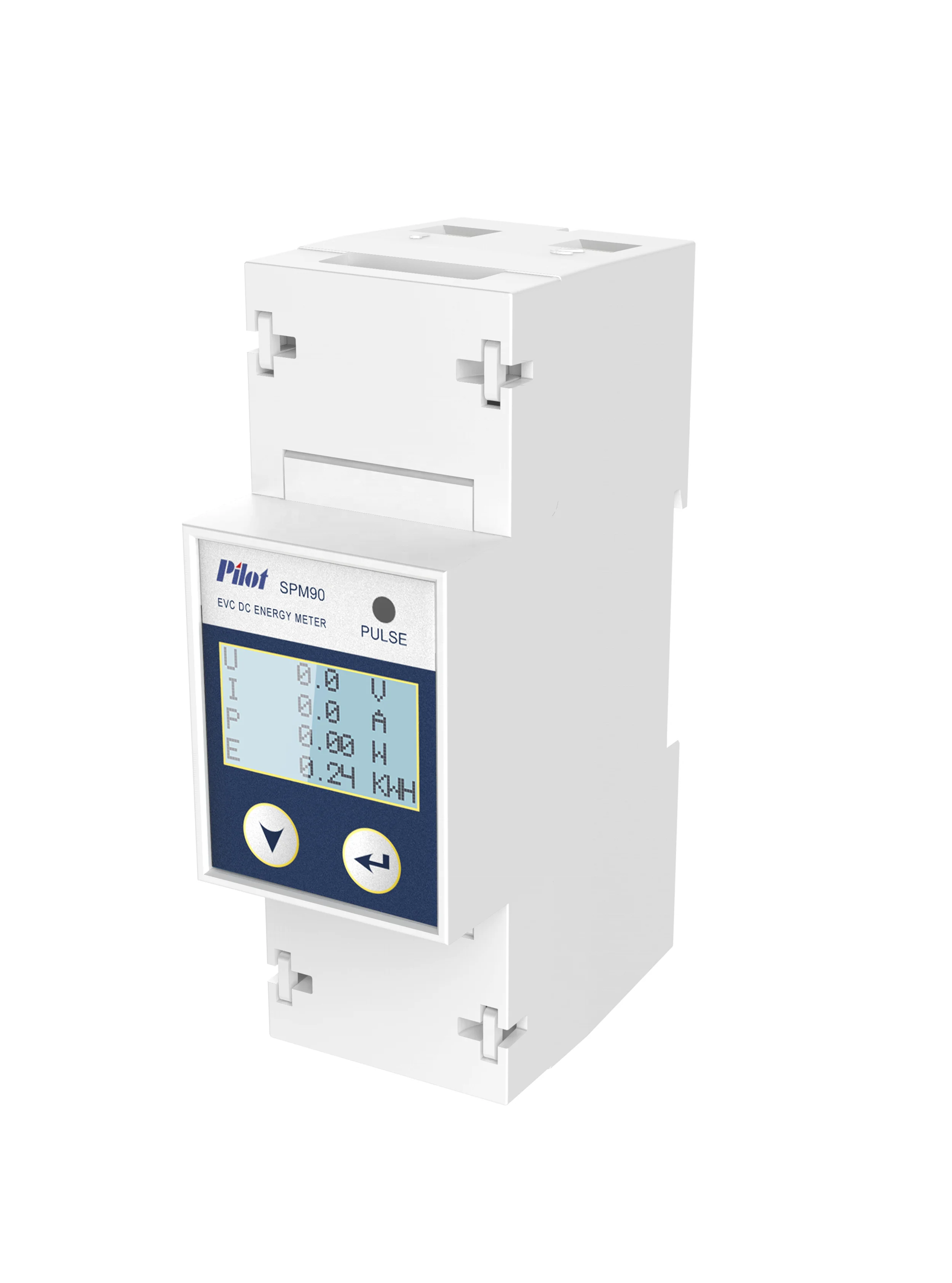

  • Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90 1 P RS485,Modbus RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90 1 P RS485,Modbus RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System
Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90-1-P RS485,Modbus-RTU For DC Electrical Power System

Zhuhai Pilot Single Din Rail DC Energy Meter With 100A Shunt SPM90 1 P RS485,Modbus RTU For DC Electrical Power System

Share on (1601005816846):


Price:$50.00 - $56.00

Quantity:


Product Overview

Description





Product Description




Specification


item
value
Place of Origin
China
Guangdong
Brand Name
Pilot
Model Number
SPM90-1-P
Measuring Current Range
0~460A
Measuring Voltage Range
0~1000VDC
Accuracy Class
0.2%
Operating Temperature
-20℃~+55℃

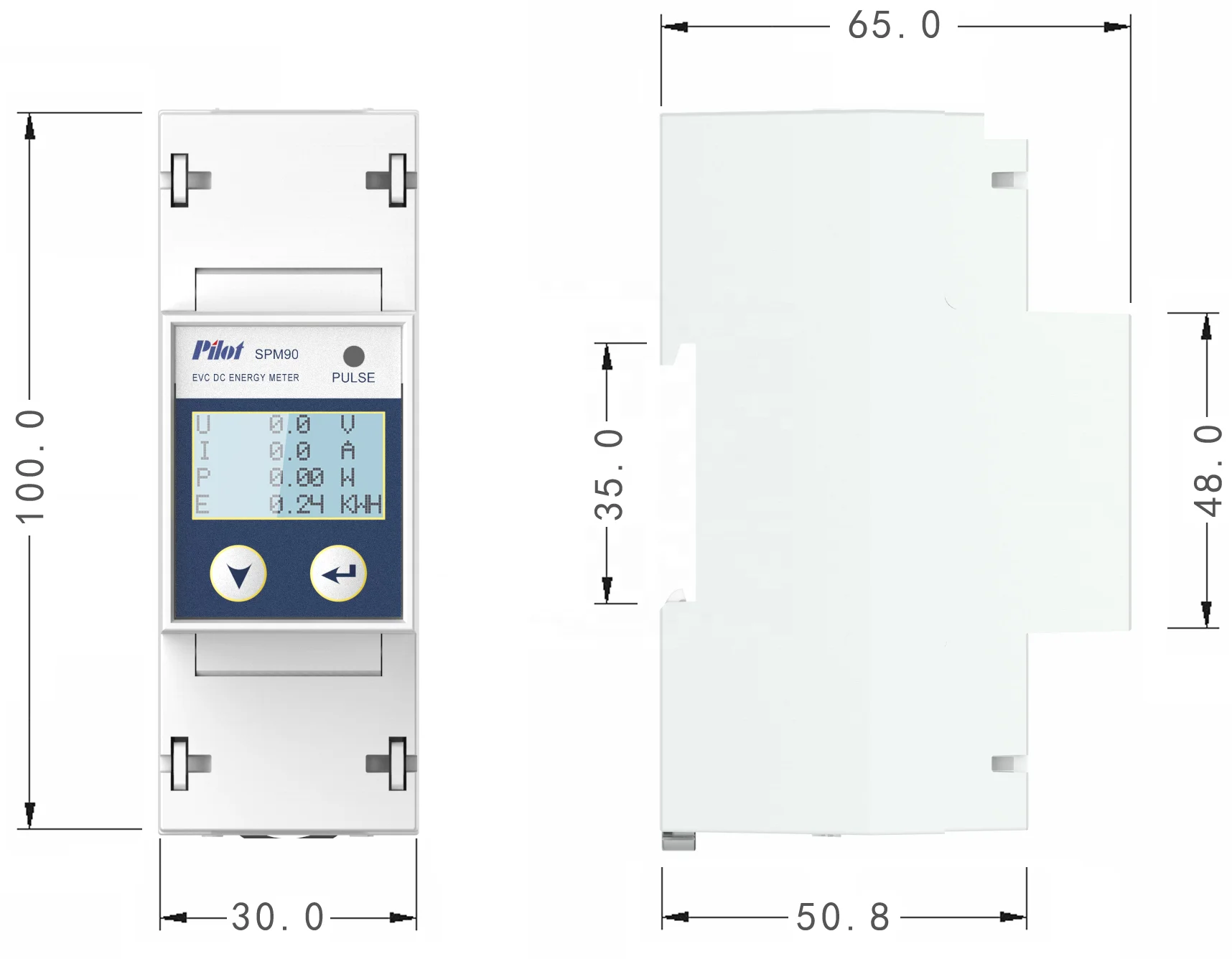

Dimensions
100*36*65mm(2 moudule)
Name
Single Phase Power
Display
LCD
Rated Current DC
100A
Communication
RS485 Port MODBUS-RTU Protocol
Type
Single Phase Digital Energy Meter
Measure parameters
Current
Power Supply
9~36VDC
Warranty
2 Years
Certificate
EMC
Feature
Single Phase
