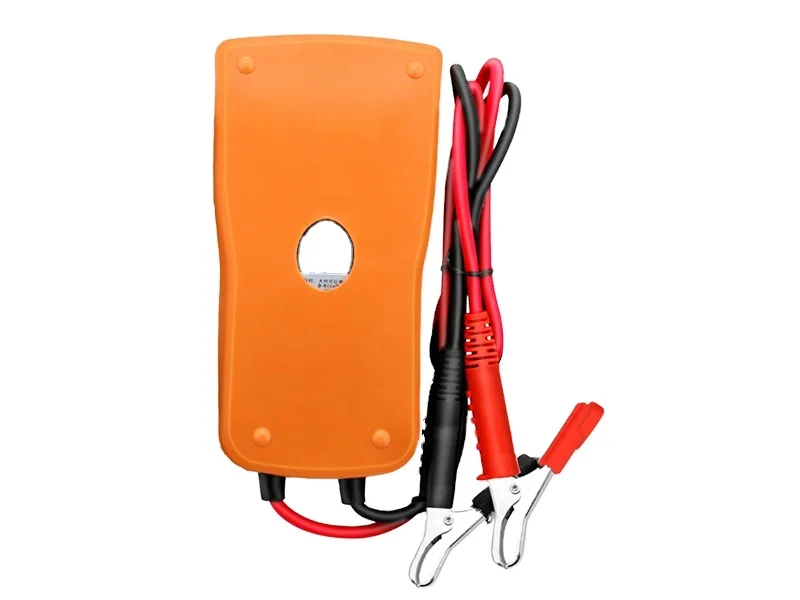

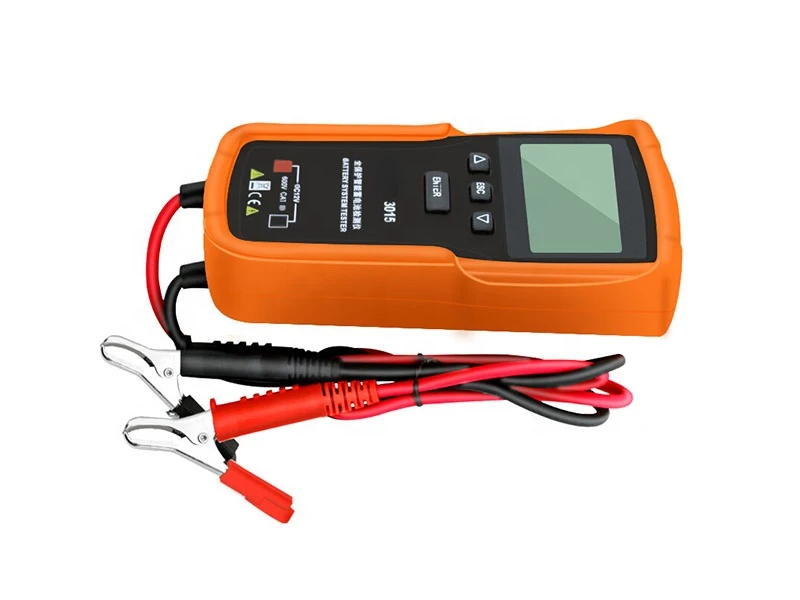

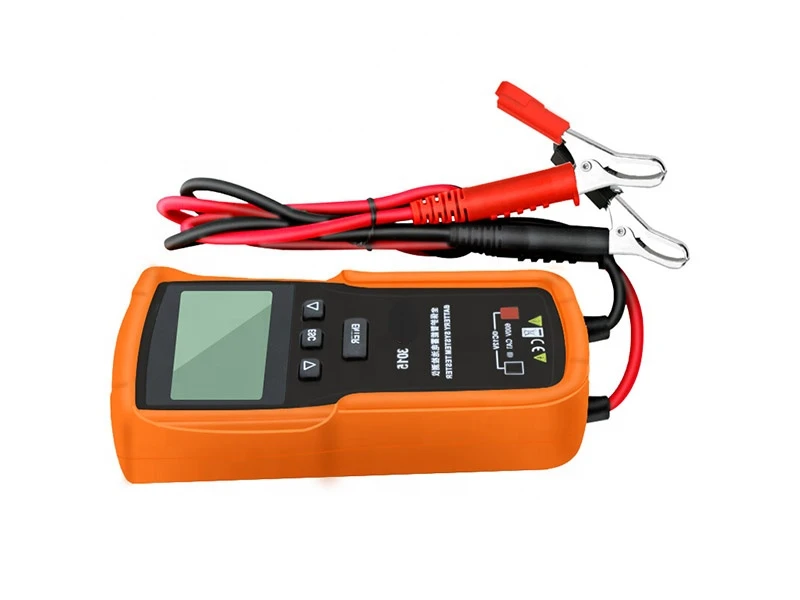

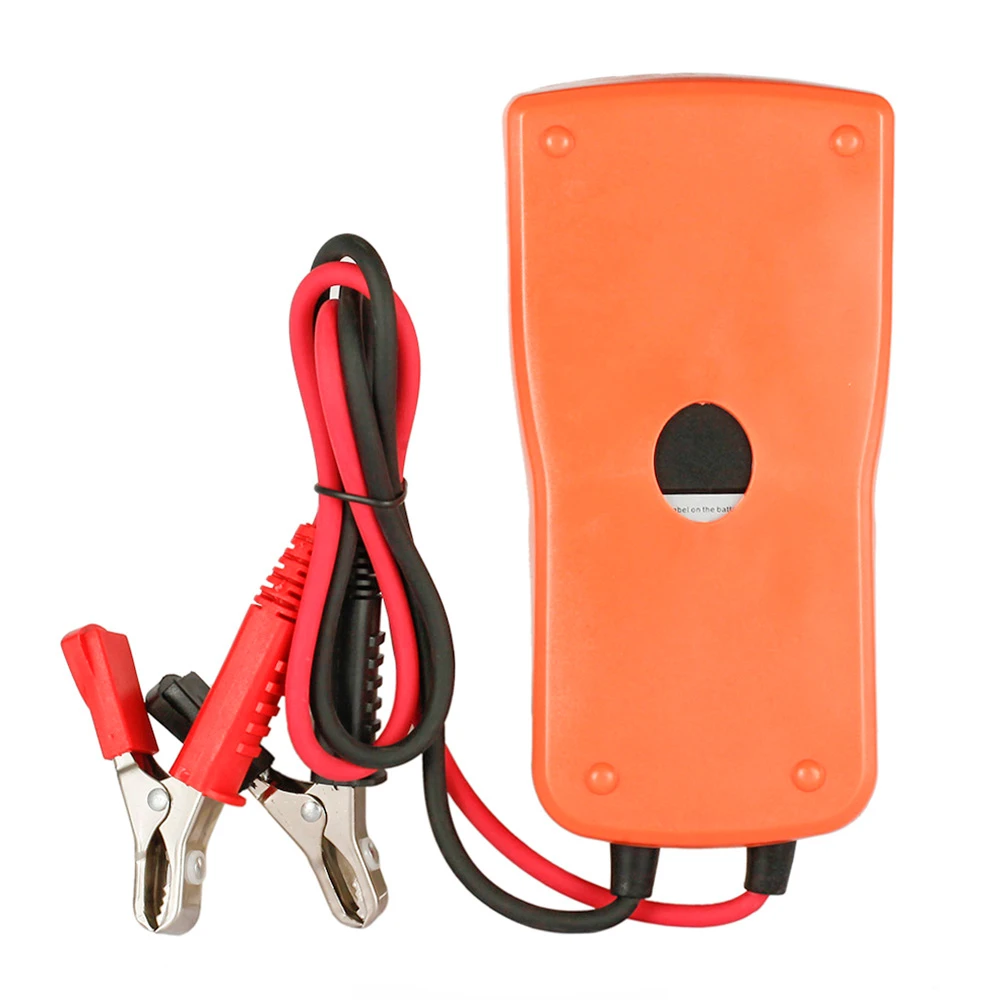

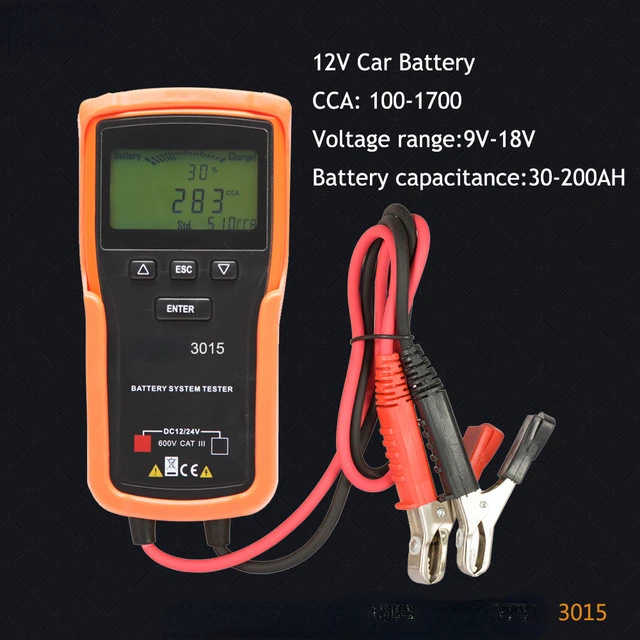

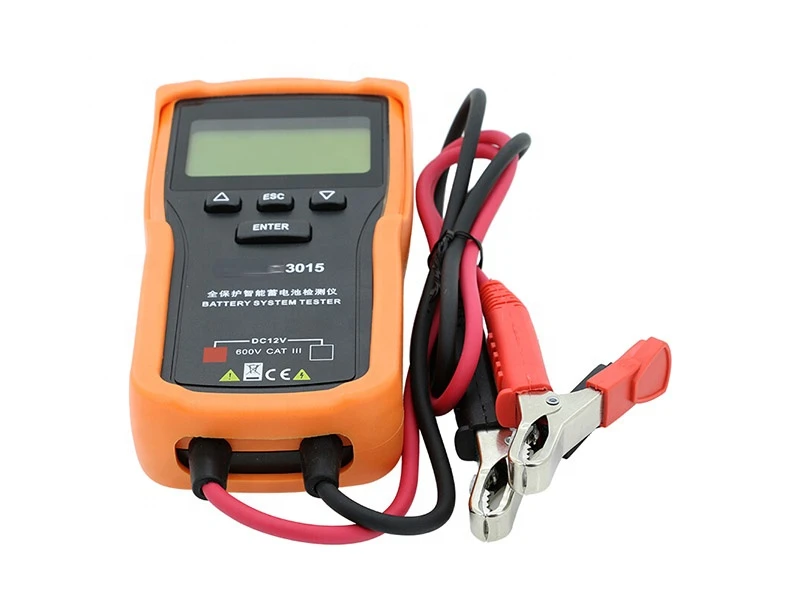

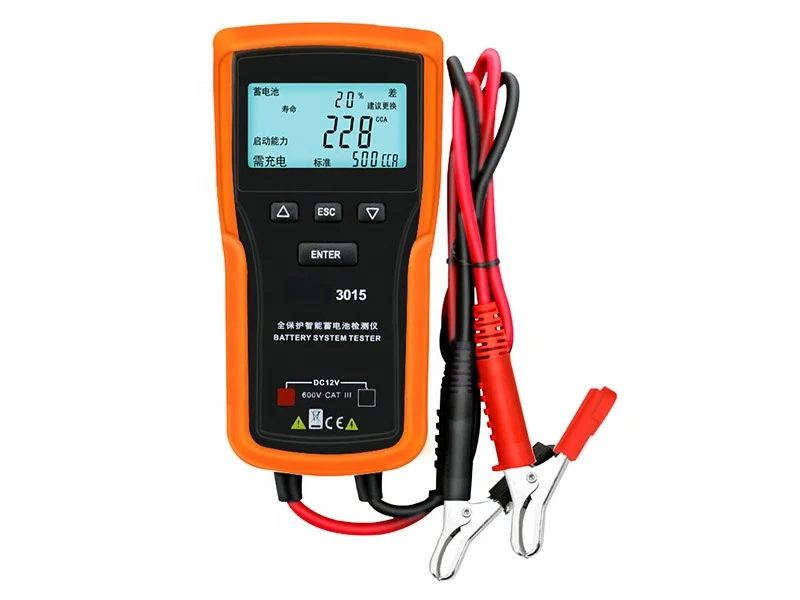

DECCA 3015 Smart Automotive 12V Lead acid Battery Tester 100 1700 CCA 9v 18v Voltage Electrical Analyzer
- Category: >>>
- Supplier: Decca Precision Measuring Instrument (Shenzhen) Co. Ltd.
Share on (1601005862949):
Product Overview
Description
Products Description
DECCA 3015 Automotive Battery System Tester 12V 100 - 1700CCA Cranking Charging Electrical Analyzer
1.Brief lntroduction 3015 Battery system testers are used for activated style lead-acid storagebattery, along with checking the following conditions of the battery,startingup, charging, and electrical loading. With great design, easy operation,precise reading,complete functions, this tester supply the readings by alarge LCD and hints by sound and light when testing.Precise circuit andstrong digital processing unit make it complete collection of a series ofcomplicated data and figure out every test data, which availably by 4-wireKelvin test connection.Besides it strengthens input protection inside , inorder to prevent such situations as polar reversal connection , over-highvoltage input, poor contact of the test clamps and so on.That makes suresafer and more convenient when testing.
This tester is the best tool for battery sales, vehicle repair and conditioncheck of all kinds of lead-acid batteries that used in equipment system associated with lead-acid battery.
2.Safety Rules And Attentions This manual includes instruction, operation warning and maintenance. ltis possible to damage the tester without regulations in this manual.Thistester is designed and produced strictly according to GB4793.1 electronicmeasurement instrument safety requirement and lEC/EN61010-1 safetystandard. lt also reach double insulation over voltage standard CATIll 6oovand pollution degree 2 . (1)The working voltage of 12v system is DC 9V to 18v, while that of 24Vsystem refers to DC 9V to 35V.Make sure do not check the series connectionbattery. (2) The voltage value will be higher than that in the normal situation after thechecked battery being fully charged . Please turn on the headlights for 2 to 3 water), on the contrary shorten its life fast for the reason that it will increasethe acidity of battery water, not the voltage however.
Specification
Model: | DECCA 3015 | DECCA 3025 | DECCA 3026 | ||
Battery type | Lead- acid battery | ||||
Battery voltage | 12V | 12/24V | 12V | ||
Battery range | 100-1700CCA | ||||
Voltage range | DC 9-18V | DC 9-35V | DC 9-18V | ||
Battery capacity | 30AH~200AH | ||||
battery standards | CCA:100~1700;IEC:100~1000;EN:100~1700;DIN:100~1000 | ||||
Operating temperature | -18℃~50℃ | ||||
Operating Language | English | ||||
Testing method | 4-wire Kelvin test connection | ||||
Print Function | No | No | Yes | ||
Display Battery Internal Resistance | Display ohms | Display ohms | Display ohms | ||
Display Battery Voltage | Display volts | Display volts | Display volts | ||
Display Battery condition | Good/ok/attention/replace | ||||
Ah Input Quick Test | yes | yes | yes | ||

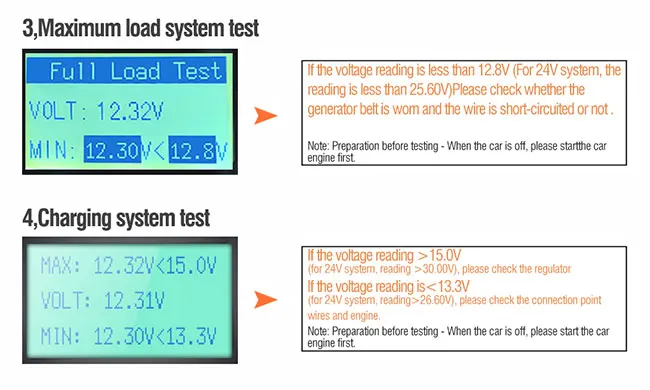

Maximum Load Test | yes(On car) | yes(On car) | yes(On car) | ||
Engine Cranking Load Test | yes | yes | yes | ||
Star-up Load Test | yes | yes | yes | ||
Maximum Load Test | yes | yes | yes | ||
Charging system Test | yes | yes | yes | ||
Display Battery Status of Health(SOH) | yes | yes | yes | ||
Reverse Polarity Protection | yes | yes | yes | ||
Loose Lead Detection | yes | yes | yes | ||
Overload Protection | yes | yes | yes | ||
Cable Length | 700mm | ||||
