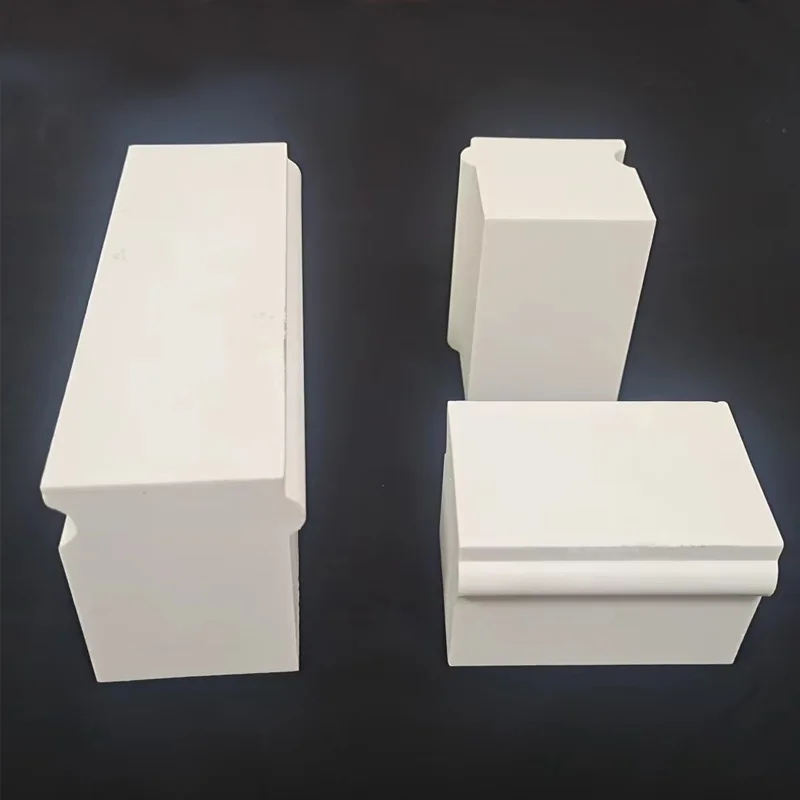

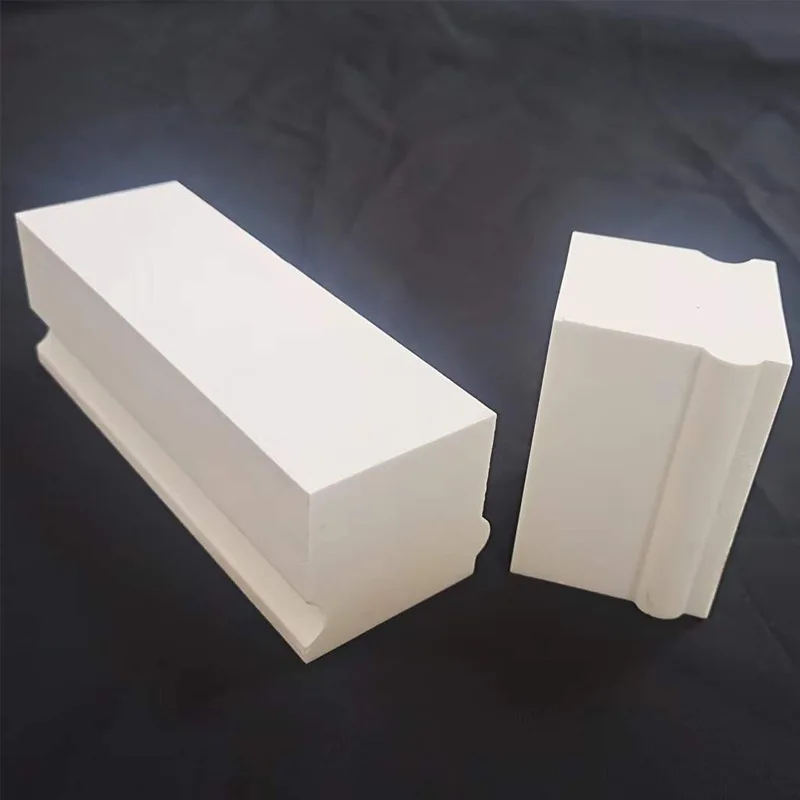

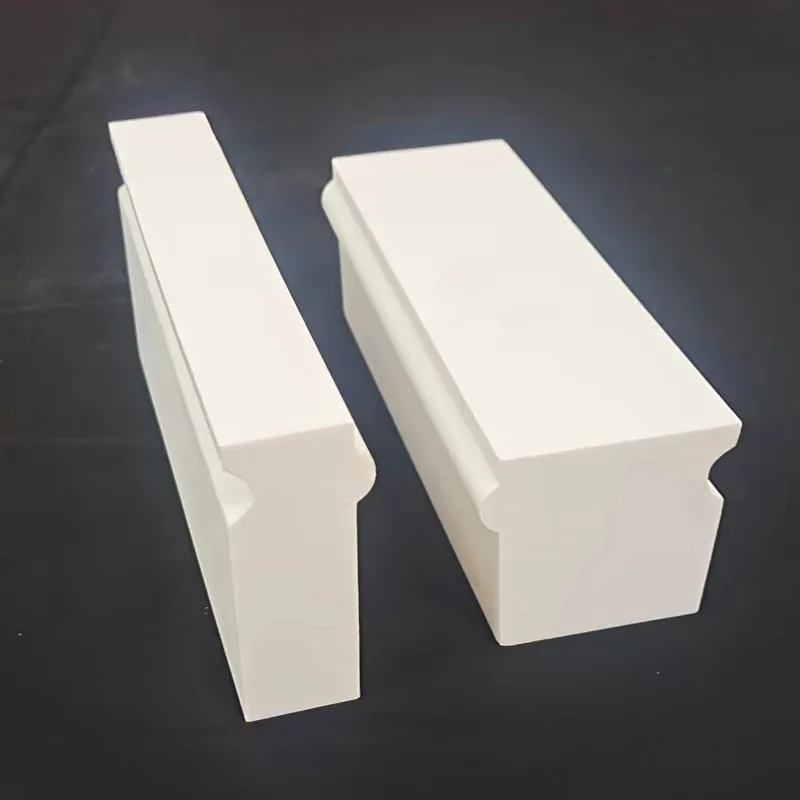

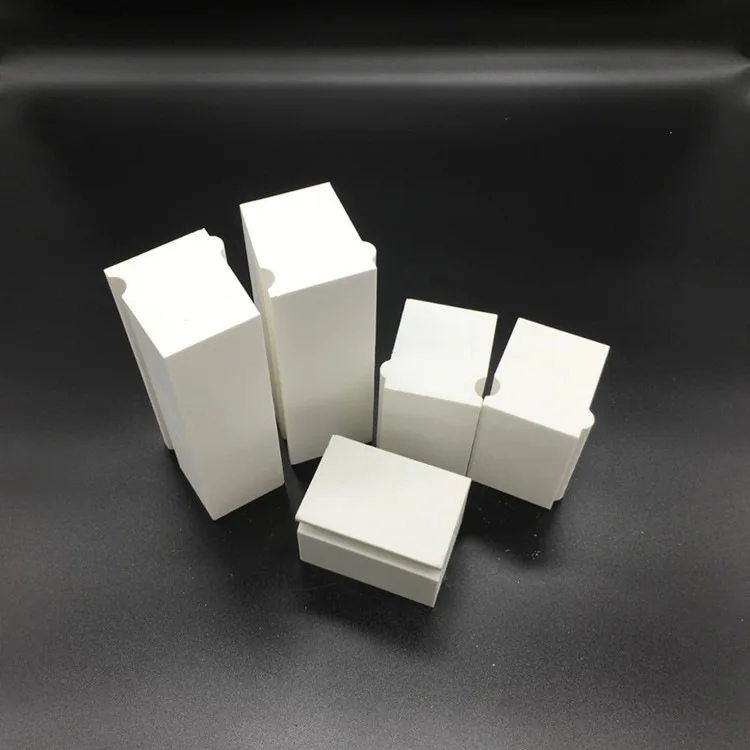

NanXiang 92% alumina ceramic brick China wholesale al2o3 lining bricks for ball mill
- Category: >>>
- Supplier: Pingxiang Nanxiang Chemical Packing Co. Ltd.
Share on (1601005924902):
Product Overview
Description
Product Description

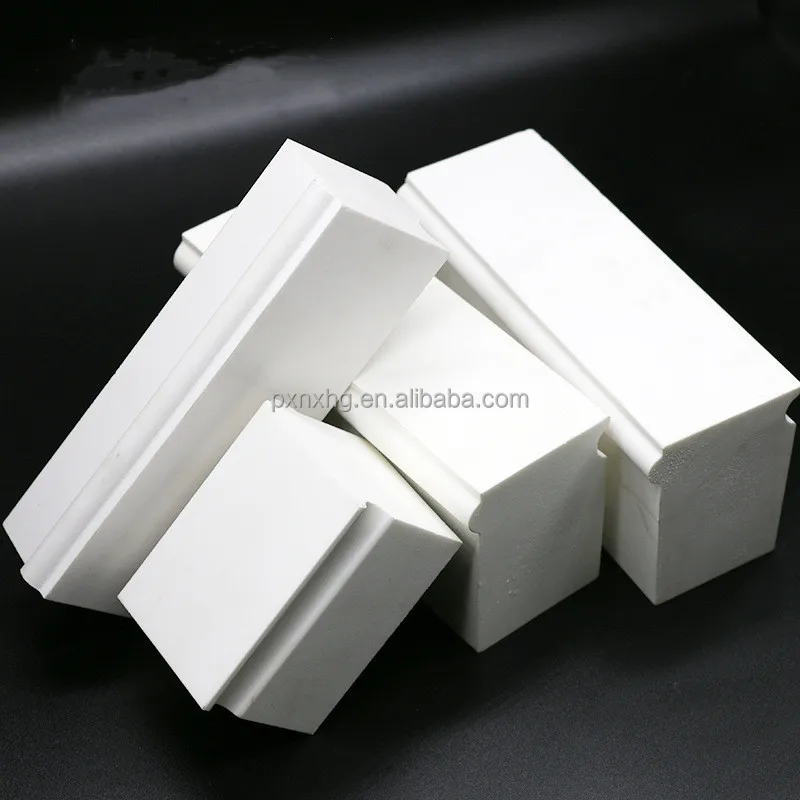

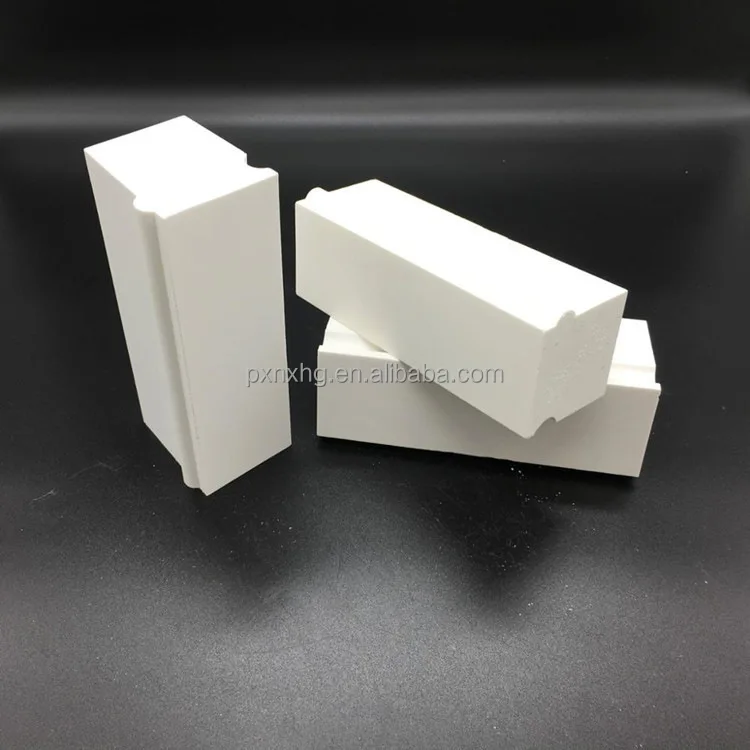

The appearance of wear-resistant ceramic lining brick is a kind of alumina wear-resistant product with card groove, which is made of high-quality aluminum oxide powder fired at a high temperature of 1700 degrees. It has the advantages of high wear-resistant, high hardness, high density, good regularity, easy construction, etc., and is suitable for wear-resistant lining of ball mill.
Alumina lining brick is the ideal ball mill lining brick, it has high strength, high wear resistance, high corrosion resistance. Alumina brick is the ideal partner for alumina grinding ball.
Also known as alumina ceramic brick, card slot lining brick, ball mill lining brick, high aluminum lining brick. According to the alumina content, it is mainly 92% aluminum content, which can reduce environmental pollution.
Ball mill lining high wear-resistant 92% alumina ceramic lining brick, high purity ultrafine alumina powder as raw material, optimized formula design, sintered at high temperature above 1530℃. It is usually installed in the wear parts of some material conveying equipment, coal preparation equipment, etc., as the contact surface of the material, to withstand subsequent wear and impact.
Alumina lining brick is the ideal ball mill lining brick, it has high strength, high wear resistance, high corrosion resistance. Alumina brick is the ideal partner for alumina grinding ball.
Also known as alumina ceramic brick, card slot lining brick, ball mill lining brick, high aluminum lining brick. According to the alumina content, it is mainly 92% aluminum content, which can reduce environmental pollution.
According to the type of construction, there are straight brick, diagonal brick, straight half brick, diagonal half brick.。
Straight brick has specifications:150*50*40mm、150*50*50mm、150*50*60mm、150*50*70mm、150*50*90mm。
Diagonal brick specifications have:150*45/50*40mm、150*45/50*50mm、150*45/50*60mm、150*45/50*70mm、150*45/50*90mm。
Straight half brick specifications size have:75*50*40mm、75*50*50mm、75*50*60mm、75*50*70mm、75*50*90mm。
Diagonal half brick size specifications have :75*45/50*40mm、75*45/50*50mm、75*45/50*60mm、75*45/50*70mm、75*45/50*90mm and so on 。
The specific size specifications need to be verified with the customer service of our manufacturer.
performance index | 92series | 95series |
alumina（%） | 92 | 95 |
FeO（%） | ≤0.02 | ≤0.02 |
Hardness (Mohs) | 9 | 9 |
Water absorption (%) | ≤0.01 | ≤0.01 |
Bulk density (g/cm3) | ≥3.60 | ≥3.70 |
Compressive strength MPa | ≥2000 | ≥2250 |
Abrasion (‰) | ≤0.10 | ≤0.08 |
Colour | White | White |
Application Guide
Tons of ball mill | <0.3Ton | <0.3Ton | 1-1.5Ton | 2.5-3Ton | 5-25Ton | 30-40Ton |
Straight brick: diagonal brick | 0:1 | 1:10 | 1:1 | 2:1 | 3:1 | 5:1 |

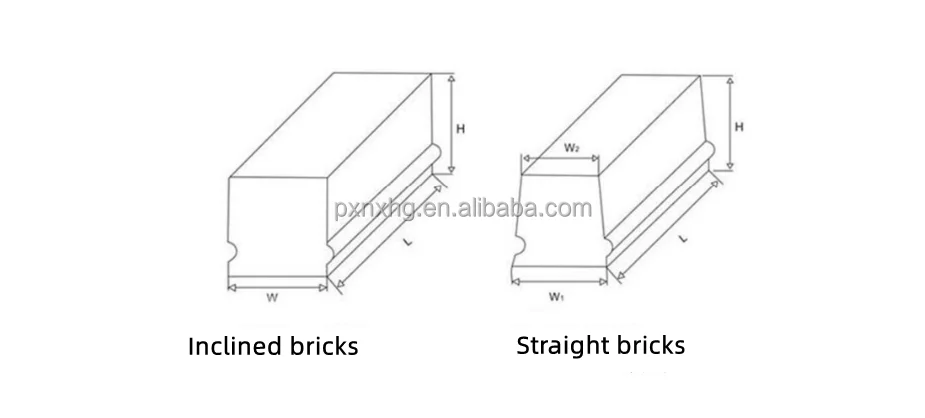

92% or 95% Alumina ball mill lining brick (mm)
straight bricks | inclined brick | thin bricks | semi straight bricks | Semi-sloping brick | |
length | 150 | 150 | 150 | 75 | 75 |
width | 50 | 50/45 | 25 | 50 | 50/45 |
height | 90/80/70/60 /50/40mm | 90/80/70/60 /50/40mm | 90/80/70/60/50 /40mm | 90/80/70/60/ 50/40mm | 90/80/70 /60/50/40mm |
Specification
Alumina lining brick
As the wear-resistant lining of ball mill, alumina lining brick is the best choice to improve grinding efficiency and reduce grinding cost. At present, alumina lining bricks are widely used in ceramics, cement, paint, pigment, chemical, pharmaceutical, coatings and other industries.
The ball mill using high aluminum ceramic ball has the advantages of high density, regular shape, easy sorting, high crushing efficiency, low price, etc., which is superior to natural pebbles and traditional grinding media, and is the ideal choice for grinding processing in many industries. As a grinding medium, it is widely used in ceramic industry, cement industry, paint industry, color industry, chemical industry, pharmaceutical industry, paint industry, mining industry.
High aluminum ceramic grinding media has the following characteristics:
♦ Hardness second only to diamond
♦ Low wear, high grinding efficiency
♦ Shape rules
♦ Corrosion resistance
♦ No pollution
♦ Long life
The ball mill using high aluminum ceramic ball has the advantages of high density, regular shape, easy sorting, high crushing efficiency, low price, etc., which is superior to natural pebbles and traditional grinding media, and is the ideal choice for grinding processing in many industries. As a grinding medium, it is widely used in ceramic industry, cement industry, paint industry, color industry, chemical industry, pharmaceutical industry, paint industry, mining industry.
High aluminum ceramic grinding media has the following characteristics:
♦ Hardness second only to diamond
♦ Low wear, high grinding efficiency
♦ Shape rules
♦ Corrosion resistance
♦ No pollution
♦ Long life

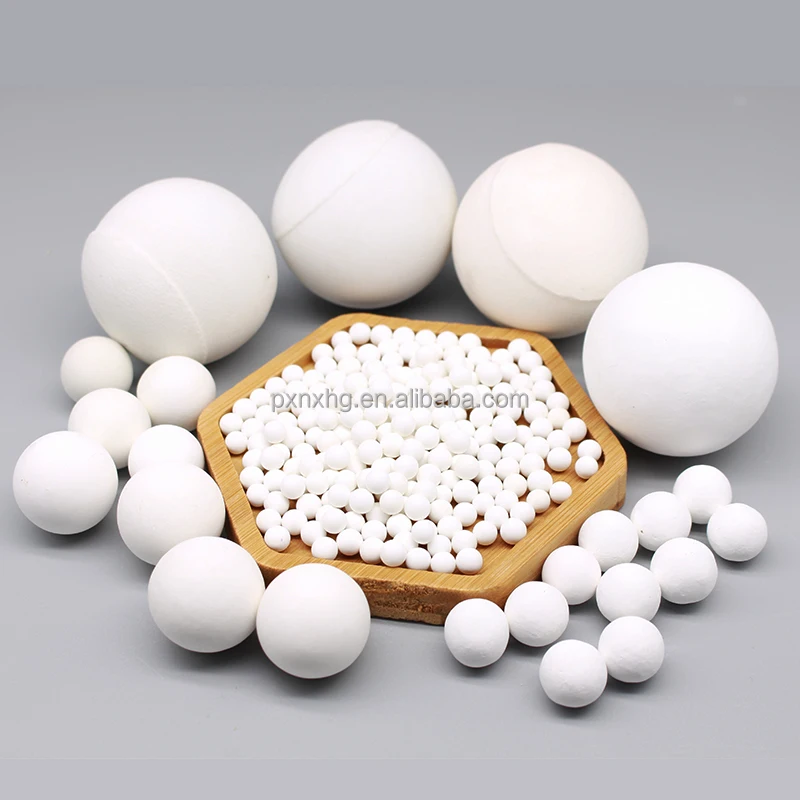

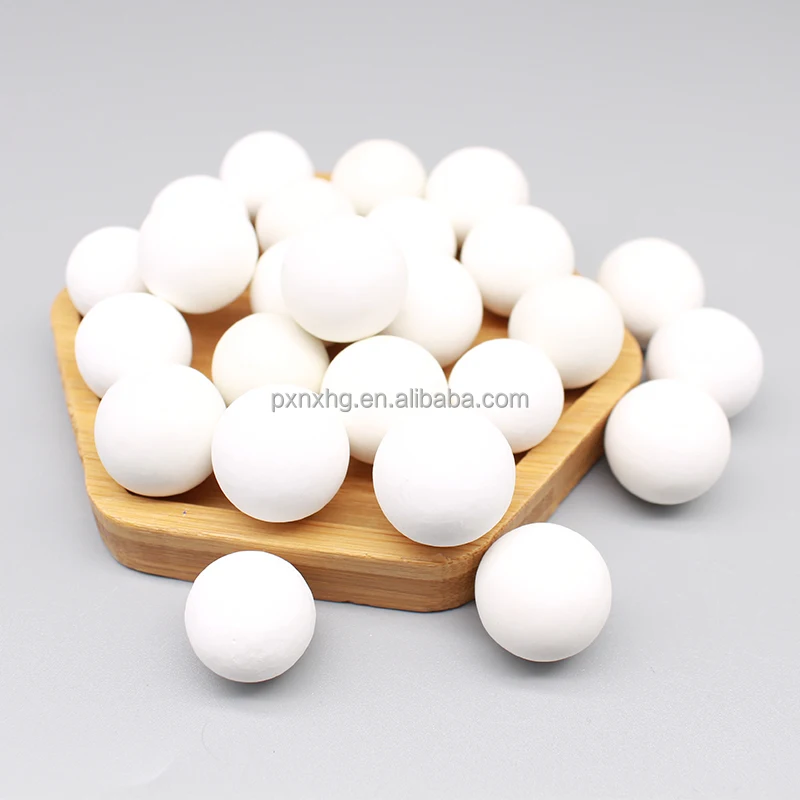

High aluminum ceramic ball
Al2O3 | ≥92% |
SiO2 | ≤7% |
CaO + MgO+ Fe2O3+other | 2% |
Volume density | ≥3.62g/cm3 |
Water absorption | ≤0.01% |
Hardness | 9 Mohs |
Self-wear | ≤0.01% (24h) |
specification and dimension
Diameter(mm) | Φ60-80 | Φ50 | Φ40 | Φ30 | Φ25 | Φ20 | Φ10-15 | Φ2-10 |
Tolerance (mm) | ±2 | ±2 | ±2 | ±1.5 | ±1.5 | ±1.5 | ±1 | ±0.3 |

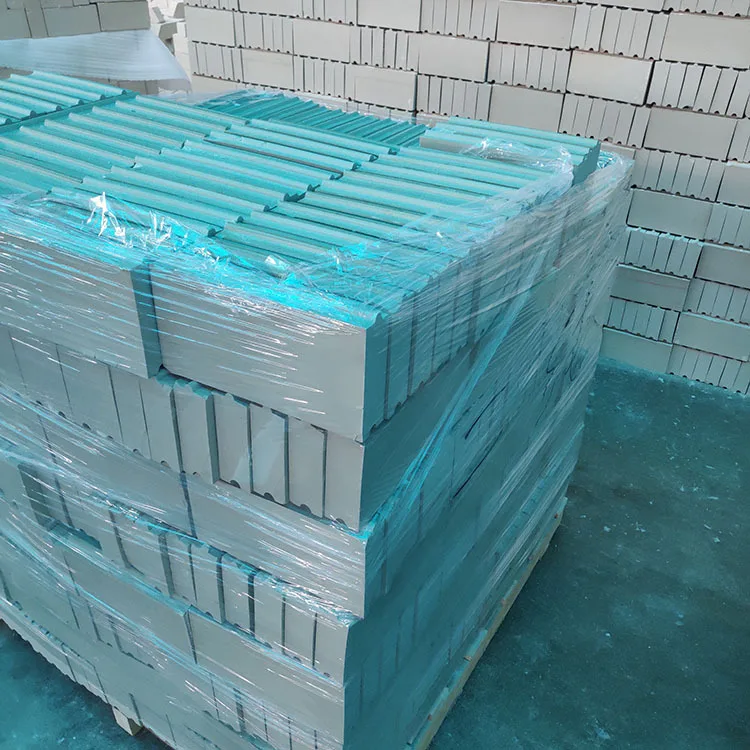

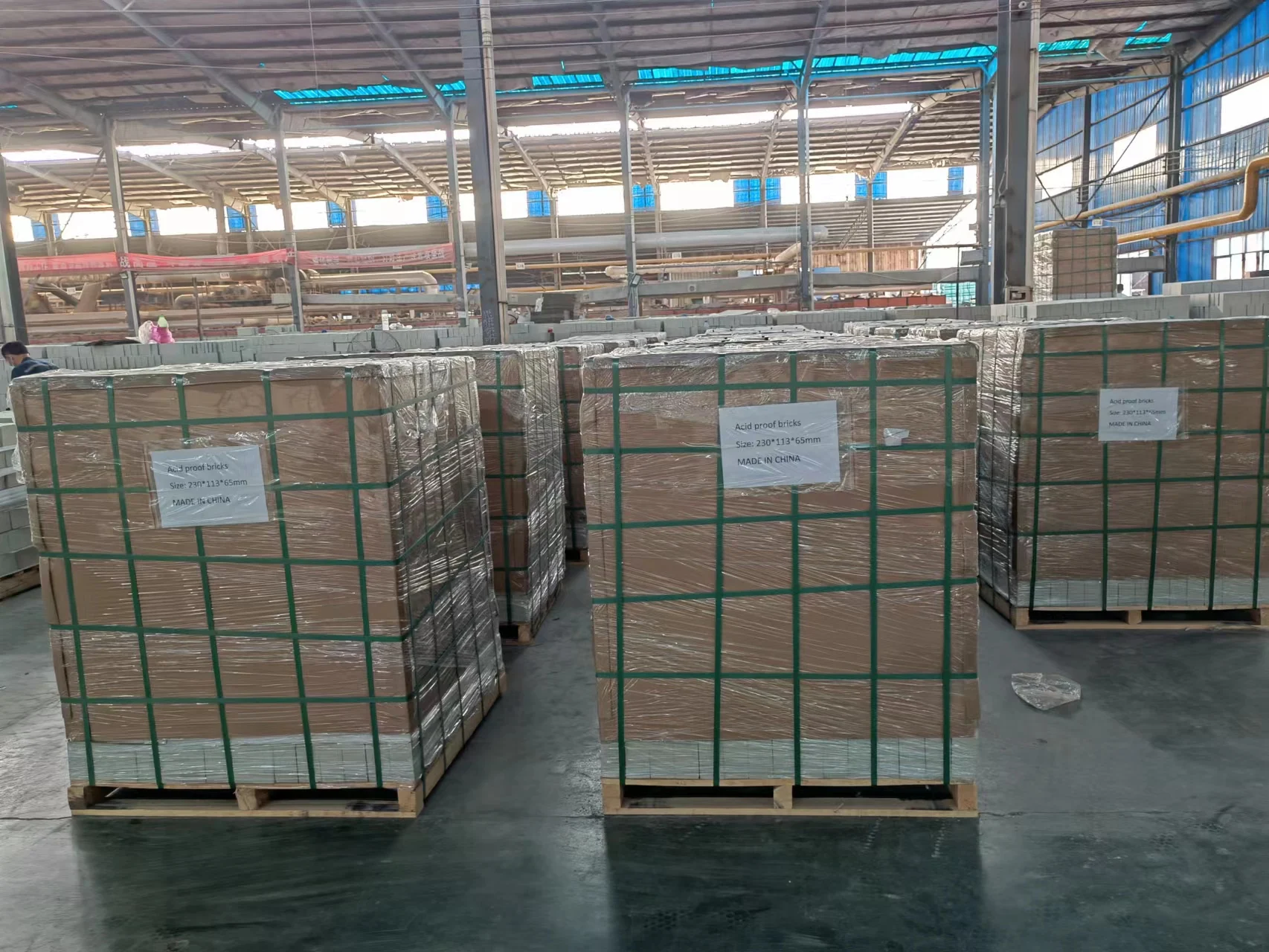

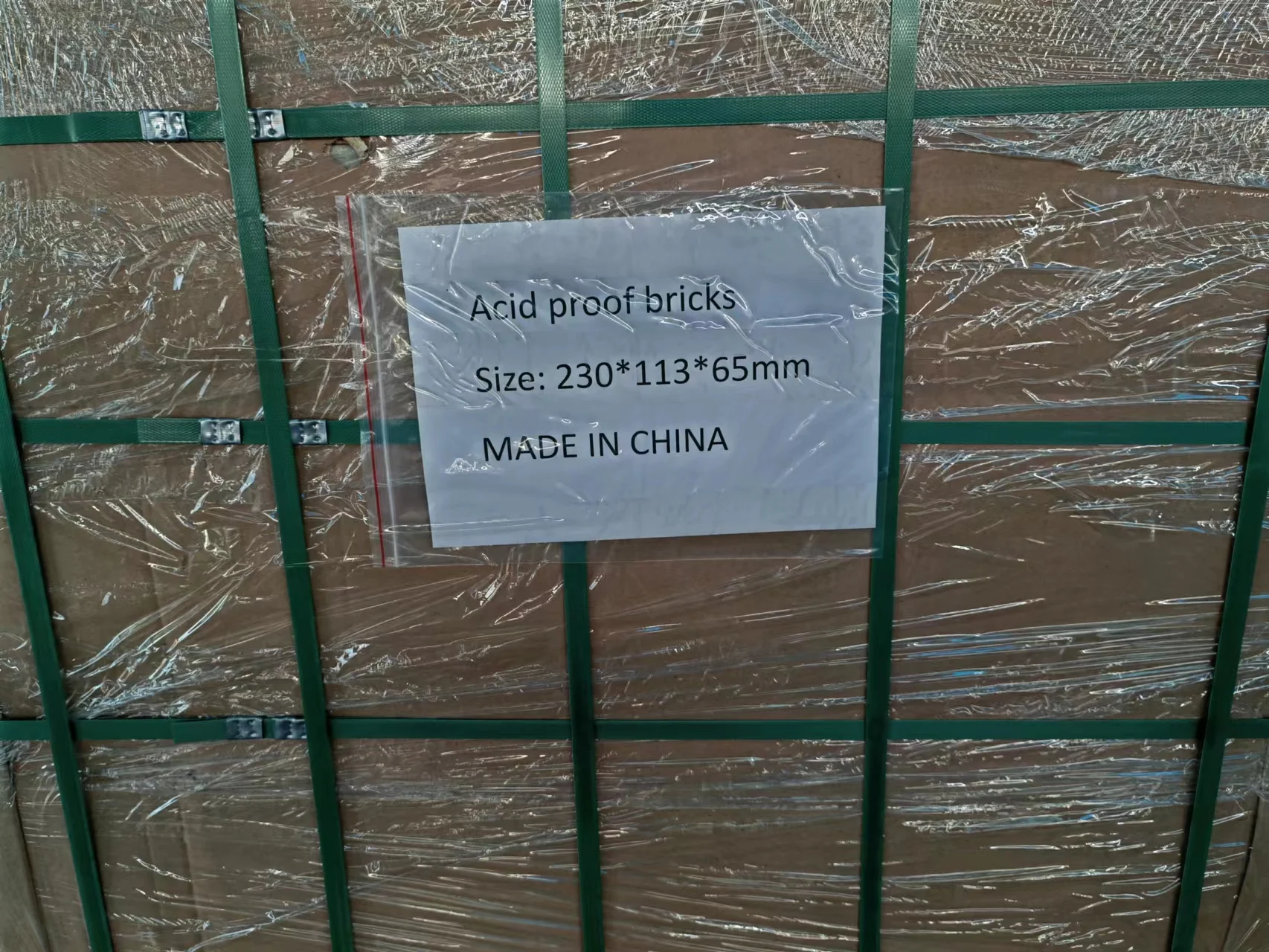

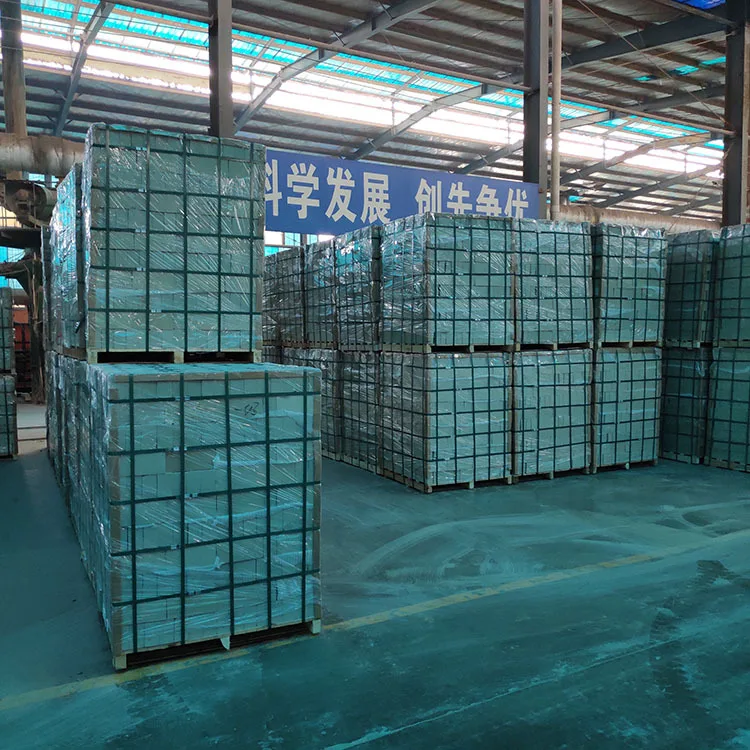

Packing & Delivery
