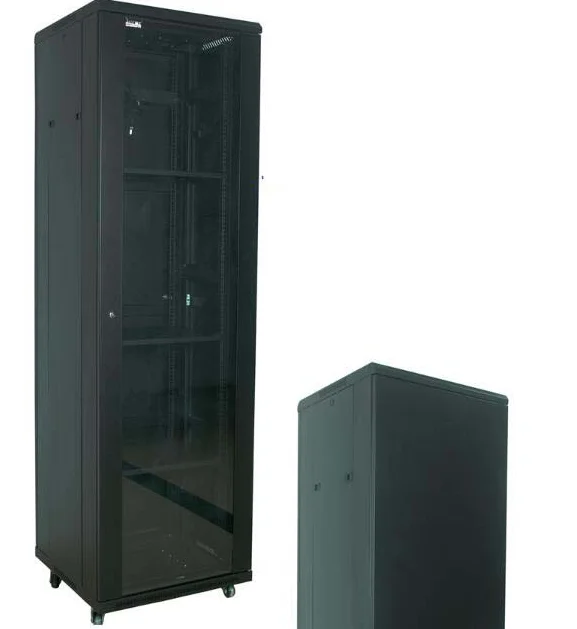

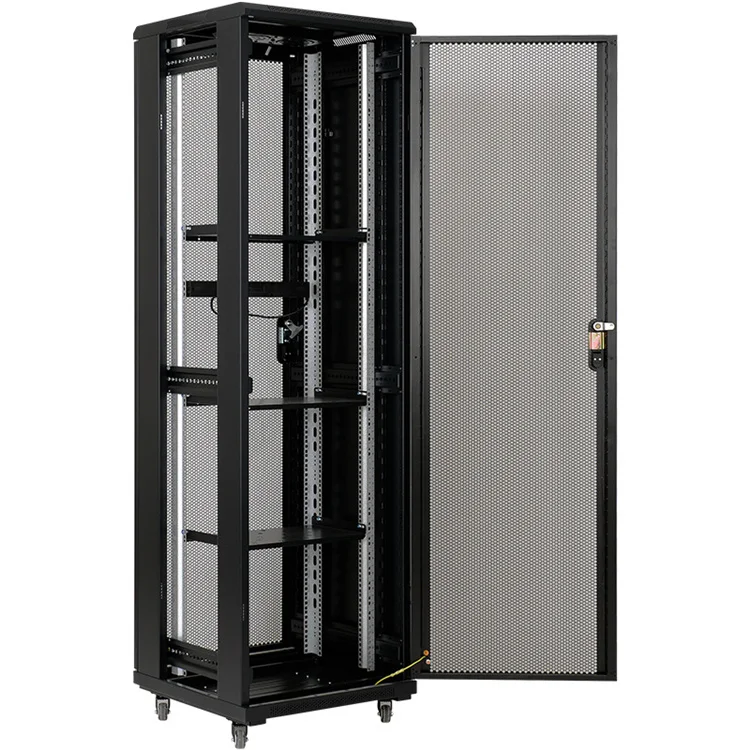

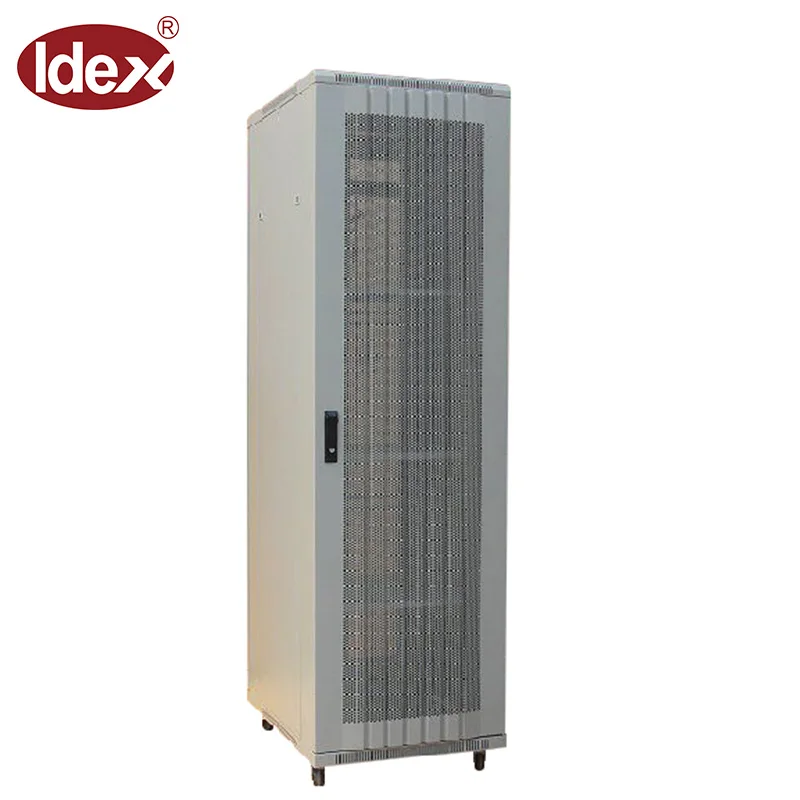

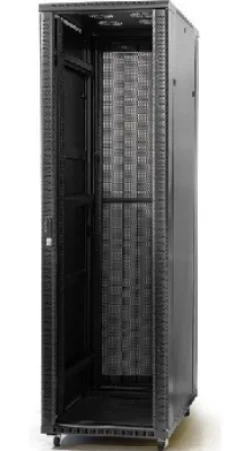

42U 19' SPCC/Cold Rolled Steel Server Rack Cabinet with Glass Door Standard Network Cabinet for Telecommunication
- Category: >>>
- Supplier: Idealink Network Technology Co. Ltd.
Share on (1601005940260):
Product Overview
Description
Product Description

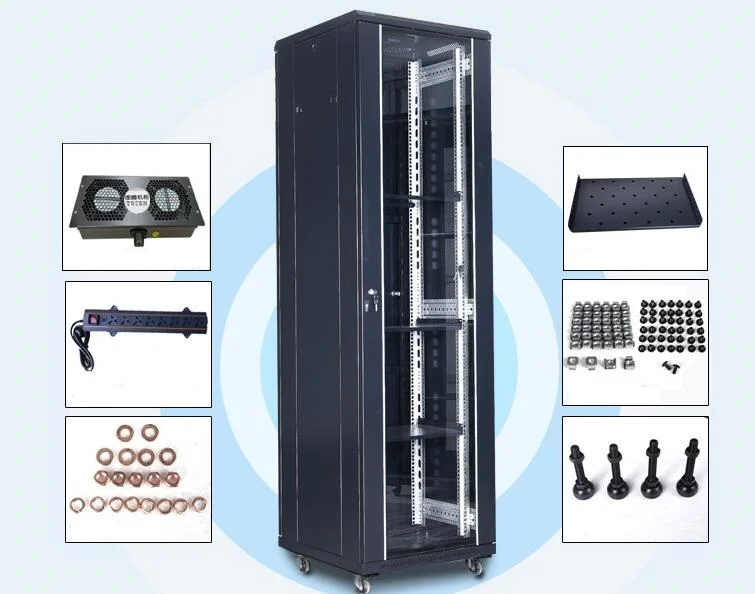

Num: | ID-IRS-001 |
Item: | IRS Series Network Cabinet |
Brand: | Idex |
Cabinet material: | Cold Rolled Steel |
Cabinet thickness: | Mounting rails 2.0 mm, others 1.2 mm |
One | 19” active standard machine stand |
One | Steel dismountable side door |
One | Steel dismountable back door |
One | Armored glass door with lock |
One | fixed shelf (14-27 U have one board, 32 U have two board,and etc.) |
Two | Ceiling-cover hear dissipation scavenger fan (600*600 have Two Fans, 800*1000 have Four Fans) |
One | Six- socket versatile electrical outlet |
Four | Active chassis all-direction trundle |
Some | M6 steel screw nut |
| Cabinet Application: |
| The standing network cabinet is a cost effective cabinet that can be installed in equipment rooms or in office environments where aesthetics are important. |
| The frame made from comes with steel side, top and rear door plus a toughened glass front door, tow pairs of shelf rails are provided for mounting shelves and other accessories in the 600mm/800mm and 960mm deep cabinets. |
| 19-inch telecommunication and data racks designed for installing patch panels, active components for LAN construction, modems, industry-controlling devices, stage lighting control, and monitor equipments. |

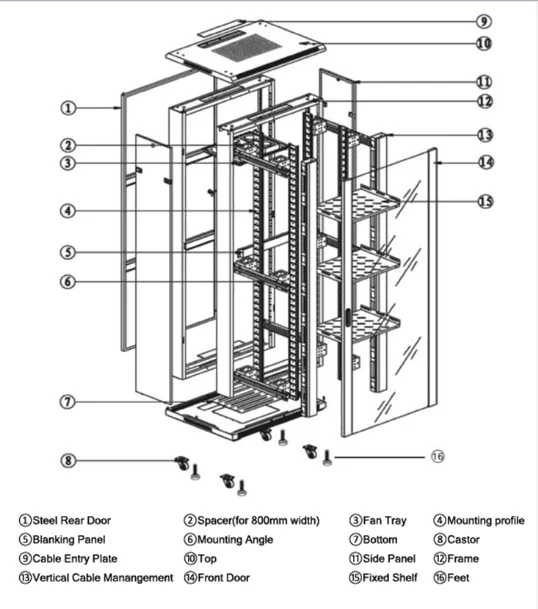

| Unassembled rack is equipped with 2 pairs of 19-inch movable vertical extrusions, one pair of side panels with quick release locking fastener, tempered glass front, door with lock, rear metal door with lock. |
| Increase operation reliability for inside equipments, strong structure with maximum static load more 500kg. |
| Several lockable cable entrances on the top bottom plate. |

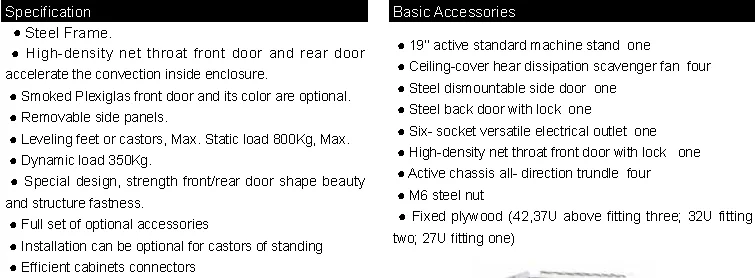

| Cabinet Information : |
| SPCC high-quality Cold Roll Steel. And its thickness: Mounting rails 2.0 mm, others 1.2 mm. |
| Surface treatment: degreasing, rustproof, phosphoric spraying. |
| Steel frame. Range of medium duty cabinets of durable modular construction. |
| Tempered glass front door and rear door accelerate the convection inside enclosure. With tempered glass locking doors section doors, enable ventilation and reliable operation. |
| Removable side panels, leveling feet or castors, Max. Static load 800 KG, Max. Dynamicload 350 KG. |
| Special design, strength front/rear door shape beauty and structure fastness. Several lockable wiring holes on top/bottom, size of the large hole the bottom adjustable. The frame can be moved according to requirement, U-marked in the frame to identify the height. Bottom base can fix the cabinet, cable entry, airflow, and avoid arts. |

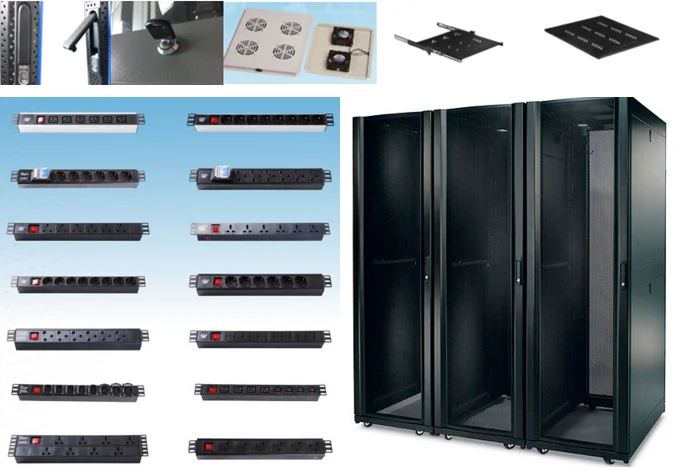

| Full set of optional accessories. |
| Installation can be optional for castors of standing. |
| Efficient cabinets connectors. |
| Cabinets are vented to allow cooling. |
| Standard color is computer gray. |
| No tools are required to change the door from left hand to right hand opening. |
| Standard Compliances: |
| Standard meet ANSI/EIA RS-310-D. |
| DIN41491,PART1. |
| IEC297,PRAT7. |
| GB/T3047.2-42 requirement. |
| Compatible with 19” international standard. |
| The ETSI standard. |
| OEM Serve: |
| Customize for your requirement: |
| Cabinet thickness: Mounting rails 2.0 mm, others 1.2 mm. |
| Surface treatment: degreasing, rustproof, phosphoric spraying. |
| Cabinet Height: 14U,18U,22U,27U,32U,37U,42U,…… |
| Cabinet Size: 600*600 mm,600*800 mm,800*800 mm,…… |
| Tempered glass front door. |
| Lock. |
| Fan: standard configuration is above two Fan, 600*800 is Four Fan, …… |
| Fixed shelf: Above One fixed shelf,customize for your requirement. |
| Power style: standard configuration is six ways national standard power, customize for your requirement. |
| Caster. |
| M6 steel screw and nut. |
Cabinet color: Black |
Packing ways: Carton |
Packaging & Shipping

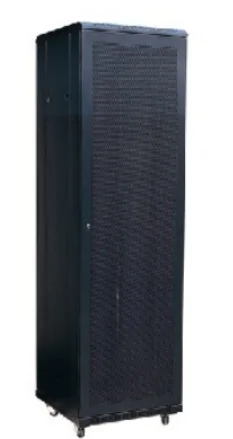

IRA Series Network Cabinet Cabinet

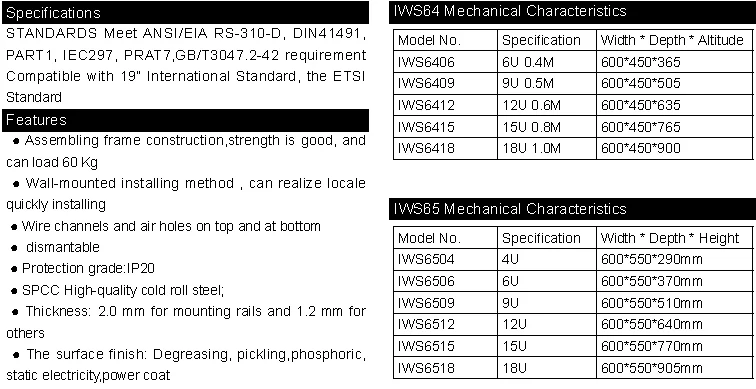

IWS Series Wall Mounted Cabinet

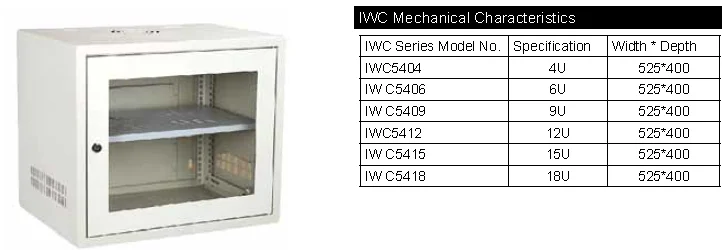

IWC Series Wall Mounted Cabinet & Accessories
