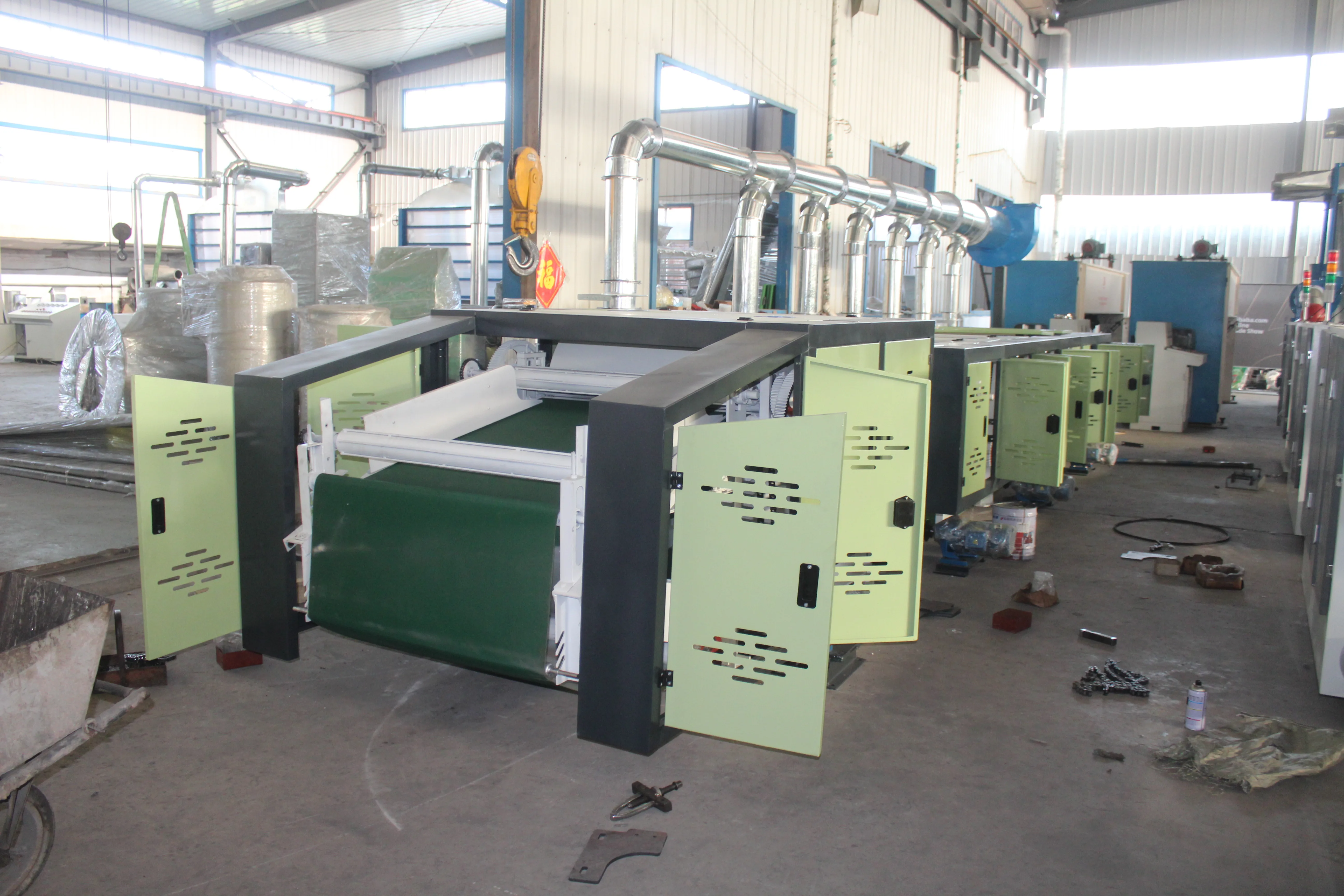

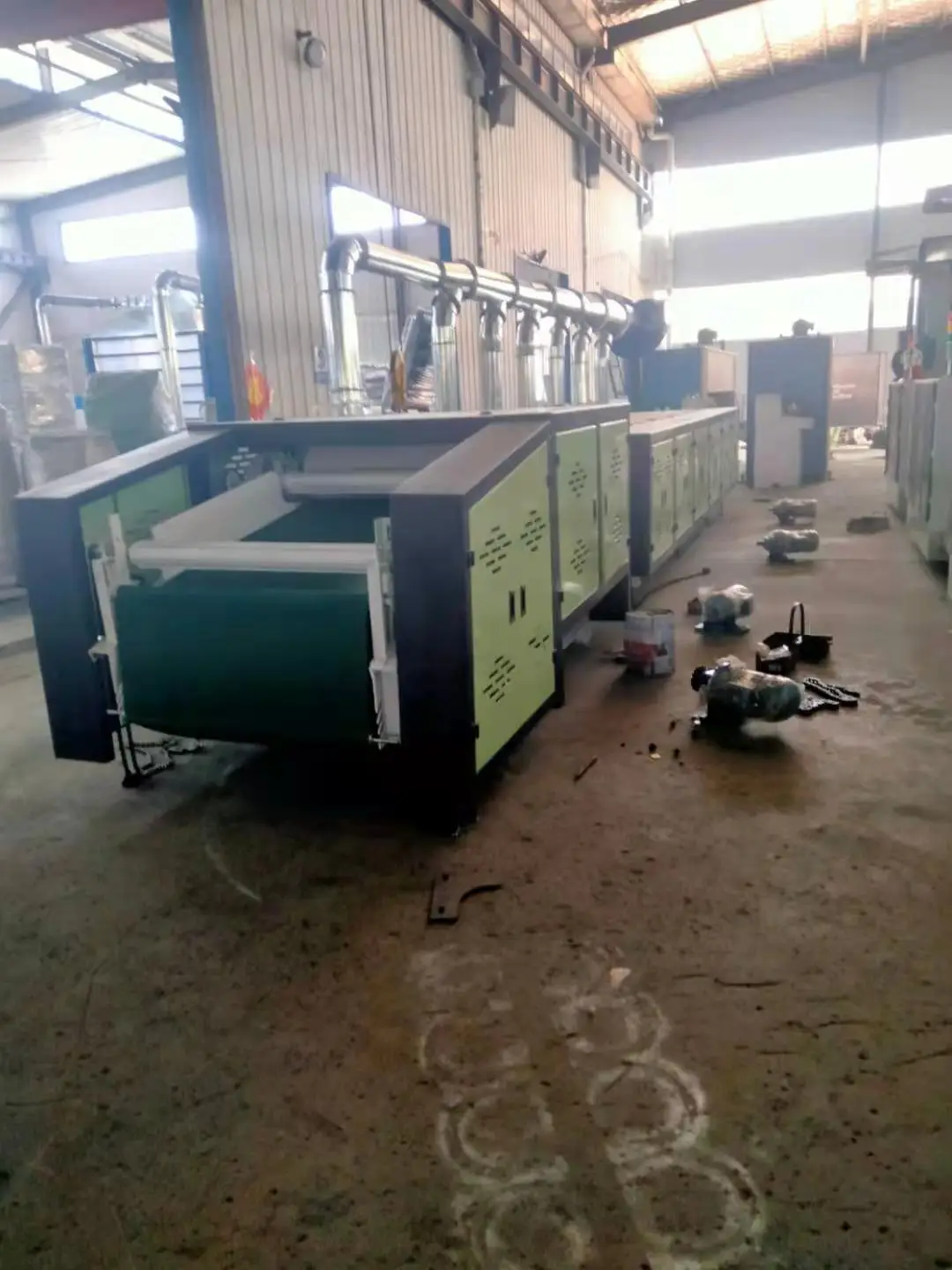

Textile waste old clothes jeans mattress scraps are recycled and opened into fibers textile recycling machine line

Product Overview

Description

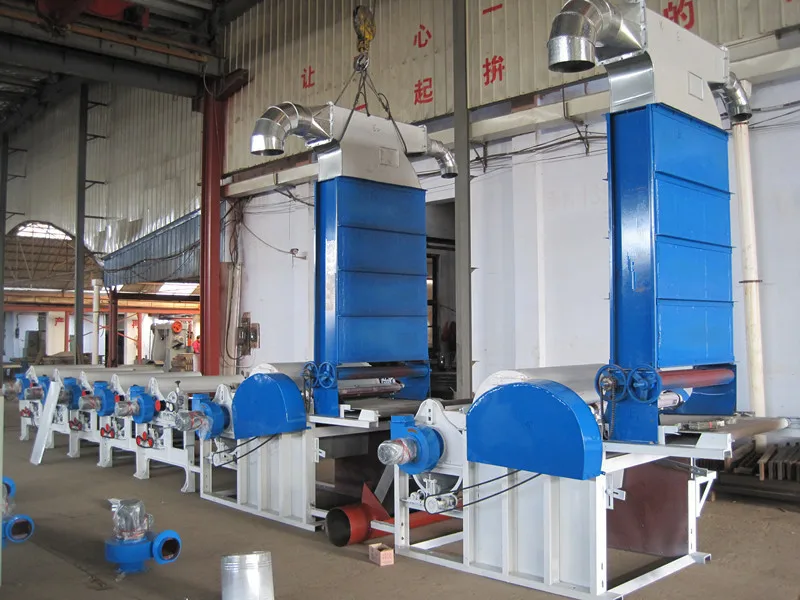

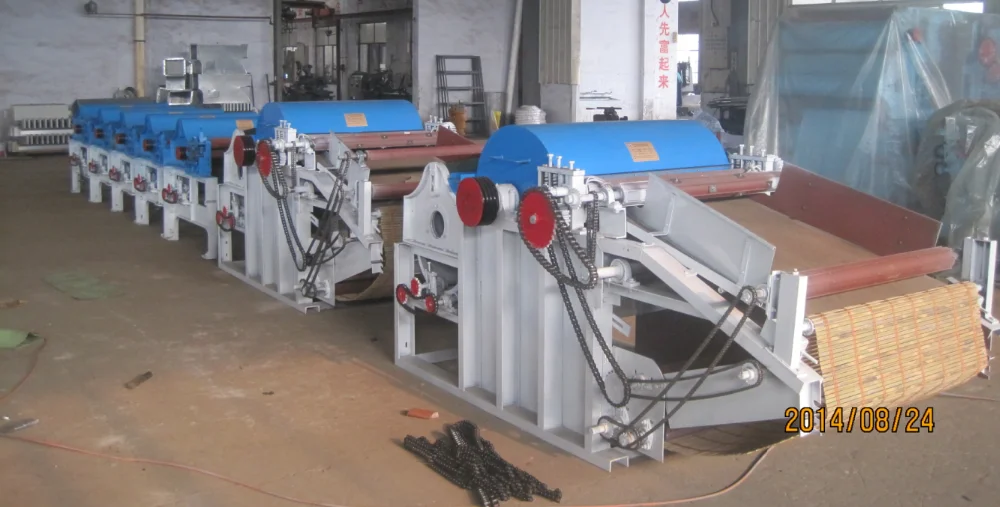

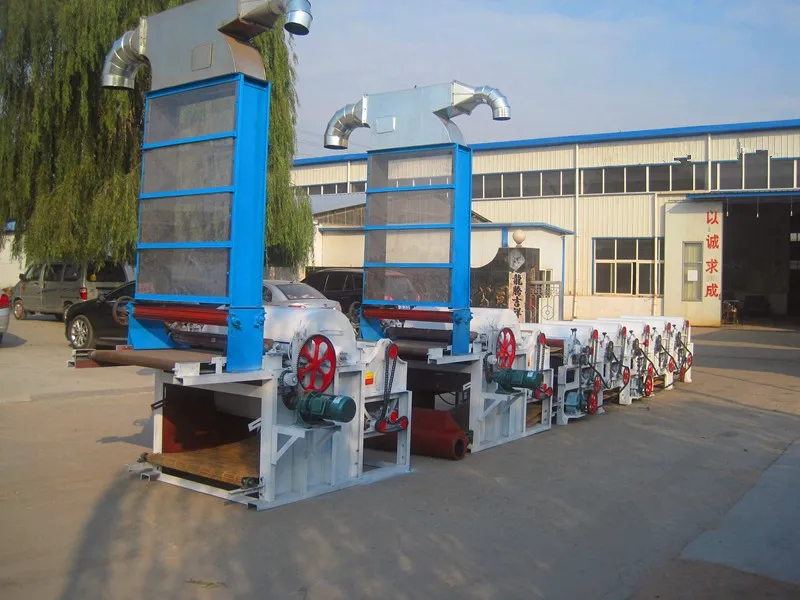

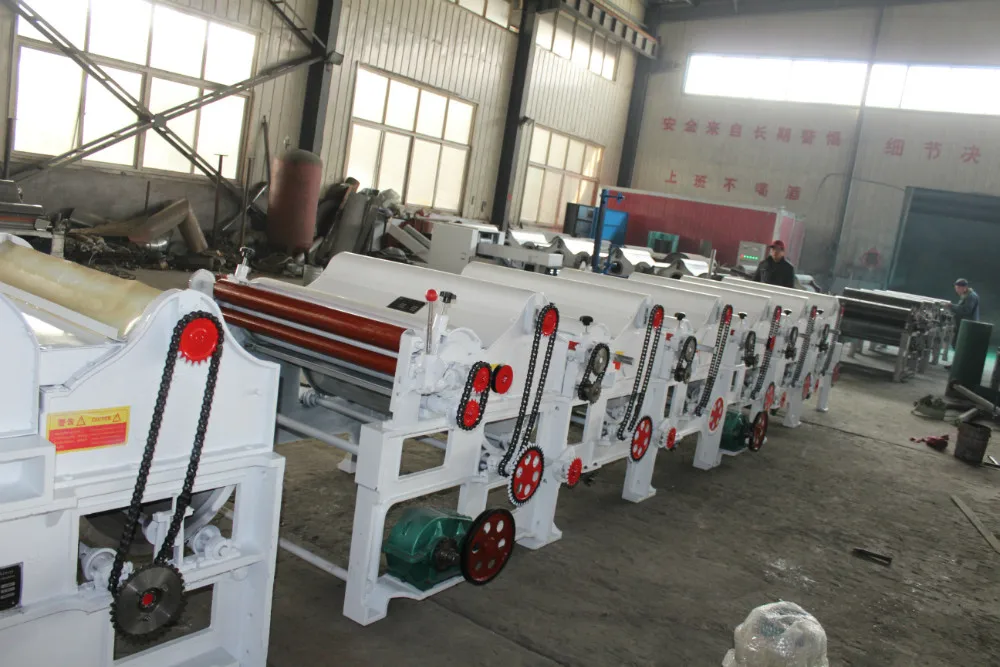

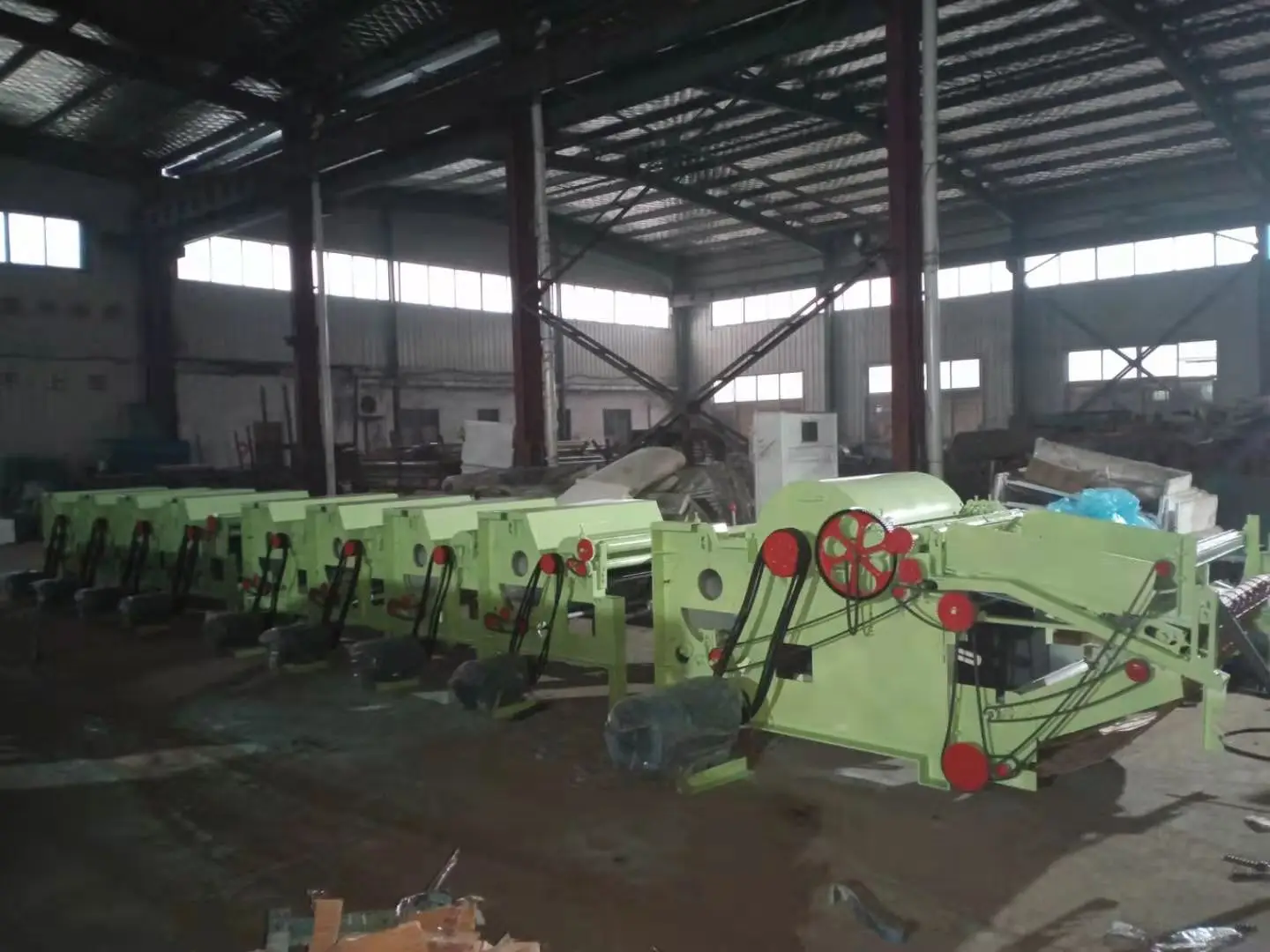

Textile waste recycling production line


This is a textile waste recycling production line, consist of opening machine and cleaning machine. Opening machines and cleaning machines can match freely according to customer requirements. And this model production line with the cover to protect the machine. In terms of machine, a comprehensive upgrade has been made and steel plate welding structure gas been adopted.

Features

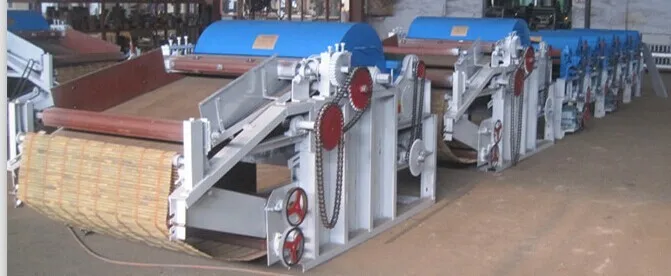

Mainly release fiber, cotton, textile material, such as through tear at the tangle of large fiber loose solution into small pieces or beam, at the same time accompanied by blending in the process of release, in addition to the complex role.Opening machine is usually consists of a pair feeding roller or feed roller and an opening of cylinder, the opening Angle of nails or mounted on the cylinder or comb needle cloth or porcupine goons, for opening more completely, some still in work roll and strip roller mounted on the cylinder.Different structure makes its opening effect, mixing effect, the effect of removing impurity have obvious differences, so on the different requirements of the production line should adopt different forms of opening machine.Also can according to the processing of materials to choose opening machine, comb again after the opening of fiber feeding machine for processing.

Main parameter:

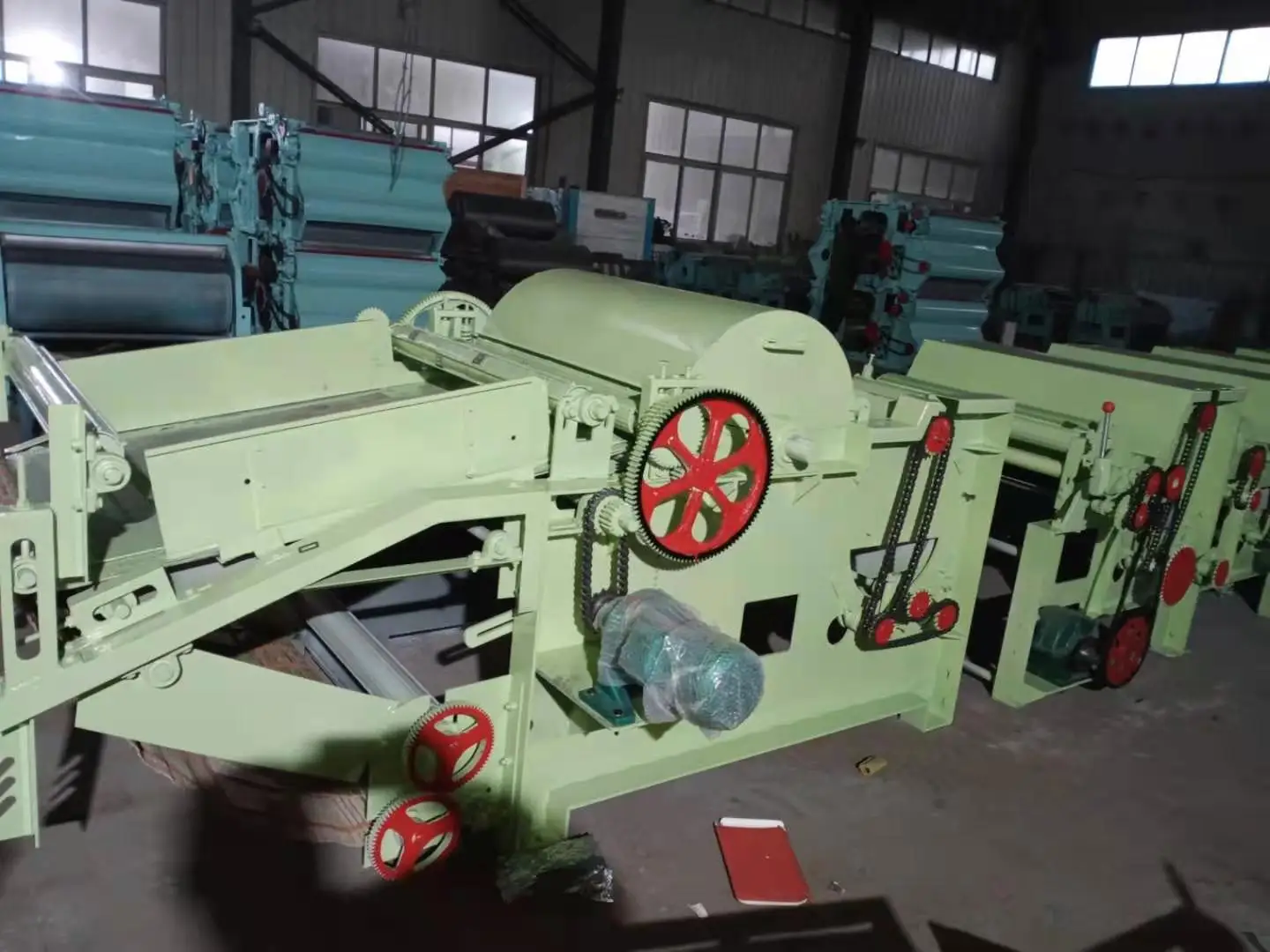

Main parameters of GM600-2 Opening Machine
Output	180~250kg/h(According to raw material)
Diameter of rollers	600mm
Licker-speed	1200r/min
Diameter of dust cage	500mm
Main motor	22kw(Brand: Delixi)
Fan	2.2kw
Dimension	2550*1500*1330mm
Weight	1200kgs
Note	output and motor power due to different raw material

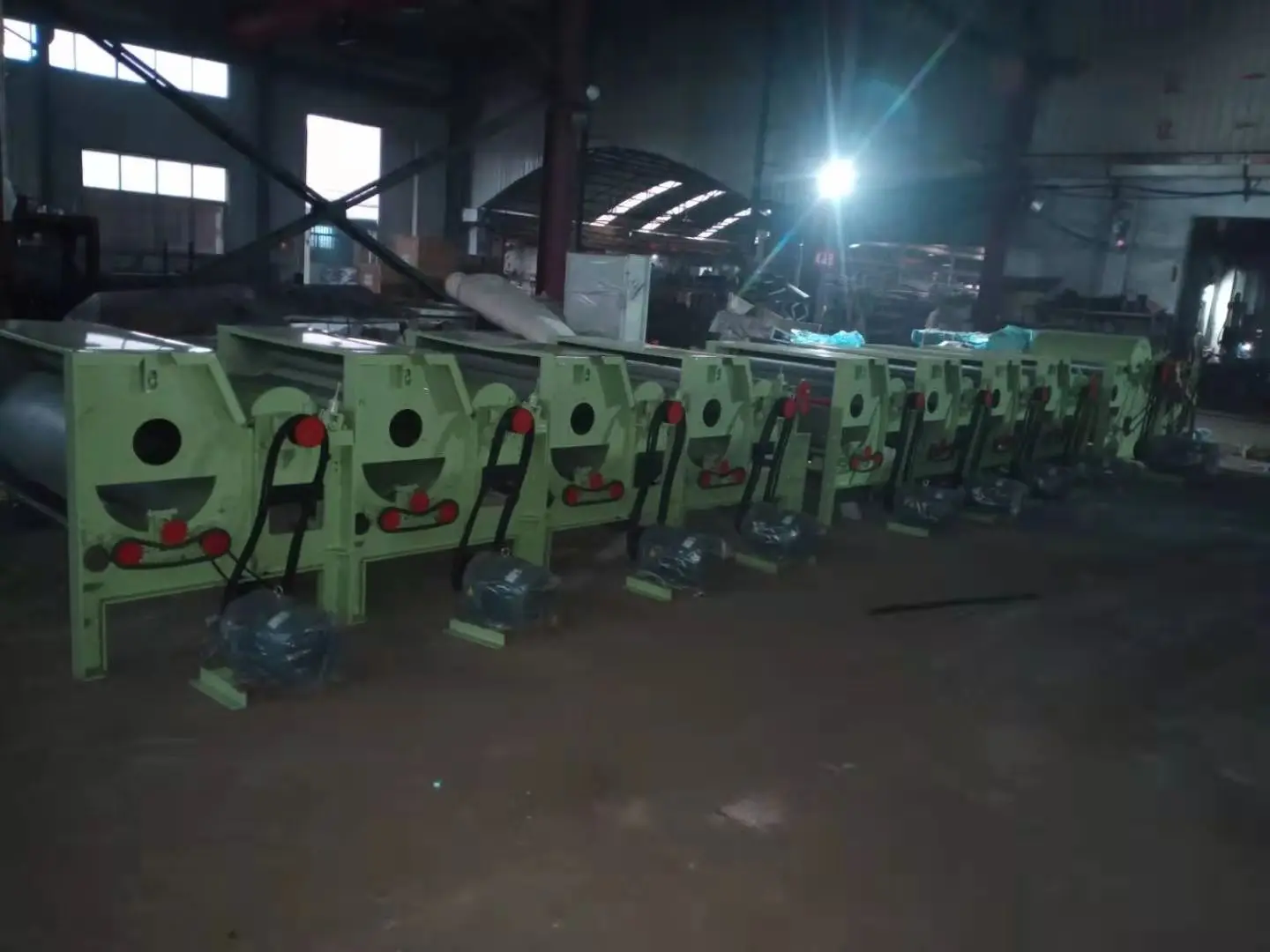

Main parameters of GM250-6 Cleaning Machine
Output	150~220kg/h(According to raw material)
Diameter of rollers	250mm
Licker-speed	first 2040r/min other2100r/min
Diameter of dust cage	500mm
Main motor	48kw(Brand: Delixi)
Fan	2.2kw
Dimension	6200*1500*1150mm
Weight	6100kgs
Note	output and motor power due to different raw material
