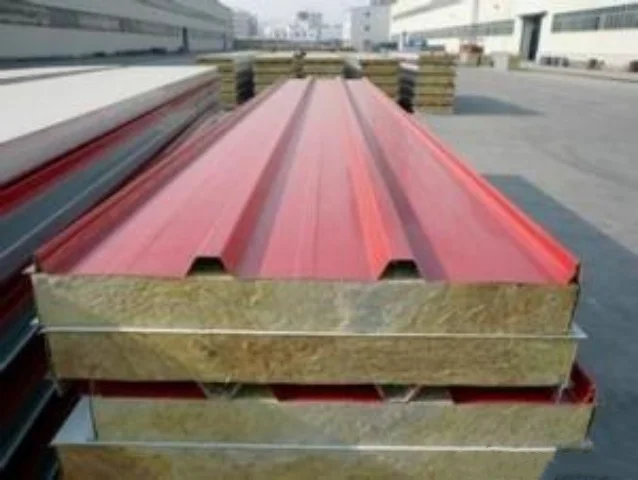

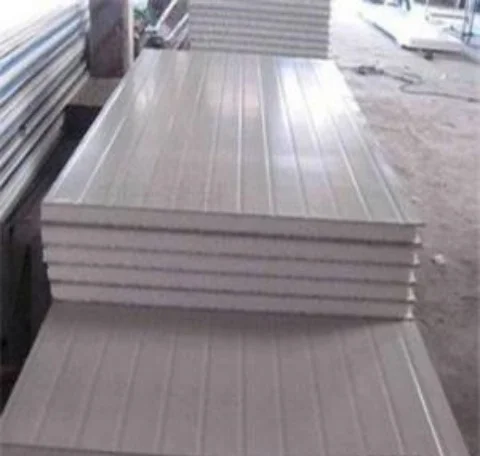

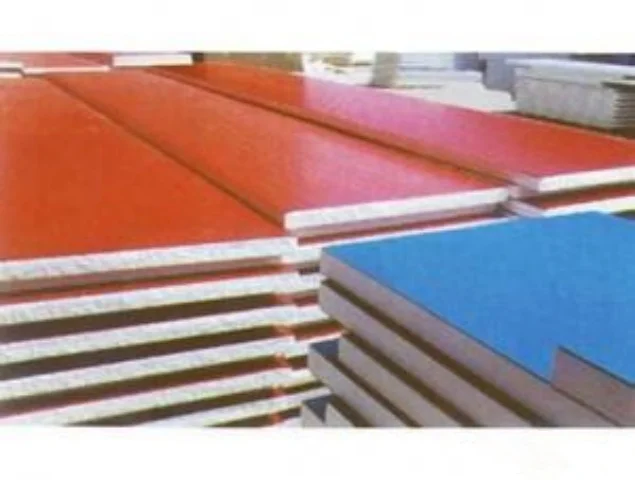

Zinc coating Polyurethane Insulation Foam Materia sandwich panel

Product Overview

Description

Brief Introductionof product

1. Color Coated steel Coil is coated with organic layer, which provides higher anti-corrosion property and a longer lifespan than that of galvanized steel sheets.

2. The base metals for Color Coated Steel Coil consist of cold rolled, HDG electro-galvanized and hot-dip alu-zinc coated steel. The finish coats of Color Coated Steel Coil can be classified into groups as follows: polyester, silicon modified polyesters, polyvinylidene fluoride, high-durability polyester, etc.

3. The production process has evolved from one-coating-and-one-baking to double-coating-and-double-baking, and even three-coating-and-three-baking.

4. The color of the Color Coated Steel Coil has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.

5. The Color Coated Steel Coil can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.





Mechanical Properties

1. Mechanical properties of base metals

Grade	Tensile Test
	Yield Strength MPa	Tensile Strength MPa	Elongation A80mm % ≥
SGLCC	140-350	270-500	22
SGLCD	140-300	270-420	26
SGLCDD	140-260	270-380	30

2. Common performance of front coating

(1). Thickness: ≥20μm

(2). Pencil Hardness: 2H

(3). 60° specular glossiness of coating: >60

(4). 180°bend: ≤3T

(5). Impact: ≥9J

(6). Salt Fog Resistant: ≥500h

(7). Color difference: <3ΔE



Main Features:

1.High temperature fast curing,high production efficiency

2.Low viscosity at room temperature,net embellish performance

3.Products good toughness and good machining performance

4.High fiber content of the products,good mechanical properties

5.Used with Two-Component mixing glue machine,low loss of raw materials,high degree of automation
