Good Physical And Chemical Stability Polystyrene Styrene Type Gel Strong Acid Cation Exchange Resin 001*7
- Category: >>>
- Supplier: Huzhou Xianhe Instrument Technology Co. Ltd.
Share on (1601006027930):
Product Overview
Description
Product Description
001×7 Styrene Series Gel Strong Acid Cation Exchange Resin

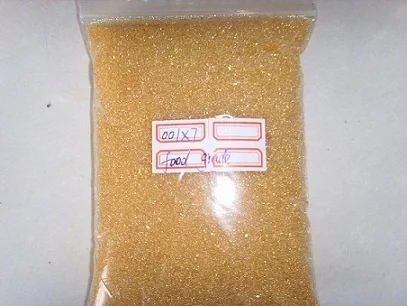

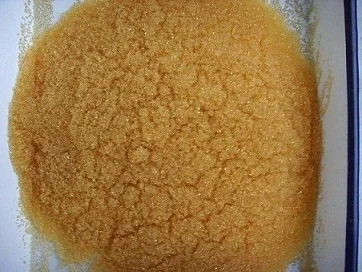

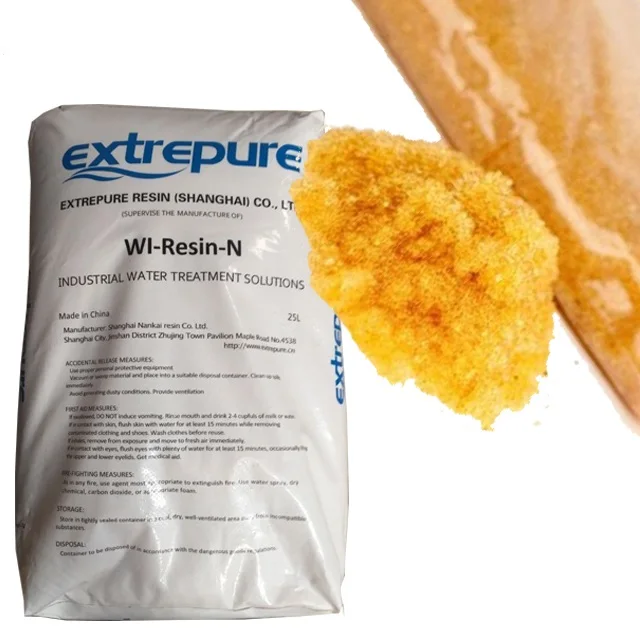

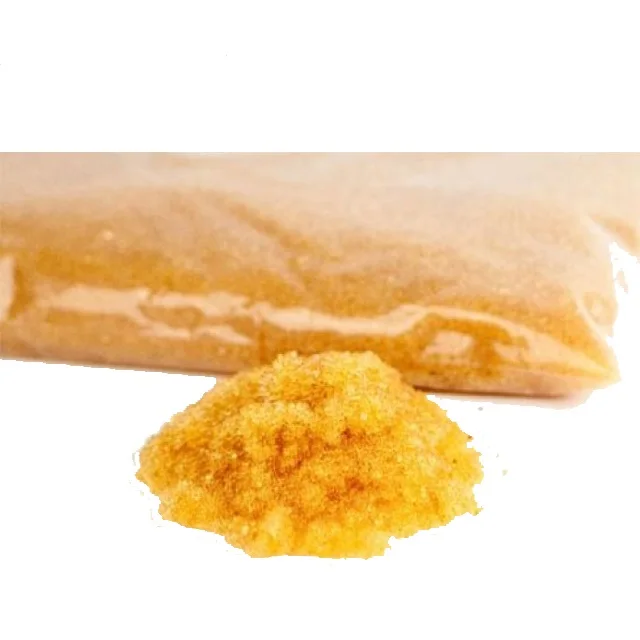

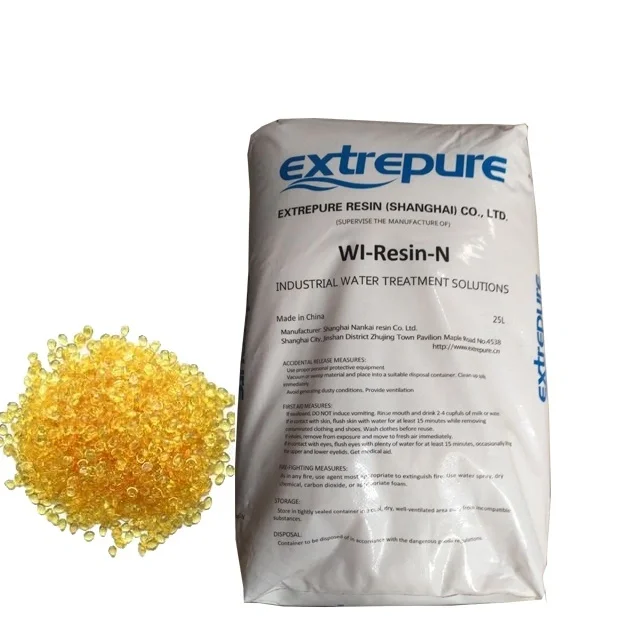

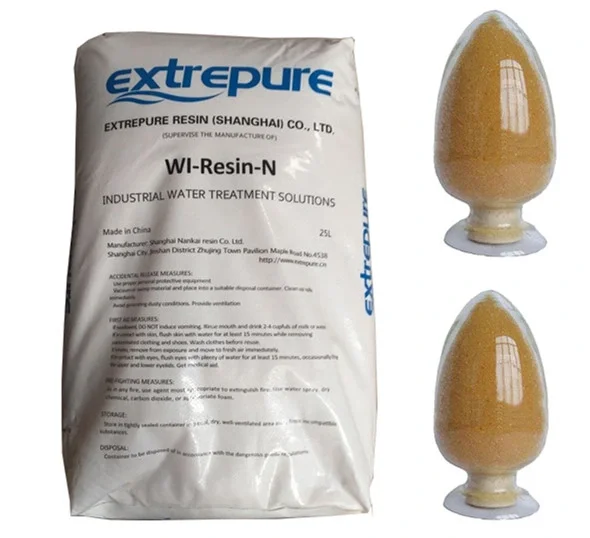

“EXTREPURE” 001*7 is a cation exchange resin with sulfonic acid groups in polystyrene, in the form of spherical particles.
It has high exchange capacity and high operating capacity, low pressure drop, and good physical and chemical stability.
The conventional ex-factory form is provided as sodium or hydrogen. 001*7 can be applied to all water softening
process, dealkalization, deionization, pure water and ultrapure water preparation, food industry, pharmaceutical and chemical treatment applications and other fields.
process, dealkalization, deionization, pure water and ultrapure water preparation, food industry, pharmaceutical and chemical treatment applications and other fields.

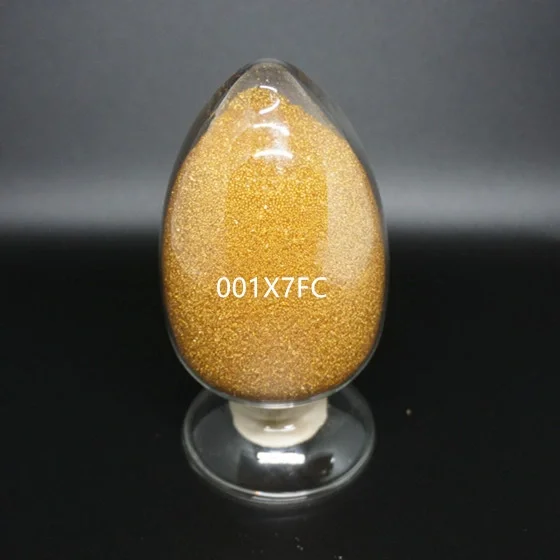

001*7 resin series include: 001*7 general products, 001*7FC suitable for double bed,double bed and floating bed system; 001*7MB suitable for mixed bed system, 001*7FD belongs to food grade resin.
Specification
Item | specification |
Polymer Structure | Polystyrene |
Appearance | Palm yellow to brown spherical grain |
Moisture Code | 45–50% |
Total exchange capacity mmol/g | ≥4.50 |
Total exchange capacity mmol/ml | ≥1.90 |
Shipping weight g/ml | 0.77-0.87 |
True density g/ml | 1.250-1.290 |
Particle size range % | (0.315mm-1.250mm) ≥95.0 |
Lower limit size % | (<0.315mm) ≤1.0 |
The effective size mm | 0.400-0.700 |
Uniformity coefficient | ≤1.60 |
Sphericity after attrition % | ≥90.00 |
Executing standard:GB/T 13659-2008 DL/T519-2004
Use Operation Indicators
Items | Reference value |
PH range | 1-14 |
Working temperature（℃） | ≤ 120(Na+) ≤ 100(H+) |
Bed Heigth(m) | 1.0 – 3.0 |
Regenerant | NaC and HCl |
Regeneration level (g/mol) | 100-120（Na+） 70-80 （H+） |
Regenerant concentration | 5-8（Na+） 3-4 （H+） |
Regenerant flow (m/h) | 4-5（Na+） 3-5 （H+） |
Regenerant contact time （m） | ＞30 |
Regenerant temperature（℃） | Standard Temperature |
Exchange flow rate (m/h) | 4-5 (Na+) 3-5 (H+) exchange time 20 -30 minutes |
Flushing flow (m/h) | 15 - 20 |
Flushing time(min) | 10 - 20 |
Operating flow (m/h) | 15 - 30 |
Washing | Wash out the impurities adhering to the resin |
Application
001*7 is a high-purity, high-quality granular gel polystyrene sulfonate cation exchange resin. It has high particle integrity,
good chemical and physical stability, and very low extractables. This resin can be used to treat food, drinking water and water used in food processing. It is also suitable for the pharmaceutical and chemical industry
good chemical and physical stability, and very low extractables. This resin can be used to treat food, drinking water and water used in food processing. It is also suitable for the pharmaceutical and chemical industry

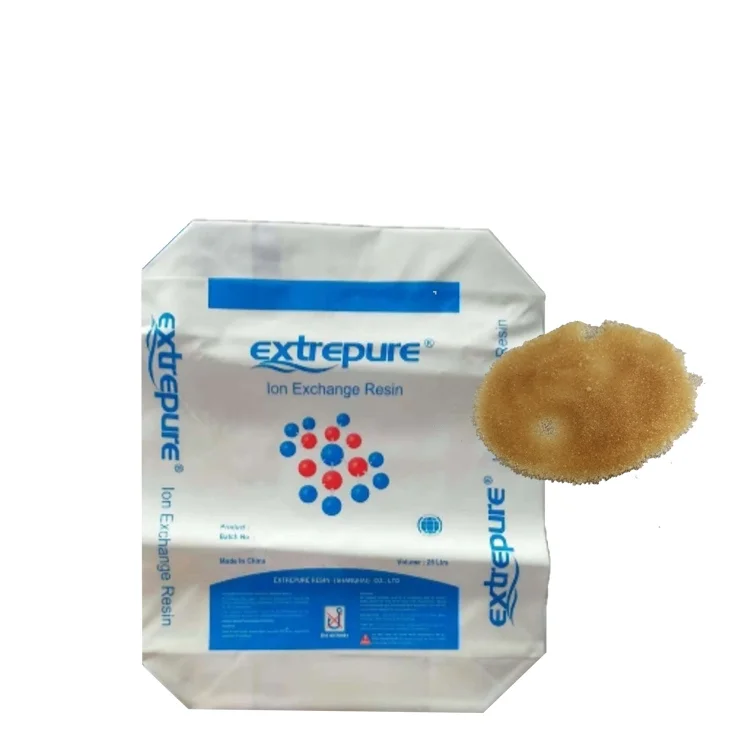

Packing & Delivery

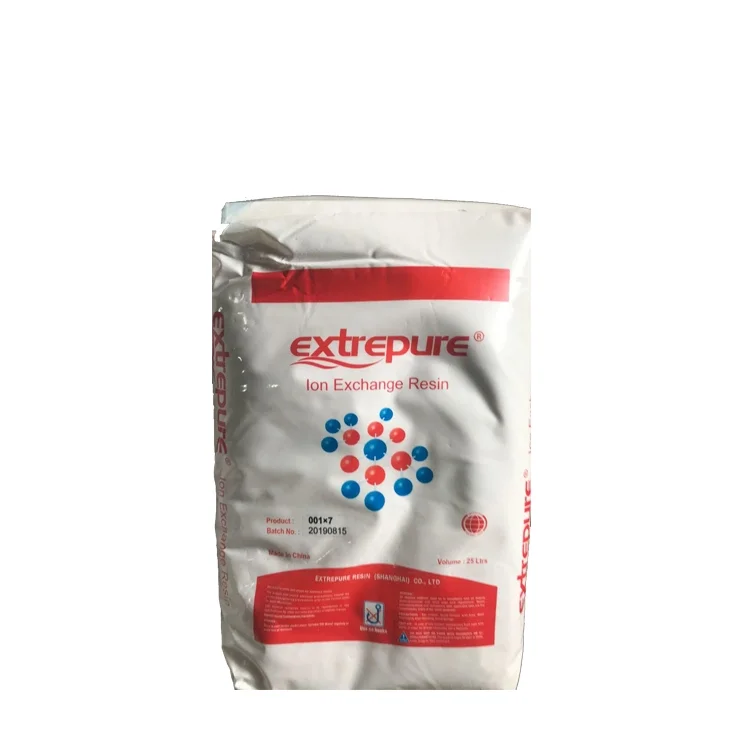

CARTON PACKAGING
Company Profile
Founded 2007 in Shanghai, HUAMO group is focused on R&D, manufacturing and marketing of Reverse Osmosis Membrane, Ultrafiltration Membrane, MBR Filtration Systems, Ion Exchange Resin and other Water Treatment Products.
