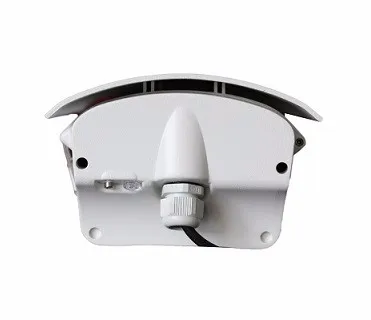

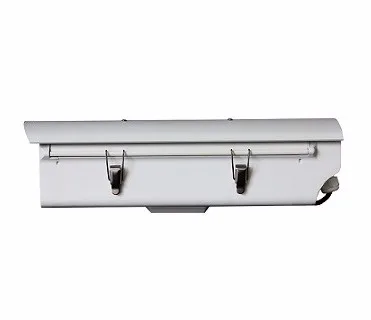

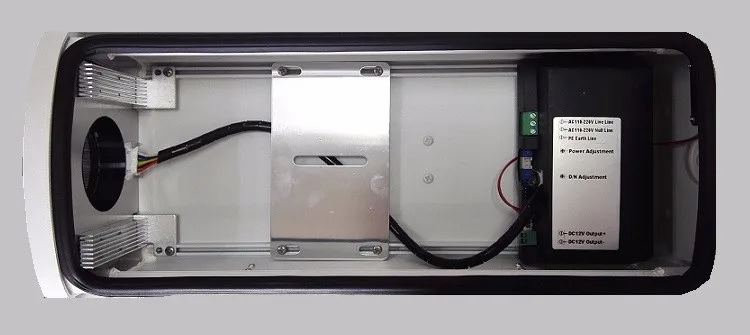

IP66 Aluminium Alloy S LD156 Heavy CCTV Camera Housing with infrared LED
- Category: >>>
- Supplier: Shantou Scene Electronics Co. Ltd.
Share on (1601006030246):
Product Overview
Description
Product Description
1. Smart uniform irradiation solution improves image quality & monitoring effect for night vision
2. Leading IR technology provides high efficiency and long life span of LED
3. Accurate constant circuit drive develops excellent performance of product
4. Power and day/night switch manually controlled
5. Support to all kinds of box camera
6. Indoor/outdoor use, all-weather use
7. High integrated solution for easy installation and saving cost
Specification
Quantity of LED: 12PCS 2W High Power IR LED
Wavelength: 850nm
Beam Angle: 15°- 90°
IR Distance: 170m-60m
Day/night Switch: CDS 10-20lux ±10% (adjustable)
Input Voltage: AC110-220V
Output Voltage: DC12V 1000mA
Power Consumptionv 25W (adjustable)
Panel: Tempered glass panel
Housing: Aluminum Die Casting Housing
Bracket: Bottom mount bracket
Working Temperature: -40℃ to +60℃(-50℃ to +60℃ with heater)
Cooling: Air cooling internal circulation
Blower: Included
Protection Level: IP66
Color: Beige
N.W: 3.3KG
G.W: 3.85KG
Dimension: 445*190*132mm
Packing Dimension: 482*225*170mm
Model for Selection
Model Beam Angle *IR Distance(850nm)
S-LD156-15A 15° 170m
S-LD156-30A 30° 130m
S-LD156-45A 45° 100m
S-LD156-60A 60° 90m
S-LD156-90A 90° 60m
*IR distance is tested by SONY 1/3" CCD Camera with 0.01lux.
*To achieve the distance needed, please pay attention to your camera specification and lens before purchase. It is normal phenomenon that distance may vary due to different cameras and lens.
Qualification
High quality
Passed the ISO9001:2015 quality management system certification.
High quality
Passed the -40℃ low temperature test.
High quality
Passed the IP66 waterproof test.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
R&D Team
Our Team
Packing & Delivery
Packing Details : foam and carton packing with user manual, mounting screw, 4pcs/carton
Delivery Details : 3-30 days after order
1. Aging
2. Factory Inspection
3. Packing
4. User manual & mounting screw
5. Foam & carton packaging
6. Complete package
Exhibition
ITS Intertraffic
Intertraffic China, was launched in 2007, and has been successfully held for ten rounds in Beijing and Shanghai alternatively, known as a preferable Asia-Pacific international trade exhibition platform throughout the whole industrial chain of the ITS industry.
Security China
The biggest security exhibition in China, it mainly focus on the big market in North area of China, and also provide a big platform for the exhibitors to meet the government level buyers and high management for purchasing in different industries. Oversea customers are also looking for business partners by visiting this great exhibition.
ISC West
The western American International Security Products Fair (iscwest) is the largest exhibition in the United States, which has the largest number of exhibitors in the United States. It has brought a high quality exhibition for the security industry to integrate new products, new technologies and new trends.
Our Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 working days if the goods are in stock. Or it is 10-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your MOQ ? Do you provide customized services?
A: Our MOQ is 1 pcs. We do provide customized services.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us.
