Tobee Effluent Handling
$12,600
corrosive liquid swimming pool 420ma operated acid pump hydroponic ph ec controller doser meters with membrane dosing pump
- Category: >>>
- Supplier: Dongguan Daxin Electronic Technology Co. Ltd.
Share on (1601006072156):
Product Overview
Description

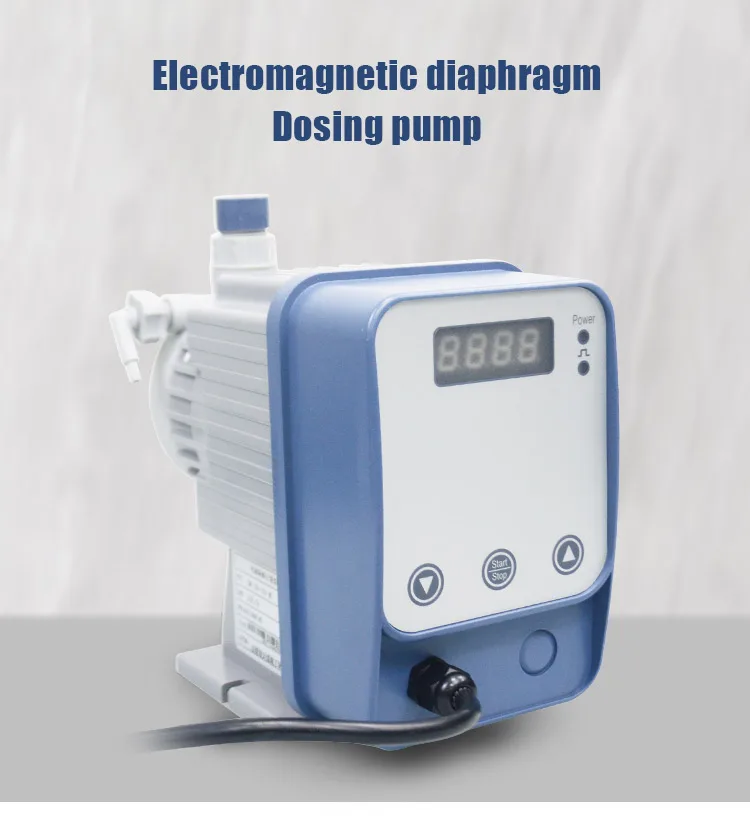

corrosive liquid swimming pool 420ma operated acid pump hydroponic ph ec controller doser meters with membrane dosing pump
Specification
Model | Flow Rate (L/H) | Pressure (Bar) | Suction(m) | Max frequency (stroke/min) | Power (Watt) | Voltage | GW (Kg) |
BK01-07-S | 1 | 7 | 2 | 120 | 25 | 220V 50HZ | 2.6 |
BK02-07-S | 2 | 7 | 2 | 120 | 25 | 220V 50HZ | 2.6 |
BK03-07-S | 3 | 7 | 2 | 120 | 25 | 220V 50HZ | 2.6 |
BK06-05-S | 6 | 7 | 2 | 120 | 25 | 220V 50HZ | 2.6 |
BK09-03-S | 9 | 7 | 2 | 120 | 25 | 220V 50HZ | 2.6 |
BK06-07-M | 6 | 7 | 2 | 160 | 25 | 220V 50HZ | 2.9 |
BK09-07-M | 9 | 7 | 2 | 160 | 25 | 220V 50HZ | 2.9 |
BK12-07-M | 12 | 7 | 2 | 160 | 25 | 220V 50HZ | 2.9 |
BK15-03-M | 15 | 3 | 2 | 160 | 25 | 220V 50HZ | 2.9 |
BK20-03-M | 20 | 3 | 2 | 160 | 25 | 220V 50HZ | 2.9 |

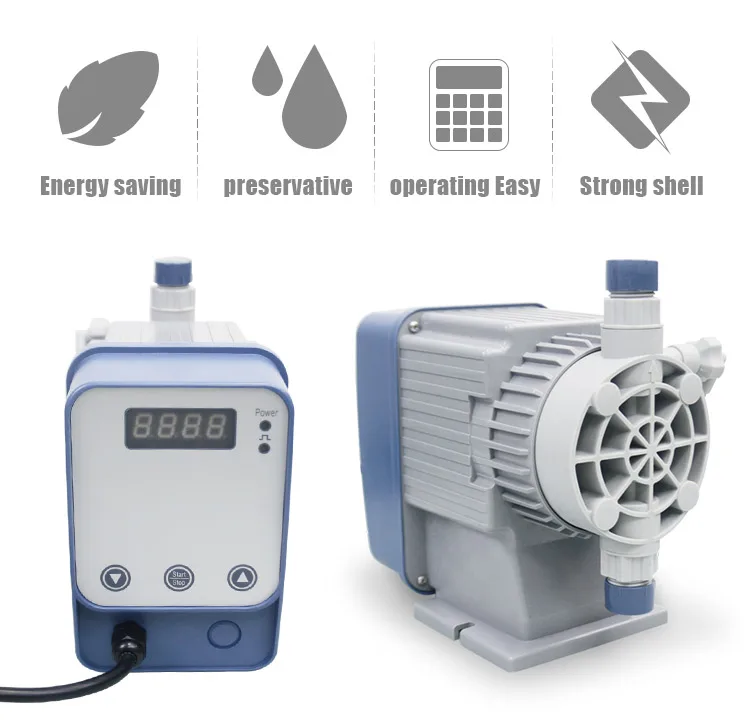

Product Description
* Enclosure protection class is IP65, use is more security.
* Programmable high-precision microprocessor control with digital display and four touch keys, operation is intuitive, clear and convenient.
* Stroke frequency range (1-200 times/minutes) can be adjusted, cooperating with standard stroke range (20-100%) makes potions dosing more precise.
* Standard double ball one-way valve design, make work efficiency and accuracy.
* Switch button make the operation more conveniently.
* Reliable hose interface is very simple and strong.
* External interface use IP68 industrial electrical connectors.
* HT-Z automatic type receive the pulse signal to control the flow rate of the pump outside automaticly by external control joint (5 core).
* HT-Z automatic type may receive 4-20mA (20-4mA) analogue signals to control 0-100% (100-0%) flow rate of the pump outside automaticly by external control joint (5 core).
* It will alarm and stop working when liquid level is too low, optional control function of the switch connectted to the level switches interface (2 core).
* Programmable high-precision microprocessor control with digital display and four touch keys, operation is intuitive, clear and convenient.
* Stroke frequency range (1-200 times/minutes) can be adjusted, cooperating with standard stroke range (20-100%) makes potions dosing more precise.
* Standard double ball one-way valve design, make work efficiency and accuracy.
* Switch button make the operation more conveniently.
* Reliable hose interface is very simple and strong.
* External interface use IP68 industrial electrical connectors.
* HT-Z automatic type receive the pulse signal to control the flow rate of the pump outside automaticly by external control joint (5 core).
* HT-Z automatic type may receive 4-20mA (20-4mA) analogue signals to control 0-100% (100-0%) flow rate of the pump outside automaticly by external control joint (5 core).
* It will alarm and stop working when liquid level is too low, optional control function of the switch connectted to the level switches interface (2 core).
Packing & Delivery
Standard export packing
1pc/box
1pc/box
Certifications
Recommend Products
Company Profile
Our Customers
FAQ
Q1: What's your business range?
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Send An Inquiry Now, we will provide the timely feedback!
A: We manufacture Water quality analysis instruments and provide dosing pump, diaphragm pump, water pump, pressure instrument, flow meter, level meter and dosing system.
Q2: May I visit your factory?
A: Of course, our factory is located in Shanghai, welcome your arrival.
Q3: Why should I use Alibaba Trade Assurance orders?
A: Trade Assurance order is a guarantee to buyer by Alibaba,For after-sales, returns, claims etc.
Q4: Why choose us?
1. We have more than 10 years of industry experience in water treatment.
2. High quality products and competitive price.
3. We have professional business personnel and engineers to provide you with type selection assistance and technical support.
Send An Inquiry Now, we will provide the timely feedback!
