  • inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher
inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher

inline automatic high quality multifunctional precision dynamic weight sensor belt conveyor check weigher

Share on (1601006089072):


Price:$800.00 - $3,500.00

Quantity:


Product Overview

Description

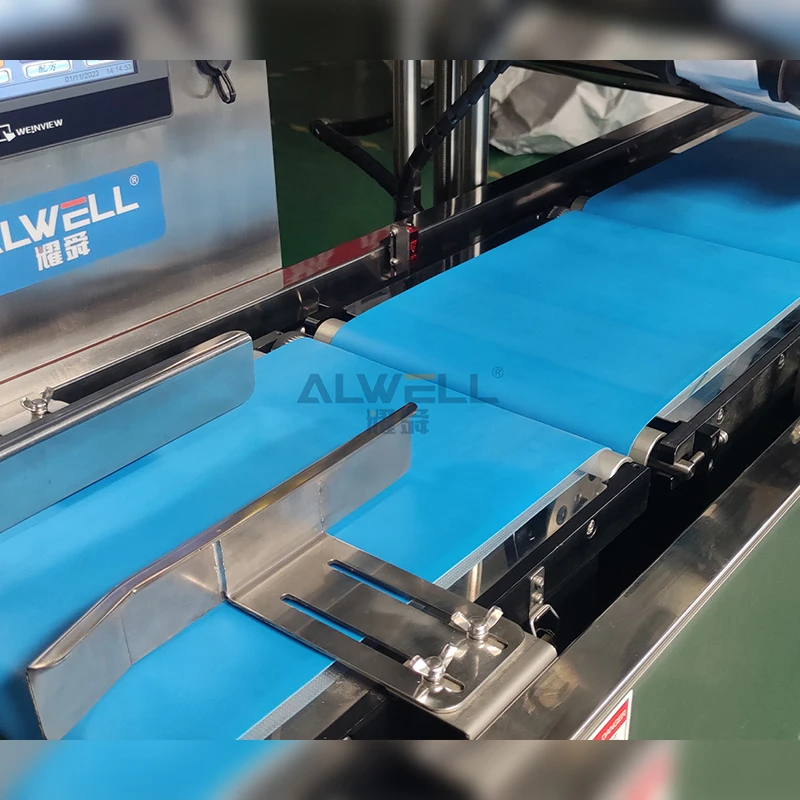

1. Imported food grade conveyor belt
Swiss imported PU food grade conveyor belt, easy to clean. It adopts a quick belt replacement system and a buckle design, which is easy to disassemble and wash.
2. Innovative structure
The machine adopts 304 stainless steel frame (customizable 316), large-size color LCD touch screen interface in line with international GMP and HACCP standards, simple operation and direct display. Built-in computer system can store 200 kinds of product parameters for user convenience
3. Multiple rejection functions
A variety of rejection methods are available (push rod type, flap type, air blowing type, swing rod type, falling type, etc.) suitable for various products and various industries


4. Connect the printer and the computer
It supports RS232 data connection to the computer to provide network access protocols such as ERP; it can also be equipped with a wireless USB interface; the packaging machine and printer can be configured before and after. We provide one-stop service to provide you with reliable and safe technical solutions
5. Exquisite workmanship
Convenient disassembly and assembly, beautiful and practical, easy to clean and easy to maintain; using DC brushless motor, easy to dock, more stable, compact and exquisite structure, suitable for greater speed requirements. There are also a variety of materials to choose from, and different frame materials, carbon steel paint, and stainless steel can be used according to customer needs.




ALWELL automatic weight checker conveyor dynamic food checkweigher machine check weigher with rejector
Application:
The YSWP series checkweigher is designed for fully automated packaging lines,when find the overweight and ultra-light
products the conveyor belt will stop and alarm, the screen will display the weight. When the substandard product removed from the product line, the belt will run automatically. Auto ejector is optional. online mass check weigher price is suitalble.

Features：

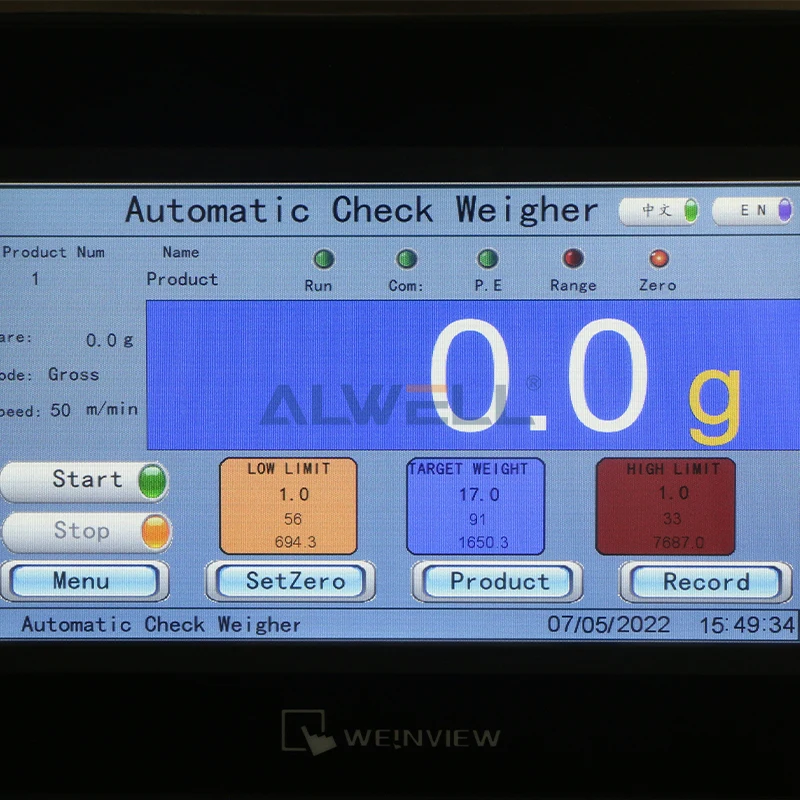

1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Enhanced 304 stainless steel frame, GMP and HACCP standards.
3. Simple mechanical structure, can quickly remove cleaning maintenance.
4. Can store 200 kinds of product parameters, the convenient user use.
5. Automatic zero tracking system, guarantee the stability of detection.
6. Built-in temperature and noise compensation system, ensure the data is reliable.
7. The dynamic weight compensation technology, ensure the data to be more effective
8. Parameters set password protection, only management operation.
9. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.

1-In stock, Fast delivery in 5 days

2-It can be customized addcording customers' products size and weight

3-It can be used separate. also can connect packaging machines, inkjet printers, cartoning machines and other production lines




Model
YSWH-150N
YSWH-150H
YSWP-150
YSWP-220
YSWP-300
YSWP-450
YSWP-500
Max.capacity
100g
100g
500g
1500g
3kg
30kg
50kg
Weighing range
5g-100g
5g-100g
5g-500g
5g-1500g
5g-3kg
50g-30kg
50g-50kg
Min.accuracy
±0.2g
±0.2g
±0.2g
±0.5g
±0.5g
±5g
±20g
Min.scale interval
0.1g
0.1g
0.1g
0.1g
0.1g
1g
5g
Max.speed
300piece/min
220piece/min
150piece/min
120piece/min
100piece/min
35piece/min
25piece/min
Belt Length
200mm
200mm
300mm
400mm
450mm
700mm
1000mm
Belt width
150mm
150mm
150mm
220mm
300mm
450mm
500mm
Test Product
dimension
Length
≤100mm
≤100mm
≤200mm
≤300mm
≤300mm
≤550mm
≤800mm
Width
≤150mm
≤150mm
≤150mm
≤220mm
≤300mm
≤450mm
≤500mm
Height
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
≥3mm
Operation interface
7 inches color LCD screen
Operating mode
Touch operation
Transport direction
From left to right（can be custom）
The belt height
750mm±50mm（can be custom）
Item memory
200 Products
Zero calibration
Auto Zero Tracking
Alarm mode
Automatically rejected/Buzzer,Alarm lamp,Alarm stop Run
Rejector(optional)
Flip Bar Type,Air Blast Type,Pusher on Roller Type,Pusher on Belt Type,Drop Flap Type, Chute Type,Conveyor Retraction Type(can be custom)
External interface
USB,RS232/485/422，to store data，Voltage signal or Switch signal，TCP/IP(optional)
Accessory(optional)
Printer, printing machine, separator,etc
Power Source
380/220/110V 50/60Hz
Power Output
About 200W
Structure
0.6—1Mpa
Measurement
SUS304
Degree of protection
IP54/IP65（IP66 need to be custom）
Environment
0℃-40℃
Remark
1.Optimum accuracy depends on the product condition,Max.speed depends on the product size and conveyor speed.
2.Above machine specifications for the standard specifications, size and other special requirements, all can be customized.
