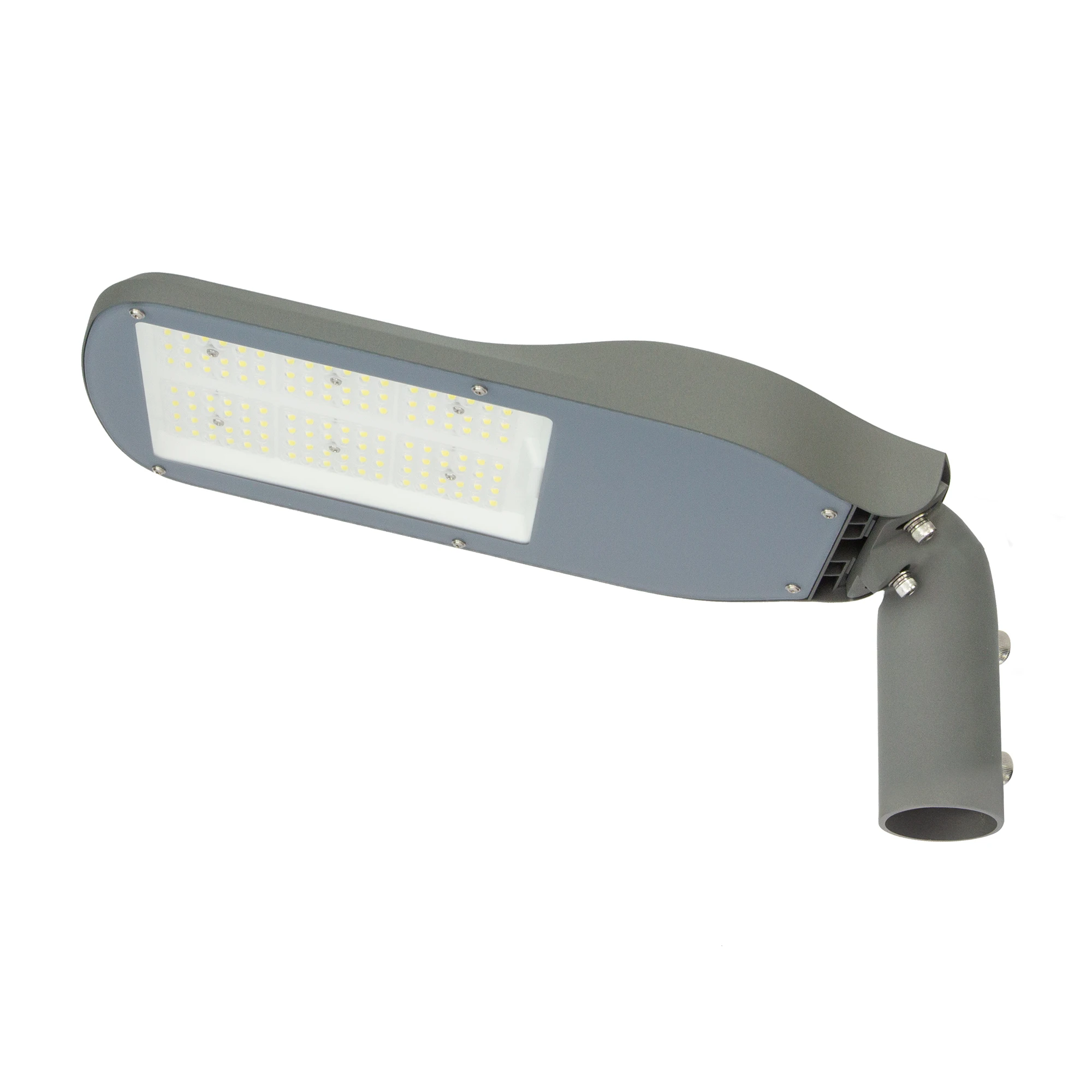

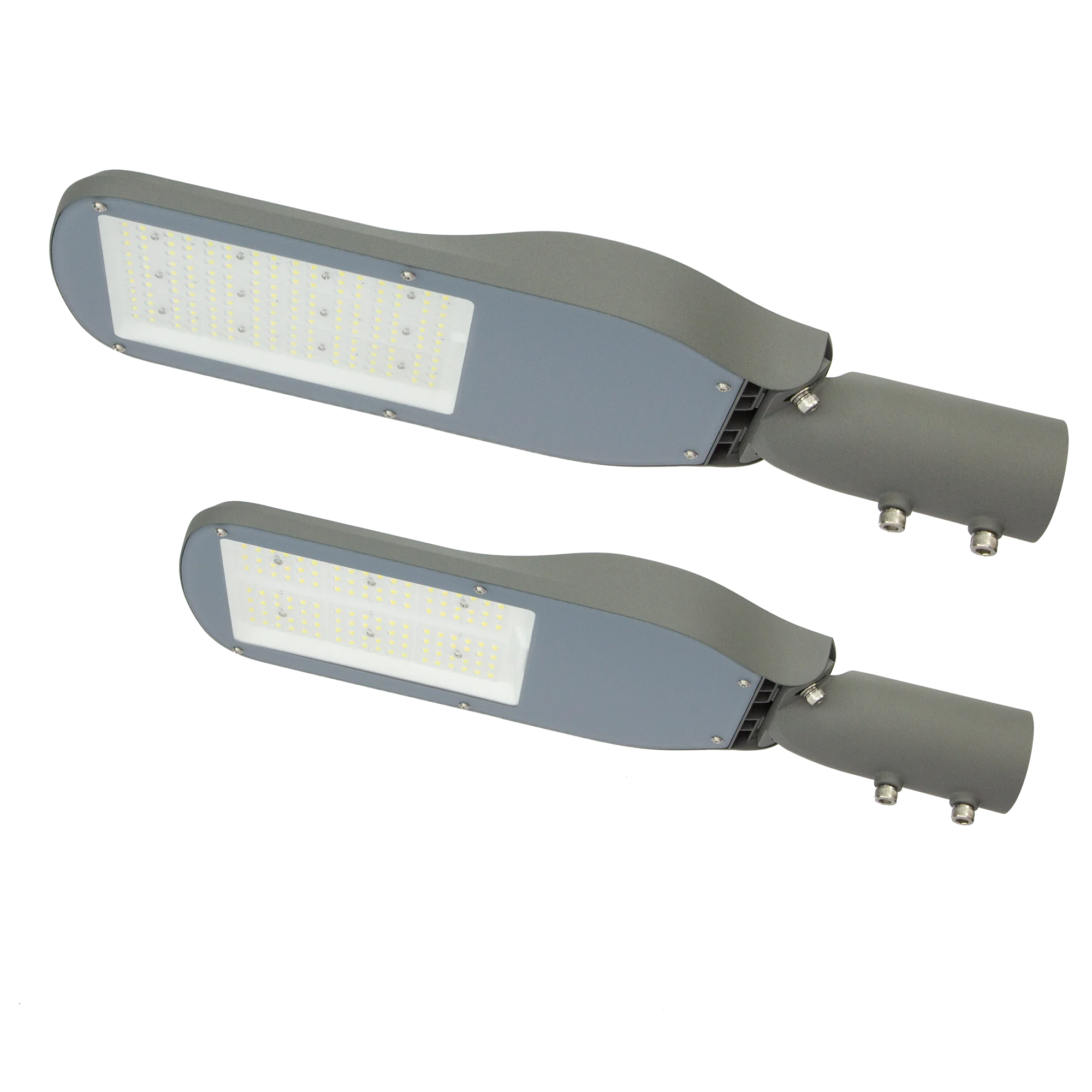

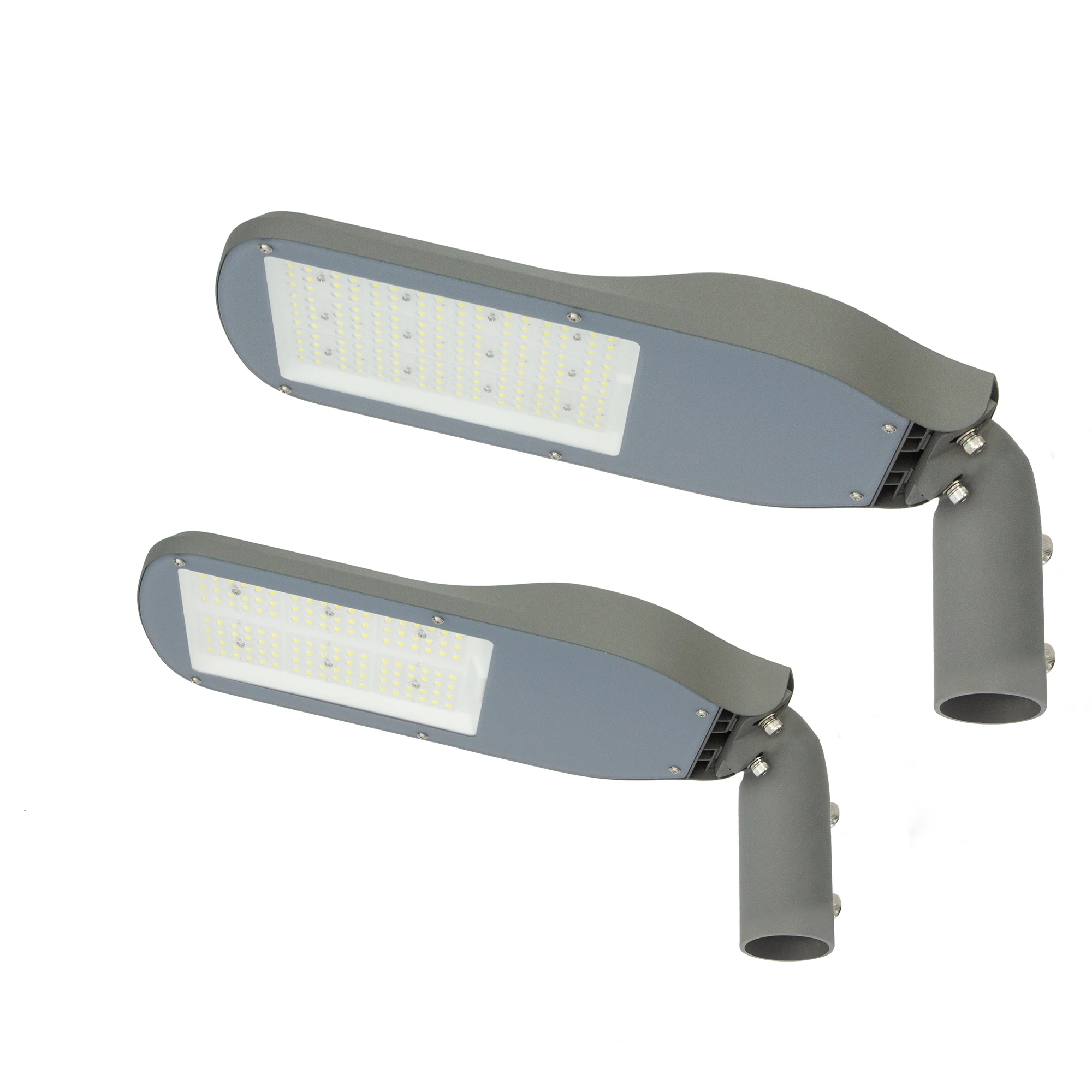

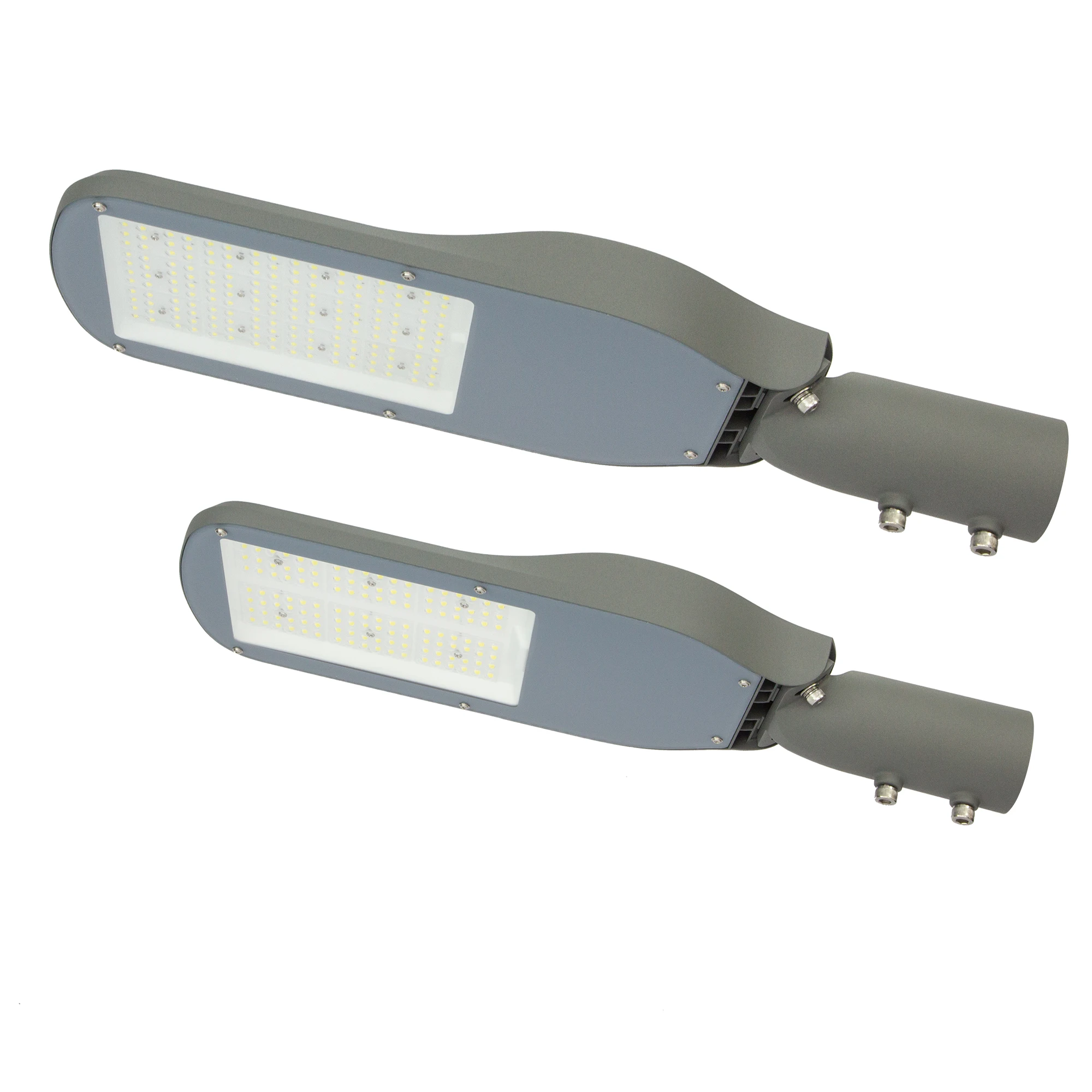

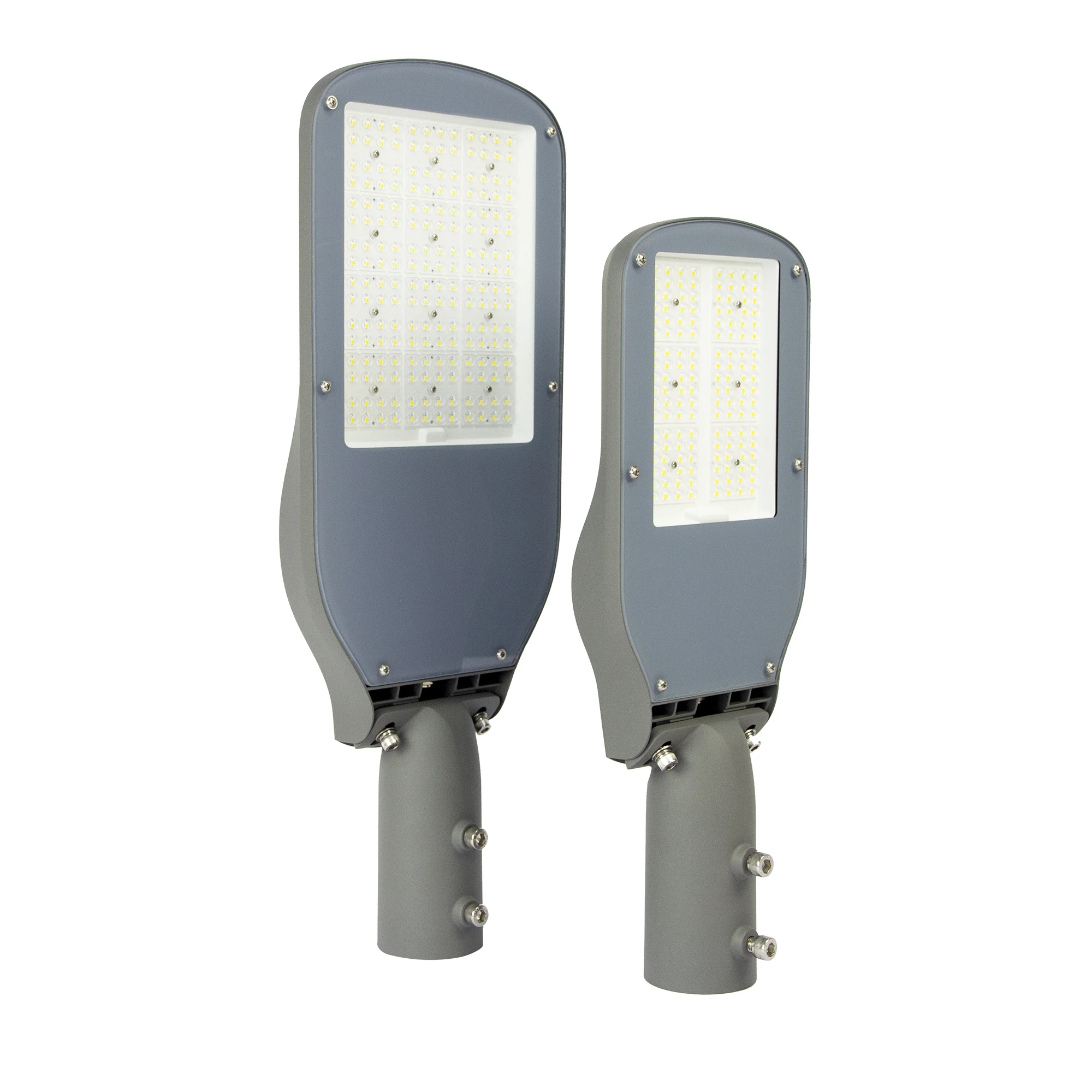

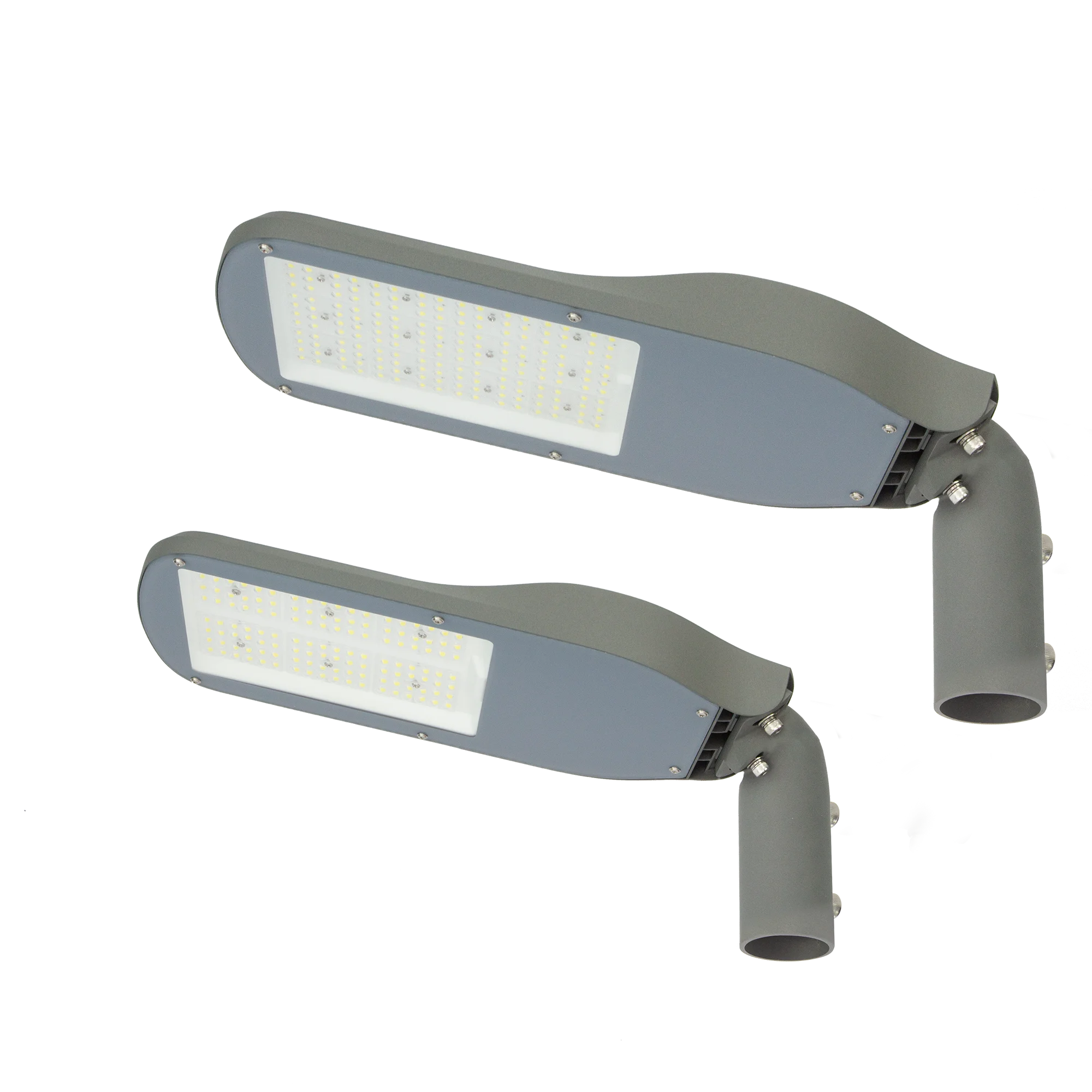

High lumen efficiency 160lm/w parking lot area slim led street light 150w
- Category: >>>
- Supplier: Shenzhen Penel Optoelectronics Technology Co. Ltd.
Share on (1601006090665):
Product Overview
Description
Products Description
LED PACKING LOT LIGHT
Datasheet - 50W/80W/100W/150w -NEW design LED Street Light
A:Technical Parameter | ||||||
Item No. | STL-50W-N08 | STL-100W-N08 | STL-150W-N08 | |||
Led Source | Cree SMD3030 | Cree SMD3030 | Cree SMD3030 | |||
LED Quantity | 96pcs | 192pcs | 288pcs | |||
LED Luminous Efficiency | 145lm/W | 130lm/W | 130lm/W | |||
Color Temperature(CCT) | 2700-6500K | 2700-6500K | 2700-6500K | |||

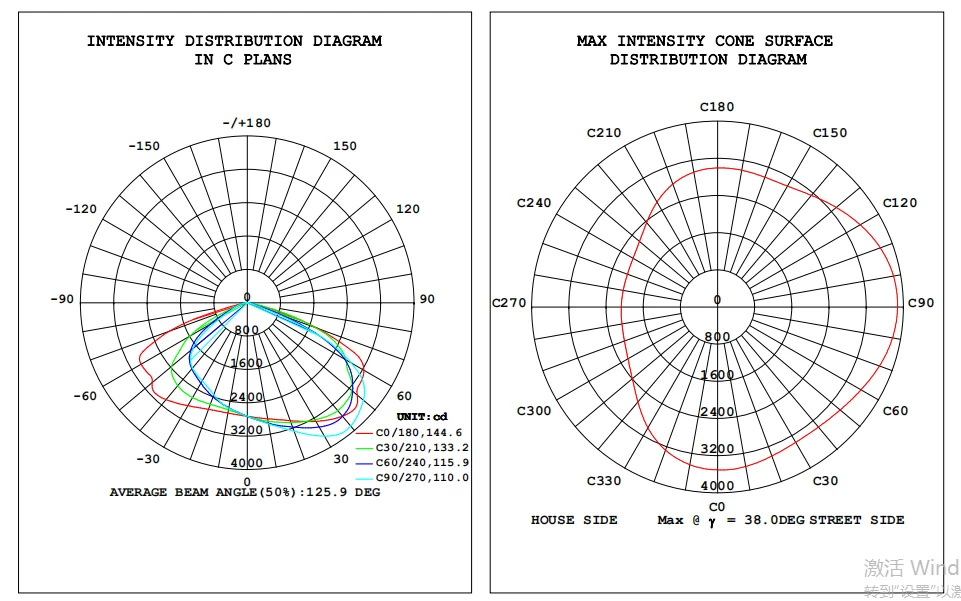

Beam Angle | 80x150°(TYPE III) | 80x150°(TYPE III) | 80x150°(TYPE III) | |||
Color Rendering Index(CRI) | Ra>80 | Ra>80 | Ra>80 | |||
IP Rating | 66 | 65 | 65 | |||

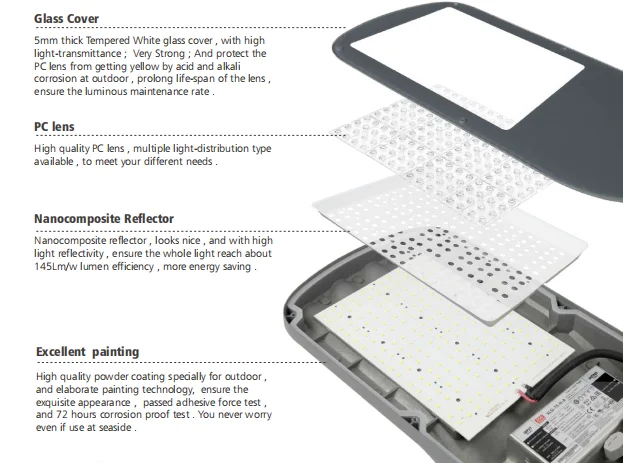

Lens | PC lens | PC lens | PC lens | |||

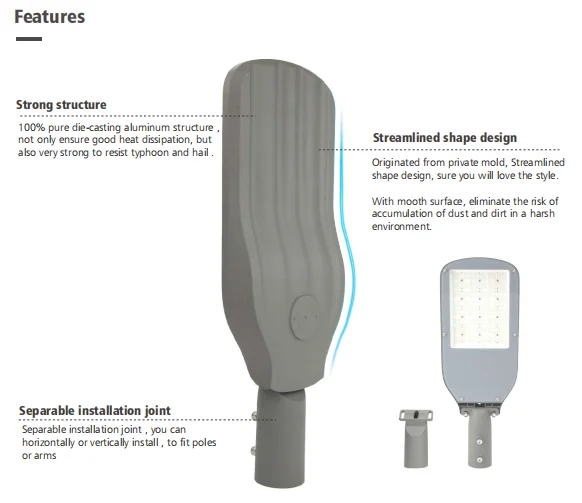

Heat Radiator | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | |||
Warranty | 5 years | 5 years | 5 years | |||
LED Emitter Life | 70,000 Hours | 70,000 Hours | 70,000 Hours | |||
Certificate | CE RoHS, TUV | CE RoHS, TUV | CE RoHS, TUV | |||
B: Mechanical Specification | ||||||
LED Driver Brand | Meanwell driver | Meanwell driver | Meanwell driver | |||
Power | 50W | 100W | 150W | |||
Input voltage: | AC100-240V, 50/60HZ | AC100-240V, 50/60HZ | AC100-240V, 50/60HZ | |||
Power Factor(PF) | >0.90 | >0.90 | >0.90 | |||
Driver efffiency (%) | >92% | >92% | >92% | |||
Total Harmonic Distortion(THD) | <10% | <10% | <10% | |||
Dimmable | Dimmable or non-dimmable is option | Dimmable or non-dimmable is option | Dimmable or non-dimmable is option | |||
C: Environmental Specification | ||||||
Temperature Range Operating | -10℃ to 50℃ | -10℃ to 50℃ | -10℃ to 50℃ | |||
Humidity Range Operating | 10% to 70%RH | 10% to 70%RH | 10% to 70%RH | |||
Product Analysis
Technical Parameters

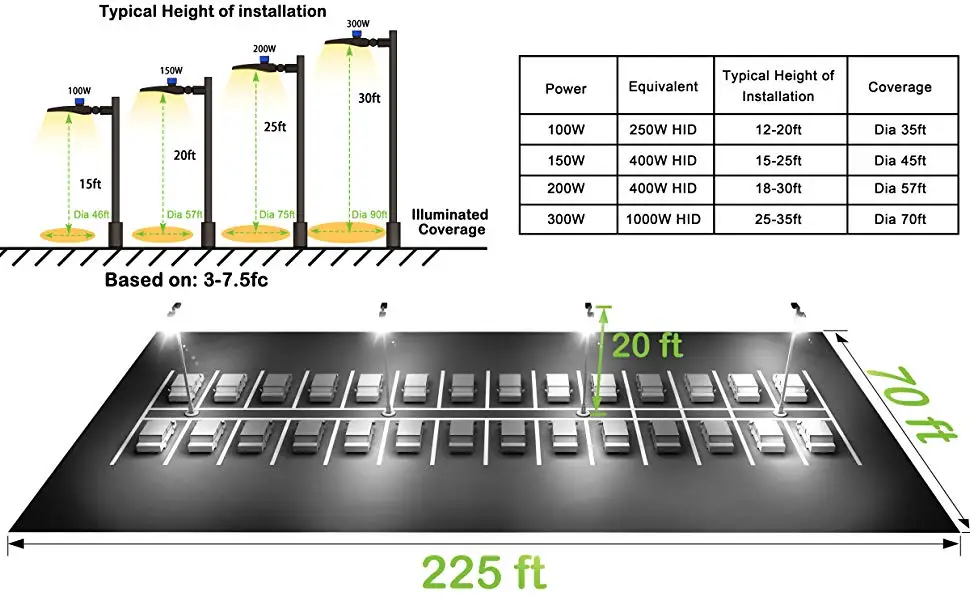

One of the questions that people ask when installing LED lights is related to spacing
* Spacing depends on how high upon you go.
* The higher up you go, the bigger the fixture you can use and the farther spaced out you will be.
* Be careful because going higher can leave a lot of light up high and you can run into code issues and wind problems.
* Every setup is different and requires different planning.
* Retail and sport Court requires brighter, where lightly used back lots require less.One of the questions that people ask when installing LED lights is related to spacing
* Spacing depends on how high upon you go.
* The higher up you go, the bigger the fixture you can use and the farther spaced out you will be.
* Be careful because going higher can leave a lot of light up high and you can run into code issues and wind problems.
* Every setup is different and requires different planning.
* Retail and sport Court requires brighter, where lightly used back lots require less.One of the questions that people ask when installing LED lights is related to spacing

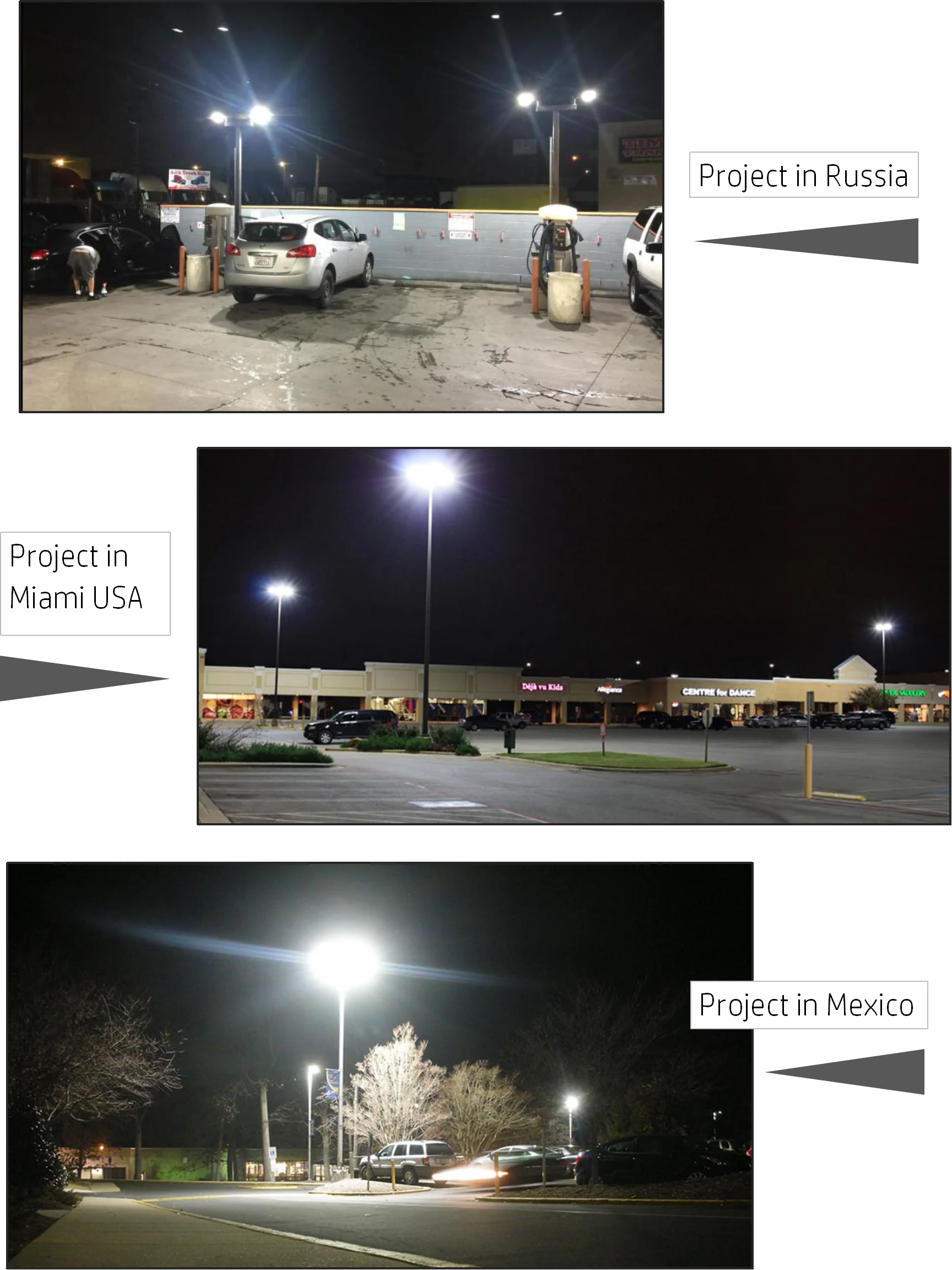

Project Case
Application:Parking Lot lighting, outdoor lighting, wall lighting area street lighting, Bridge, Square Lighting,Car Park, Highway, Stadium, Highway Lighting, Petrol Station, lighting parks, parking lots, campuses, walkways, side roads,etc

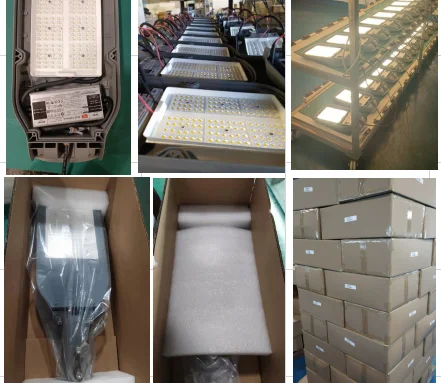

Bulk Order
