YQ 70 High Quality Small Hydraulic Crimping Tool Cable Terminal Lug Crimping Clamp
- Category: >>>
- Supplier: Yueqing Derui Tools Co. Ltd.
Share on (1601006117775):
Product Overview
Description

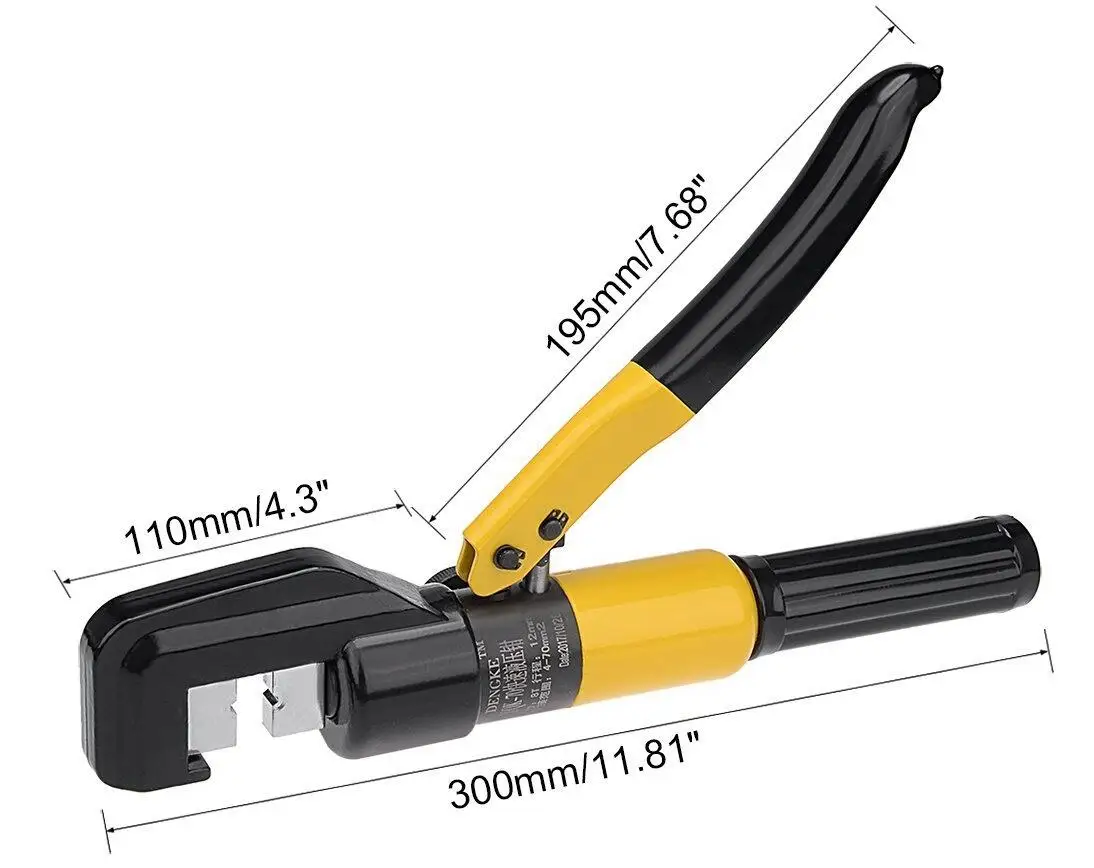

YQ-70 Hydraulic crimping Cable Terminal Tool
Product Detail
- Crimps AWG 12 to 2/0 size aluminum and copper wire

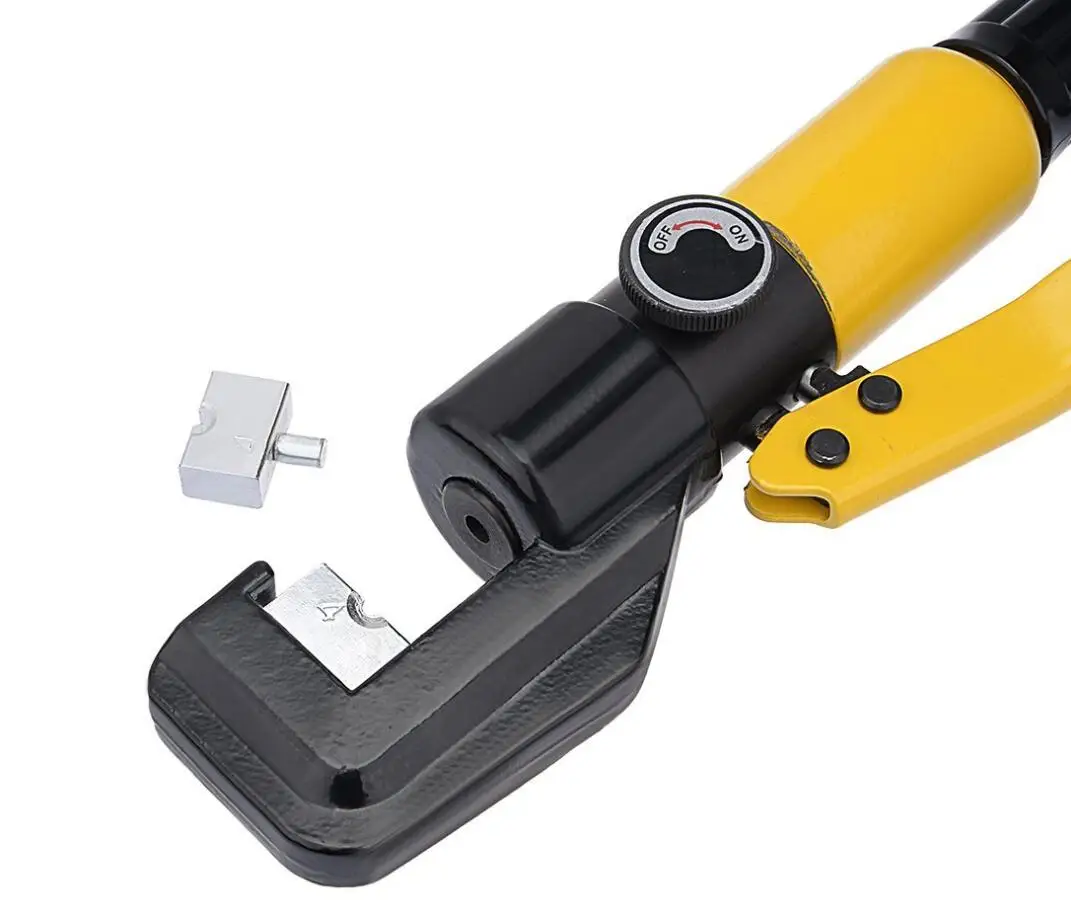

- Dies can be changed quickly and hassle-free
- Vinyl-dipped grip for comfort and easy control
- Fast tool operation and ram retraction. Improved tool balance

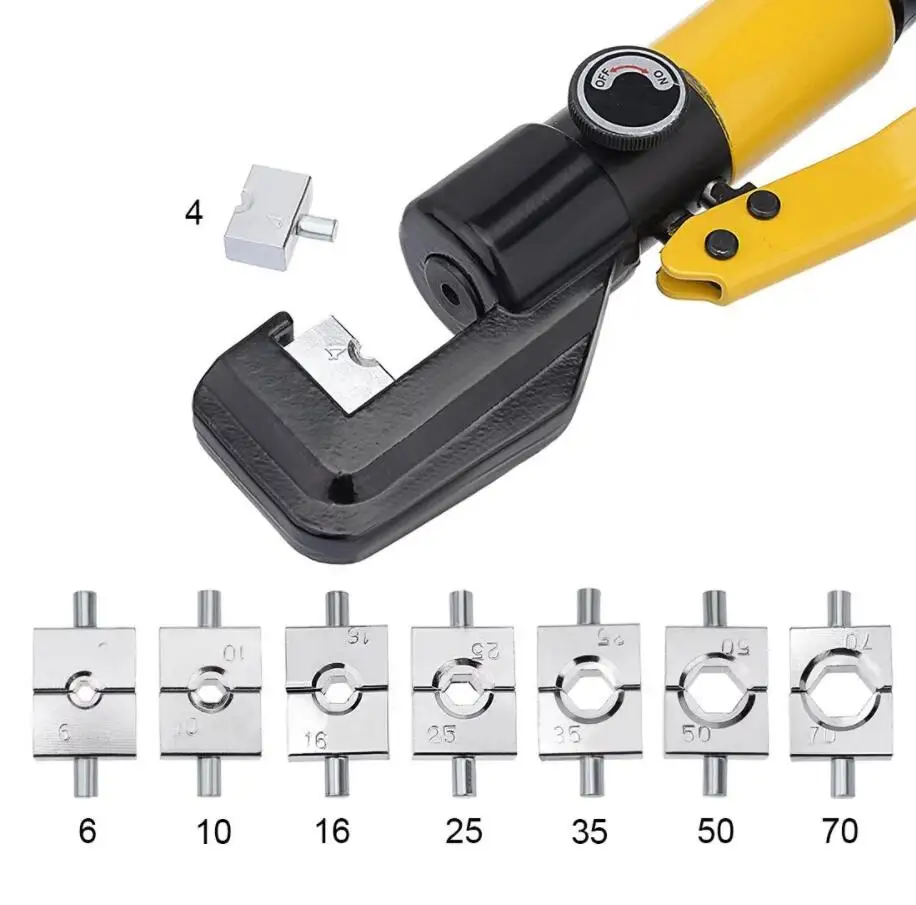

- Includes 9 pairs of the largest hexagon crimping dies
| parameters | |
| Product Name | cable lug crimping tool |
| Material | Carbon Steel |
| Color | Yellow, Red, Blue,Black |
| Certificate | ROHS, CE, ISO9001 |
| Model | CPO-150S | YQ-70 | EP-430 |
| range of application | 8-100mm2(AL terminal)/16-150mm2(cu terminal) | 6-70mm2(AL terminal)/6-70mm2(cu terminal) | 35-300mm2(AL terminal)/50-400mm2(cu terminal) |
| crimping force | 10 ton | 6 ton | 12 ton |
| stroke | 14mm | 10mm | 32mm |
| standard dies | female dies (male dies):16,25,35,50,70,95,120,150mm2 | female dies (male dies):8-38,60-70/female dies :14-22,38-60,70mm2 | 50,70,95,120,150,185,240,300,400mm2 |
| weight | 4.8kg | 2.5kg | 6.4kg |
| packing size | 545*130*235mm | 545*130*235mm | 755*130*230mm |
| package | plastic case | plastic case | plastic case |
Packing and shipping
1.Trade Items Of Products
| Payment | Paypal,T/T,Western Union |
| Port | Shanghai or Ningbo |
| MOQ | 1PC |
| Supply Ability | 1000pieces/Month |
| OEM | Accept |
| Delivery | A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport | |
| C.By Sea: 20-25 Working days at appointed port |
2.Packaging Of Products
A. Common Packing: Certain Pcs + Blister card + Export Carton
B. Customized Packing: OEM Label,Blister Card,Inner Box, etc.
-Click To Learn More Packing Details-
