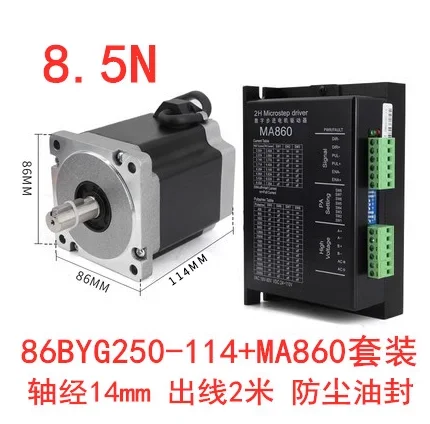

86 stepper motor set 8.5NM stepper motor 86BYG250D with driver MA860H Axle diameter 14mm
- Category: >>>
- Supplier: Hunan Austan Machinery Co. Ltd.
Share on (1601006162282):
Product Overview
Description
86 stepper motor set 8.5NM stepper motor 86BYG250D with driver MA860H length 118MM
86 stepper motor package parameters:

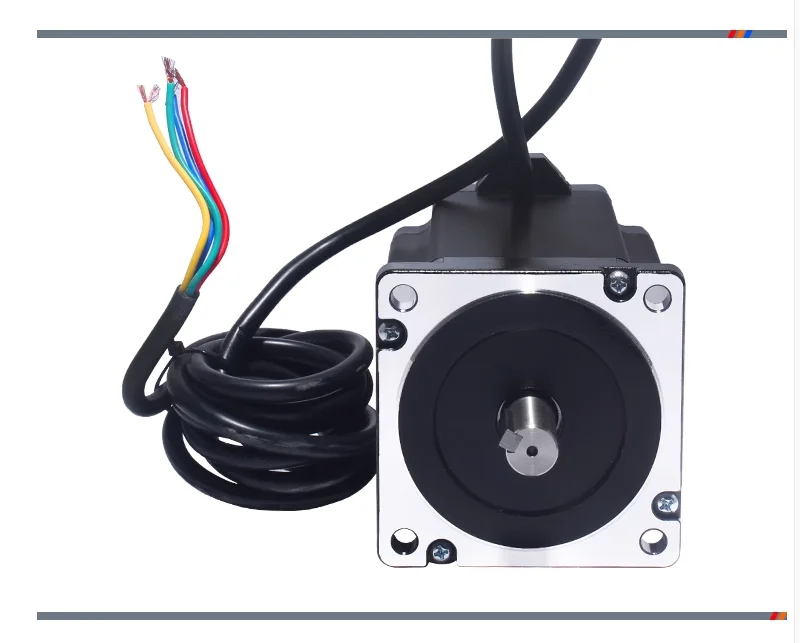

Motor model parameters : 86BYG250D (motor cable length 1.5 meters)

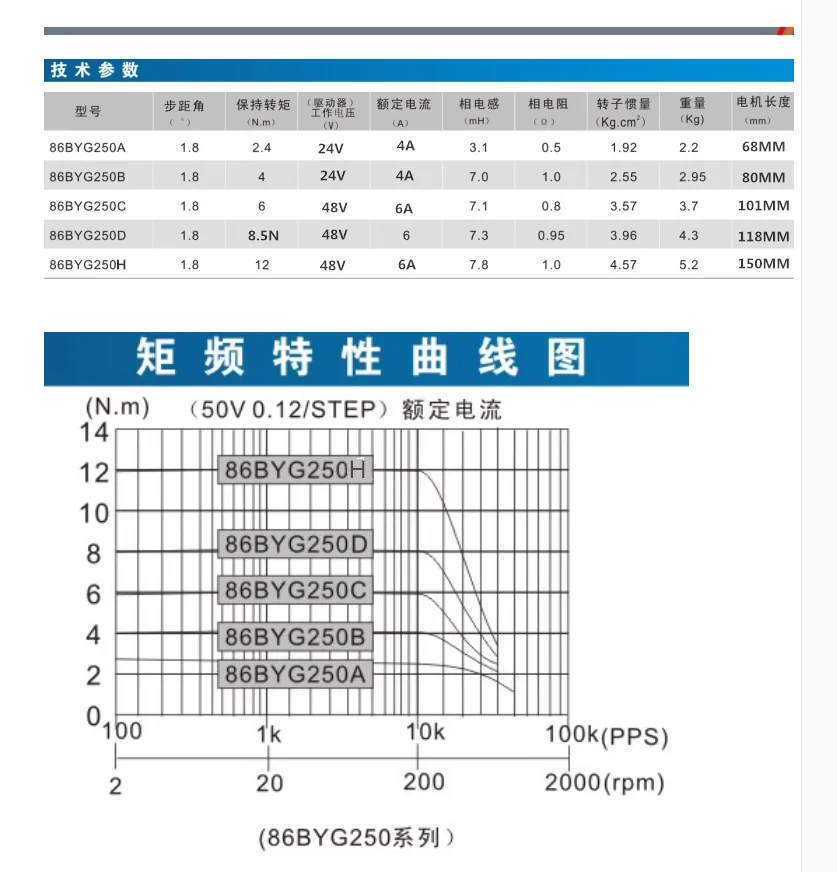

Speed : Torque decreases above 200 rpm per minute, 500-600 rpm

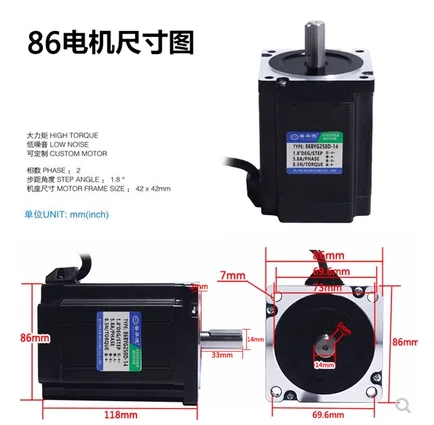

Body length : 118mm Output torque : 8.5Nm
Shaft diameter : 14MM keyway 5MM shaft output mode : single output shaft
Motor current : 5.8A Motor temperature resistance : below 85 degrees
Outlet mode : two-phase four-wire (red wire A+, green wire A+, yellow wire B+, blue wire B-)
2: Drive parameters
Motor model parameters : 86BYG250D (motor cable length 1.5 meters)
Speed : Torque decreases above 200 rpm per minute, 500-600 rpm
Body length : 118mm Output torque : 8.5Nm
Shaft diameter : 14MM keyway 5MM shaft output mode : single output shaft
Motor current : 5.8A Motor temperature resistance : below 85 degrees
Outlet mode : two-phase four-wire (red wire A+, green wire A+, yellow wire B+, blue wire B-)
2: Drive parameters
Product Description

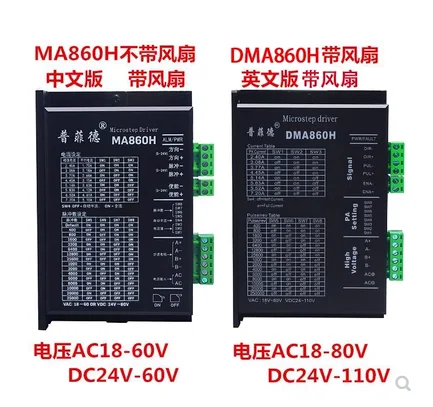

1. Driver parameter model : MA860H (with fan, Pfeide trademark)
Pulse signal : 3.3V/5V/24V compatible. No channeling resistor required
Input voltage : AC18V-60V, DC24V-80V
Subdivision setting : 400-25600 subdivision
Micro-steps are subdivided into 14 types, the number of steps is 25600 steps/revolution; the current range is 2.0A-7.2A, and it has half-current, overvoltage, overcurrent and other protection circuits. This driver is powered by AC and DC, and the working range is AC18V-60V, DC24V-80V.
Using imported components, it is stable and durable, has strong anti-interference , smooth acceleration and high cost.
2. Driver parameter model : DMA860H (with fan, Pfield trademark)
Pulse signal : 3.3V/5V/24V compatible. No channeling resistor required
Pulse signal : 3.3V/5V/24V compatible. No channeling resistor required
Input voltage : AC18V-60V, DC24V-80V
Subdivision setting : 400-25600 subdivision
Micro-steps are subdivided into 14 types, the number of steps is 25600 steps/revolution; the current range is 2.0A-7.2A, and it has half-current, overvoltage, overcurrent and other protection circuits. This driver is powered by AC and DC, and the working range is AC18V-60V, DC24V-80V.
Using imported components, it is stable and durable, has strong anti-interference , smooth acceleration and high cost.
2. Driver parameter model : DMA860H (with fan, Pfield trademark)
Pulse signal : 3.3V/5V/24V compatible. No channeling resistor required
Input voltage : AC18V-80V, DC24V-110V
Subdivision setting : 400-25600 subdivision
Micro-steps are subdivided into 16 types, the number of steps is 25600 steps/revolution; the current range is 2.0A-7.2A, and it has half-current, overvoltage, overcurrent and other protection circuits. This driver is powered by AC and DC, and the working range is AC18V-80V, DC24V-80V.
Subdivision setting : 400-25600 subdivision
Micro-steps are subdivided into 16 types, the number of steps is 25600 steps/revolution; the current range is 2.0A-7.2A, and it has half-current, overvoltage, overcurrent and other protection circuits. This driver is powered by AC and DC, and the working range is AC18V-80V, DC24V-80V.

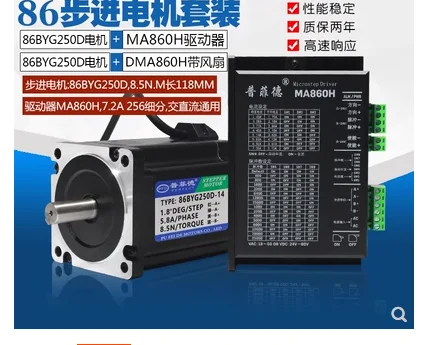

86 stepper motor 86BYG250D + driver MA860H set
MA 860 H-DSP driver mainly drives 57 and 86 type two-phase hybrid stepper motors. Micro-steps are subdivided into 14 types, the number of steps is 51200 steps/revolution; the operating peak current range is 2.4A-7.2A, there are 8 types of output current, and the current resolution is about 0.7A; it has half-current, over-voltage, and over-current and other protection circuits. This driver is powered by AC and DC, and the working range is AC18V-60V, DC24V-80V.
Interface Description
Interface Description
Features
1. Brandnew 32-bit DSP technology
2. Motorhas low vibration and noise
3. Parameter automatic vibration power
4. Built-in high subdivision, running very smoothly at low speed.
5. Precision current control reduces motor heating
6. With overvoltage, undervoltage, short circuit and other protection functions
7. The current is automatically halved when stationary
8. Optocoupler isolation differential signal input
Application areas
Suitable for various medium and large automation equipment, such as engraving machines, cutting machines, packaging machinery,
electronic processing equipment, automatic assembly equipment, etc. The application effect is particularly good in equipment with low noise and high speed.
Parameter settings

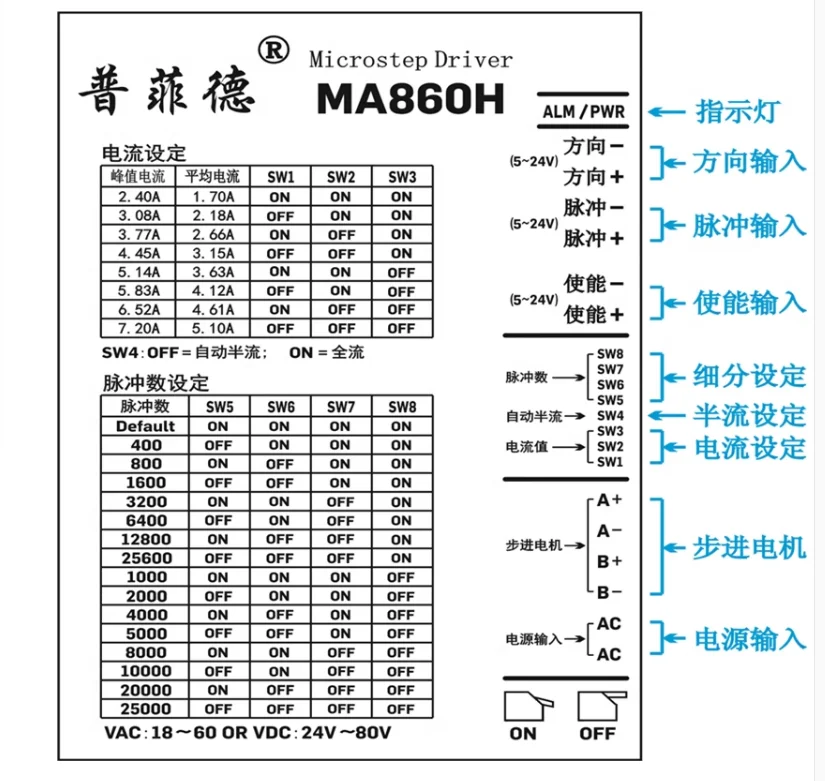

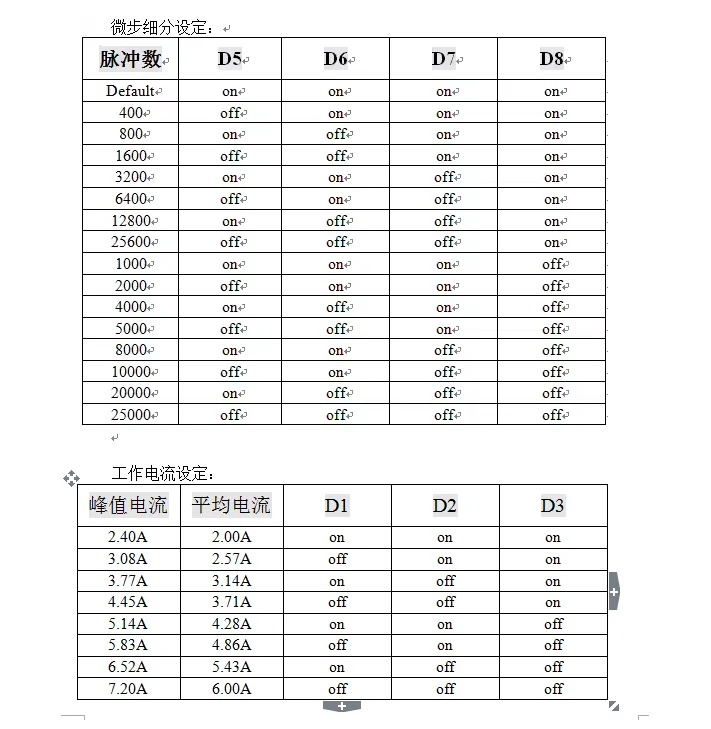

MA86 0 H uses an 8 -bit thin code switch to set subdivision accuracy, dynamic current, single and double pulses and half / full flow. The detailed description is as follows:
Microstep subdivision settings:
1. Brandnew 32-bit DSP technology
2. Motorhas low vibration and noise
3. Parameter automatic vibration power
4. Built-in high subdivision, running very smoothly at low speed.
5. Precision current control reduces motor heating
6. With overvoltage, undervoltage, short circuit and other protection functions
7. The current is automatically halved when stationary
8. Optocoupler isolation differential signal input
Application areas
Suitable for various medium and large automation equipment, such as engraving machines, cutting machines, packaging machinery,
electronic processing equipment, automatic assembly equipment, etc. The application effect is particularly good in equipment with low noise and high speed.
Parameter settings
MA86 0 H uses an 8 -bit thin code switch to set subdivision accuracy, dynamic current, single and double pulses and half / full flow. The detailed description is as follows:
Microstep subdivision settings:
Control signal interface circuit

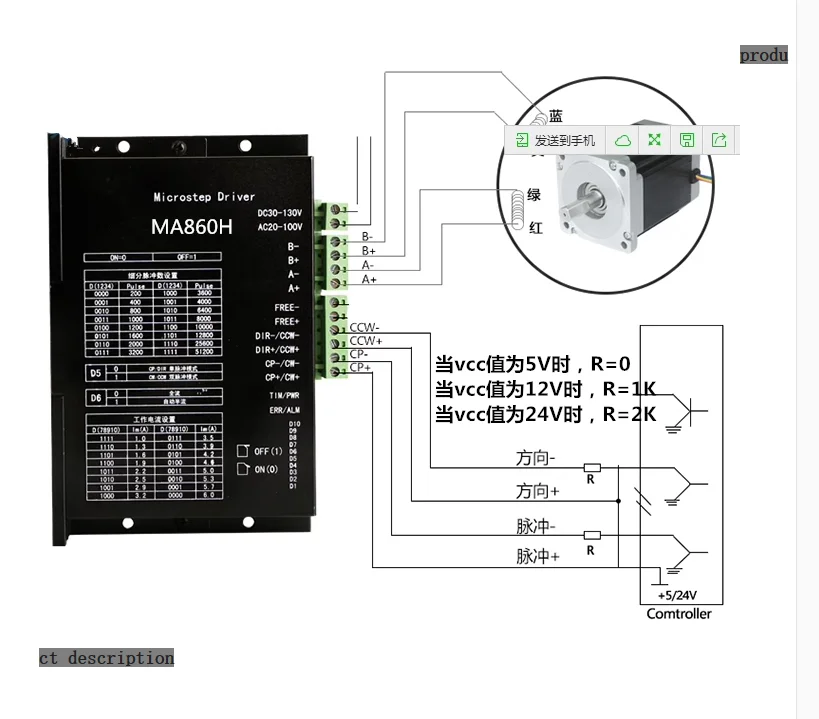

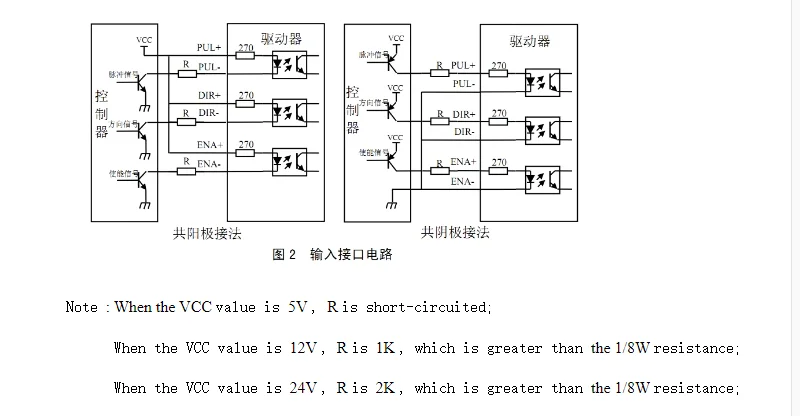

The MA860H-DSP driver adopts a differential interface circuit that can be used for differential signals, single-ended common cathode and common anode interfaces, and has a built-in high-speed photocoupler, allowing it to accept signals from long lines,open collectors and PNP output circuits. Now taking open collector and PNP output as an example, the interface circuit diagram is as follows:
The MA860H-DSP driver adopts a differential interface circuit that can be used for differential signals, single-ended common cathode and common anode interfaces, and has a built-in high-speed photocoupler, allowing it to accept signals from long lines,open collectors and PNP output circuits. Now taking open collector and PNP output as an example, the interface circuit diagram is as follows:

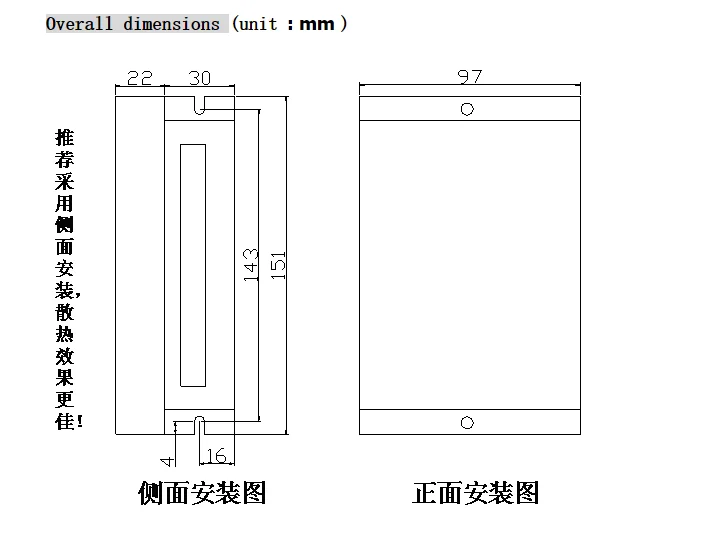

Specification
Drive model | MA860H with fan |
Pulse signal | 3.3V/5V/24V compatible |
Power supply | AC18-60v，DC24-80V |
Current setting | 2A-7.2A |
Segmentation settings | 400-25600 |
Configuration | Drive without fan |
support | single pulse |
Anti-interference | Enhanced |
Color | Black |
sample | yes |
MOQ | 3set |
