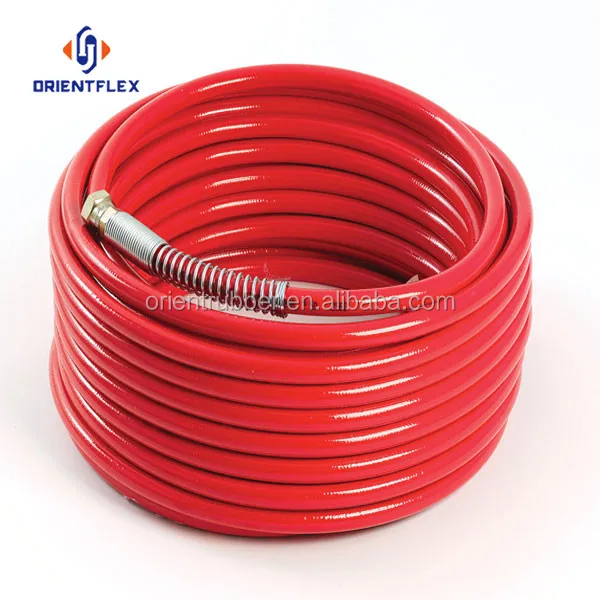

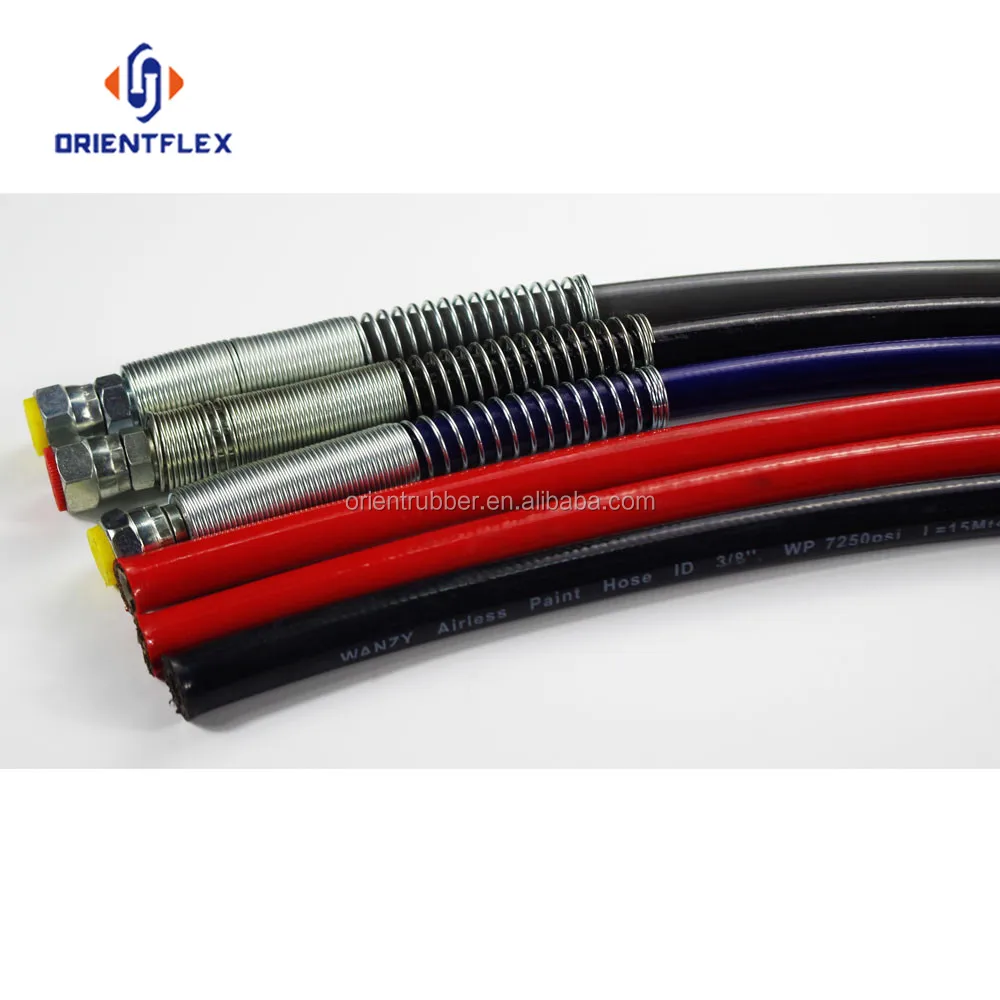

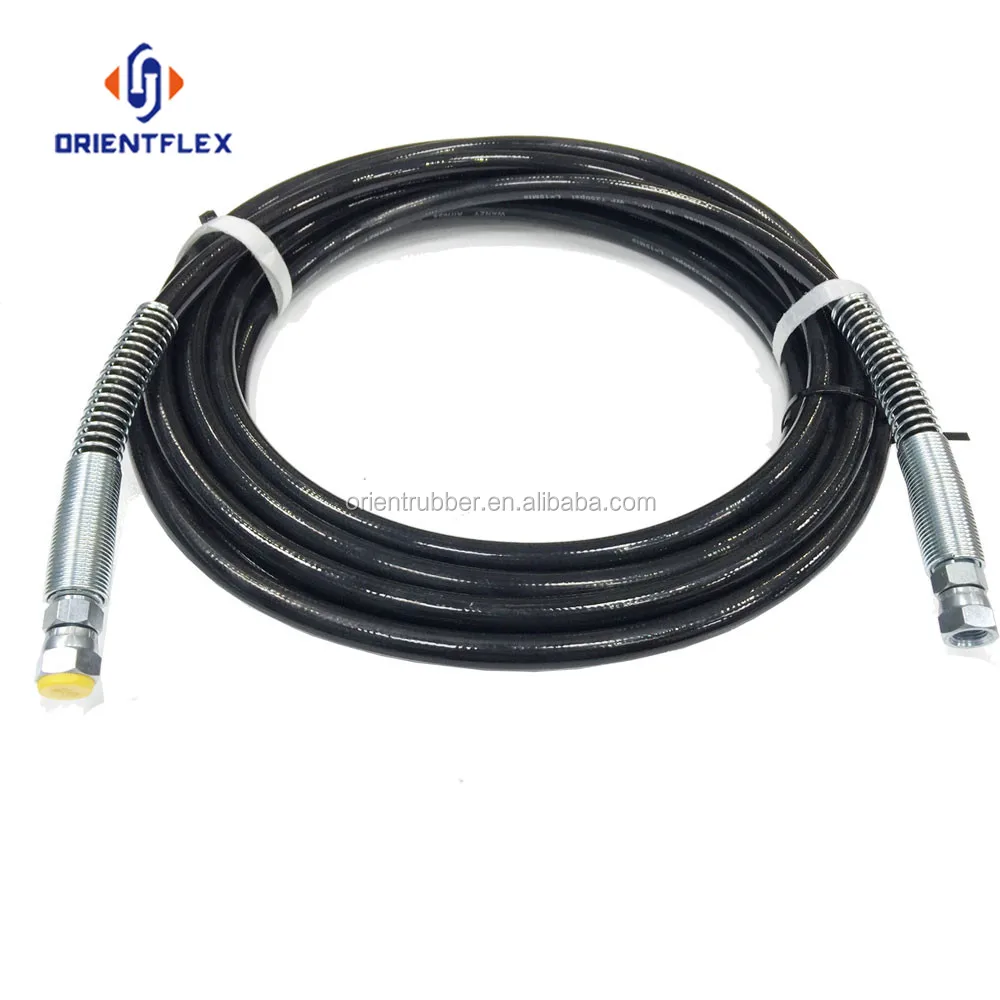

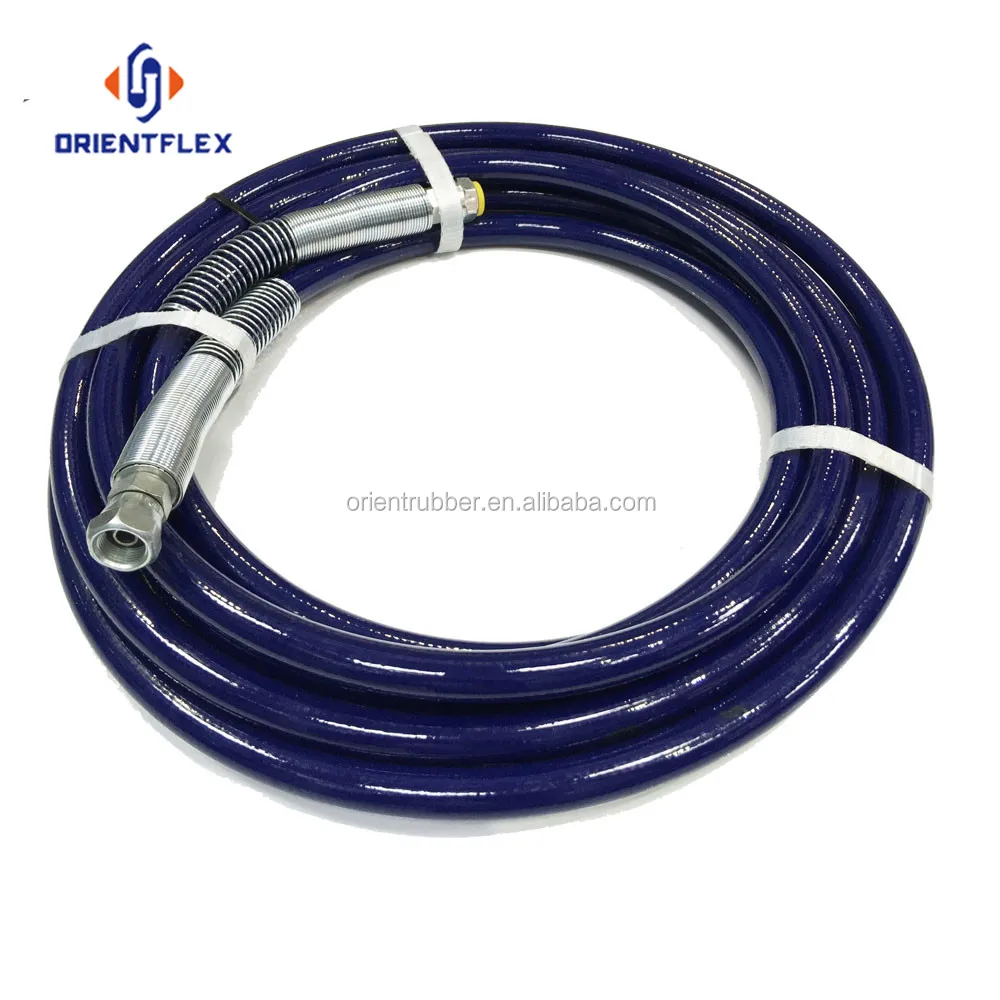

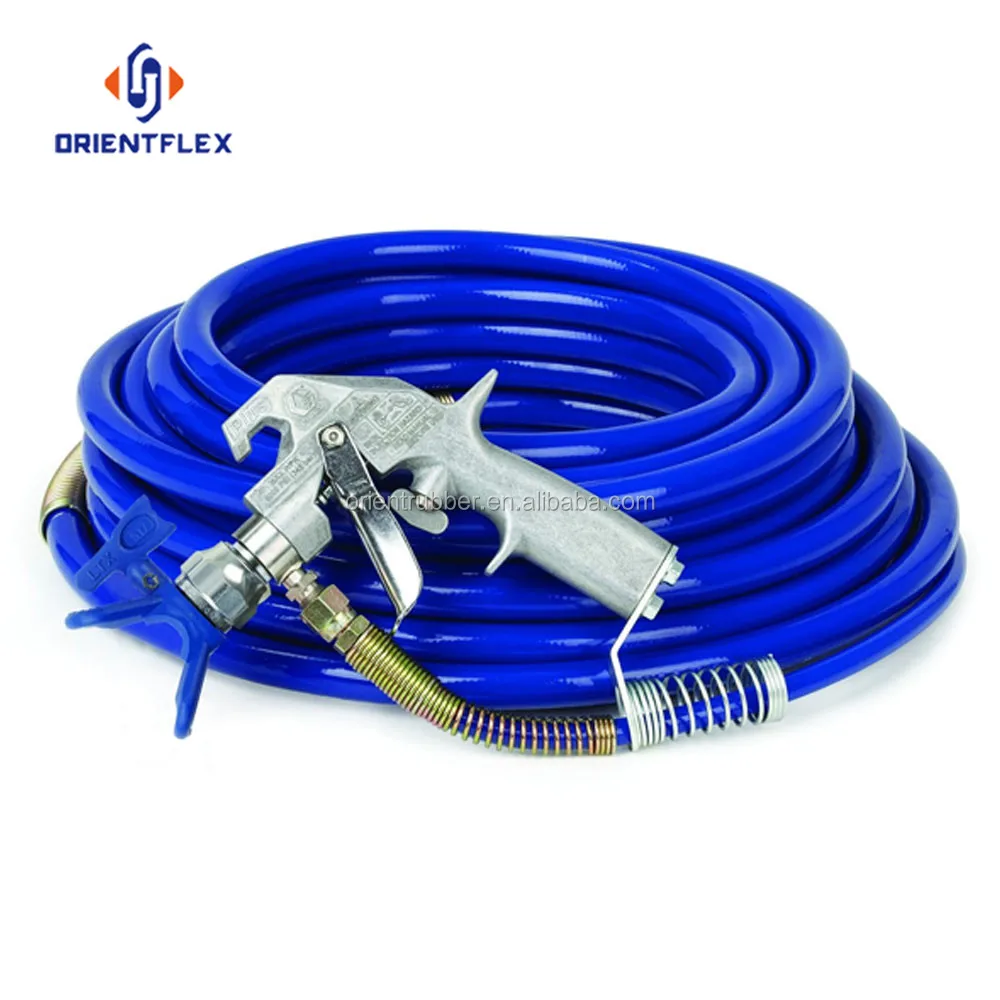

High Pressure Airless Spray Paint Rubber Hose For Paint
- Category: >>>
- Supplier: Hebei Orient Adma Tech Group Co. Ltd.
Share on (1601006169836):
Product Overview
Description

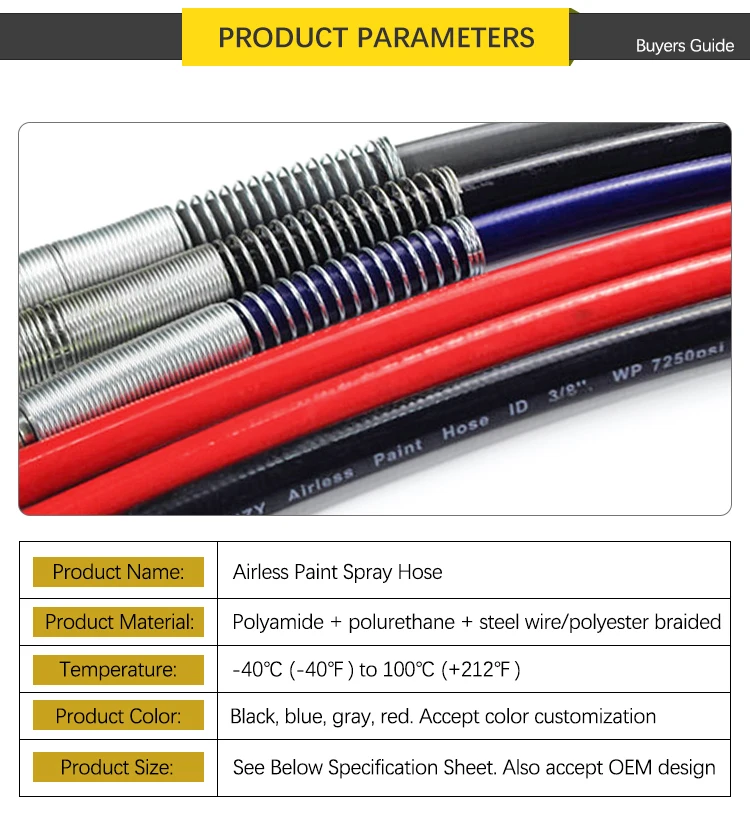

Construction:
Tube: internal core in polyamide
Reinforcement: Multi plies high tensile steel wire braid or polyester yarn braid,
Cover:polurethane, blue,black,red,grey
Characteristics:
High abrasion resistance cover
High pressrue Max W.P.50Mpa
Chemical and solvents resistant
| Item code | I.D | O.D | W.P | B.P | Bend R | Wt | ||||
| mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m | |
| SPSH0061 | 6.4 | 1/4 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 |
| SPSH0062 | 6.4 | 1/4 | 14.0 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 |
| SPSH0063 | 6.4 | 1/4 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 |
| SPFH0081 | 8.0 | 5/16 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 |
| SPSH0082 | 8.0 | 5/16 | 15.0 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 |
| SPSH0083 | 8.0 | 5/16 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 |
| SPSH0101 | 9.5 | 3/8 | 16.0 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 |
| SPSH0102 | 9.5 | 3/8 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 |
| SPSH0103 | 9.5 | 3/8 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.40 |
