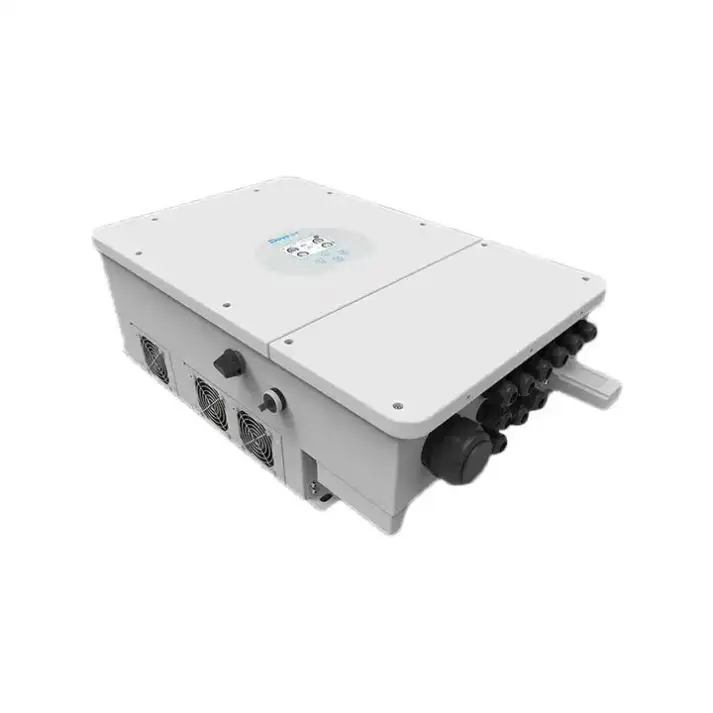

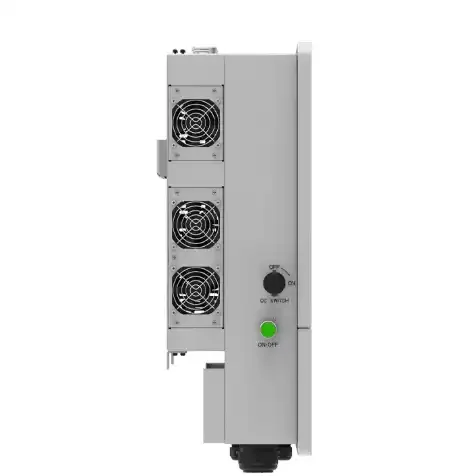

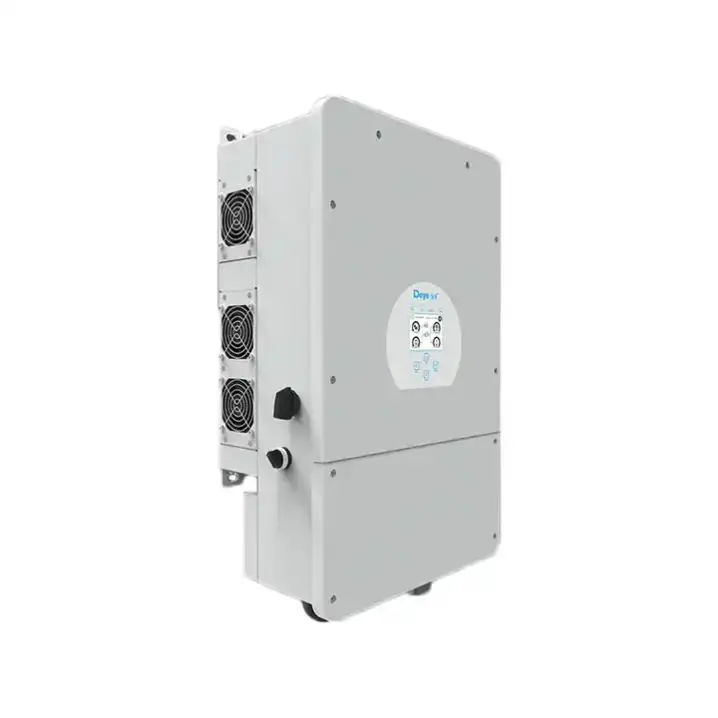

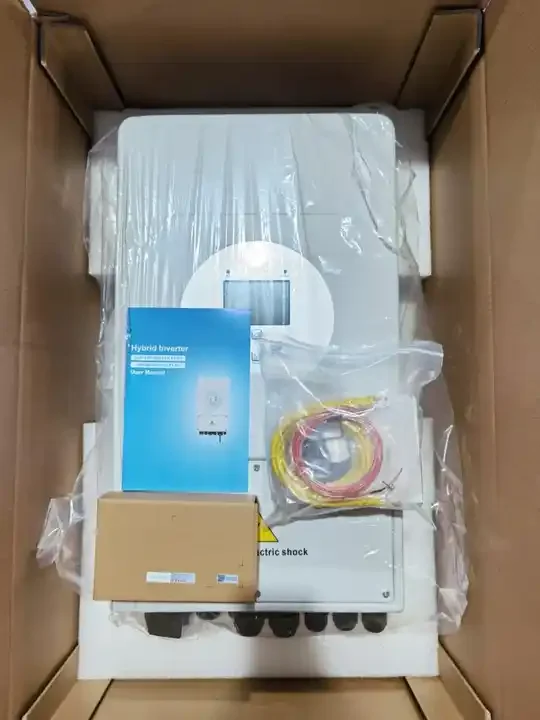

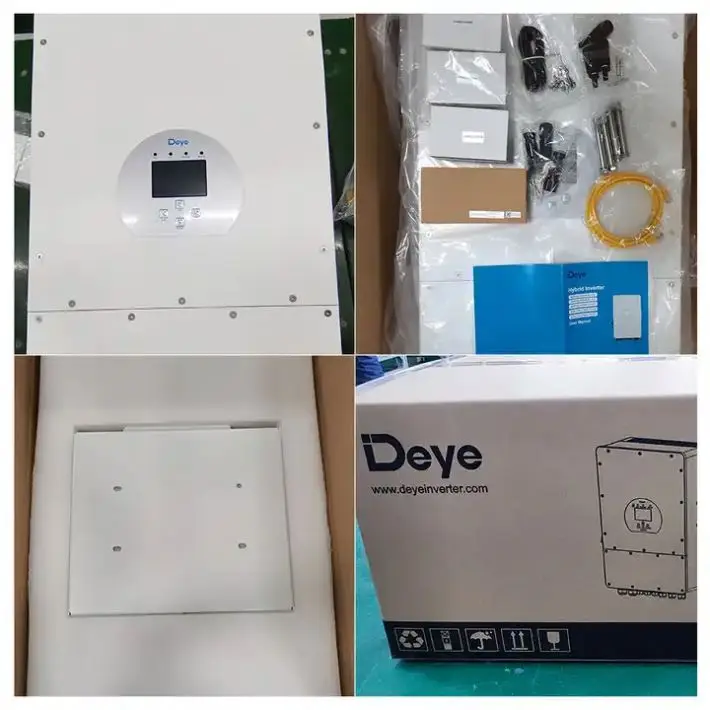

New Product Sun 6K Sg03lp1 Eu
- Category: >>>
- Supplier: Jiangsu Yulong photoelectric new energy Co. Ltd
Share on (1601006190884):
Product Overview
Description
Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Lithium-ion | |||||
Battery Voltage Range(V) | 40~60 | |||||
Max.Charging Current(A) | 90 | 120 | 135 | |||
Max.Discharging Current(A) | 90 | 120 | 135 | |||
External Temperature Sensor | Yes | |||||
Charging Curve | 3 Stages/Equalization | |||||
Charging Strategy for Li-lon Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max.DC Input Power(W) | 4680 | 6500 | 7800 | |||
Rated PV Input Voltage(V) | 370(125~500) | |||||
Start-up Voltage(V) | 125 | |||||
MPPT Voltage Range(V) | 150-425 | |||||
Full Load DC Voltage Range(V) | 300-425 | |||||
PV Input Current(A) | 13+13 | |||||
Max.PV lsc(A) | 17+17 | |||||
No.of MPP Trackers | 2 | |||||
No.of Strings per MPP Tracker | 1 | |||||
AC Output Data | ||||||
Rated AC Output and UPS Power(W) | 3600 | 5000 | 6000 | |||
Max.AC Output Power(W) | 3960 | 5500 | 6600 | |||
AC Output Rated Current(A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | |||
Max.AC Current(A) | 18/17.2 | 25/23.9 | 30/28.7 | |||
Max.Continuous AC Passthrough(A) | 35 | 40 | ||||
Peak Power(off grid) | 2 time of rated power,10s | |||||
Power Factor | 0.8 leading to 0.8 lagging | |||||
Output Frequency and Voltage | 50/60Hz, L/N/PE 220/230Vac(single phase) | |||||
Grid Type | Single Phase | |||||
Total Harmonic Distortion(THD) | <3%(of nominal power) | |||||
DC current injection | <0.5% In | |||||
Efficiency | ||||||
Max.Efficiency | 97.60% | |||||
Euro.Efficiency | 96.50% | |||||
MPPT.Efficiency | 99.90% | |||||
