Roller glass coating machine
US $10000-$13000
Factory 1 Year Warranty Double Glazing Machine Insulated Glass Processing Machinery Automatic Insulating Glass Sealing Robot
- Category: >>>
- Supplier: Jinan Wondec Machinery Co. Ltd.
Share on (1601006195285):
Product Overview
Description
*This machine is conventional type,
the specific price is subject to the actual configuration and negotiation.
FOR CUSTOMIZATION, PLEASE CONTACT US.
Products Description

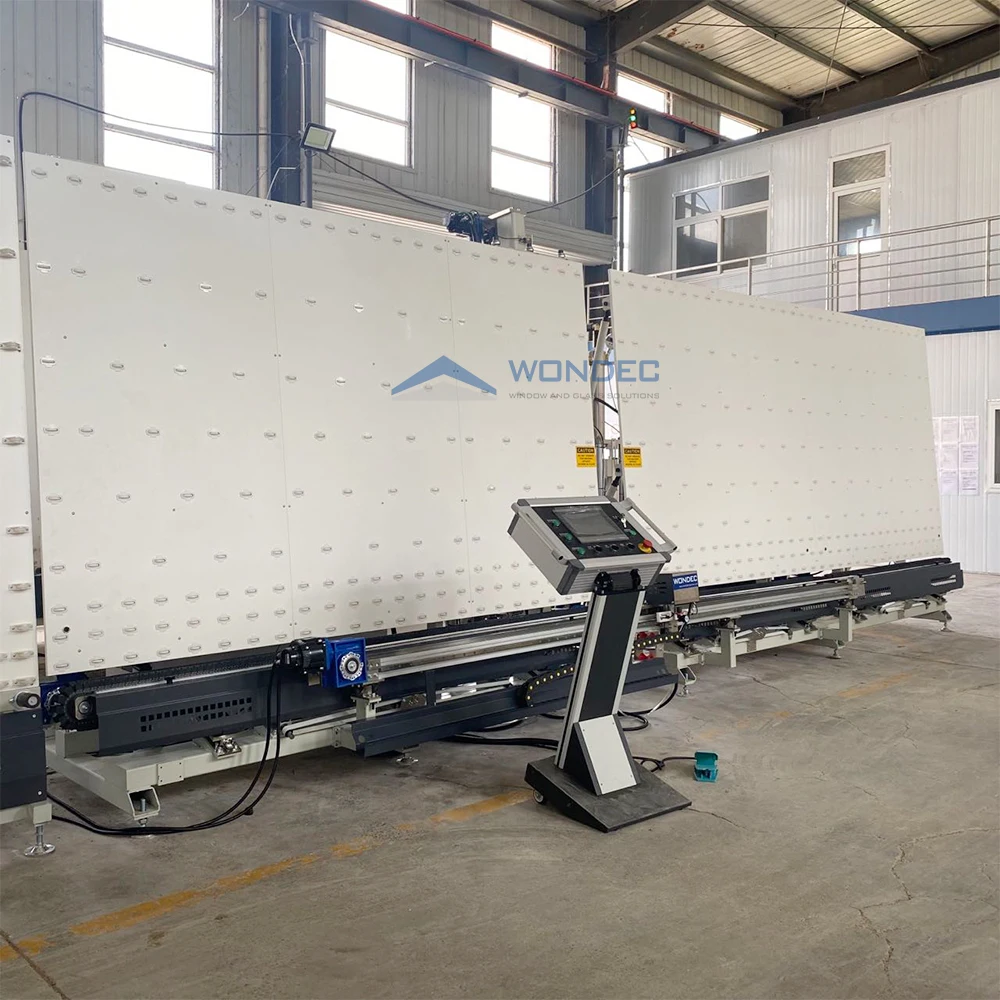

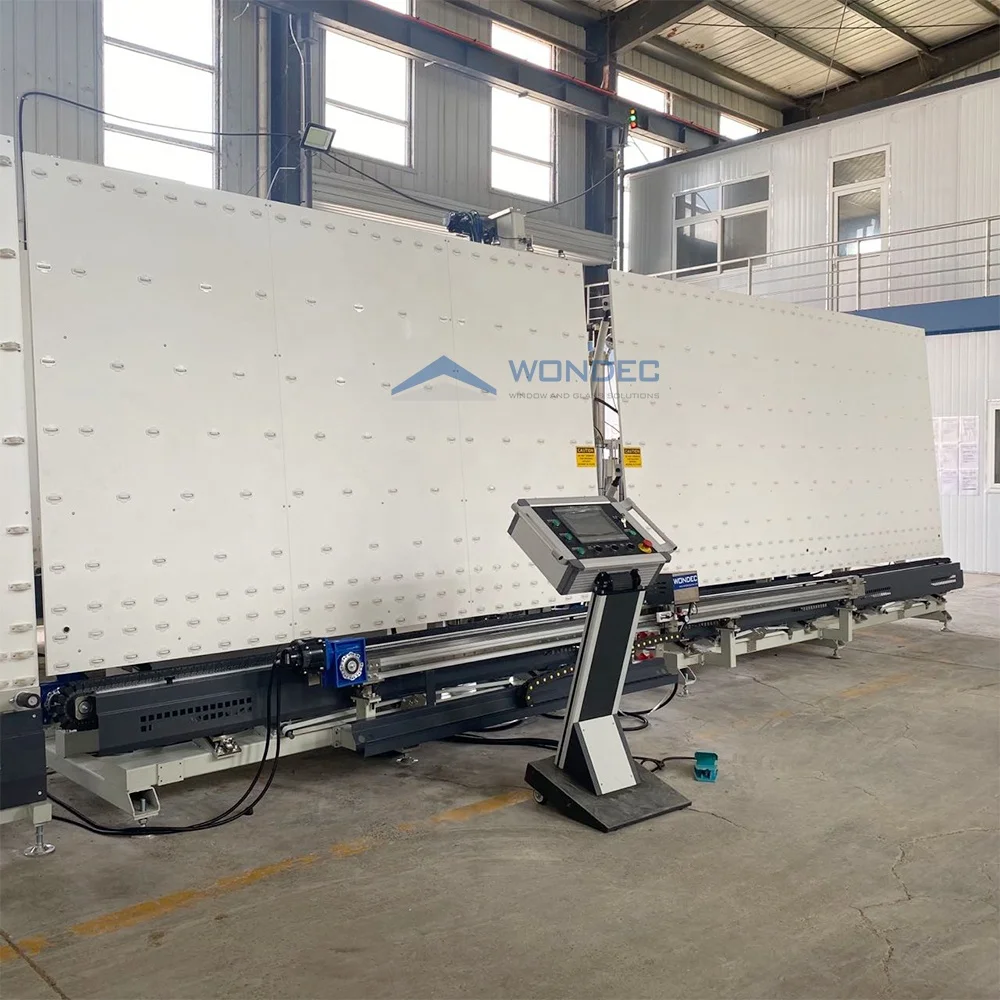

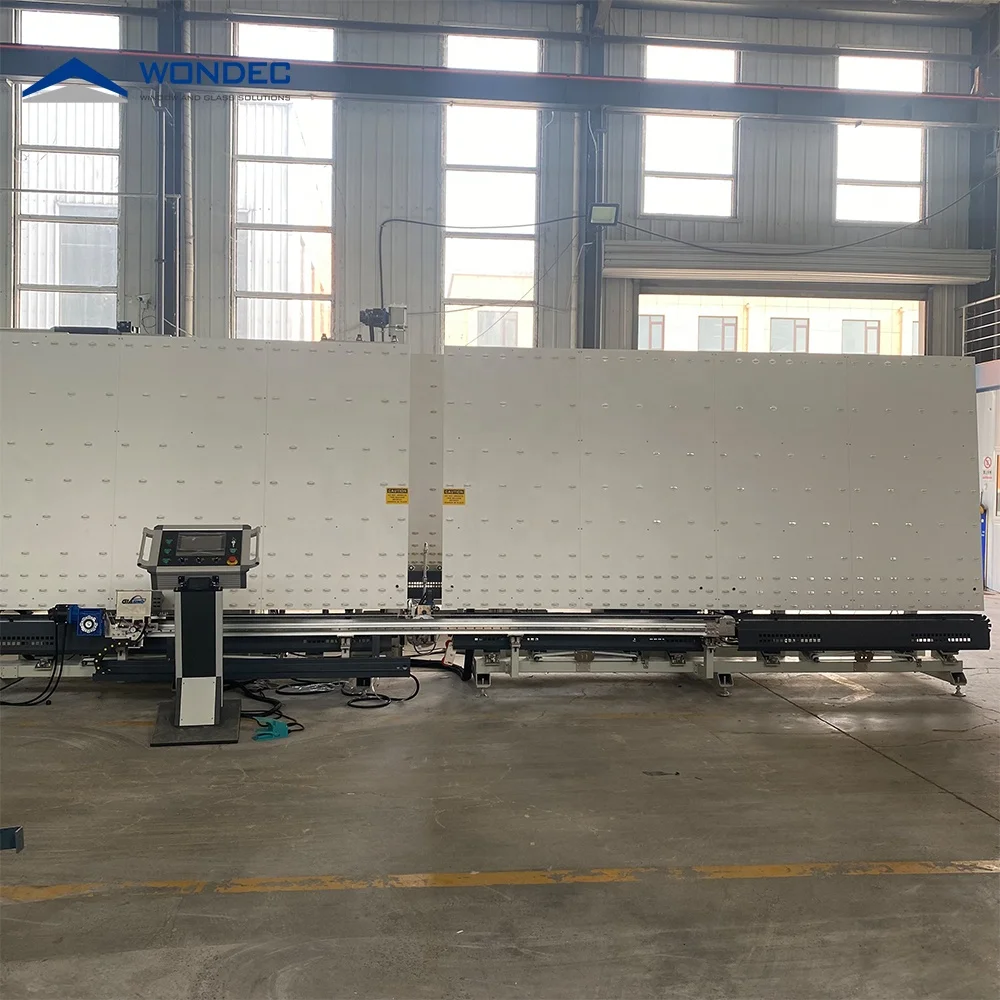

High Quality Automatic Vertical CNC Insulating Glass Sealing Robot for Double Glazing Glass Processing

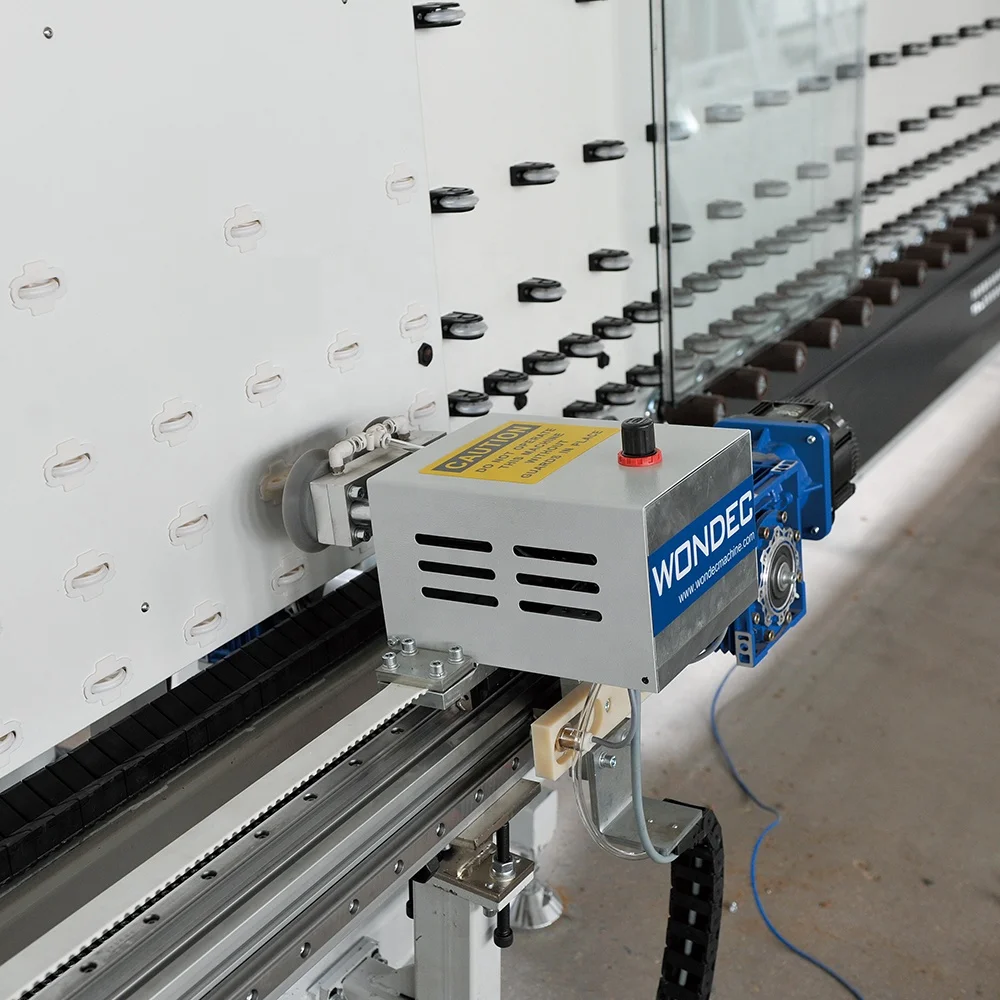

Servo motor driven automatic glass sealing robot carries out the final sealing of the insulated glass units, providing accurate sealing of the angles and assuring high operating speed. With its robotic structure, the machine automatically can seal double, triple and step glasses with maximum quality.
Realize the connection with the IG line, automatically read the production data of the IG line, including glass thickness, aluminum spacer specification, glass size, etc., no need to input the data by manual.

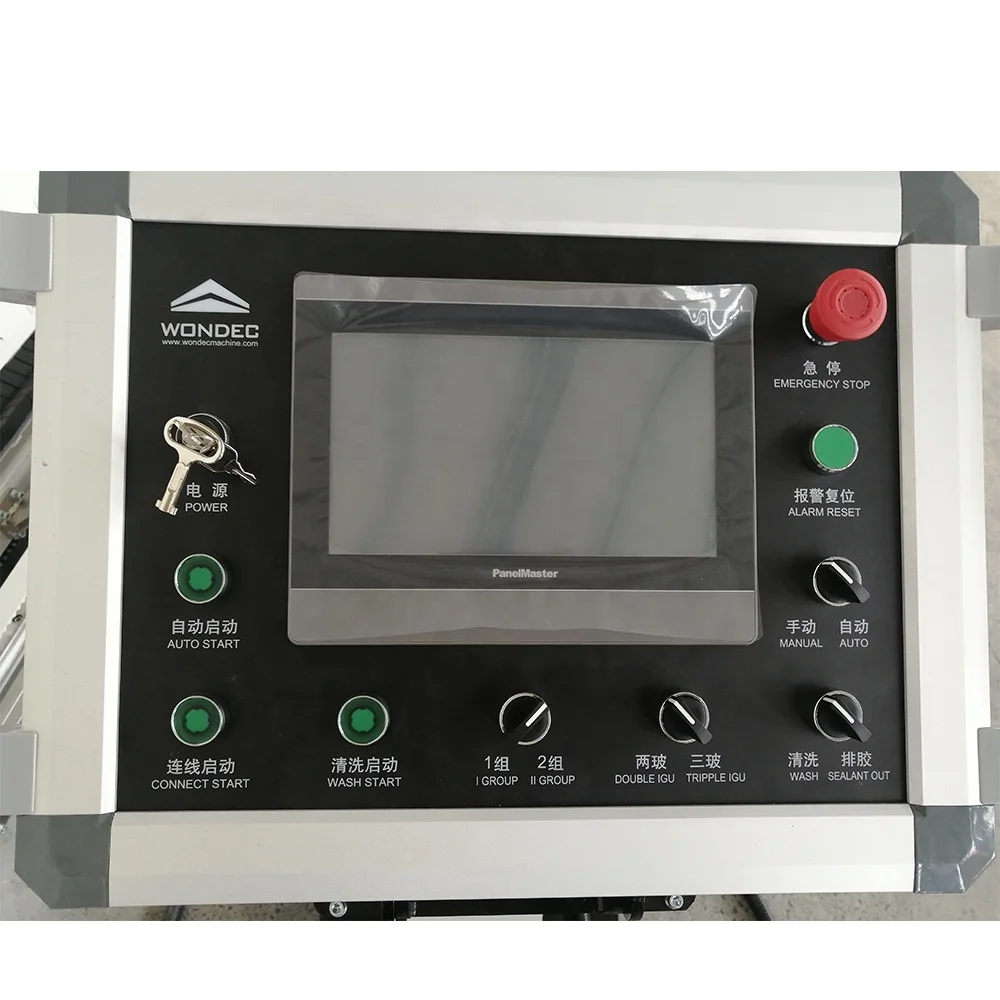

* Touch screen interface, manual operation and fault diagnosis can be realized.
Automatic sealant discharging function to avoid the pipeline blockage caused by human factors.
Automatic sealant discharging function to avoid the pipeline blockage caused by human factors.
* The program has memory function, and different types of glass parameters can be called with one key.
* Equipped with high speed positioning function, the glass can be accurately positioned during high speed transmission.

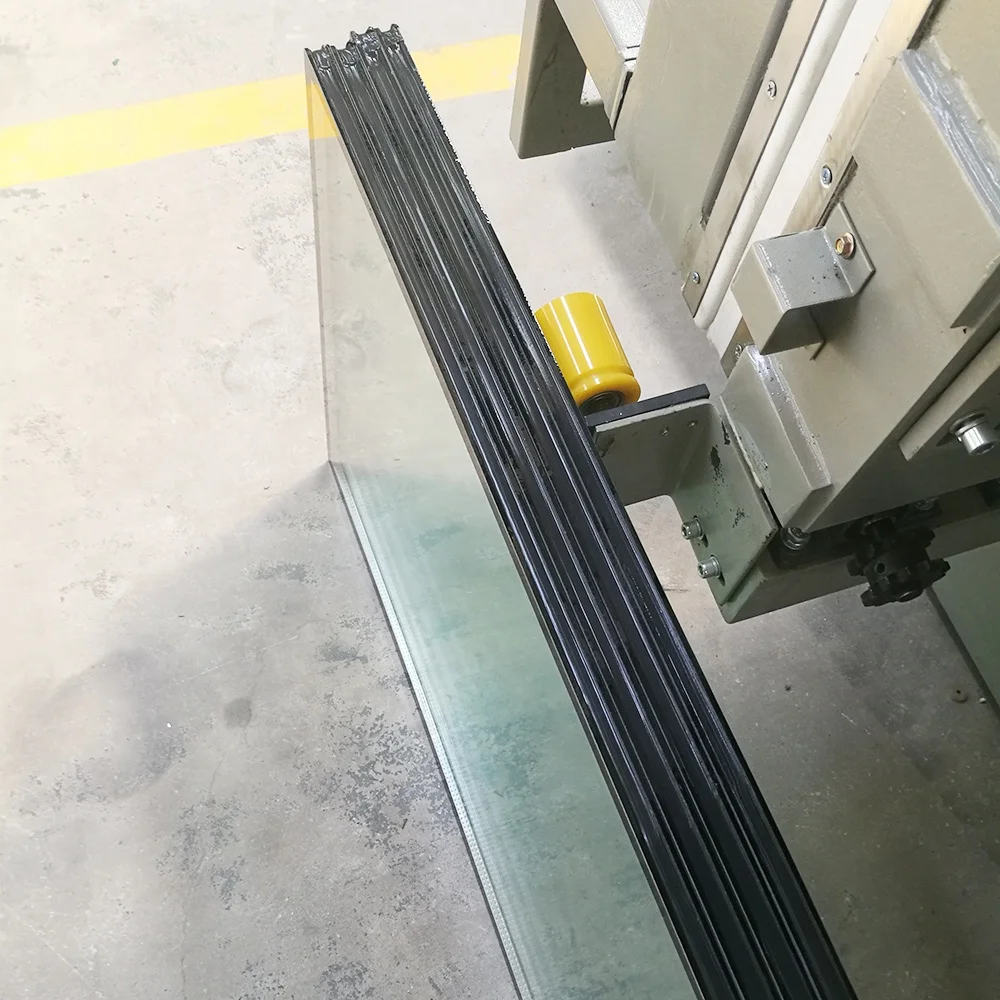

Suitable for rectangle shape IG Units. Perfect sealing performance.
The electric control system and servo system adopt YASKAWA control system, which has fast speed and high stability.
Hydraulic system for dispensing and proportioning system, for stable dispensing and precise A and B component ratios.
Special design to scan the coating depth, automatically control the sealant spreading.
Chain type V shaped block conveying, more wear-resistant, high load-bearing, stable conveying.
FOR CUSTOMIZATION, PLEASE CONTACT US.
Technical Parameters
Total power | 10KW |
Max. glass size | 2000*3000mm |
Min. glass size | 300*180mm |
IG Unit thickness | 12~60mm(12~80mm) |
Coating depth | 3~18mm |
Coating speed | 5~40m/min |
Transmission speed | 5~50m/min |
Aluminum frame width | 6~27mm |
Hydraulic pressure | <100kgf/c㎡ |
Air pressure | 0.6~0.8Mpa |
Overall dimension | 7300*2500*2900mm |
Packaging & Shipping
Packaging:
WONDEC always spray protective oil firstly, then plastic covering and stretch film package inside, to avoid rusting and dusting in long time sea voyage, and steel/wooden pallet or whole wooden box package outside.
Shipping:
Container loading in our factory, machines be fixed well in the container by our own workers, ensure machines be safe in each link.
Delivery time is about 15 days after down payment be received, and all details be confirmed well by both sides.
Why Choose Us
Coopeartion partner
We insist on adopting international first-line brand accessories, and carry out strict quality inspection and screening on each accessory to fundamentally ensure product quality and users interests.
FAQ
✦Are you manufacturer?
Yes, we are the professional manufacturer with more than 10 years experience in this area.
✦Can the machine change to our voltage?
Yes, we can customize our machine to your local voltage.
✦What will be the process after I make the payment?
After we confirm the receipt of the deposit, we will arrange the production asap. When we finish the production and the test of the machine, we will take a video for you to show the performance of the machine and wait for your feedback. And after the confirmation of the finished products we will start to park the machine and wait for customer's requirement for shipment.
✦Can you help us to arrange the shipment?
Yes, we have our cooperated shipping partner who can provide fast delivery and good price. We can arrange the shipment for our clients based on customer's requirement.
✦How will you install our machine after we receive the machine?
We used to send technician to install machine for customer before. But now due to the COVID-19 virus, it's very difficult for us to go abroad. However, for all our machines, we have specific manuals and explanation videos to follow and install the machine. Every customer we also have one special wechat/whatsapp group chat with technician inside to offer all necessary help on line.
