Product Description




Introduction
The Gadolinium scandium(GdScO3) single crystal has the advantages of high dielectric gate constant, wide band gap, thermal stability, etc. It is a twisted perovskite crystal structure, which has good lattice matching with the perovskite film material and is an excellent crystal substrate material.
GdScO3 belongs to orthorhombic system, space group is Pnma, commonly used perovskite materials such as BaTiO3, (Ba1-xSrx)TiO3, Pb(Zr1-xTix)O3, SrRuO3, their Pseudo-cubic cell parameters are in a suitable range, In the prior art, there are very few perovskite crystals in which the unit cell parameters are in this range and then grown to a single crystal of sufficient size, GdScO3 is one of the crystals satisfying the condition.

Specification


The main performance parameters
Product Name:
GdScO3 single crystal substrate
Growth method
Czochralski method
Crystal Structure :
Orthonormal system
Lattice constant:
a=5.45
b=5.75
c=7.93
Melting point:
2127 ℃
Density:
6.6 g/cm3
Orientation:
<001>, <110> ±0.5º
Standard Size:
10x10x0.5mm, 10x5x0.5mm, 5x5x0.5mm
Polishing:
Single side polished or Double side polished
Roughness:
Ra <5A(0.5nm) at 5x5μm

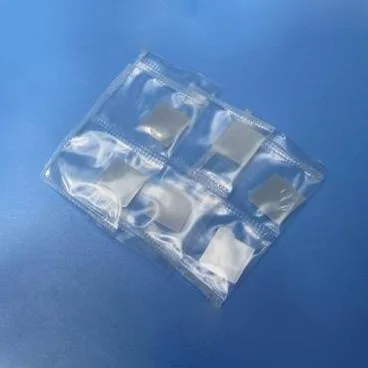

Packing:
class-100 clean bag, in class-1000 clean room
Application:
GdScO3 substrate is mainly used for epitaxial growth of multi-ferrous, ferroelectric and superconducting perovskite materials.
