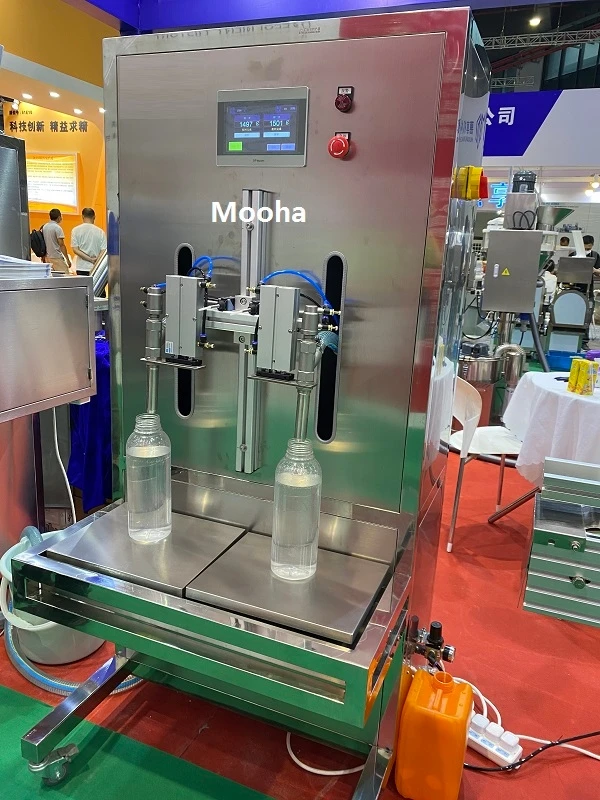

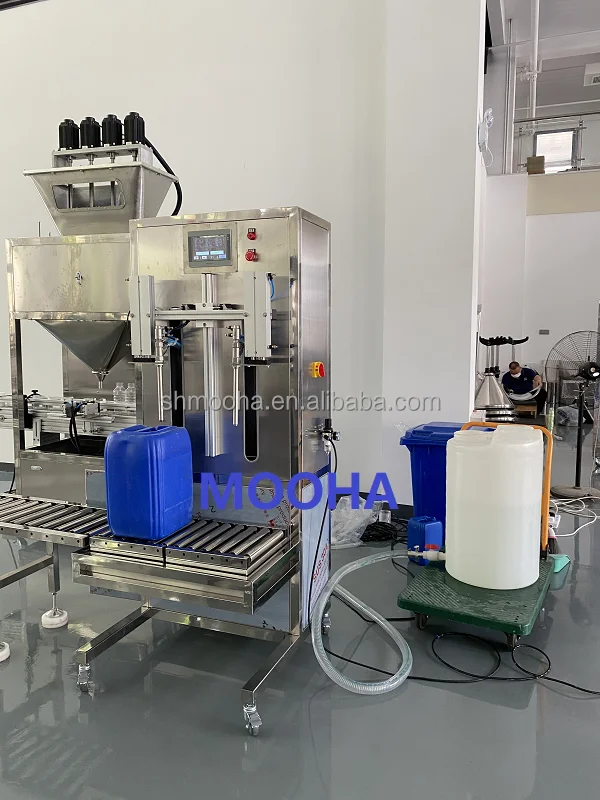

Multifunctional Chocolate Jam Bottle Filling Machine Fruit Juice Liquid Bottling Machine 5kg Cooking Oil Honey Weighing Bottler
- Category: >>>
- Supplier: Shanghai Mooha Import & Export Co. Ltd.
Share on (1601006215423):
Product Overview
Description
Product Description
Product Parameter | ||
Packing size | 500g-25kg | |
Packing speed | 5-25bottles/min | |
Precision | ±0.2% | |
Voltage | AC220V/380V 50/60Hz | |
Power | 1kw | |
Dimension | 1200*700*1900mm can be customized depend on your need | |

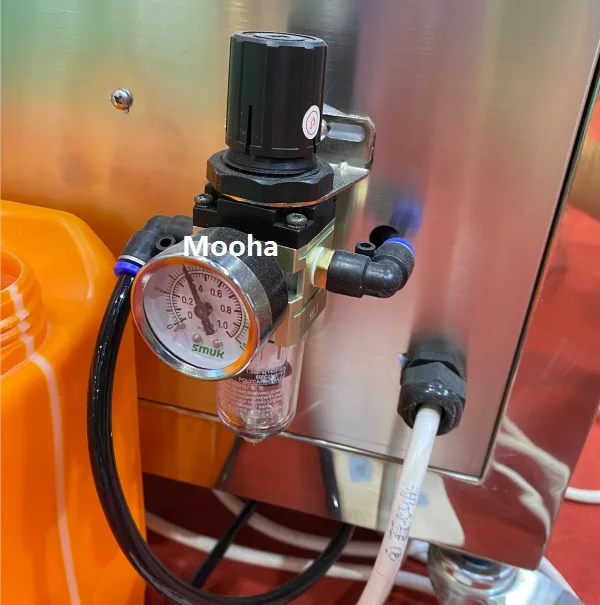

Air pressure | 0.4-0.6mpa | |
Features
The machine uses weighing metering real-time monitoring of filling quantity while filling and feedback to the controller, the
controller according to the setting data output fast and slow filling control signals, then realize the rapid and accurate filling for larger packing weight.

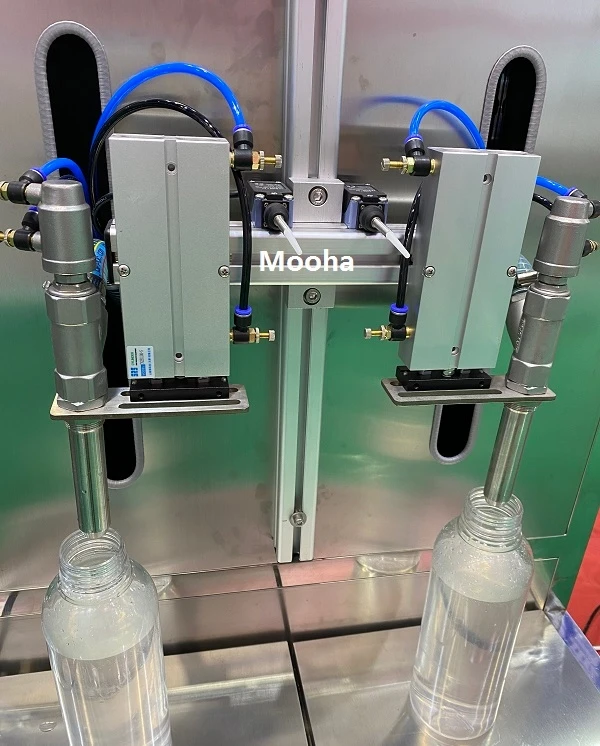

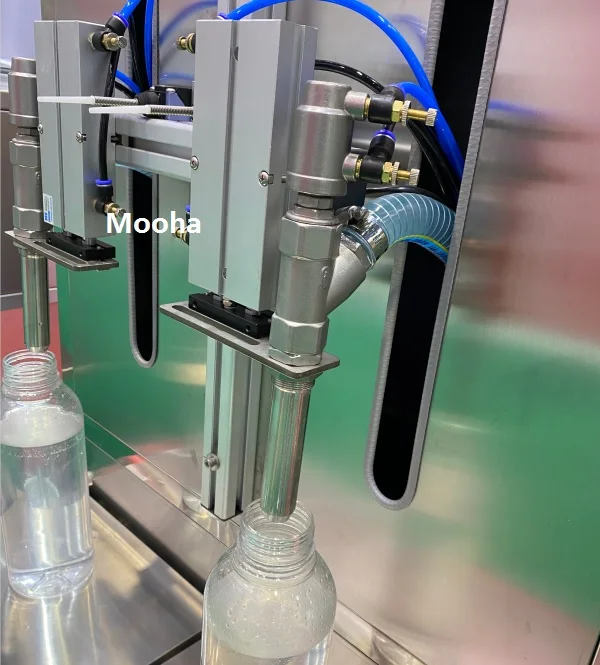

Working process: put the container on the weighing platform → lift cylinder work, filling head descend to container →pressurized water pump open, fast filling start →reach to fast add weight→ pressurized water pump shut down, slowly filling start - to slow add weight →filling end, lifting cylinder raising.
controller according to the setting data output fast and slow filling control signals, then realize the rapid and accurate filling for larger packing weight.
Working process: put the container on the weighing platform → lift cylinder work, filling head descend to container →pressurized water pump open, fast filling start →reach to fast add weight→ pressurized water pump shut down, slowly filling start - to slow add weight →filling end, lifting cylinder raising.
semi automatic cream paste liquid soap filler filling machine liquid can fill different water ketchup into different containers

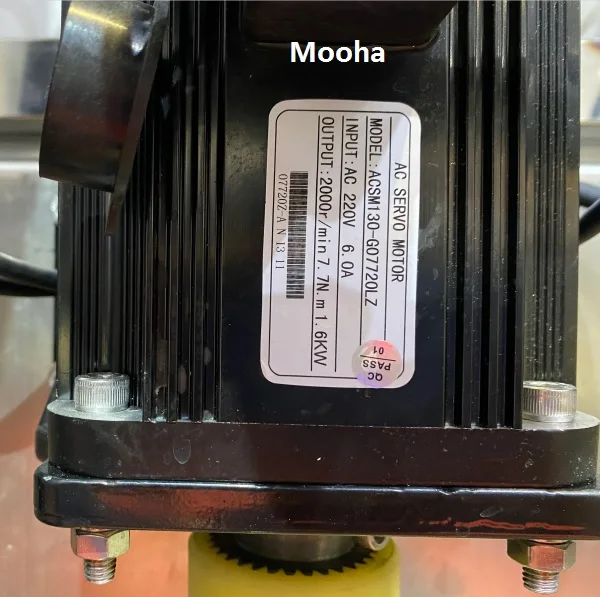

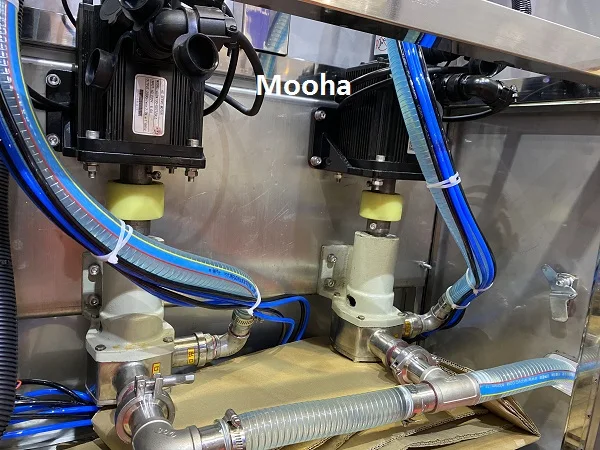

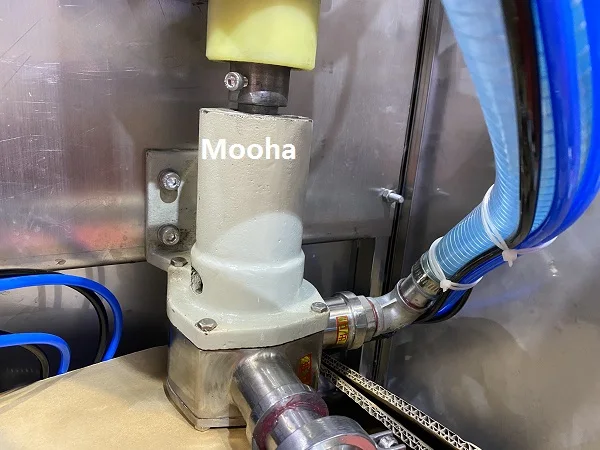

semi automatic cream paste liquid soap filler filling machine liquid 's two pump and motor

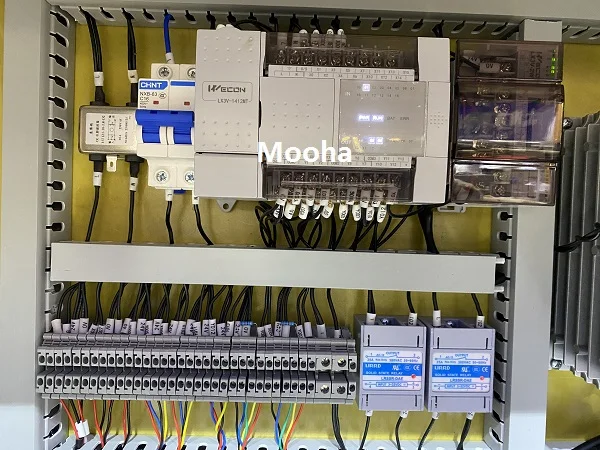

CHINT high quality parts for semi automatic cream paste liquid soap filler filling machine liquid
