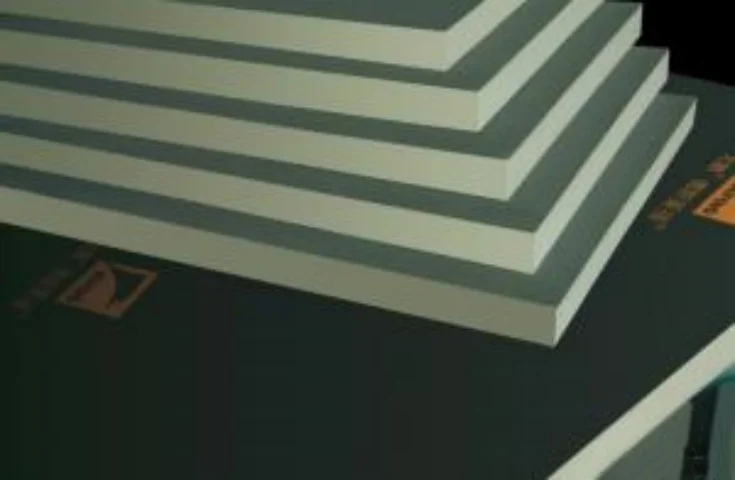

Rigid Polyisocyanurate(PIR) Foam Insulation Board

Product Overview

Description

PIR/PU Insulation Board

High-performance PIR insulation board is made rigid thermoses board insulation. It consists of a polyisocyanurate (PIR) foam core enclosed by a laminate facing combination e.g. glass fiber cement cloth, aluminum foil laminate or Kraft paper, double sided aluminum foil laminate etc.

Data Sheet:



	Polyurethane Sheet (PIR/PU)
Model	Polyurethane (PIR/PU)
Thermal Conductivity w/mk	0.023
Dimensional Stability	0.5-2.0
Applicable Temperature	-30°C - +107°C
Compression Strength kpa	150
Water Absorption	1.5-3
Density kg/m3	32-49
Combustion Performance	GB8624-2012 Grade A, Grade B1 and Grade B2
Oxygen Index	IO26-33
Length	1200-2400
Width	600               1200
Thickness	20   30     40   50   60     70   80   90     100
Edge Shape	SS Flat Top
Surface	Cement Glass Fiber Skin with thickness of 0.7-0.9m
Applications	Energy-saving and insulation for building; Cold storage insulation; Roof insulation.

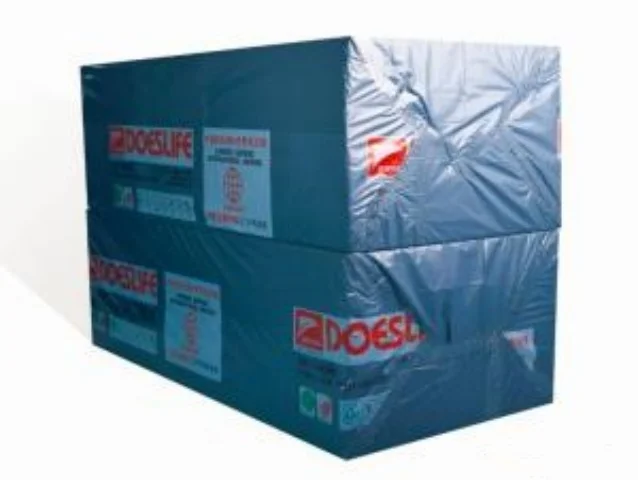

Packaging:

We use plastic films according to standard package. Also, it can be made according to customer requirements.
