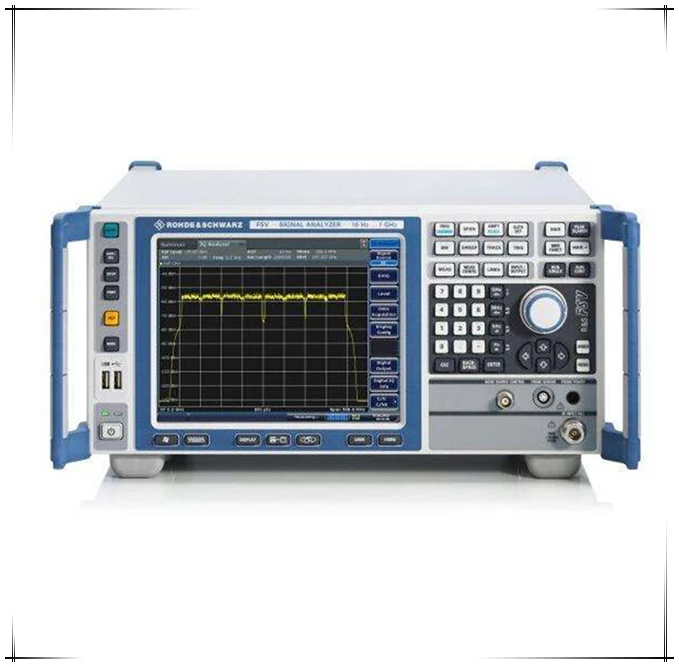

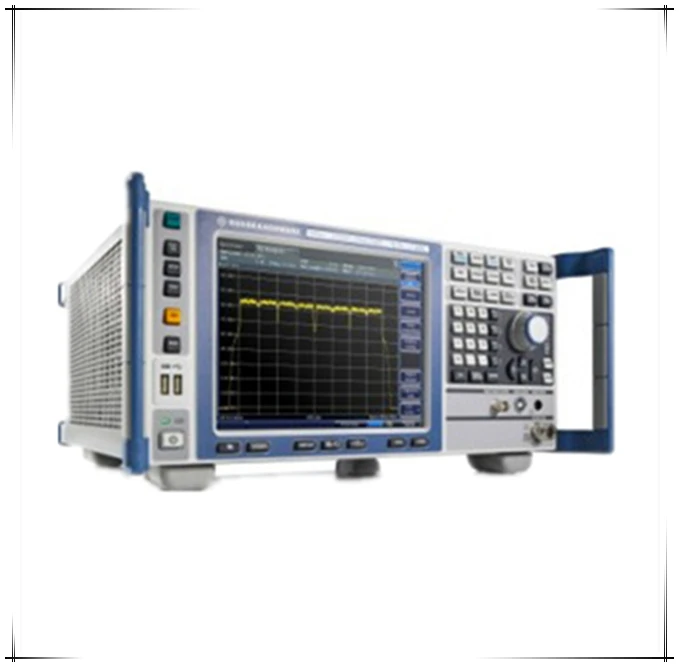

second hand Rohde & Schwarz FSVA40 signal and spectrum analyzer 10 Hz to 40 GHz
- Category: >>>
- Supplier: Shenzhen Huazexun Electronic Technology Co. Ltd.
Share on (1601006242673):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | Germany. |
Brand Name | Rohde & Schwarz |
Model Number | FSVA40 |
Product details
Main feature
The frequency range is 4/7/13.6/30/40 GHz
Signal analysis bandwidth up to 160 MHz
Easy and intuitive operation through a touch-screen based user interface
At frequencies up to 7 GHz, the level measurement uncertainty is 0.4dB
Low average noise level (DANL) (e.g., typical value for R&S FSVA is -168 dBm (1 Hz))
High third-order cutoff point (TOI) (e.g., typical value of R&S FSVA is 20 dBm)
Very low phase noise (e.g., typical value for R&S FSVA at 1 GHz and 10 kHz offsets is -118 dBc (1 Hz))
General measurement applications for phase noise, noise factor, vector signal analysis, analog demodulation, EMI diagnosis
Wireless measurement applications for LTE (including LTE upgrades), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000/1xEV-DO, Bluetooth
Up to 500 GHz with harmonic mixers
Maintain the confidentiality of test data with a removable SSD or hard drive
peculiarity
Broadband signal analysis
With an optional YIG preselector bypass, signal analysis bandwidth up to 160MHz up to 40GHz provides excellent phase noise performance
200 Msample signal storage memory for recording long signal sequences
Digital analysis filter for high measurement accuracy and repeatability
Functionality and performance are the assets of the laboratory
Best performance in its class
TOI high in the same level instrument: > 17 dBm (spec.)
Excellent level test accuracy up to 7GHz
Very low average noise level (DANL)
Excellent phase noise performance
Power measurement function in digital communication system analysis
Various marking and tracing functions
Scalar network analysis: Easy to test frequency response, bandwidth and gain
Rich PC software options to improve the measurement function
An external PC can operate and fully control the R&S FSVA
General I/Q data analysis by R&S VSE vector signal analysis software
R&S VSE-K6 In-depth analysis of pulse signals
R&S FS-K96 PC OFDM vector signal analysis
R&S FS-K130PC distortion analysis
Intuitive operation
Touch screen operation
Hotkeys for quick access to all important features
It's easy to transition to next-generation signal analysis
Programmed compatible with R&S FSV, R&S FSP and R&S FSU
Features compatible with existing signal and spectrum analyzers
The frequency range is 4/7/13.6/30/40 GHz
Signal analysis bandwidth up to 160 MHz
Easy and intuitive operation through a touch-screen based user interface
At frequencies up to 7 GHz, the level measurement uncertainty is 0.4dB
Low average noise level (DANL) (e.g., typical value for R&S FSVA is -168 dBm (1 Hz))
High third-order cutoff point (TOI) (e.g., typical value of R&S FSVA is 20 dBm)
Very low phase noise (e.g., typical value for R&S FSVA at 1 GHz and 10 kHz offsets is -118 dBc (1 Hz))
General measurement applications for phase noise, noise factor, vector signal analysis, analog demodulation, EMI diagnosis
Wireless measurement applications for LTE (including LTE upgrades), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000/1xEV-DO, Bluetooth
Up to 500 GHz with harmonic mixers
Maintain the confidentiality of test data with a removable SSD or hard drive
peculiarity
Broadband signal analysis
With an optional YIG preselector bypass, signal analysis bandwidth up to 160MHz up to 40GHz provides excellent phase noise performance
200 Msample signal storage memory for recording long signal sequences
Digital analysis filter for high measurement accuracy and repeatability
Functionality and performance are the assets of the laboratory
Best performance in its class
TOI high in the same level instrument: > 17 dBm (spec.)
Excellent level test accuracy up to 7GHz
Very low average noise level (DANL)
Excellent phase noise performance
Power measurement function in digital communication system analysis
Various marking and tracing functions
Scalar network analysis: Easy to test frequency response, bandwidth and gain
Rich PC software options to improve the measurement function
An external PC can operate and fully control the R&S FSVA
General I/Q data analysis by R&S VSE vector signal analysis software
R&S VSE-K6 In-depth analysis of pulse signals
R&S FS-K96 PC OFDM vector signal analysis
R&S FS-K130PC distortion analysis
Intuitive operation
Touch screen operation
Hotkeys for quick access to all important features
It's easy to transition to next-generation signal analysis
Programmed compatible with R&S FSV, R&S FSP and R&S FSU
Features compatible with existing signal and spectrum analyzers
