AUO Factory Price TFT LCD industrial screen with 15Inch LVDS 30pins lcd display G150XTN06.1 for industrial
- Category: >>>
- Supplier: Richshine Technology Co. Limited
Share on (1601006247772):
Product Overview
Description
Contact Supplier Get Sample Discount
Product Paramenters
Brand | AUO |
Model | G150XTN06.1 |
Resolution | 1024(RGB)*768, XGA, 85PPI |
Panel Weight | 560g (Typ.) |

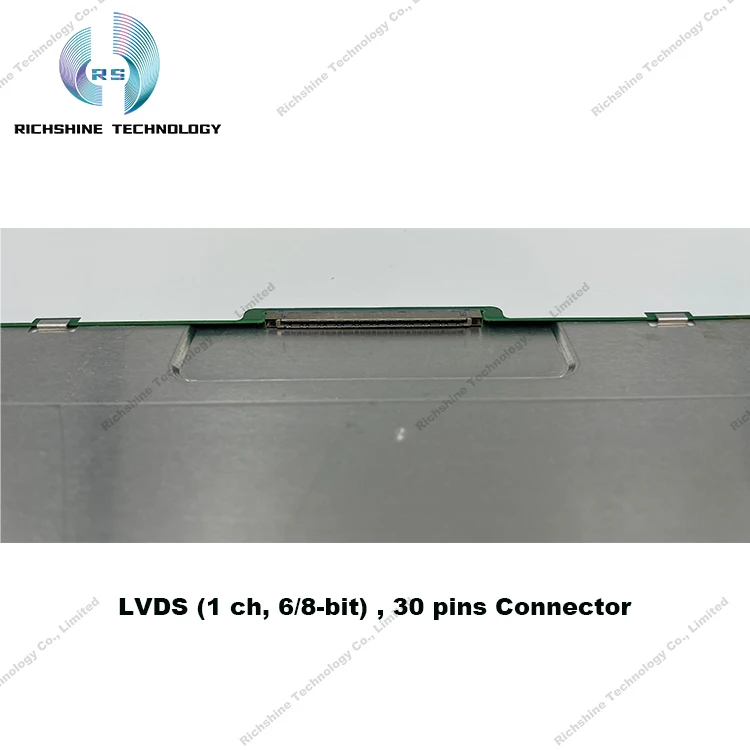

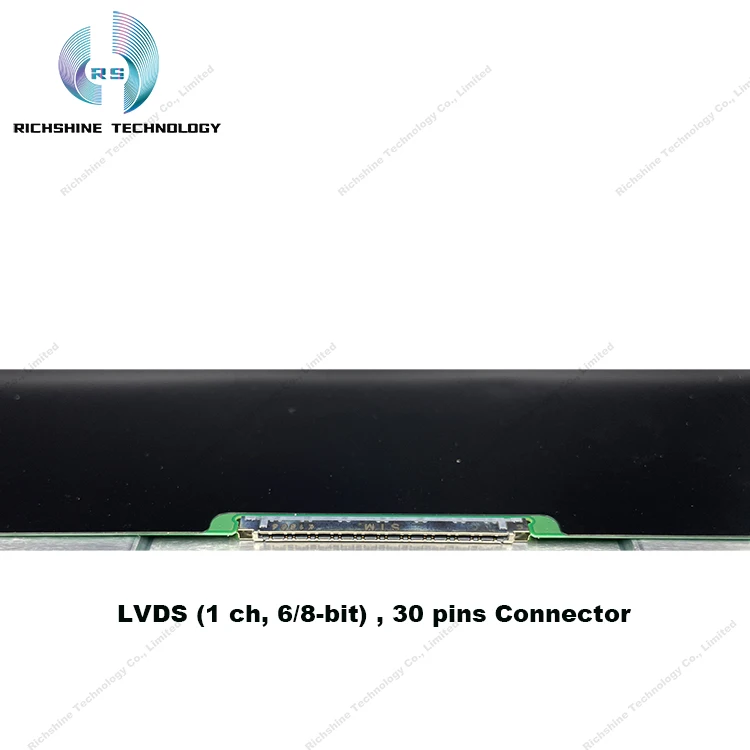

Signal Interface | LVDS(1 ch, 6/8-bit), 30 pins Connector |
Touch screen | without |
Application | Industrial |
Panel Type | a-Si TFT-LCD, LCM | Pixel Format | RGB Vertical Stripe |
Surface | Antiglare, Hard coating (3H) | Best View on | - |
Display Area | 304.128(W)×228.096(H)mm | Outline Size | 326.5(W)×253.5(H)×6.8(D)mm |
Brightness | 250 cd/m² (Typ.) | Contrast Ratio | 800:1(Typ.)(TM) |
Display Colors | 262K/16.2M 60% NTSC | Response Time | 5.7/2.3 (Typ.)(Tr+Td) |
Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) | Frequency | 60Hz |
Display Mode | TN, Normally White, Transmissive | Lamp Type | WLED, 70K hours, With LED Driver |
Input Voltage | 3.3V (Typ.) | Environment | Operating Temp.: -30 ~ 85℃, Storage Temp.: -30 ~ 85℃ |
Product Specifications
Industrial Screen
The development of industrial control touch screen shows the trend of specialization, multimedia, three-dimensional and large screen.
The public information transmission system with touch screen technology as the interactive window, through better computer technology and various forms of text, images, music, commentary, animation, video, etc., introduces various information to people intuitively and vividly, bringing people convenient.
With the rapid development of touch screen technology, the application fields of touch screen will be wider and wider, and the performance will be better and better.
1: Industrial screens are used in industry, with a variety of display sizes and installation methods
2: Industrial LCD can adapt to extreme environment, stable operation, long service life
3: The backlight time of industrial display needs 100,000 hours, only requires stability
Applicable scenarios for different screens:
1:Open industrial control display: the industrial control display has no face frame, only the interior, suitable for commercial POS, ATM machines, gym treadmills, etc., and is generally installed inside the customer's equipment.
2: Wall-mounted industrial control display screen: Most of them are installed on the customer's equipment. It can adjust the angle according to the customer's requirements. With a suitable installation arm, it can stay at any position for users to watch. It is generally used for small, Medium and large equipment.
3: Rack-mounted industrial control display screen: generally used in large cabinets such as large servers, network operators, telecommunications, and electric power.
4: Embedded industrial control display screen: generally embedded in medium and large control cabinets,
5: Flip-chip industrial control display screen: generally used in large and medium-sized equipment, such as electric power, machinery, and medical industries
2: Wall-mounted industrial control display screen: Most of them are installed on the customer's equipment. It can adjust the angle according to the customer's requirements. With a suitable installation arm, it can stay at any position for users to watch. It is generally used for small, Medium and large equipment.
3: Rack-mounted industrial control display screen: generally used in large cabinets such as large servers, network operators, telecommunications, and electric power.
4: Embedded industrial control display screen: generally embedded in medium and large control cabinets,
5: Flip-chip industrial control display screen: generally used in large and medium-sized equipment, such as electric power, machinery, and medical industries
Product packaging
For Bulk Package
Your screen will be shipped with original factory package(with inner PP and foam protective) which will provide full protection for a long journey.
Certifications
Company Profile
Richshine is a high quality lcd screen supplier with over 15 years experience in the screen industry established in 2003 start with retail in the biggest electronic market in Huaqiangbei,Shenzhen . We are the official authorized first-level agent of AUO with more than 550,000 pcs real stock in HK warehouse and Shenzhen warehouse.
Our goal is to use our resources to help you who need LCD screens to find the right products.We have been deeply involved in this industry for many years and have a wide range of upstream and downstream resources,which can meet your various needs in LCD display according to your needs, including standard products and customized products.
Our main products are TFT lcd screen mainly for laptop, industrial use , cash register POS machine, Portabl display,Medical machine display, Advertising display etc with the brand of AUO, BOE, Innolux/Chimei IVO . We also dedicating to support with the One-Stop purchase platform for manufactures of the display module.
Today, richshine has been known as one of the largest supplier of lcd screens in the world.
Our main products are TFT lcd screen mainly for laptop, industrial use , cash register POS machine, Portabl display,Medical machine display, Advertising display etc with the brand of AUO, BOE, Innolux/Chimei IVO . We also dedicating to support with the One-Stop purchase platform for manufactures of the display module.
Today, richshine has been known as one of the largest supplier of lcd screens in the world.
What can you get from us
FAQ
Q:Do you have them in stock or you purchase after paid?
A:Usually, we have in stock.
Q:How long will it take to deliver goods?
A:We will ship the goods within 1-2 days after paid. Tracking number will be sent to you in the next day after the goods shipped.
Q:What’s the warranty ?
A:90 days warranty from faults under normal working conditions
Q:What else do you offer?
A:We offering lcd screens range from 7 inch to 32 inch, and SSD (Built-in solid state drive)..
Q:is there any touch screen panel ?
A:Yes, please contact us and sharing with your size and resolutions needed
Q: How long can we get feedback after sending an inquiry?
A:Within 12 hours
Q: What is your minimum order quantity requirement?
A: 1pcs
A:Usually, we have in stock.
Q:How long will it take to deliver goods?
A:We will ship the goods within 1-2 days after paid. Tracking number will be sent to you in the next day after the goods shipped.
Q:What’s the warranty ?
A:90 days warranty from faults under normal working conditions
Q:What else do you offer?
A:We offering lcd screens range from 7 inch to 32 inch, and SSD (Built-in solid state drive)..
Q:is there any touch screen panel ?
A:Yes, please contact us and sharing with your size and resolutions needed
Q: How long can we get feedback after sending an inquiry?
A:Within 12 hours
Q: What is your minimum order quantity requirement?
A: 1pcs
