5 Inch 3 Jaw Hydraulic Chuck With Soft Jaws Syntec Cnc Controller JC X35S Cnc Slant Bed Lathe Turning Machine
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (Changzhou) Co. Ltd.
Share on (1601006251940):
Product Overview
Description
Products Description
01
GSK CNC SYSTEM
High-performance,
High-reliability CNC system
ELECTRIC KNIFE FRAME
03

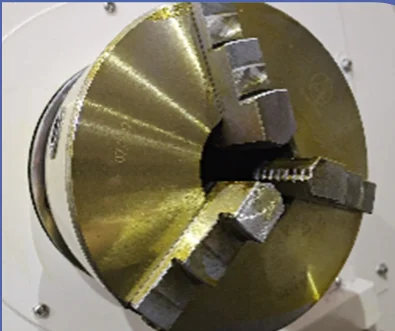

CAM-RING CHUCK
Using the radial movement of the three movable clawsdistributed on the tray, clampthe workpiece and locate the machine accessories

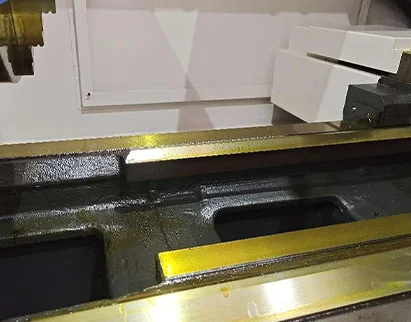

LATHE BED
shovel and scraping and otherprocesses, good rigidity
05

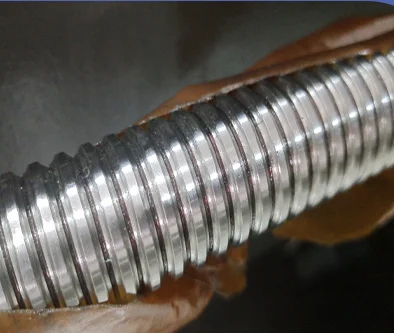

LEAD SCREW
Made by precision grinding,
with high precision
Number | name | brand | Manufacturer |
one | CNC system | KND | Beijing KND |
two | Spindle configuration | Mechanical spindle | self-control |
three | Spindle motor | Zhengcheng | domestic |
four | Spindle driver | KND | Beijing KND |
five | servo motor | KND | Beijing KND |
six | Servo driver | KND | Beijing KND |
seven | Spindle bearings | Wuxi Second Axis | domestic |
eight | ball screw | THK/HIWIN | Japan/Taiwan |
nine | Ball linear guide rail | PMI/HIWIN | Taiwan |
ten | Main electrical components | chint | domestic |

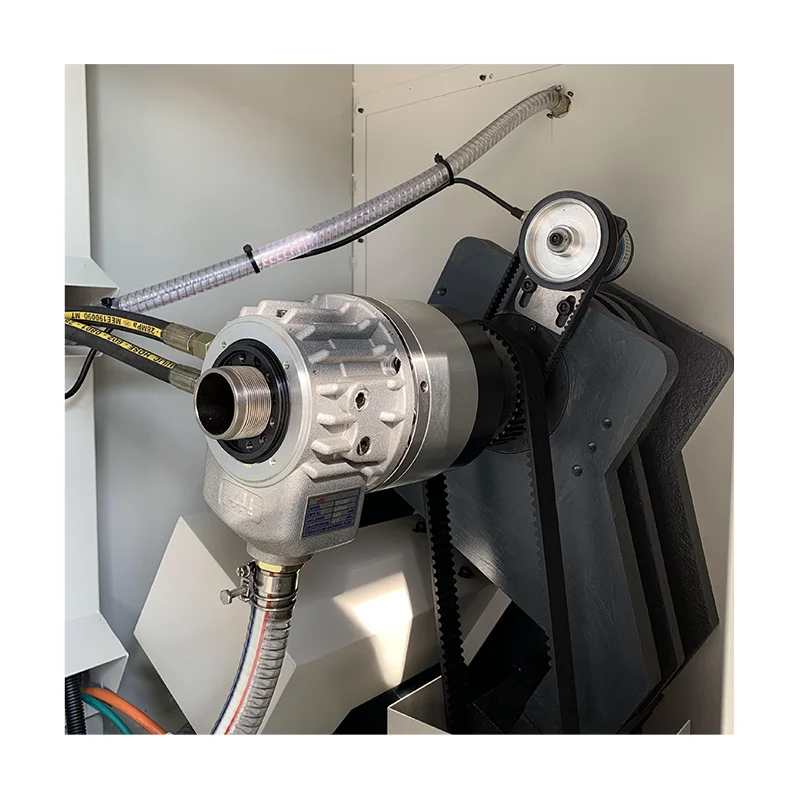

eleven | Hollow rotary oil cylinder | Olin | domestic |
Number | project | Specifications | Unit |
one | Swing over bed | Φ 350 | Mm |
two | Maximum rotation diameter on the cutting plate | Φ 100 | Mm |
three | Maximum processing bar diameter | Φ35 | Mm |
four | Maximum length of machined parts | 180 | Mm |
five | Maximum spindle speed | 3000 | r/min |
six | Main spindle pull tube through-hole diameter | Φ36 | Mm |
seven | Main motor power | 4 | Kw |
eight | Dimensions of turning tool handle | 20*20 | Mm |
nine | Boring tool holder dimensions | 25*25 | Mm |
ten | X-axis travel | 300 | Mm |
eleven | Z-axis travel | 260 | Mm |
twelve | X. Z-axis minimum setting unit | 0.001 | Mm |
thirteen | X. Z-axis fast movement speed | 16 | m/min |
fourteen | Repetitive positioning accuracy | ≤ 0.003 | Mm |
fifteen | Cooling motor power | 0.75 | KW |
sixteen | Machine tool dimensions | 1600*1280*1650 | Mm |
seventeen | Machine weight | ~1300 | Kg |
Machine weight | ~1080 | Kg |
Company Profile
COMPANY PROFILE
Xiongyi Intelligent Machinery (Changzhou)Co.,Ltd. is a limited liability company with independent legal personality approved by the Administration for Industry and Commerce.The company is composed of high-tech CNC professional and technical personnel and senior machine tool industry insiders.They are familiar with the domestic and foreign machine tool industry markets and have many partners in the industry.The company mainly sells Taiwan JINNFA brand machine tools and the SL series Swiss lathes and CK series CNC lathes independently developed and produced by Xiongyi Intelligent Machinery, as well as the operation and technical services of automatic bar feeding machines, machine tool accessories and precision tools.
The company philosophy of unity and win-win future and the tenet of "customer first, quality first", make full use of our technical connotation and extensive external information resources, absorb the essence of various machine tool brands, and provide users with suitable products according to their needs. Requirements and high-quality CNC equipment for product processing, do everything possible to help users improve productivity, competitiveness and increase proftability, and create a major brand recommended for CNC machine tool marketing in East China. The company strives to become a friend of every customer and partner, and is willing to cooperate with Let's go hand in hand to create a better future.
1.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
A:MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
A:FANUC, SIEMENS, MISTSUBISHI, GSK, SYNTEC. lt depends on your choice.
3:How can l choose the most suitable machines?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing , we will choose the most suitable machines for you.
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the products drawing , we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools.
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools.
5: Where is our factory located? How can l visit there?
A :Our company is located at 1st Floor east side, No. 10 building, High tech park, Xinbei Dist, Changzhou City, Jiangsu Province, China.You are warmly welcomed to visit us.
6. What is your trade terms?
A:FOB, CFR and CIF all acceptable.
A:FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.
A:T/T, 30% initial payment when order, 70% balance payment before shipment; lrrevocable LC at sight.
