Product Overview
Description
Products Description
SECTION | ITEM | DESCRIPTION |
PROCESSOR | CPU | Montage CS8001-S030 |
Flash Memory | 4MB | |
DDR2 | 64MB | |
DVB-S/S2 TUNER | Input Frequency: | 950 ~2150MHz |
Inpul level: | -80~-20dBm | |
Input impedance | 75Ω | |
DVB-T/T2 Tuner Compllan with 36275 VB-T. N 30 744 DvB-i2 Standarts | Input Frequengy Range | VIF 170~ 20MHZUHF 47~ 862MHz |
IF Bandwidth | 6MHz/ 7MHz/ 8MHz | |
Input Signal Level | -85dBm ~- 20dBm | |
Input impedance | 75Ω | |
RF Input Connector | IEC 61169-2 antenna female connector | |
DVB-C Tuner, Complian with. EN 300 429 DVB-C Standart | Input frequency Range | 48MHz ~ 1GHz |
Guard interval | 1419128,18/19/256,16132./128 | |
FEC Code rates | 1/2,2/3,3/4,3/5,4/5,5/6 | |
DEMODULATOR | OFDM | 16QAM,32QAM, 64QAM, 128QAM, 256QAM |
CHANNEL DECODING | Demodulation | QPSK, 8PSK, 16PSK |
FEC mode | DVB-S:1/2,2/3, 3/4, 5/6.7/8 | |
DVB-S2: 12. 315. 23. 314. 45, 516, 89. 910 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK) | ||
Symbol Rate | DVB-S: 2.0~45 MS/s | |
Demodulation | QPSK, 8PSK, DVB-S2: 10-30 Mb/s (QPSK), 10-31Mb/s (8PSK) | |
DEMULTIPLEXER | Standard | ISO/IEC 13818-1 |
Input Max. Bit Stream Rate | 100Mbps(Serial)/12.5MBp(Pralle) | |
VIDEO DECODING | Standard | ISOIEC 13818-2, MPEG-2 MP@ML, MPEG4 AVC (MP L4.1) |
Aspect Ratio | 4:3, 16:9 | |
Video Format | PAL -B/NTSC-M/PAL-N/PAL-M | |
Video Resolution | 1080P, 10801,720P ,480P/576P ,480v576iSD compatible | |
AUDIO DECODING | Standard | ISO/IEC 13818-3 |
Decoding | MPEG-1 Layer i and m MPEG-2, MPEG4 AAC | |
Output Mode | LPCM, RAW | |
Sampling Frequency | 32,44.1.48KHz | |
Volume Level | 24 Levels | |
AV OUTPUT | Video de emphasis | CCIR REC.405-1.625LINES |
Video bandwidth | 5.5MHz | |
Video output impedance | 75Ω | |
Video output level | 1.0Vp-p | |
Audio output | Stereo | |
Audio output frequency | 20Hz~ 20KHz | |
Audio output impedance | Low | |
Audio output level | A1.0Vms±2dB into 10K. | |

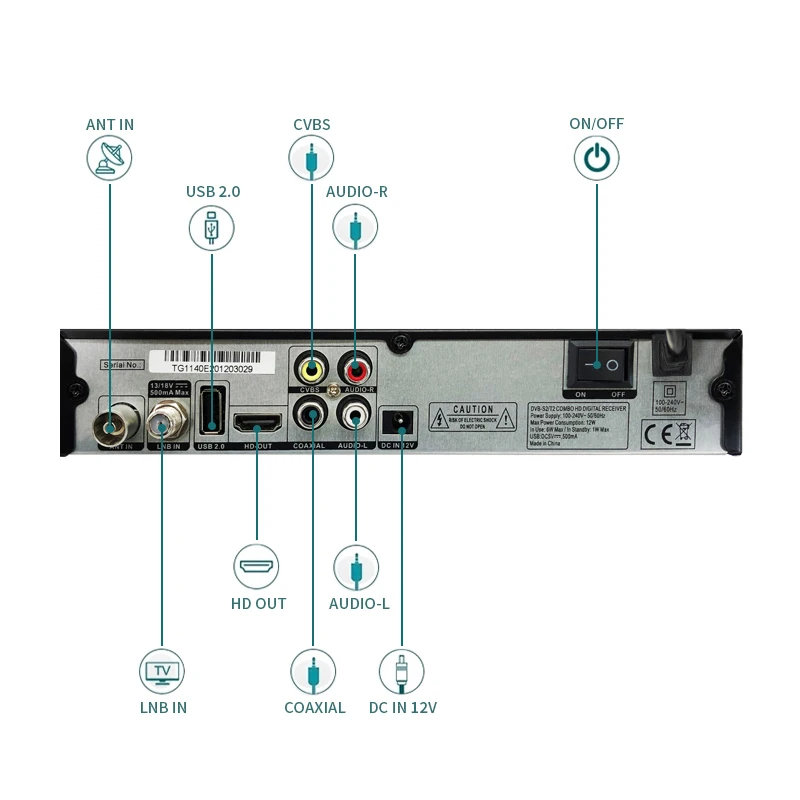

AV OUTRUT | Panel Intertace | ●1×AV(CVBS+R/L AUDIO) ●1×HDTV ●1×LNB IN ●2×USB 2.0 port |
OTHERS | Power input Spec. | 12v/1A DC IN Max.12v |
