Solar Charge Controller w/ Datalogging and LCD

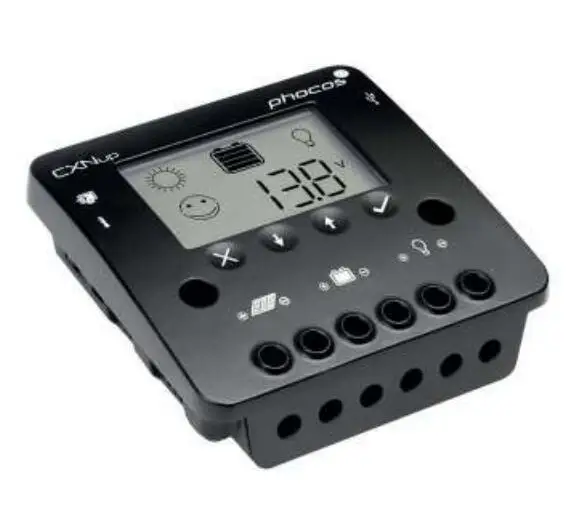

1. Product Description

    The CXNup series is a highly intelligent charge controller family for a wide range of applications. It features an intuitive user interface and stores up to two (2) years of valuable system performance data, which is accessible via the LCD and PhocosLink software.

    Real-time battery voltage,  battery state-of-charge (SOC) in percent, charge and load current, and system status are clearly displayed on the large, backlit LCD. The CXNup series offer a USB port to charge mobile phones, tablets and other USB devices. Optional acoustic battery alarms and programmable street light settings are also standard.

 Features

• USB charging port


• Data logger information can be exported


• Load status indication


• Touch keys ensure long lasting operation and eliminates mechanical button failures


• Prepared for 12 or 24 V battery charging


• Suitable for charging systems up to 1.4 kW


• 2 year datalogging


• User friendly LCD shows extensive system information


• Four-stage PWM charging algorithm with integrated
  temperature compensation


• Full electronic protection


• Programmable load function suitable for street lights


• Corrosion-resistant screw terminals


• Programmable battery type


• Compatible with LiFePO4 batteries (no communication to battery)

 Optional Accessories

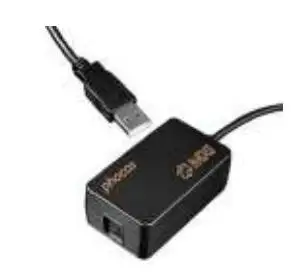

MXI and MXI-232

• Interface for CXNup controller

communication with computer via USB or RS232 interface.

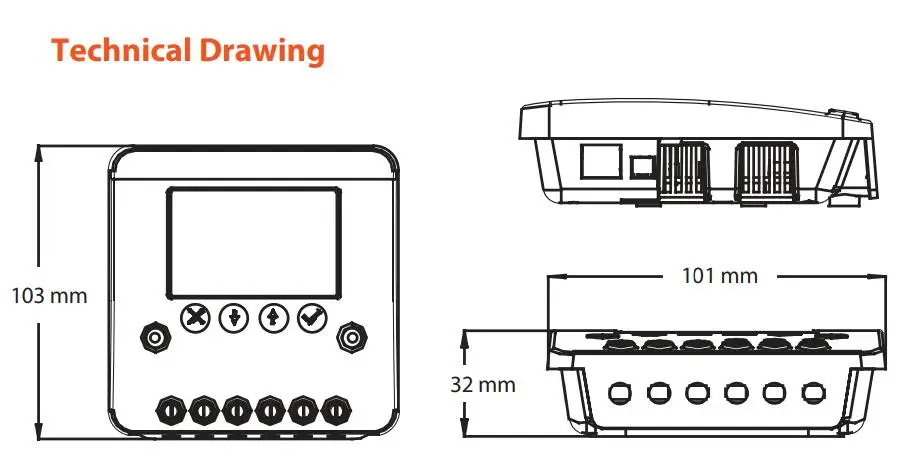

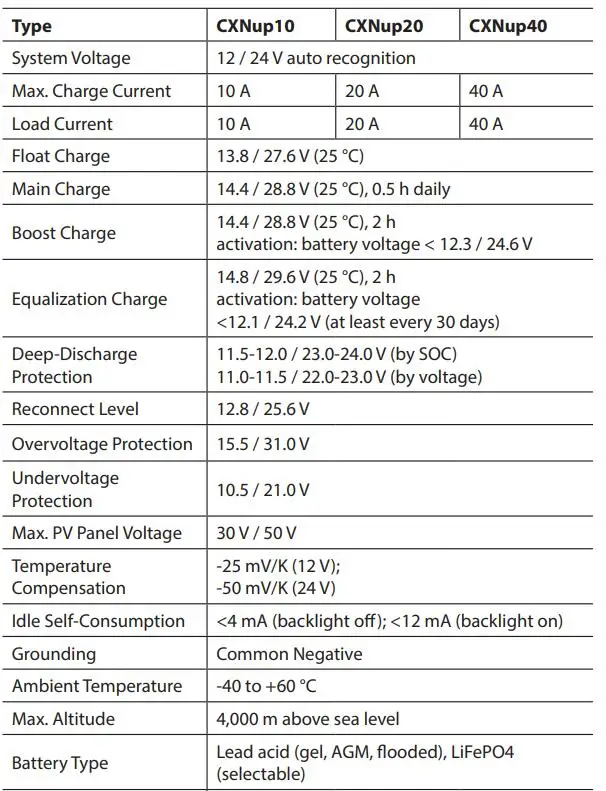

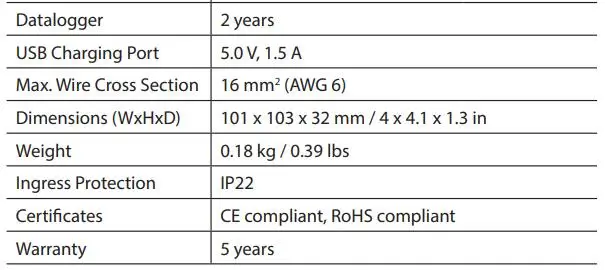

2. Product Parameters

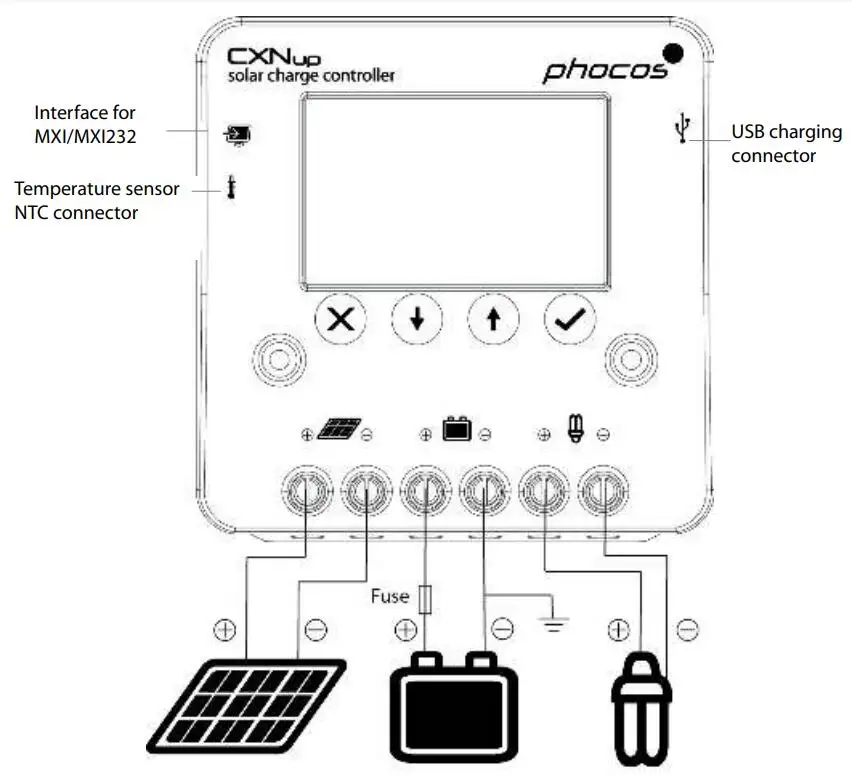

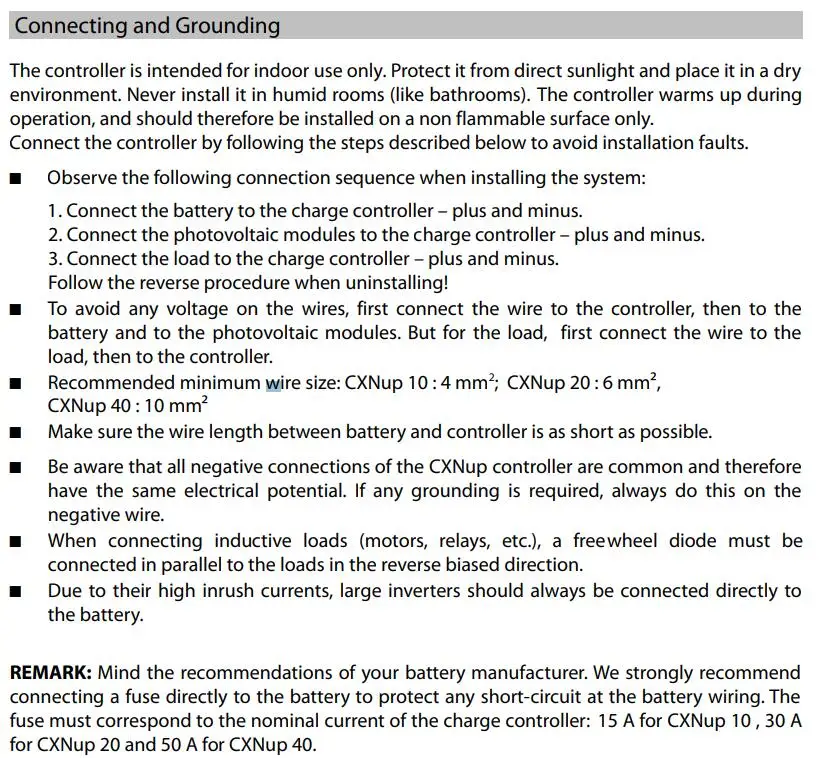

3. Connecting and Grounding

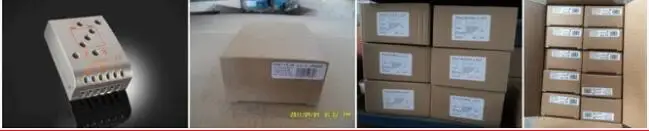

4. Packing Detail

5. Certificate

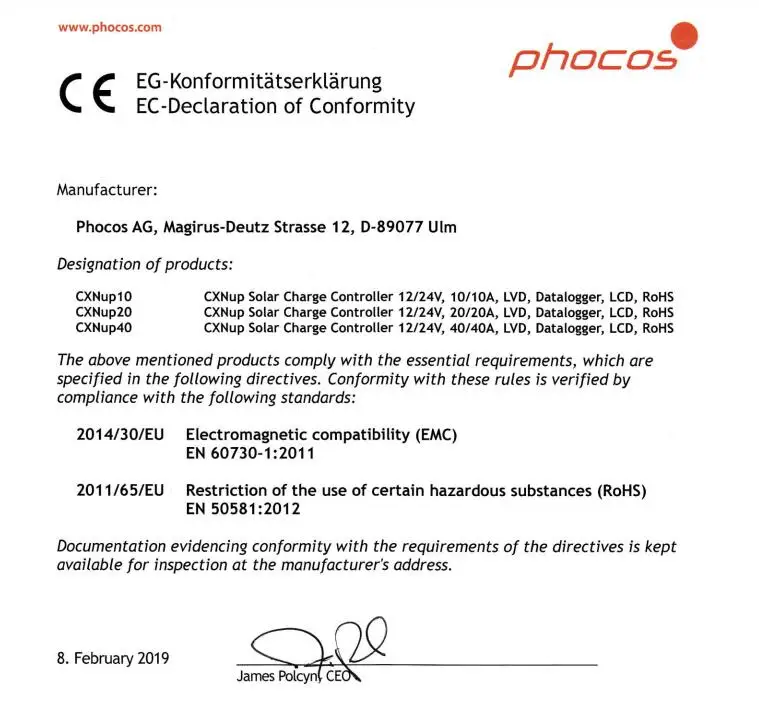

Certificate: CXNup CE Declaration

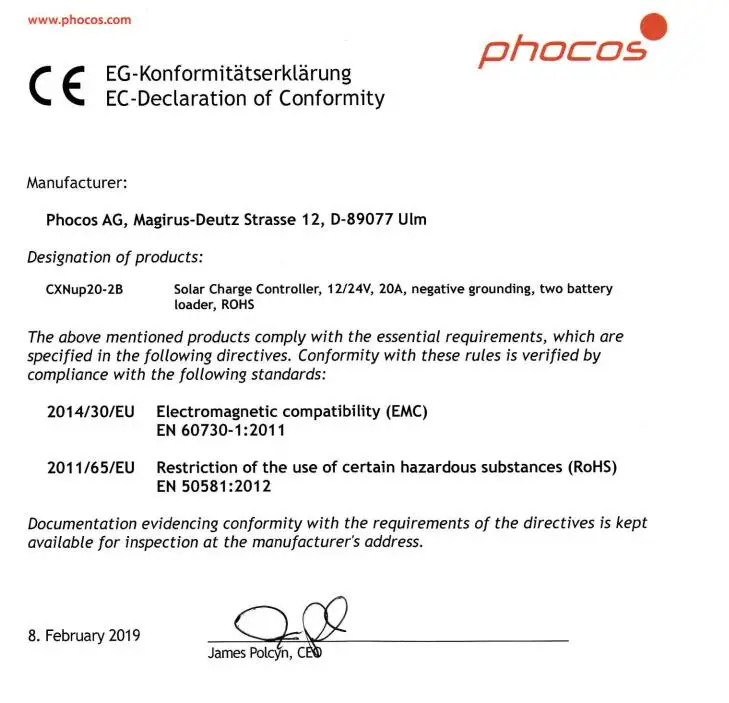

Certificate:  CXNup20-2B CE Declaration

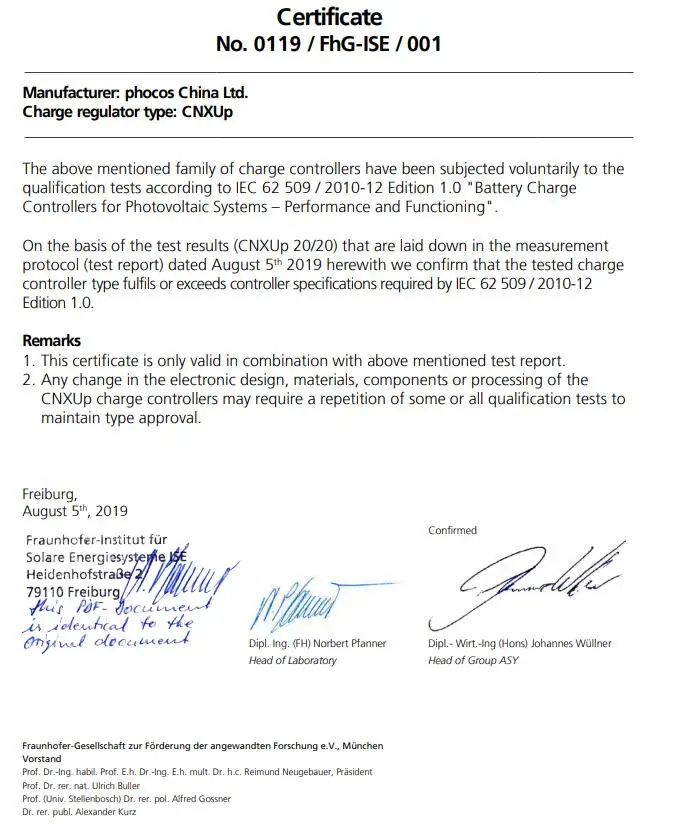

Certificate: IEC62509 Certification

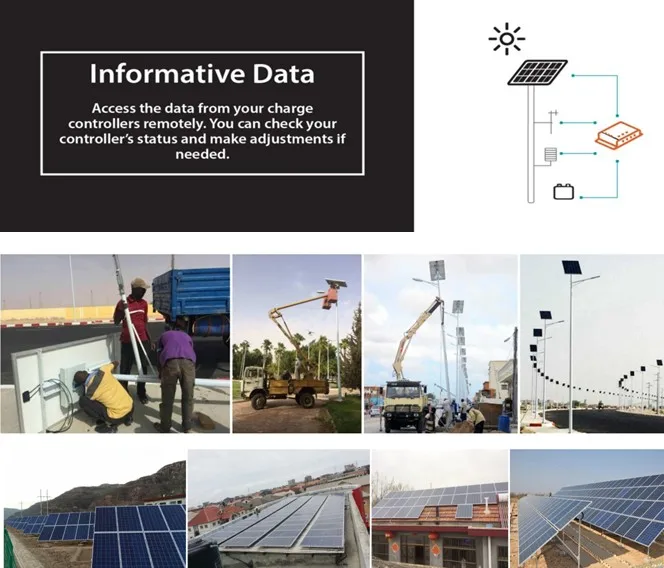

  6. Application

Quality solar solutions for your industry products.

Phocos’ solar charge controllers are designed to withstand the harshest conditions. We offer industry-leading features like data monitoring to maximize reliability and prevent outages.

We know your projects demand superior reliability around the clock, 365 days a year. That’s why we’re committed to creating products of the highest caliber.

7. FAQ

Q1: Can I get one for sample?
A1: Yes, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2: Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3: What's you delivery time?
A3: It depends on your quantity, but usually, 3-5 days for sample order, 10-30days for batch order

Q4: How about your warranty?
A5: We provide1.5 and 2 years warranty for different products and whole life technical support.

Q6.Do you have you own factory?
A6: Yes, we are professional manufacturer mainly in solar street light & solar panel for about 12 years.

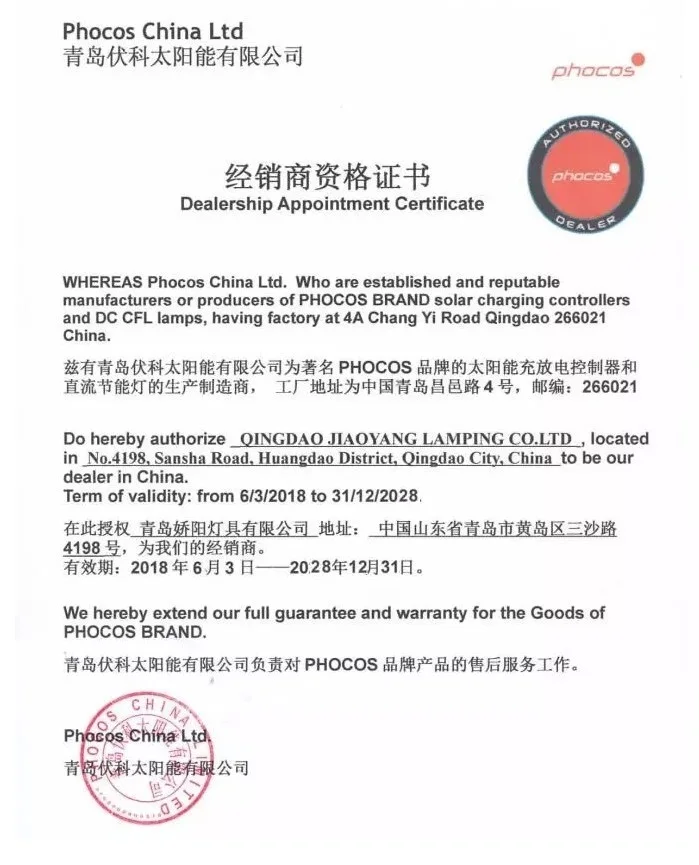

We are sales agent of Phocos, Our factory is located in Qingdao, China.

Q7:Why Choose us?------------------

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all you questions in professional and fluent English.

3.Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4.Special discount and protection of sales area provided to your distributor.

Phocos CXNup 10A /20A /40A IP22 Solar Charge Controller for solar power system
