Hygienic food grade Sanitary stainless steel 304 316L Stop Pneumatic two way weld Reversing Divert Seat Valve supplier
- Category: >>>
- Supplier: Wenzhou Compass Machinery Co. Ltd.
Share on (1601006288402):
Product Overview
Description
Product Description

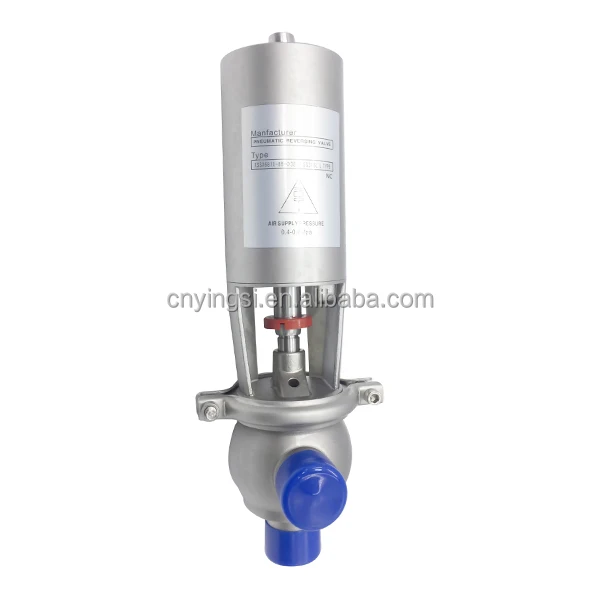

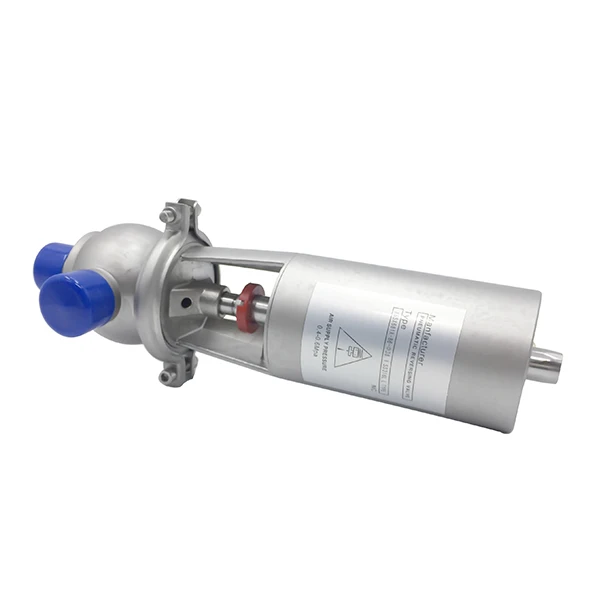

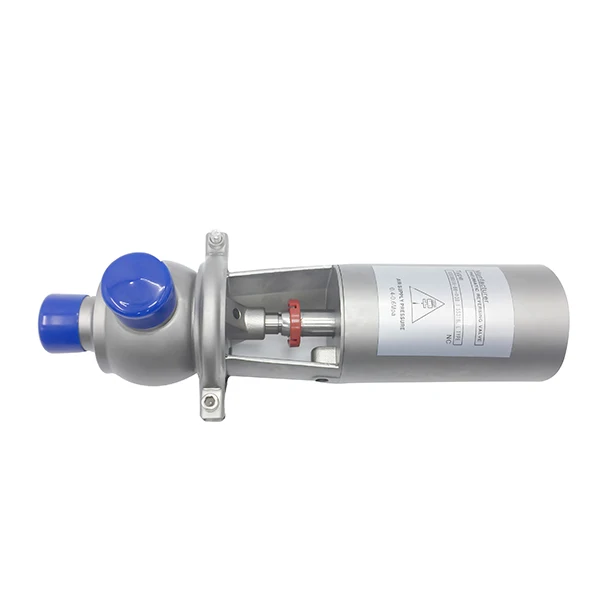

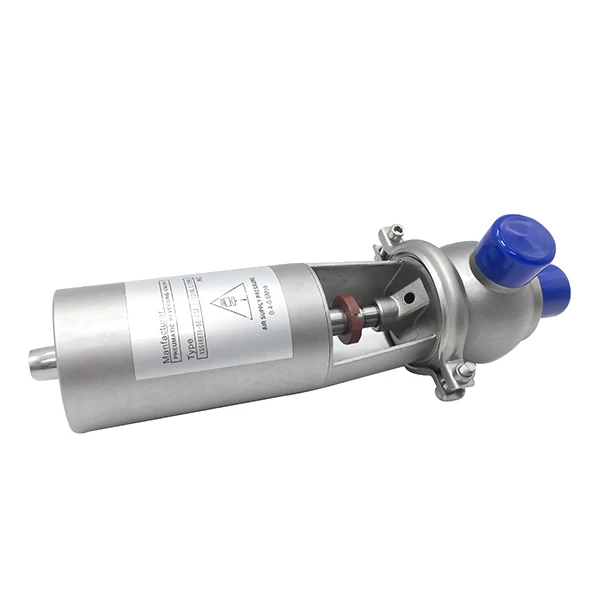

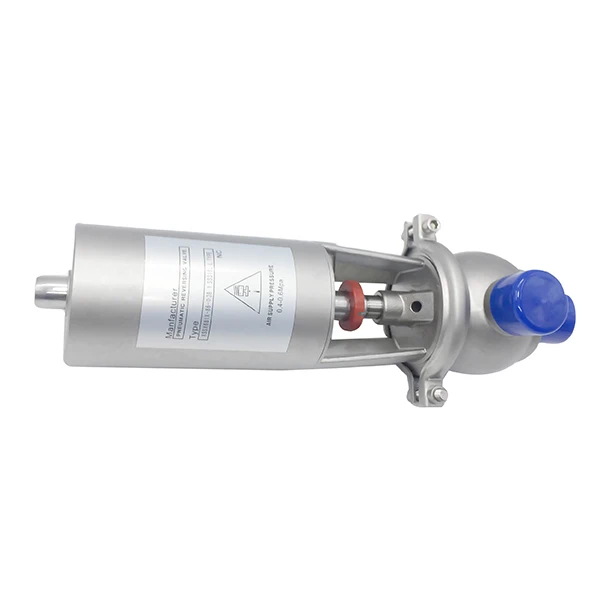

Hygienic food grade Sanitary stainless steel 304 316L Stop Pneumatic L Type weld Reversing Divert Seat Valve
Sanitary Diverter Valves can be actuated either manually or pneumatically. The series of Sanitary Pneumatic Flow Division Valves makes major medium reaching the purpose of revising or end stop, because the good sealability and cleanability, they are extensively use different sanitary industry areas.
They can be fitted with control tops and proximity. It is widely applied to many fileds,
such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.
They can be fitted with control tops and proximity. It is widely applied to many fileds,
such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Sanitary Diverter Valves have two types valves, including of cut-off type and reversing types. The cut-off type can be made of two or three pipeline connector. The reversing type can be made of three to five pipeline connector. Their variety fully satisfied the demands of market.
Standard | SMS,DIN,3A | ||||||
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report | |||||
Material Non-contact Parts | SS304(1.4301) | Provided with material inspection report | |||||
Size | 1/2”-4”, DN10-DN100 | ||||||

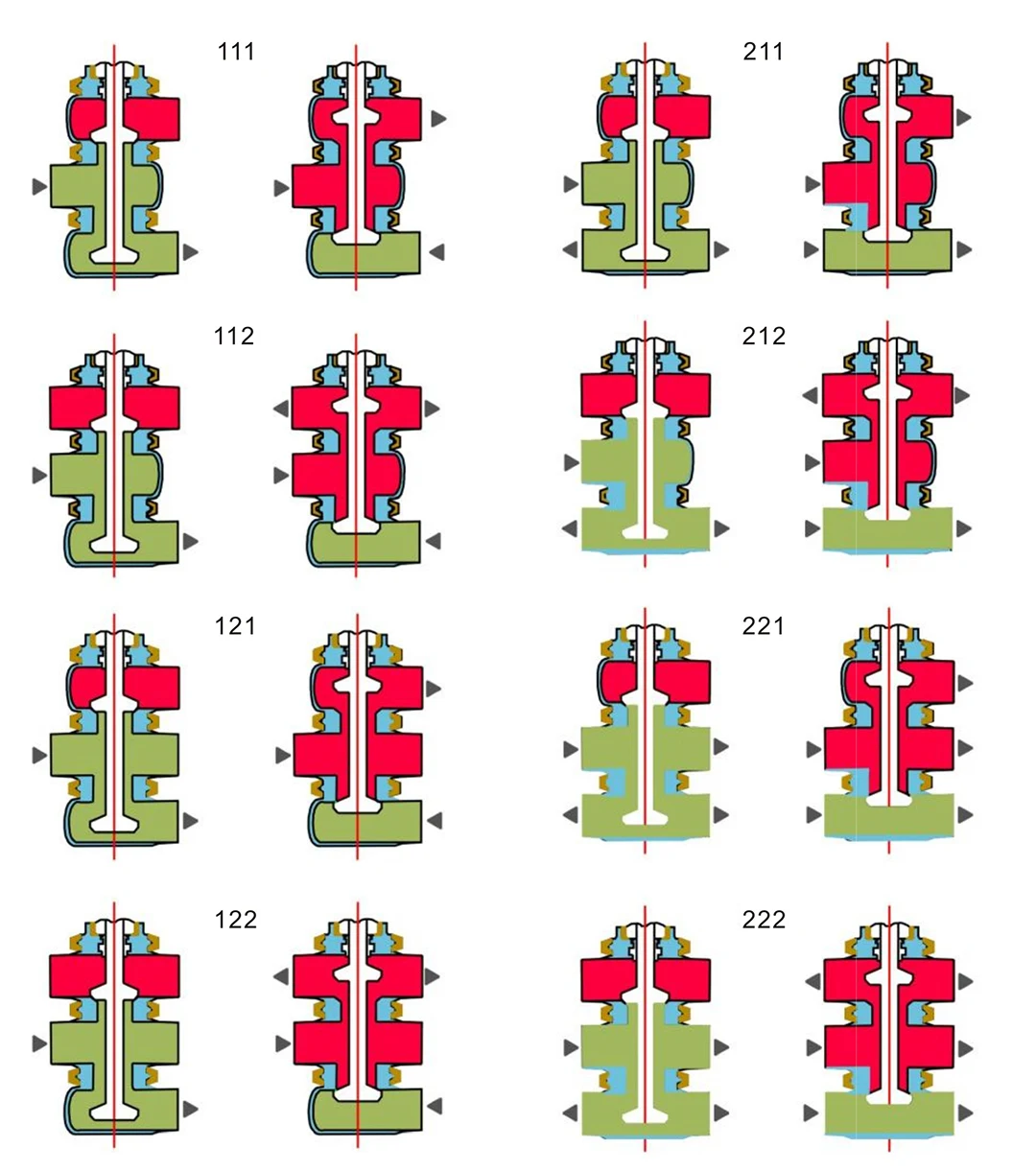

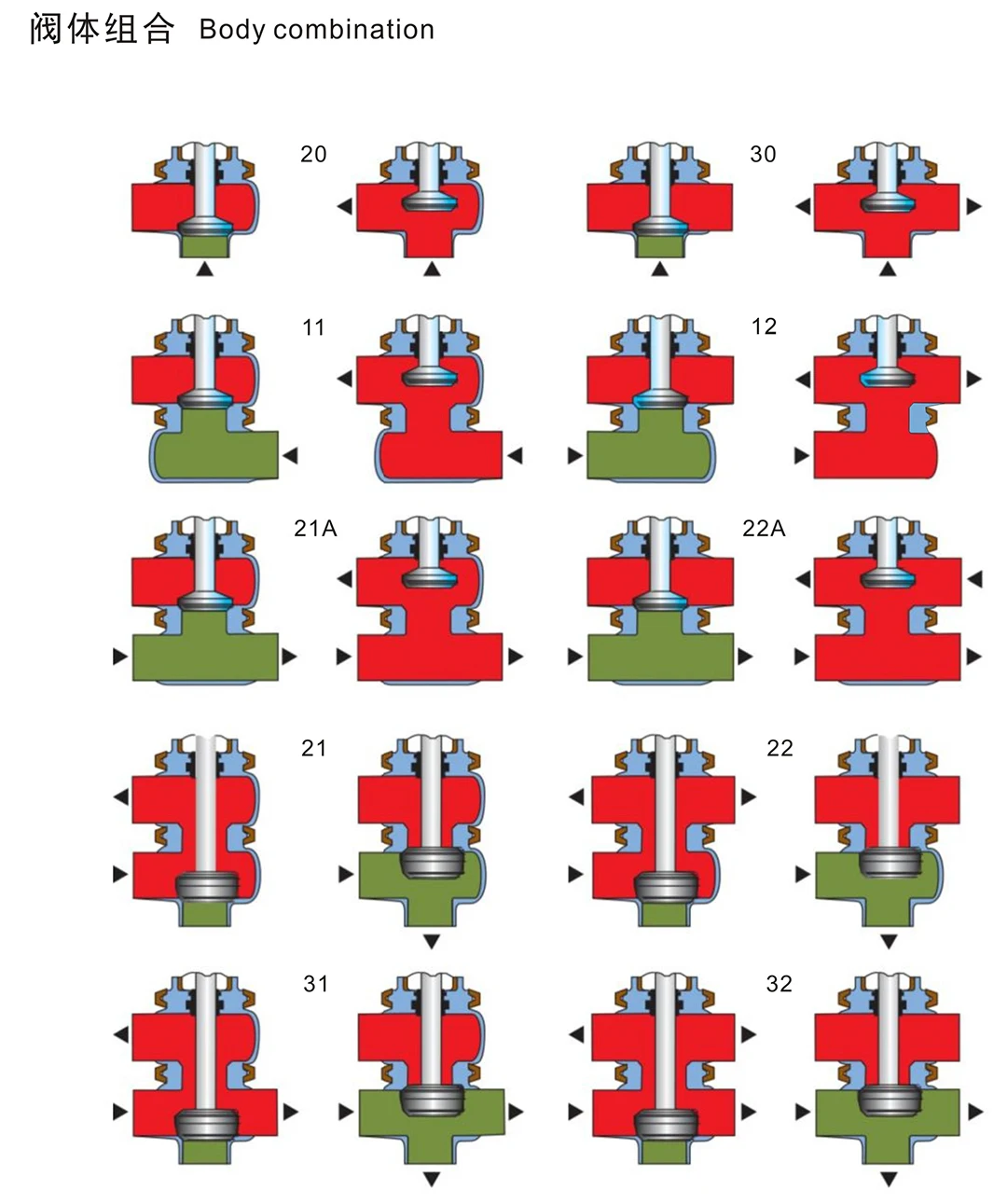

Body Combination | 20 Model,30 Model,11 Model,12Model,21A Model,22A Model,21 Model,22 Model,31Model,32 Model, 111 Model,112 Model,121 Model,122Model,211 Model,212 Model,221 Model,222 Model | ||||||
Connection | Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange | ||||||
Seal Material | Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600 | ||||||
Power Option | Manual Operated | ||||||
SS Pneumatic Actuator | |||||||
Position Sensor, C-top Controller, C-top Controller (AS-I) | |||||||
Working Pressure | ≤10bar(145psi) | ||||||
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) | ||||||
External Surface Treatment | Ra32~64uin(0.8~1.6um) | ||||||
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) | ||||||
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) | ||||||

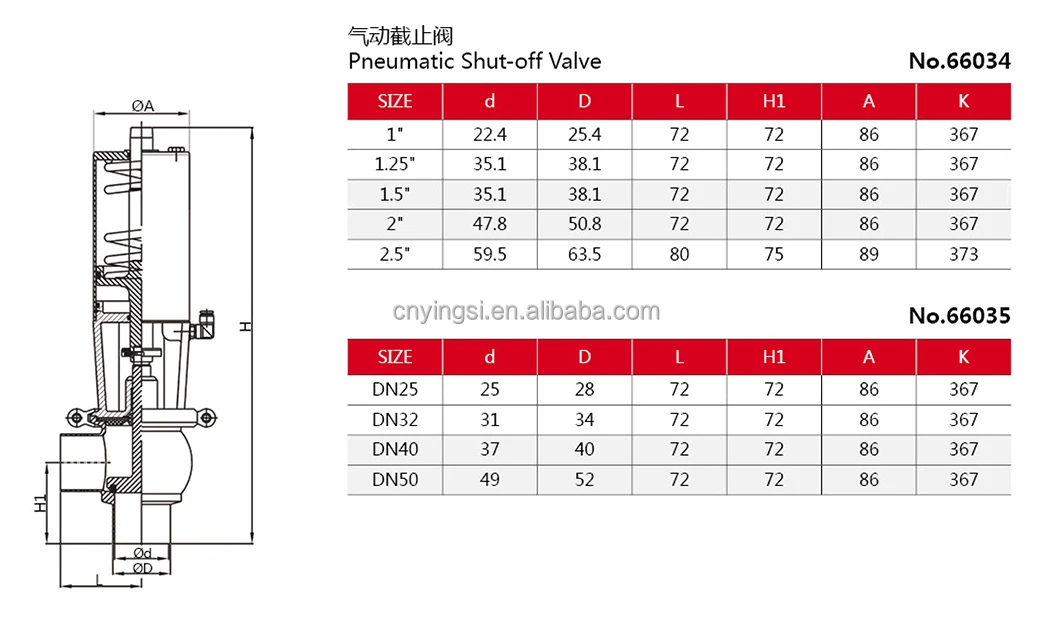

Specification
Technical Specifications
Max. pressure: 10bar
Min. pressure: 0.2bar
Temperature range：
EPDM: -5 ~ 212°F(-20 ~ 100℃)
Silicone: -31 ~ 248°F(-35~ 120℃)
FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request
Min. pressure: 0.2bar
Temperature range：
EPDM: -5 ~ 212°F(-20 ~ 100℃)
Silicone: -31 ~ 248°F(-35~ 120℃)
FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request
Options
1.The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
4. Power operated: Manual,SS Pneumatic Actuator,Position Sensor, C-top Controller,C-top Controller (AS-I)
5.Pneumatic head: Normally Closed(NC)-Air to Open,Spring to Close, Normally Open(NO)-Air to Close,Spring to Open
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
4. Power operated: Manual,SS Pneumatic Actuator,Position Sensor, C-top Controller,C-top Controller (AS-I)
5.Pneumatic head: Normally Closed(NC)-Air to Open,Spring to Close, Normally Open(NO)-Air to Close,Spring to Open
Design Features
1.Various standards can be provided: SMS,DIN,3A
2.Available in sizes from 1/2”-4”, DN10-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.
2.Available in sizes from 1/2”-4”, DN10-DN100
3.Seals comply with FDA 21CFR 177. 2600.
4.The valve body can be customized with a wide selection of different connections.
Quality requirement for compressed air used in actuator
Compressed air connection: Furnish air pipe with air connector R1/8"
Maximum particle size: 0.01mm
Maximum oil content: 0.08ppm
Dew point: 10℃ or lower below atmospheric temparture
Maximum water content: 7.5g/kg
Maximum particle size: 0.01mm
Maximum oil content: 0.08ppm
Dew point: 10℃ or lower below atmospheric temparture
Maximum water content: 7.5g/kg
Application
The Reverse Valves is applied to food-processing industries, especially in the beverage and dairy industries.

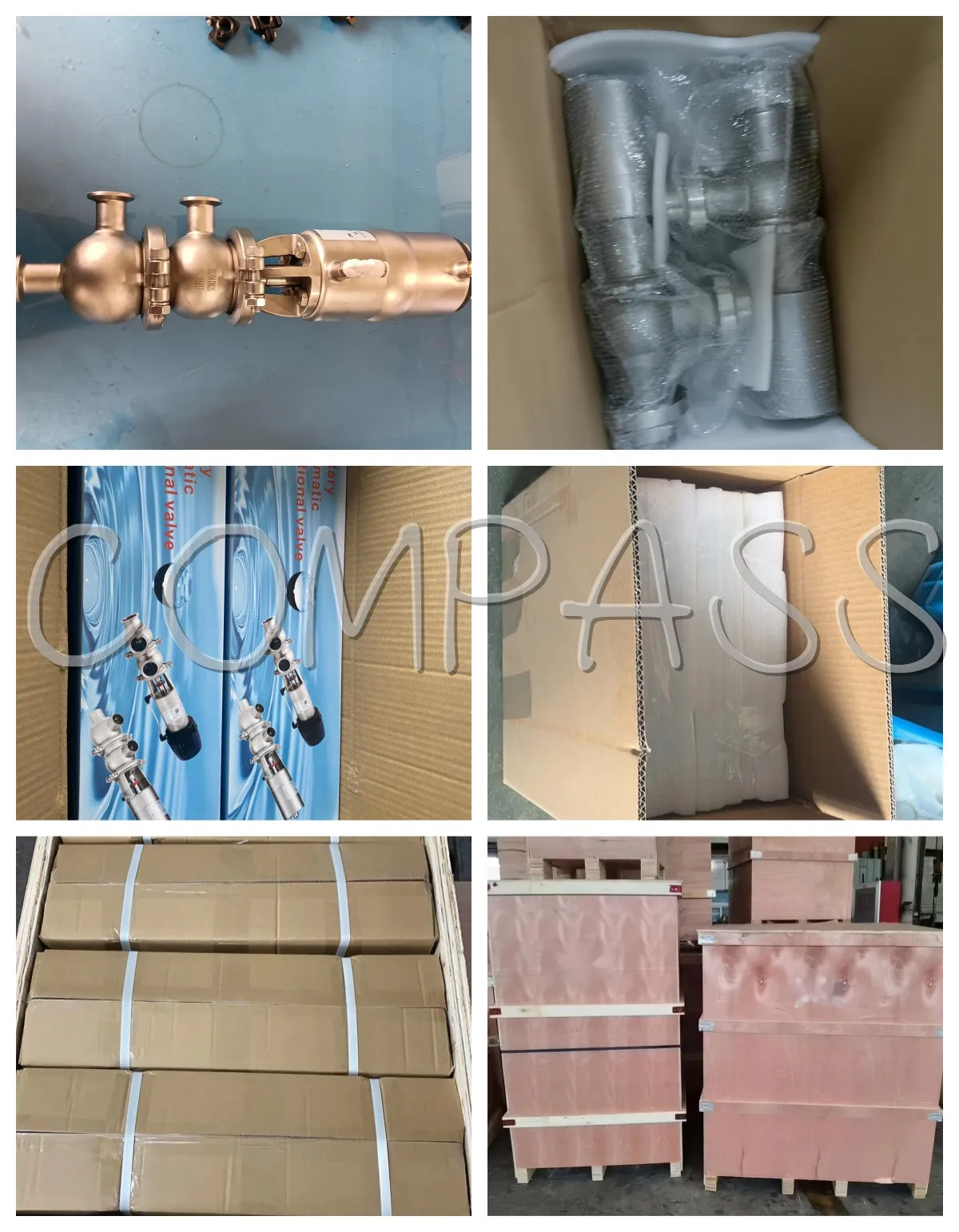

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases ..
Related Products
Company Profile
COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food,beer,beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machiningunit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve,diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump,screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.
COMPASS Manufacturing.
Valve Workshop Section 1
Valve Workshop Section 2
Pipe Fitting Workshop
CNC Mahchine Working
Processing Center
Warehouse Section
Raw Material Section 1
Raw Material Section 1
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Exhibition for Pump and Valve
Compass Team Meeting
Conversation
Conversation
Engineer Meeting Conversation
Engineer Design Valves
FAQ
Q1. Who are we?
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
We are based in ZHEJIANG, China, Founded in 2011,sell to Southeast Asia(30.00%),North America(10.00%),Domestic Market(10.00%),South Asia(5.00%),South America(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Eastern Asia(3.00%),Oceania(2.00%).
Q2. Are you a trading company or factory?
We are a manufacturing factory.
Q3. Why should you buy from us not from other suppliers?
We are 14 years professional valves & fittings manufacturer.
Warranty:Any question or problem will be respond within 24 hours.
Quality control:All the products are calibrated with real working condition, and tested before shipping as qualified product.
Q4. May I have free sample before ordering?
Yes, our company is very pleased to send you free sample for quality test as long as
freight cost being paid by buyers themselves.
Q5. What's the payment terms?
For small testing orders, we accept Paypal, Western Union, T / T and credit Card.
For mass orders, we accept T/T and L/C.
Q6. How do you control the quality?
Quality control is very important to avoid material mixing and poor quality,We control the
quality from begining to the end. We only have 304 and 316L two different material.100%
inspection on raw material.During production, different materials in different place. After
materials are finished, we choose 10% for inspection.If there is 0.1% problem in 10%,
then no excuse to go ahead for inspecting 100% of the materials.
Q7. If there is any quality problem, how do you solve it?
We are proud that we never let one customer leave us. We are not 100% perfect,there is
some quality problem.We try our best to provide the correct materials in the begining, so
we need less time for quality problem.If there is an quality problem,we take the
responsibility, customer will leave us.If we always take our responsibility, we keep our
customers with us.
Q8. How long is your delivery time?
For normal production in 7-10 days.For bullk order in 15-25 days.
Q9. Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to
the different application for customers.
Q10. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery.
Accepted Payment Currency:USD,EUR,CNY.
Accepted Payment Type: T/T,L/C,D/P D/A,Credit.
Q11. More questions are appreciated.
How to Order ?
1.What's material, such as SS304 or SS316L ?
2.What’s available size, such as 1inch to 4inch, DN25 to DN100 ?
3.What’s connection end, such as butt-weld, tri-clamp, male threaded or female threaded ?
4.What’s body cobmination, such as 20model, 21model, 30model, 22model ?
5.What’s power, such as manual, pneumatic actuator or control head 24v ?
2.What’s available size, such as 1inch to 4inch, DN25 to DN100 ?
3.What’s connection end, such as butt-weld, tri-clamp, male threaded or female threaded ?
4.What’s body cobmination, such as 20model, 21model, 30model, 22model ?
5.What’s power, such as manual, pneumatic actuator or control head 24v ?
